Product Description

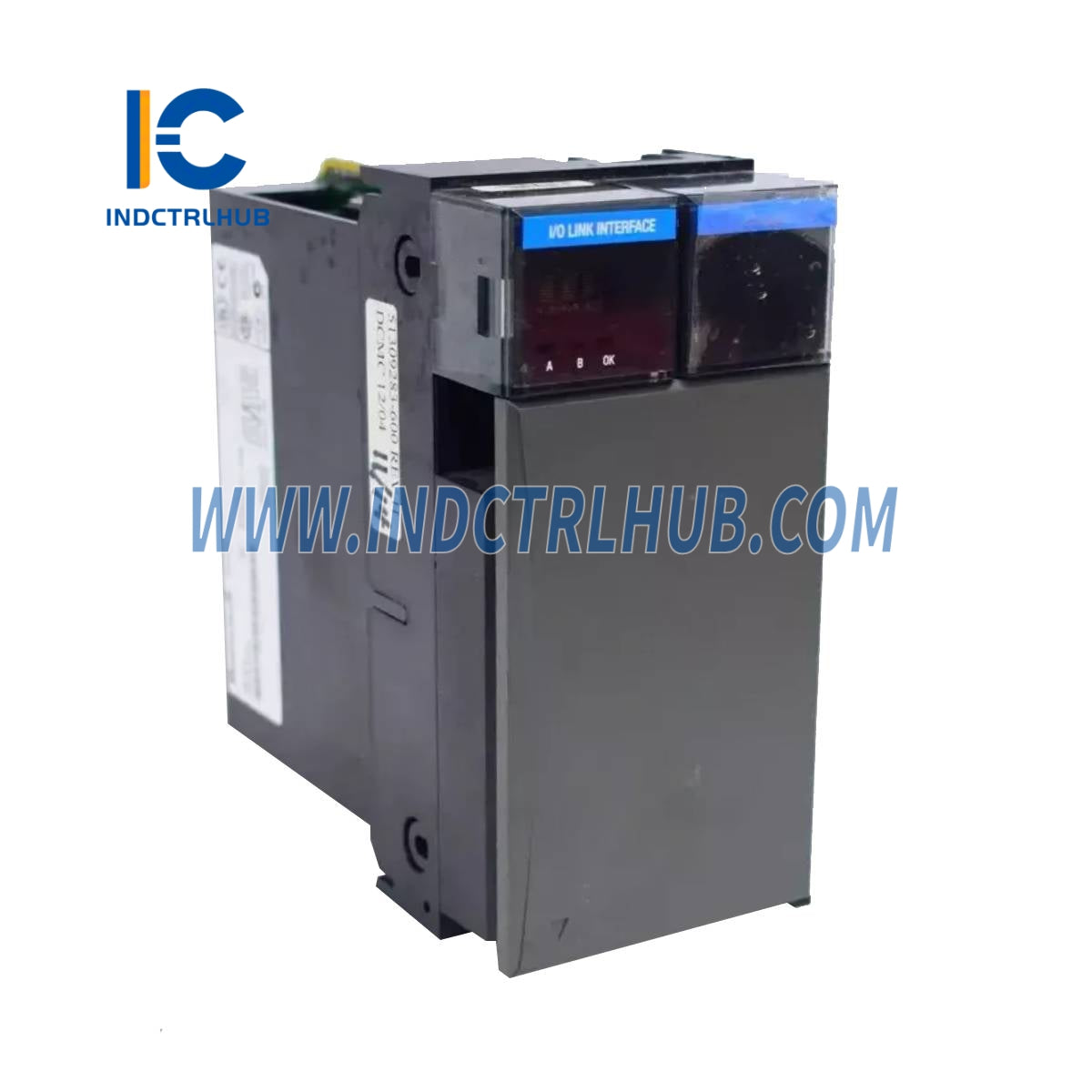

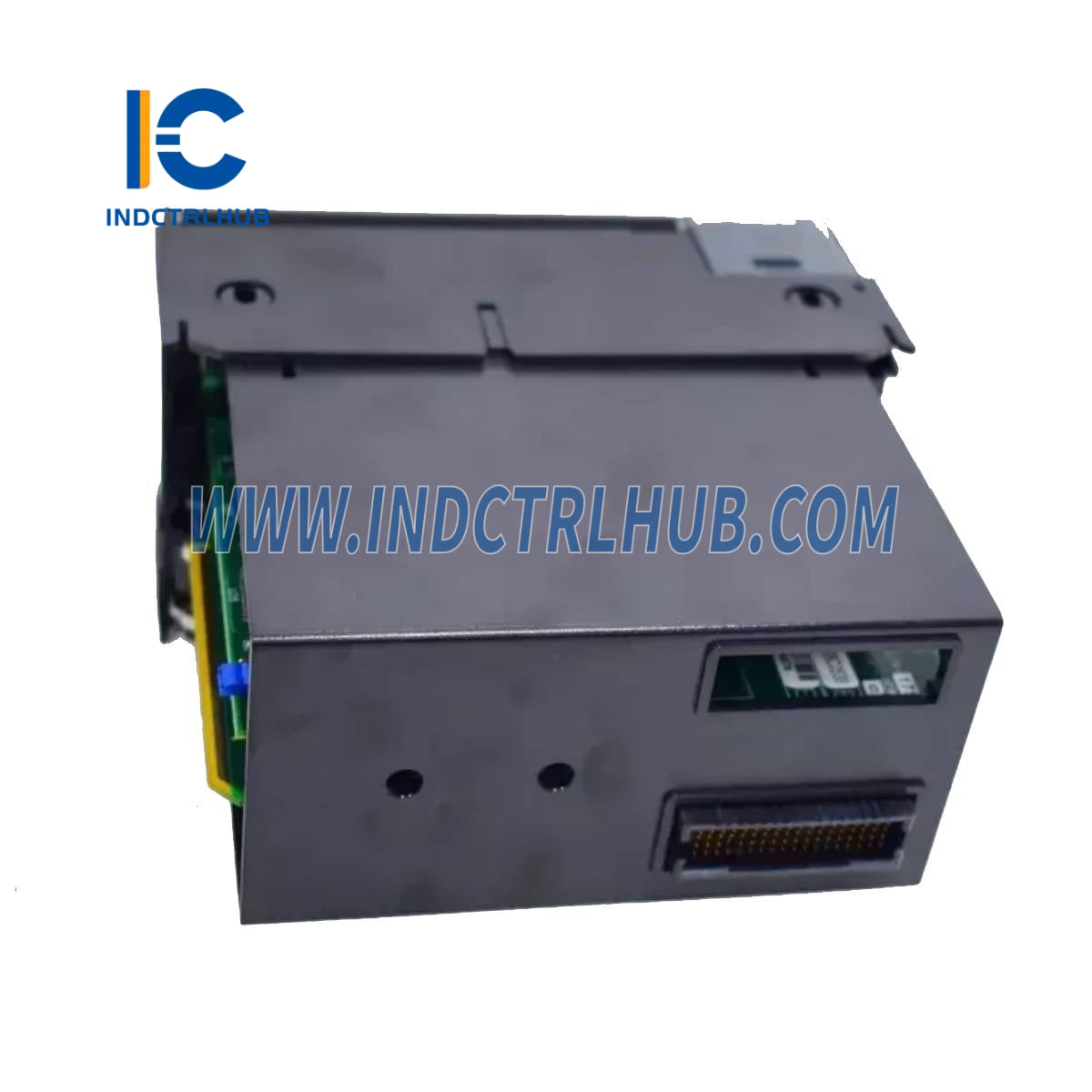

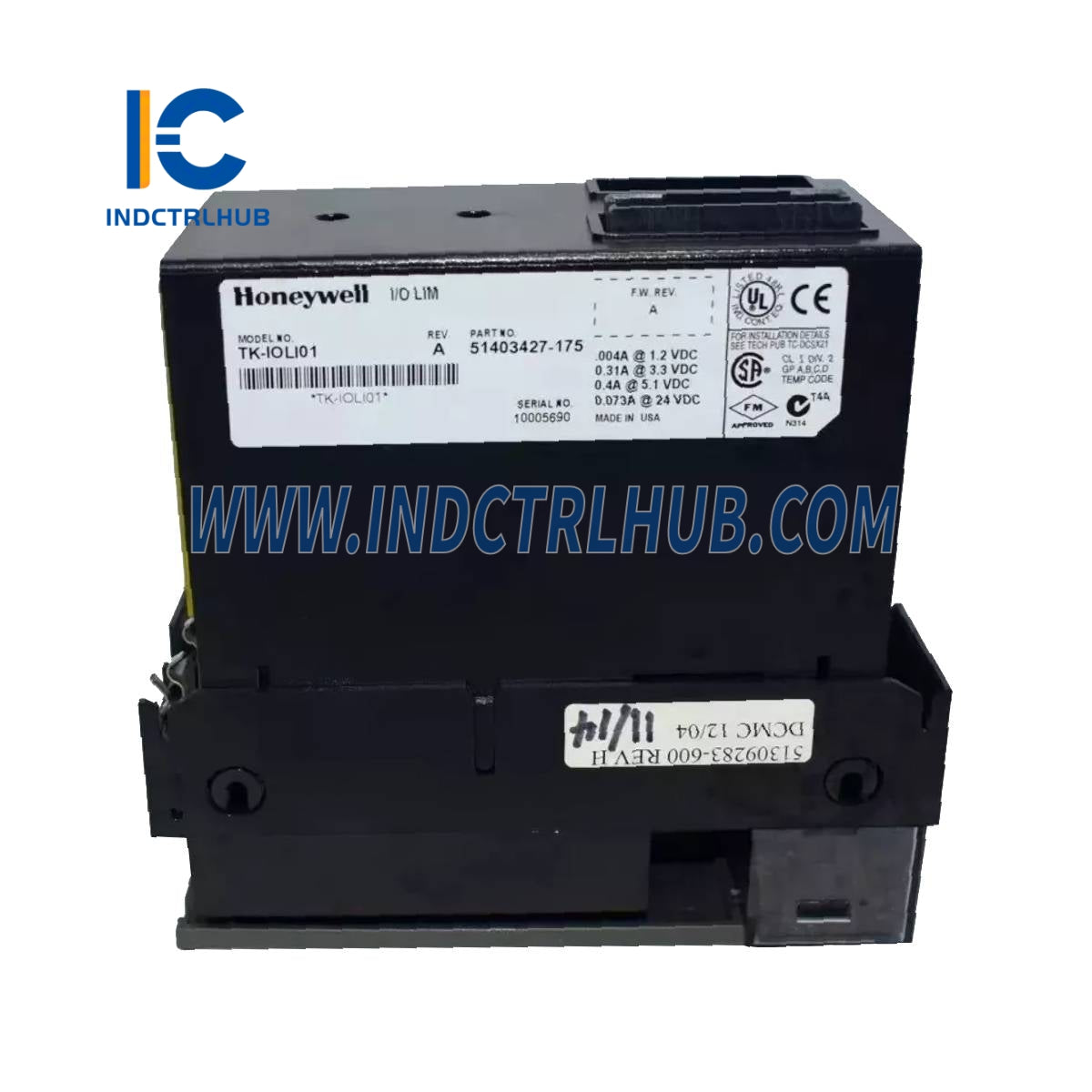

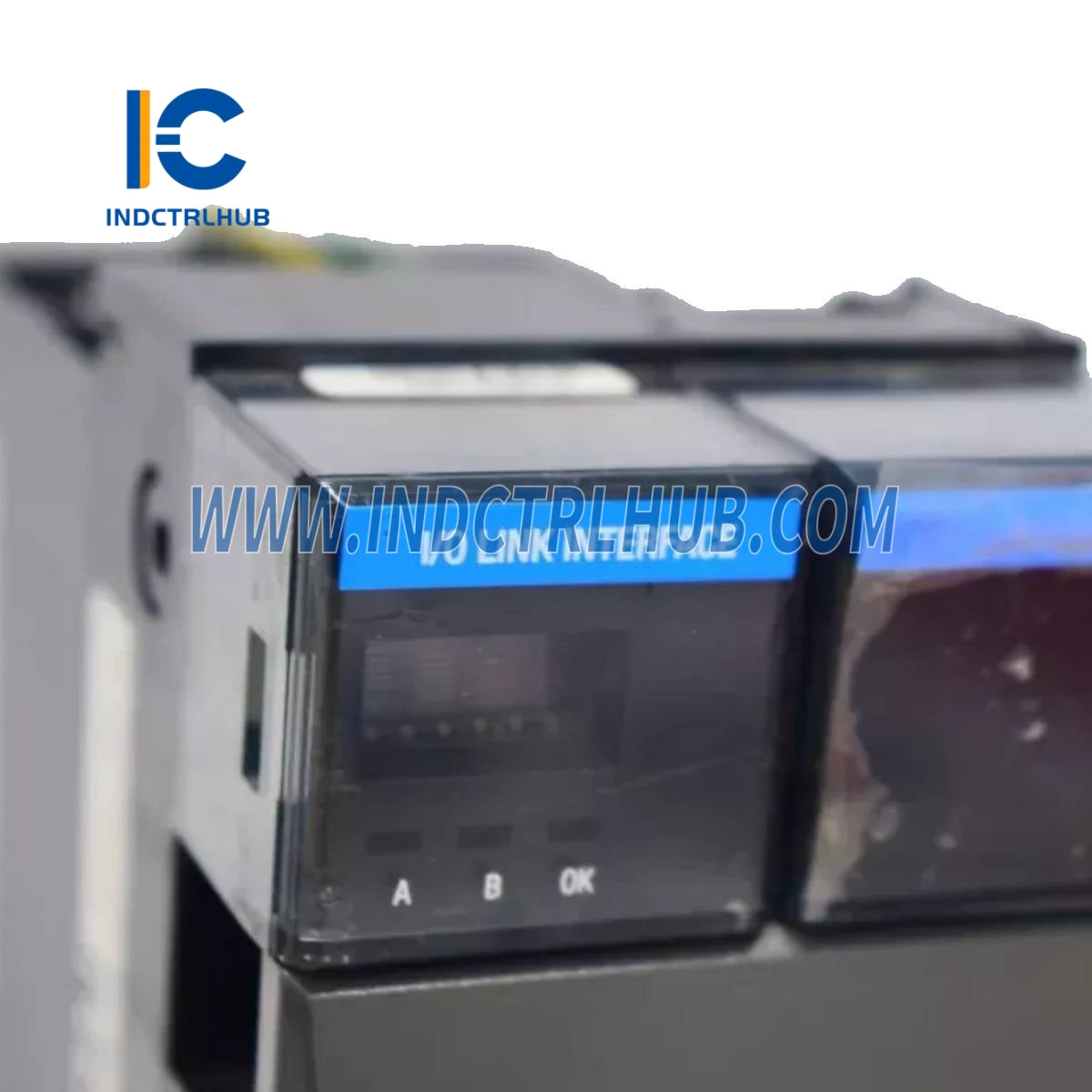

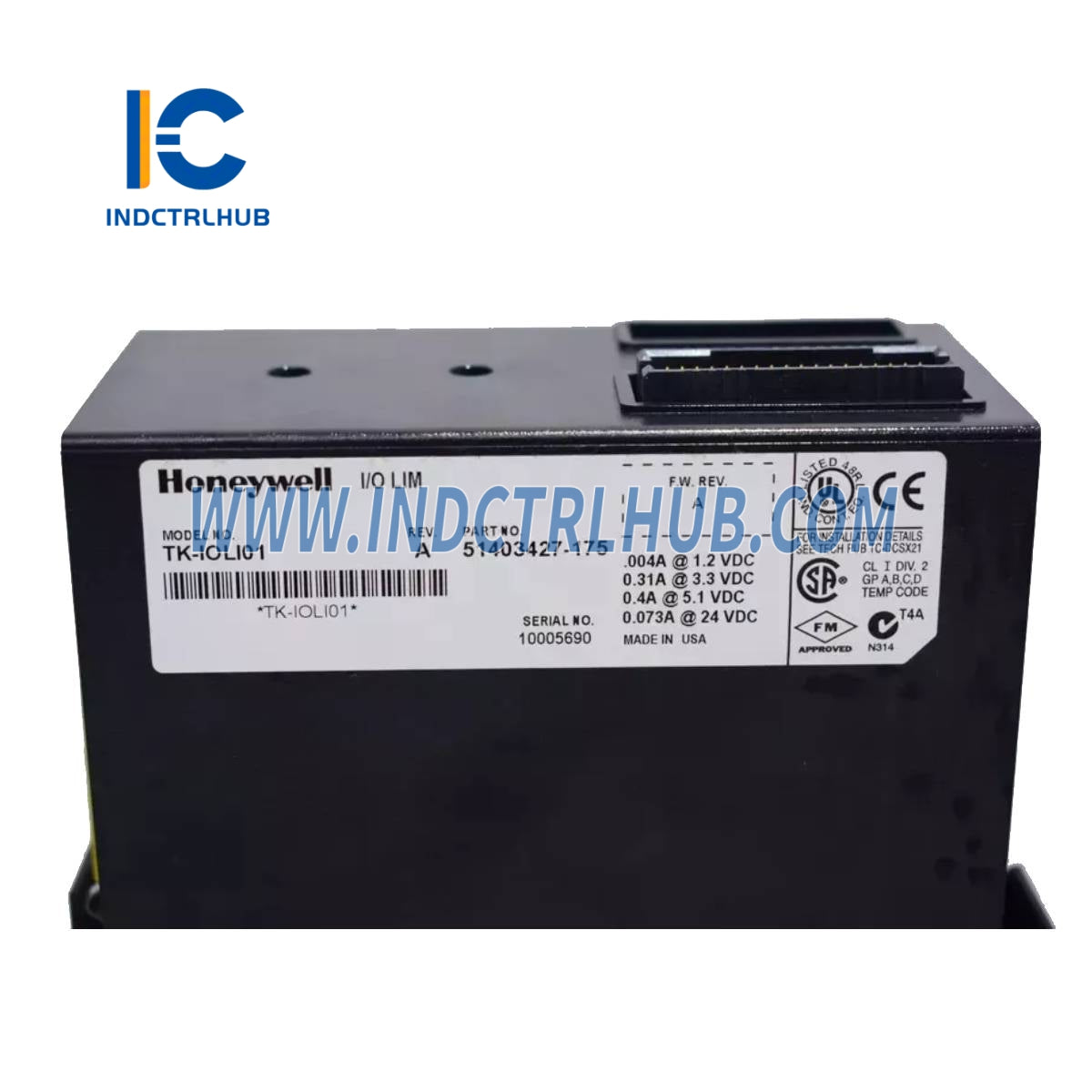

Honeywell TK-IOLI01 51403427-175 I/O Link Module
Product Overview
- The Honeywell TK-IOLI01 51403427-175, also known as the IOLIM (I/O Link Interface Module), is a component of the Honeywell Experion LS system, specifically designed for the Series C200 platform. This module serves as an interface to facilitate communication between the Experion LS system and various I/O Link devices, such as sensors, actuators, and encoders. It is ideal for industrial automation applications requiring reliable and flexible I/O connectivity in industries like oil and gas, chemical, and manufacturing.
Technical Specifications
- The TK-IOLI01 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | TK-IOLI01 51403427-175 |
| Alternate Part Number | 51309283-600 |
| Manufacturer | Honeywell |
| Description | I/O Link Interface Module (IOLIM) |
| Series | Experion LS / Series C200 |
| Device Capacity | Up to 16 I/O Link devices |
| Power Requirements | 24 VDC |
| Power Consumption | 10 W |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 0 to 95% RH, non-condensing |
| Vibration | 0.5 g RMS, 5 to 500 Hz |
| Shock | 15 g, 11 ms |
| Dimensions | 134 x 71 x 21 mm (5.3 x 2.8 x 0.8 inches) |
| Weight | Approx. 0.45 kg (1.0 lb) |
Additional Details
- The TK-IOLI01 includes the following additional information based on its standard use and documentation:
- Function: Enables communication between the Experion LS system and I/O Link devices, supporting data acquisition and control for a variety of field devices.
- Mounting: Installs in Experion LS system racks, designed for modular integration with other Series C200 components.
- Compatibility: Compatible with Honeywell’s Experion LS and Series C200 controllers; supports a variety of I/O Link devices, including sensors, actuators, and encoders.
- Configuration: Configurable via Experion LS Configuration Manager; supports redundant configurations for high availability.
- Certifications: Meets CE and other relevant standards for industrial environments.
