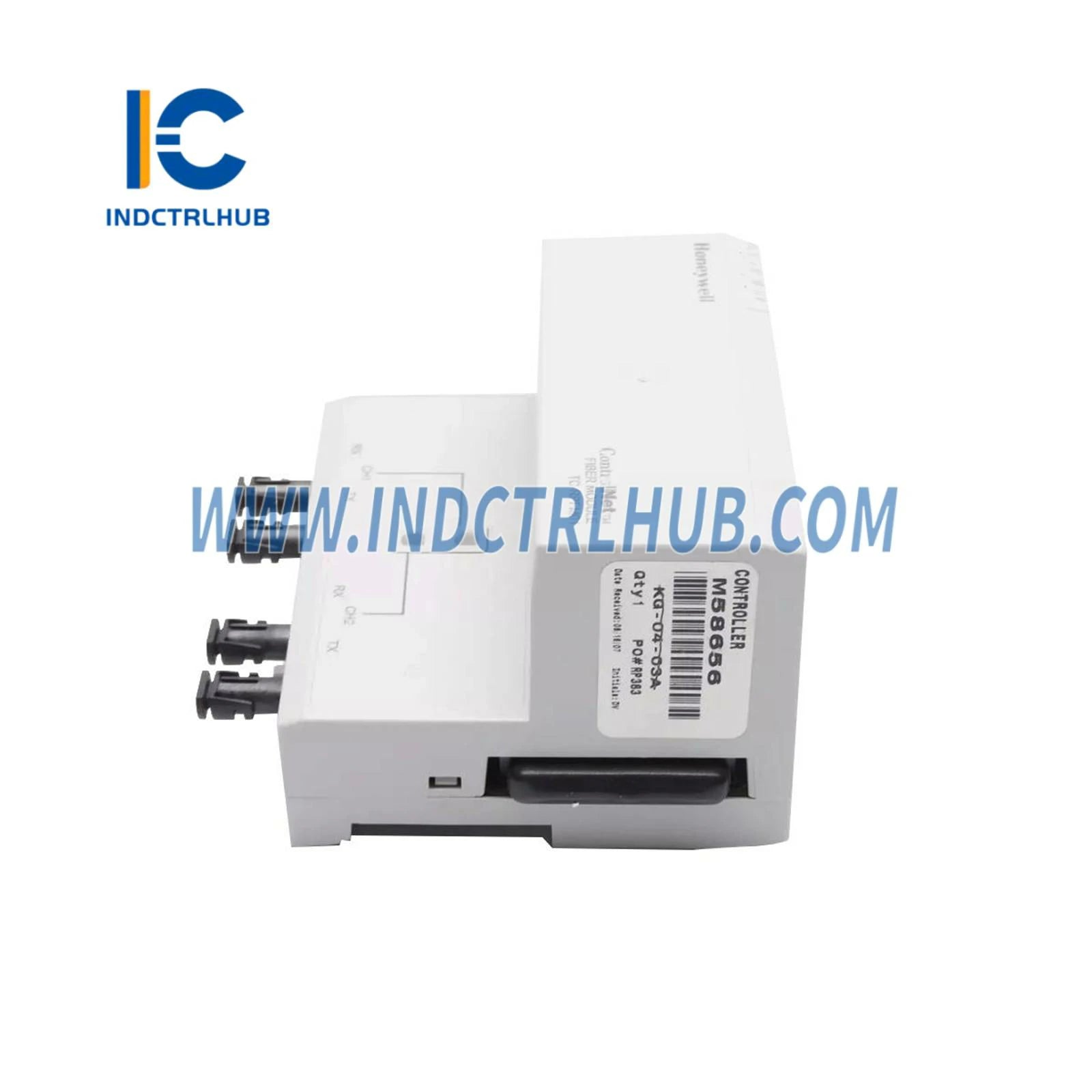

Honeywell TC-RPFM01 ControlNet Fiber Optic Repeater Module

Honeywell TC-RPFM01 ControlNet Fiber Optic Repeater Module

Product Overview

• The Honeywell TC-RPFM01 is a ControlNet Fiber Optic Repeater Module designed for use in Honeywell’s Experion Process Knowledge System (PKS) and other ControlNet-based industrial automation systems. This module extends ControlNet communication by converting coaxial signals to fiber optic links, enabling reliable data transmission over long distances in harsh industrial environments. It is ideal for applications requiring robust network connectivity and extended communication ranges.

Technical Specifications

• The TC-RPFM01 has the following specifications based on standard characteristics for this model:

Additional Details

• The TC-RPFM01 includes the following additional information based on its standard use and documentation:
• Function: Converts ControlNet coaxial signals to fiber optic links, extending communication range and improving signal integrity in noisy environments.
• [](https://www.manualslib.com/manual/1776041/Honeywell-Tc-Rpfm01.html?page=11)[](https://www.industrialservomotor.com/sale-11962932-honeywell-tc-rpfm01-fiber-optics-repeater-cnet-fbo-repeater-fiber-module-controlnet-4a.html)
• Mounting: Installs in Experion PKS I/O rack or ControlNet repeater hub, typically paired with a ControlNet Repeater Adapter.
• Compatibility: Compatible with Honeywell’s Experion PKS C300 Controller, ControlNet networks, and related repeater modules (e.g., TC-RPCXX1).
• Configuration: Requires two TC-RPFM01 modules per fiber optic link (one at each end) for bidirectional communication; supports multi-mode fiber optics.
• Certifications: Meets UL, CE, and ATEX standards for industrial and hazardous environments.
