| Module Type |
Redundant ControlNet Interface Module, Single Media |
| Communication |
Single ControlNet port (BNC connector, coaxial cable) |
| Communication Protocol |
ControlNet, supports Modbus TCP/IP, EtherNet/IP, PROFINET |
| Data Rate |
Up to 5 Mbps |
| Power Supply |
24 V DC (18 to 32 V DC range) |
| Power Consumption |
2 W |
| Diagnostics |

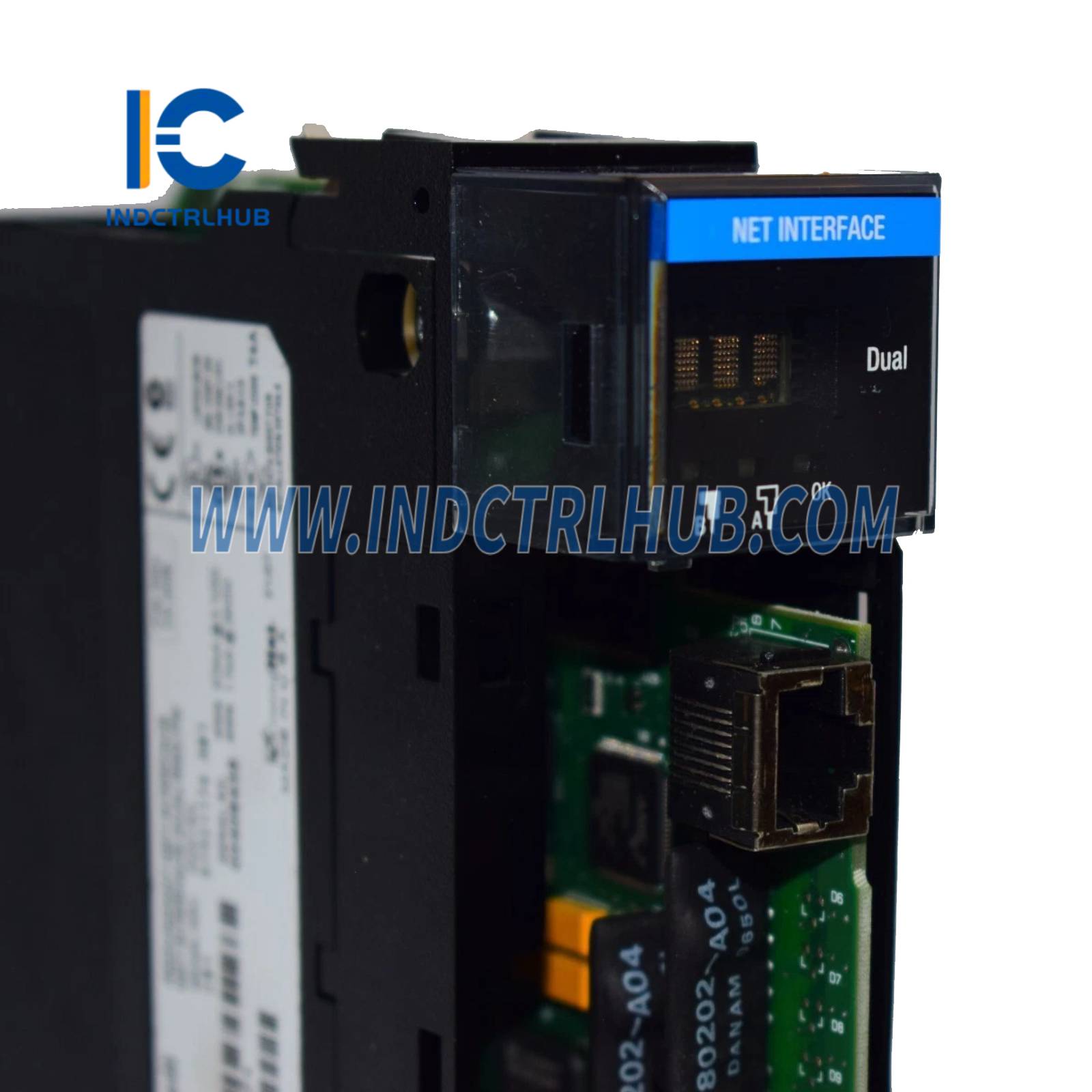

LED indicators for network status, module status, and fault detection |
| Redundancy |
Supports redundant operation with another TC-CCR014 module |
| Ambient Temperature Range |
-40 to 70°C |
| Humidity Range |
5% to 95% (non-condensing) |
| Protection Class |
IP65 |
| Dimensions |
132 mm x 25 mm x 170 mm (L x W x H) |
| Weight |
0.45 kg |
| Standards Compliance |
CE, TUV, UL508, CSA, IEC 61131-2 |
