Product Description

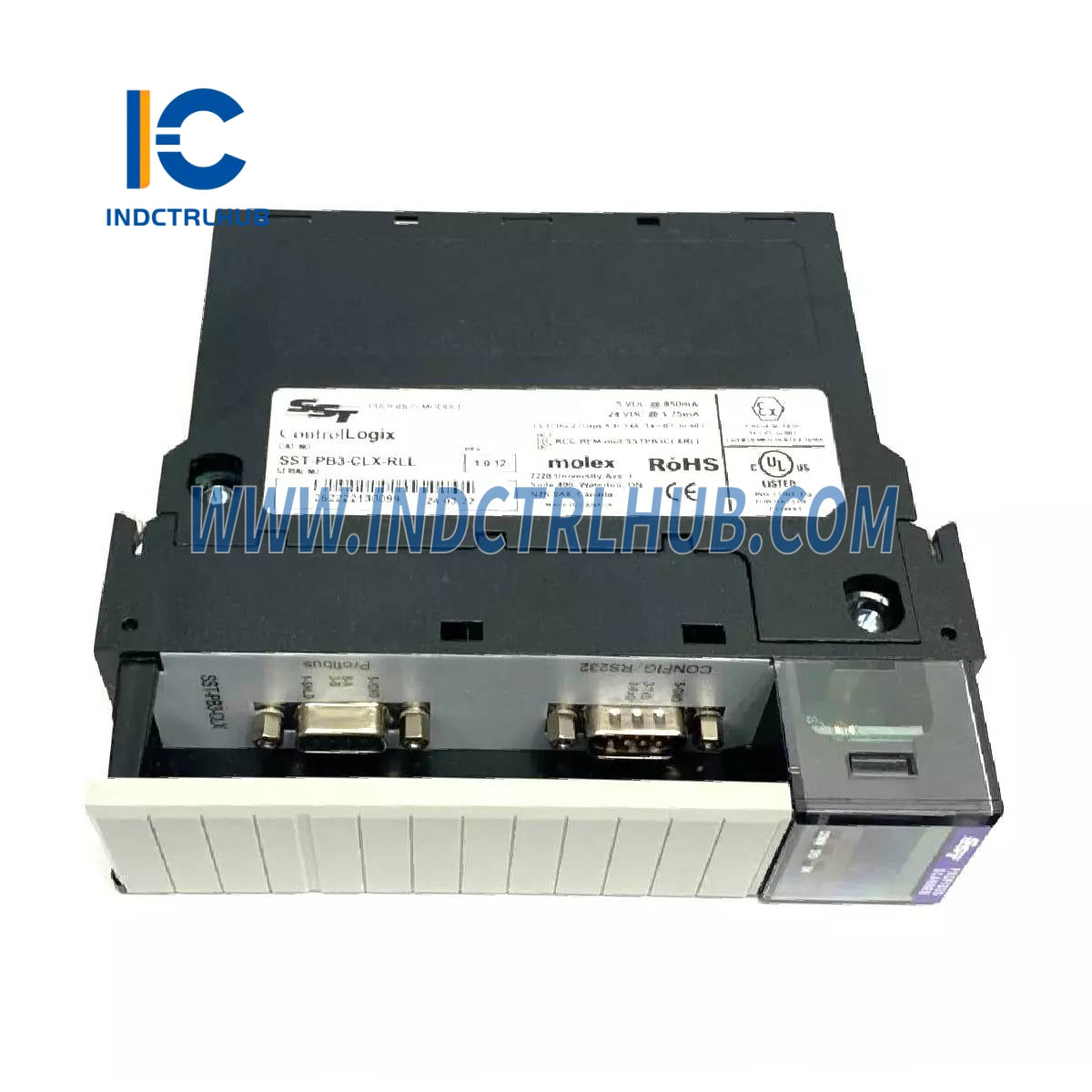

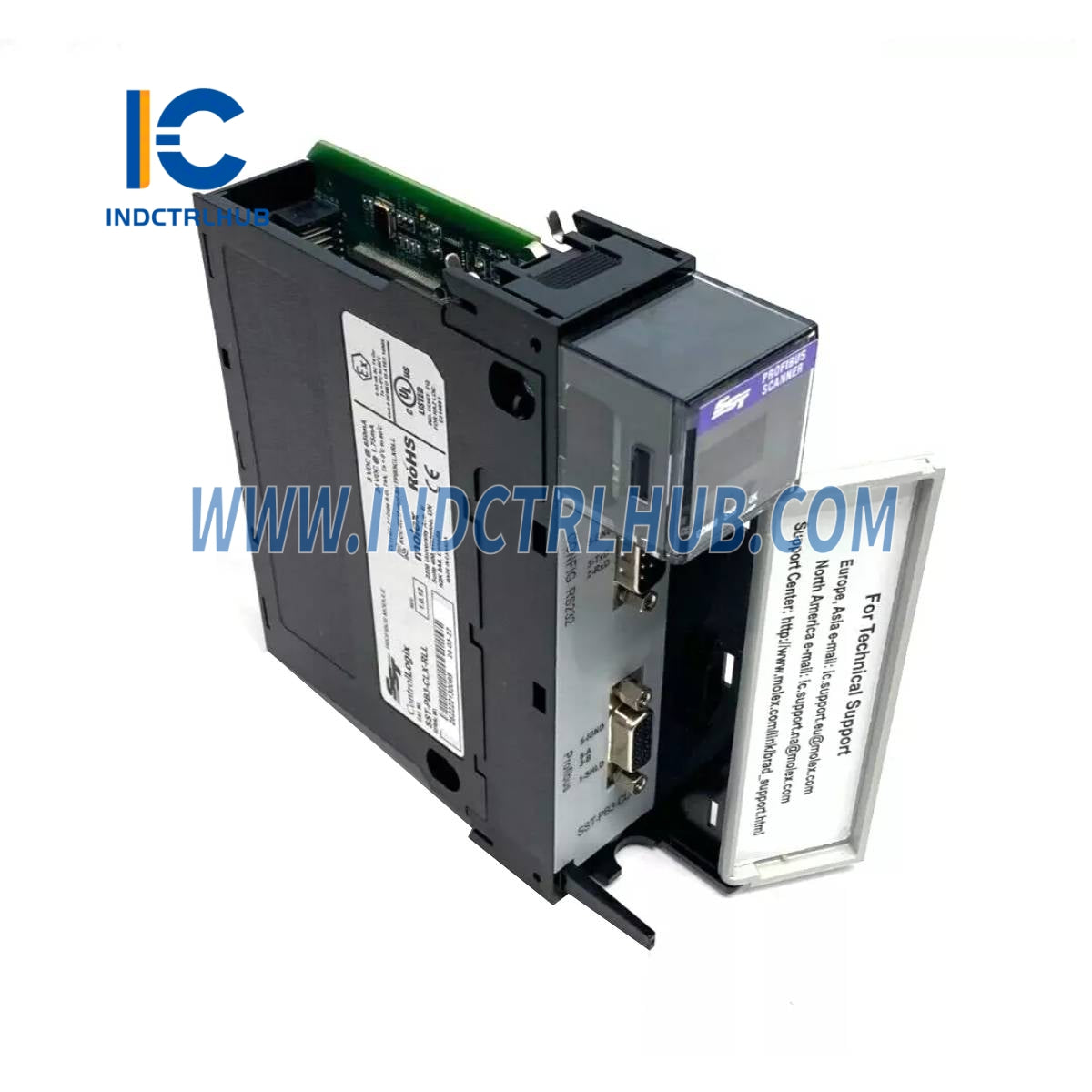

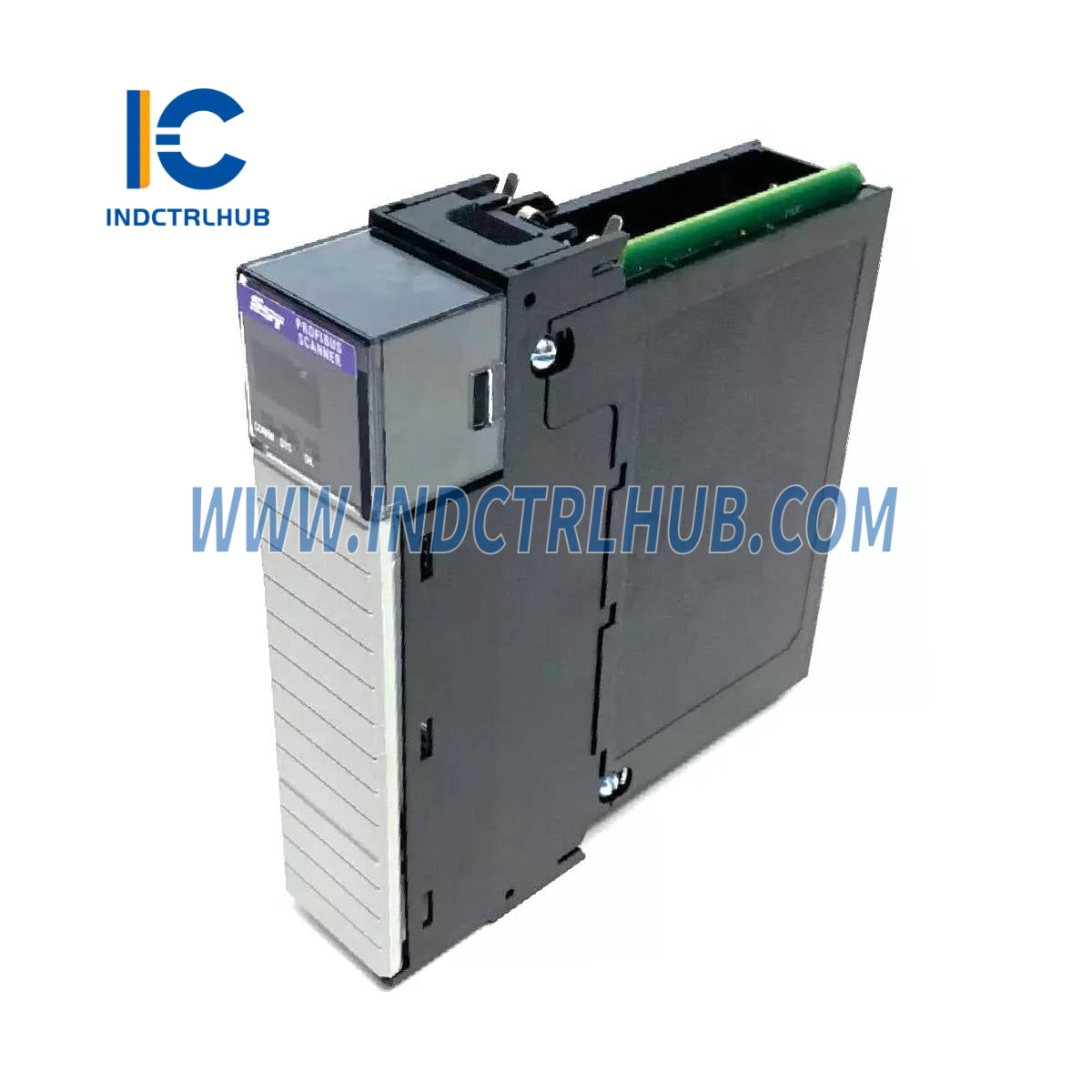

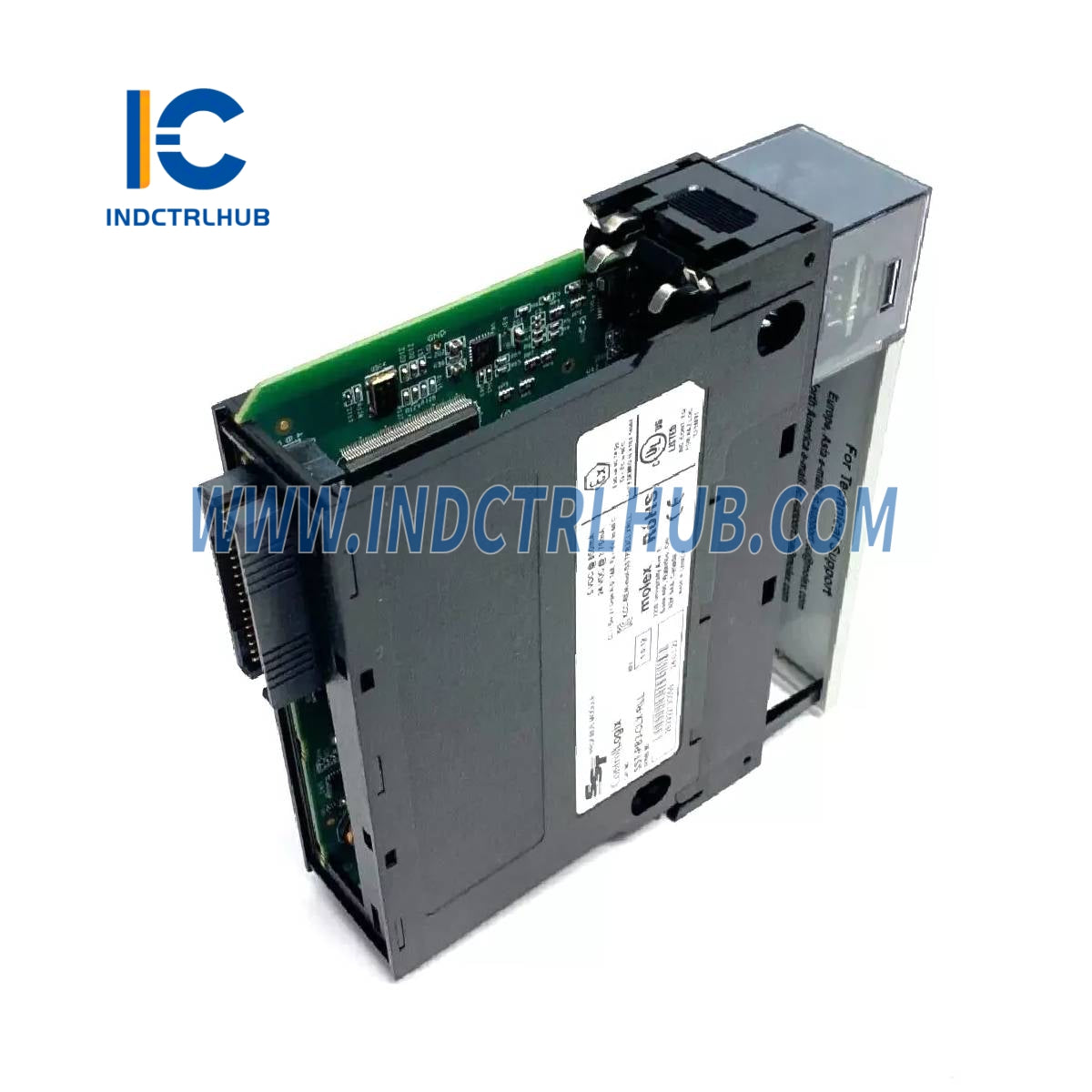

Honeywell SST-PB3-CLX PROFIBUS Scanner Module
Product Overview
- The Honeywell SST-PB3-CLX is a PROFIBUS Scanner Module, manufactured by Molex (a Woodhead brand and Rockwell Automation encompass partner), designed for integration with Rockwell Automation’s ControlLogix 1756 backplane and Honeywell’s PlantScape system. This module enables communication between ControlLogix processors or Honeywell PlantScape systems and PROFIBUS DP remote I/O devices, acting as a PROFIBUS DP Master and/or Slave. It is ideal for industrial automation applications requiring robust connectivity in industries such as oil and gas, chemical, and manufacturing.
Technical Specifications
- The SST-PB3-CLX has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | SST-PB3-CLX |
| Manufacturer | Honeywell (Molex/Woodhead) |
| Description | PROFIBUS Scanner Module, DP Master/Slave |
| Series | ControlLogix 1756 / Honeywell PlantScape |
| Communication Protocol | PROFIBUS DP (Master and/or Slave, Firmware Revision 7.25) |

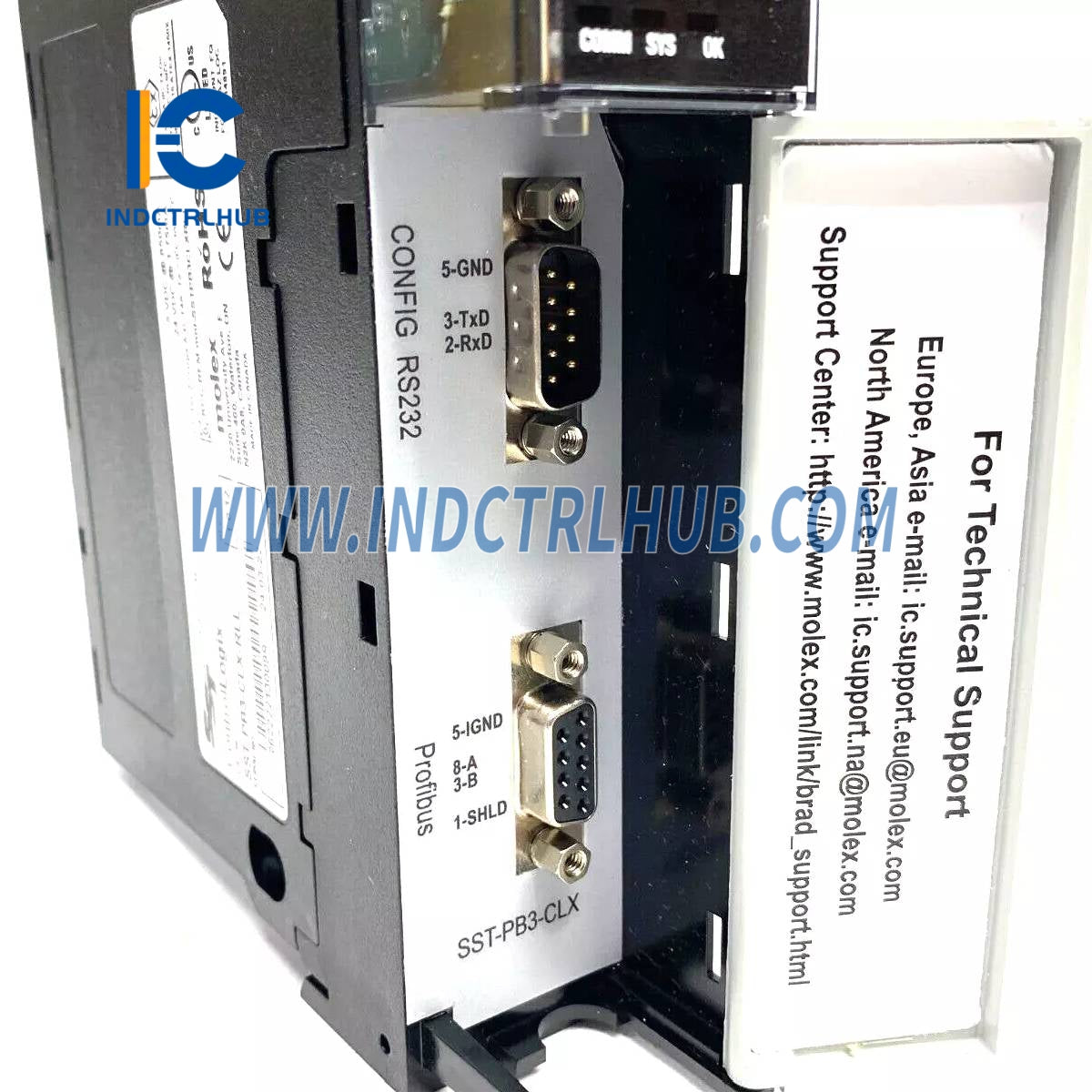

| Port | 1 x 9-pin D-sub female connector |
| Device Capacity | Up to 125 PROFIBUS DP slave devices |
| Data Capacity | 122 words input, 122 words output per slave 1984 bytes input, 1968 bytes output (Master, 4 I/O pages) |
| Baud Rates | 9600, 19200, 31.25k, 45.45k, 93.75k, 187.5k, 500k, 1.5M, 3M, 6M, 12M |
| Power Supply | Via ControlLogix backplane (5 VDC, 24 VDC typical) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approx. 0.43 kg (0.95 lb) |
