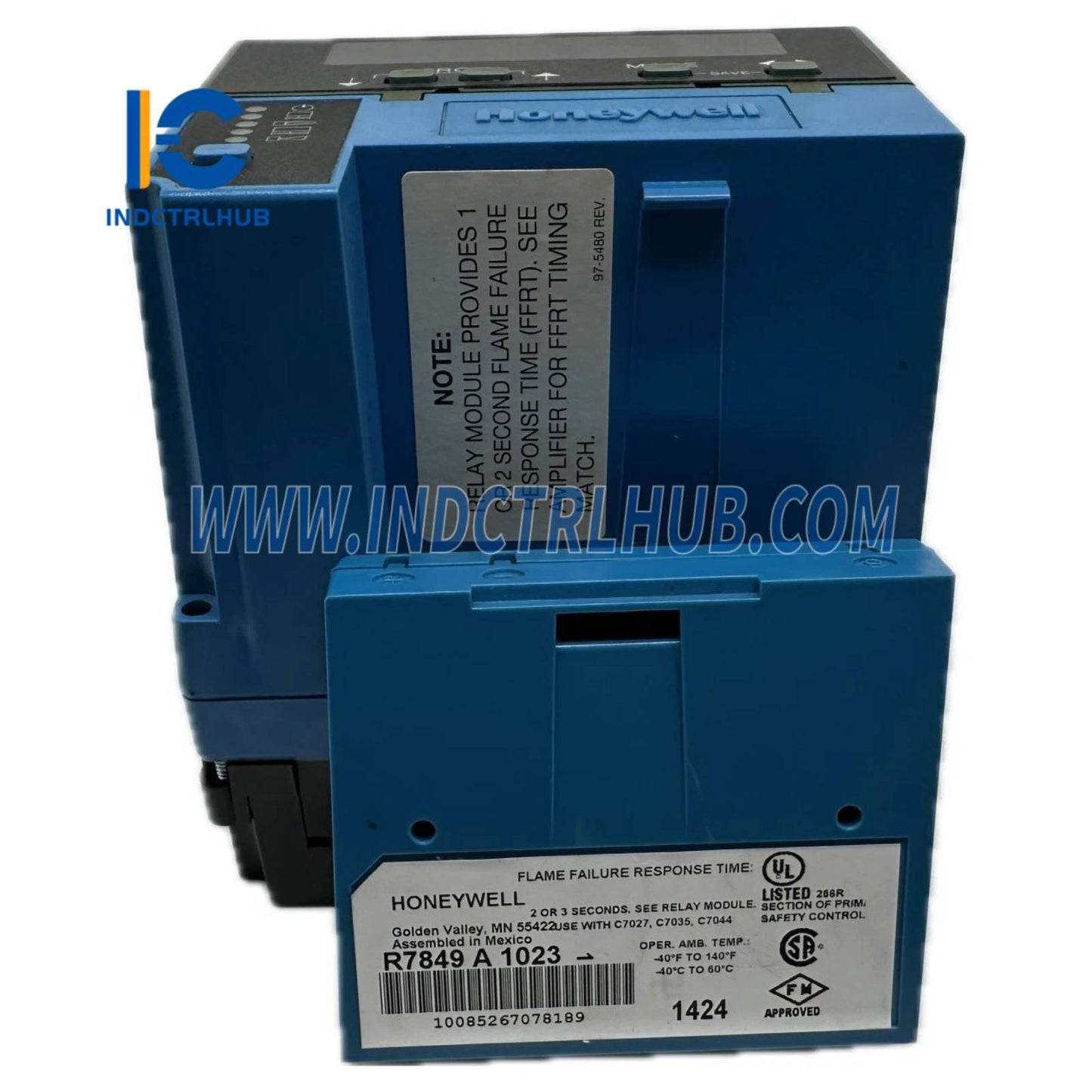

Honeywell R7849A1023 Flame detection for burner control systems

Honeywell R7849A1023 Flame detection for burner control systems

  • Manufacturer: Honeywell

  • Product No.: R7849A1023

  • Condition:1000 in stock

  • Product Type: Flame detection for burner control systems

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

Parameter Details
Part Number R7849A1023
Product Name Ultraviolet Flame Amplifier
Application Flame detection for burner control systems
Compatibility Works with Honeywell 7800 SERIES and R7140 Relay Modules
Function Amplifies ultraviolet signal from flame detector to indicate flame presence

Functional Specifications

Parameter Details
Flame Detection System For use with C7027, C7035, C7044 Minipeeper Ultraviolet Detectors
Flame Failure Response Time (FFRT) 2.0 or 3.0 seconds
Flame Signal Strength 0.0 to 5.0 V DC
Self-Checking None (standard)
Connection Plugs into 7800 SERIES or R7140 Relay Module via printed circuit board edge connector, keyed for proper orientation
Diagnostics Flame signal test jacks for measuring amplifier flame signal voltage
Indicators Color-coded purple label for UV detection type
Ambient Temperature Range -40 to 60°C
Mounting Plugs directly into relay module
Standards Compliance CE, UL, CSA, FM



View full details

Product Description

Product Overview

Parameter Details
Part Number R7849A1023
Product Name Ultraviolet Flame Amplifier
Application Flame detection for burner control systems
Compatibility Works with Honeywell 7800 SERIES and R7140 Relay Modules
Function Amplifies ultraviolet signal from flame detector to indicate flame presence

Functional Specifications

Parameter Details
Flame Detection System For use with C7027, C7035, C7044 Minipeeper Ultraviolet Detectors
Flame Failure Response Time (FFRT) 2.0 or 3.0 seconds
Flame Signal Strength 0.0 to 5.0 V DC
Self-Checking None (standard)
Connection Plugs into 7800 SERIES or R7140 Relay Module via printed circuit board edge connector, keyed for proper orientation
Diagnostics Flame signal test jacks for measuring amplifier flame signal voltage
Indicators Color-coded purple label for UV detection type
Ambient Temperature Range -40 to 60°C
Mounting Plugs directly into relay module
Standards Compliance CE, UL, CSA, FM
