Product Description
Product Details
|
Manufacturer |
Honeywell |
|---|---|
|
Model/Part Number |

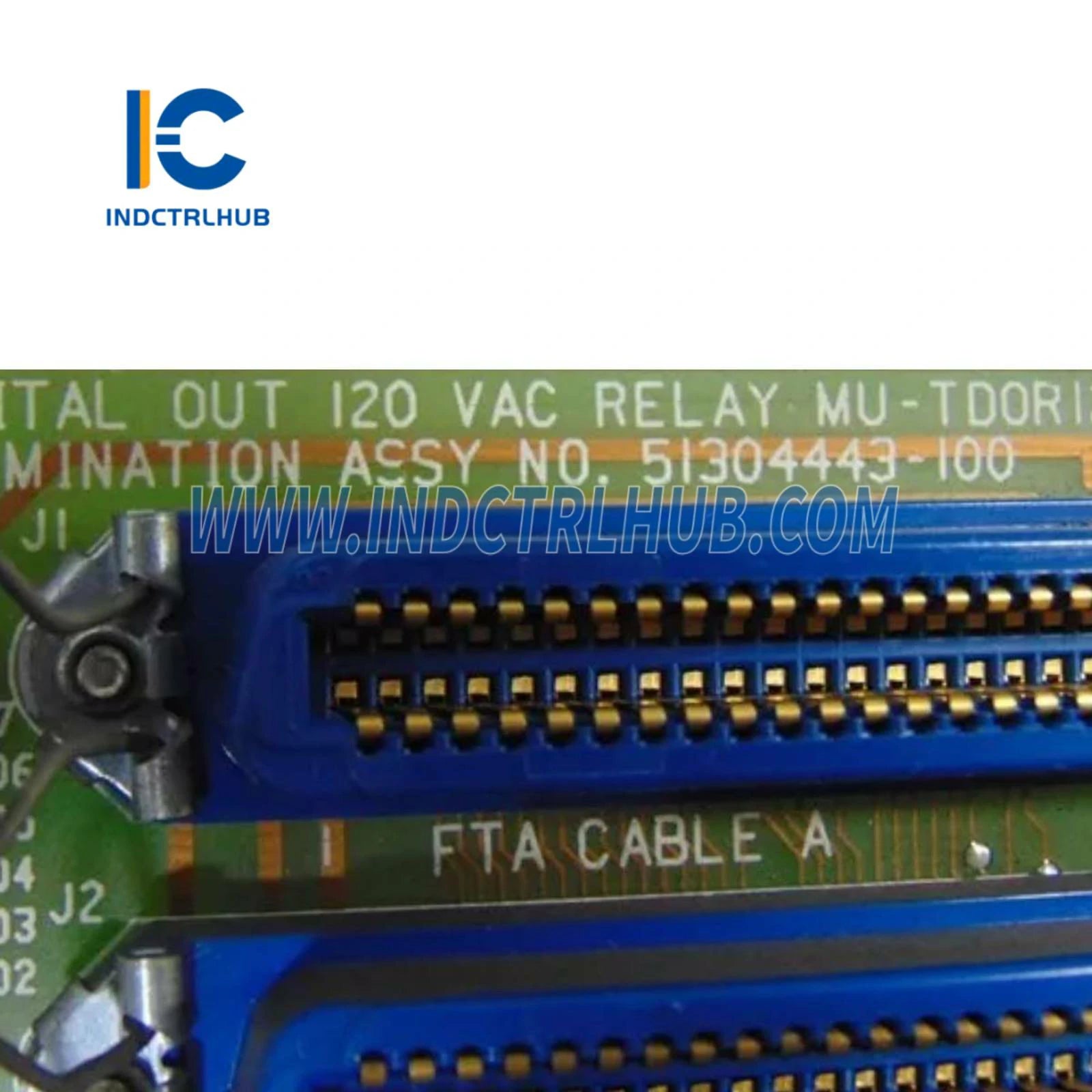

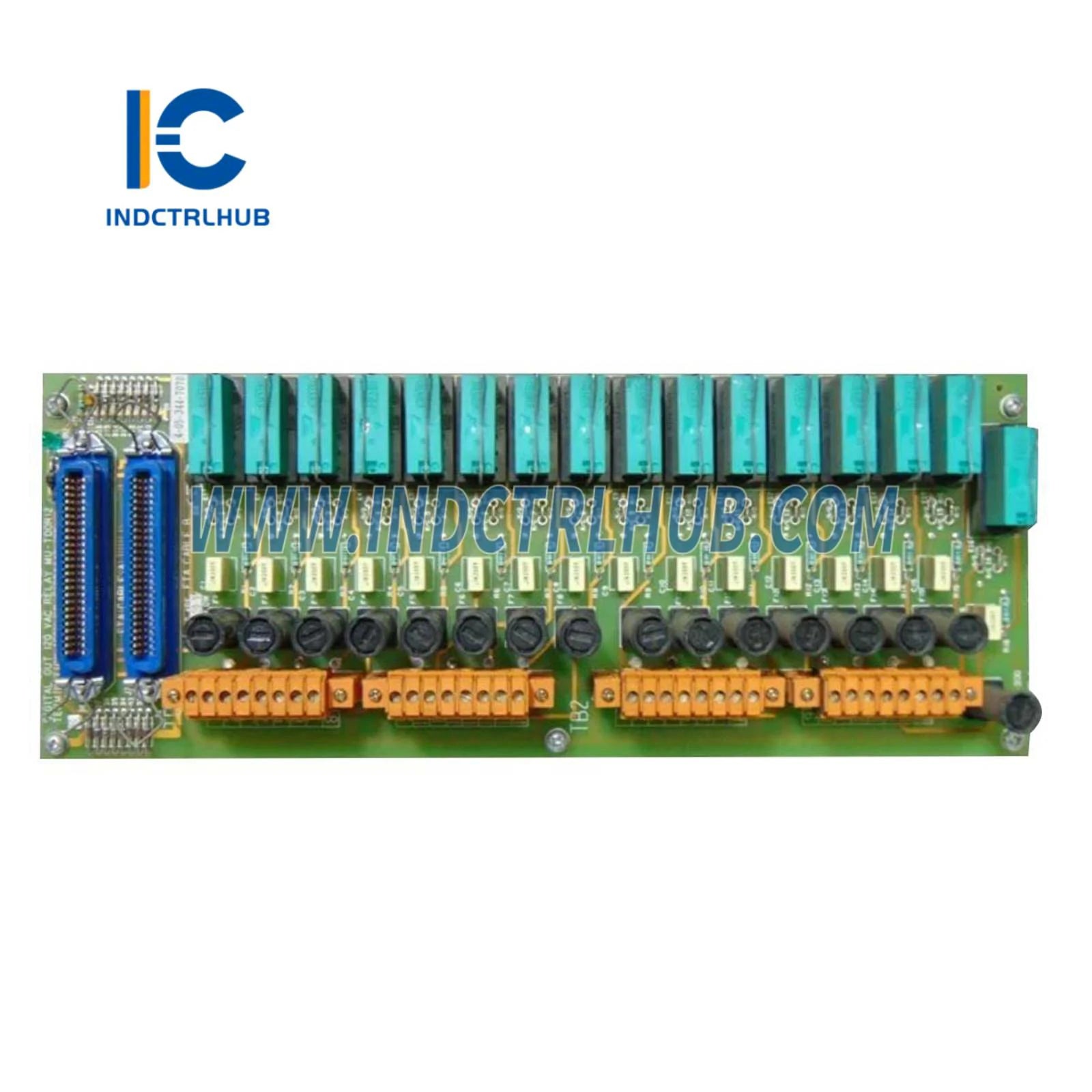

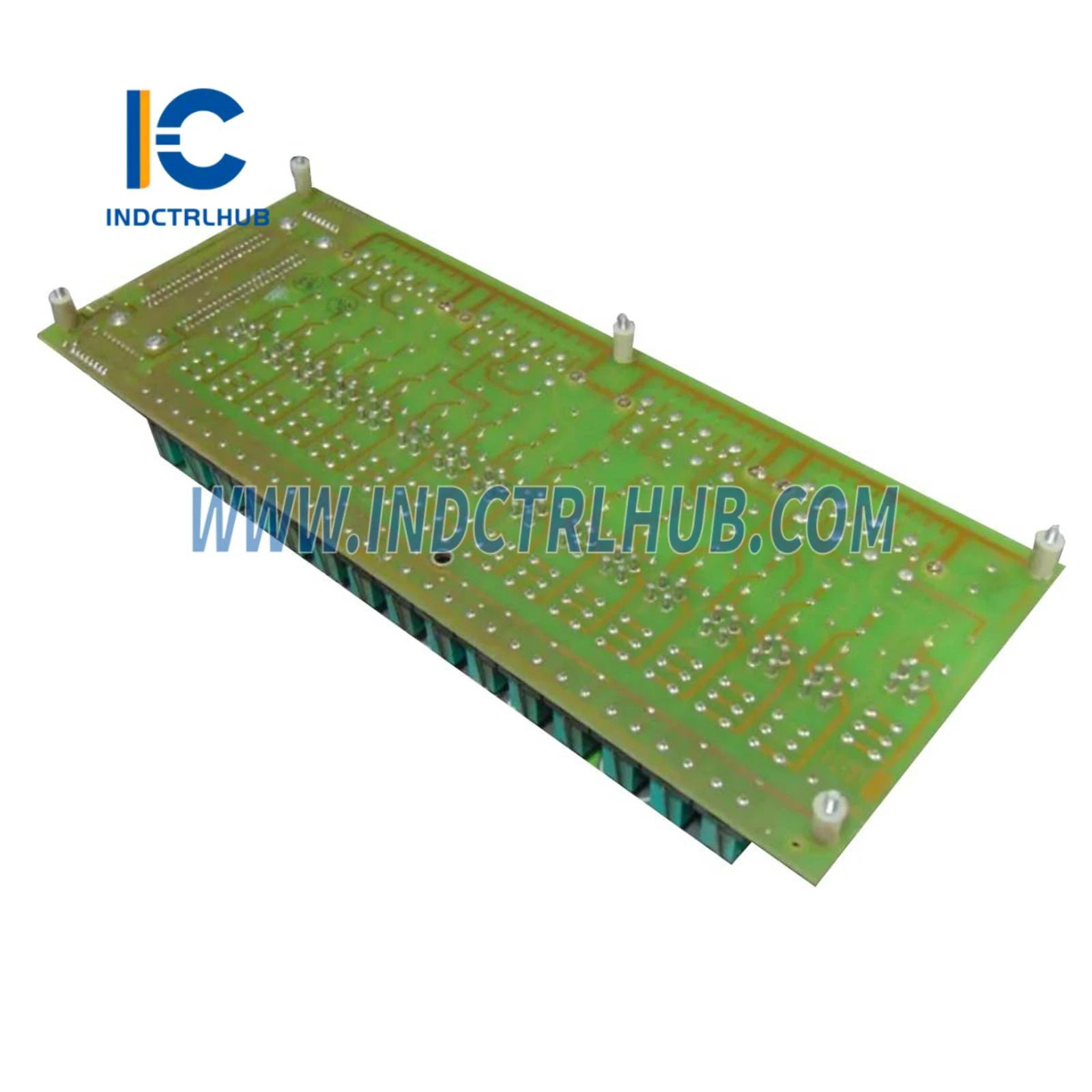

MU-TDOR12 51304443-100 |
|
Description |
Digital Output 16-Point Processor |
Specifications
|
Parameter |
Specification |
|---|---|
|
FTA Models |
MU-TDOR12, MU-TDOR52 |
|
Outputs |
16 isolated Form A (SPST/NO) or Form B (SPST/NC) contacts (jumper selectable per output) |
|
Contact Type |
Silver alloy |
|
Maximum Load Voltage |
140 Vac (rms) / 140 Vdc |
|
Maximum Steady-State Load Current |
5 A rms @ 120 Vac (resistive) per output 2 A @ 30 Vdc (resistive) per output 0.5 A @ 125 Vdc (resistive) per output 1/8 horsepower per output |
|
Minimum Load Current |
100 mA |
|
Load Surge Current |
Overload and Endurance per UL 508 |
|
Isolation |
1500 Vac rms or ±1500 Vdc (Channel-to-channel, and channel-to-PM/APM/HPM common) |
|
Turn-on Time |
10 ms typical, 15 ms maximum |
|
Turn-off Time |
10 ms typical, 15 ms maximum |
|
Maximum Repetition Rate |
360 cycles per hour at rated load |
|
Contact Life |
Operations |
|
- |
350,000 |
|
- |
450,000 |
|
- |
750,000 |
|
- |
1,000,000 |
|
- |
1,300,000 |
|
- |
20,000,000 |
|
Contact Suppression (Shunt) |
22 Ω / 0.1 µF resistor/capacitor snubber across each contact |
|
Load Fusing on Termination Assembly |
6 A 125 V slow-blow (5x20 mm) fuse per output |
|
Surge Withstand Capability |
ANSI/IEEE C37.90.1-1978 |
