Product Description

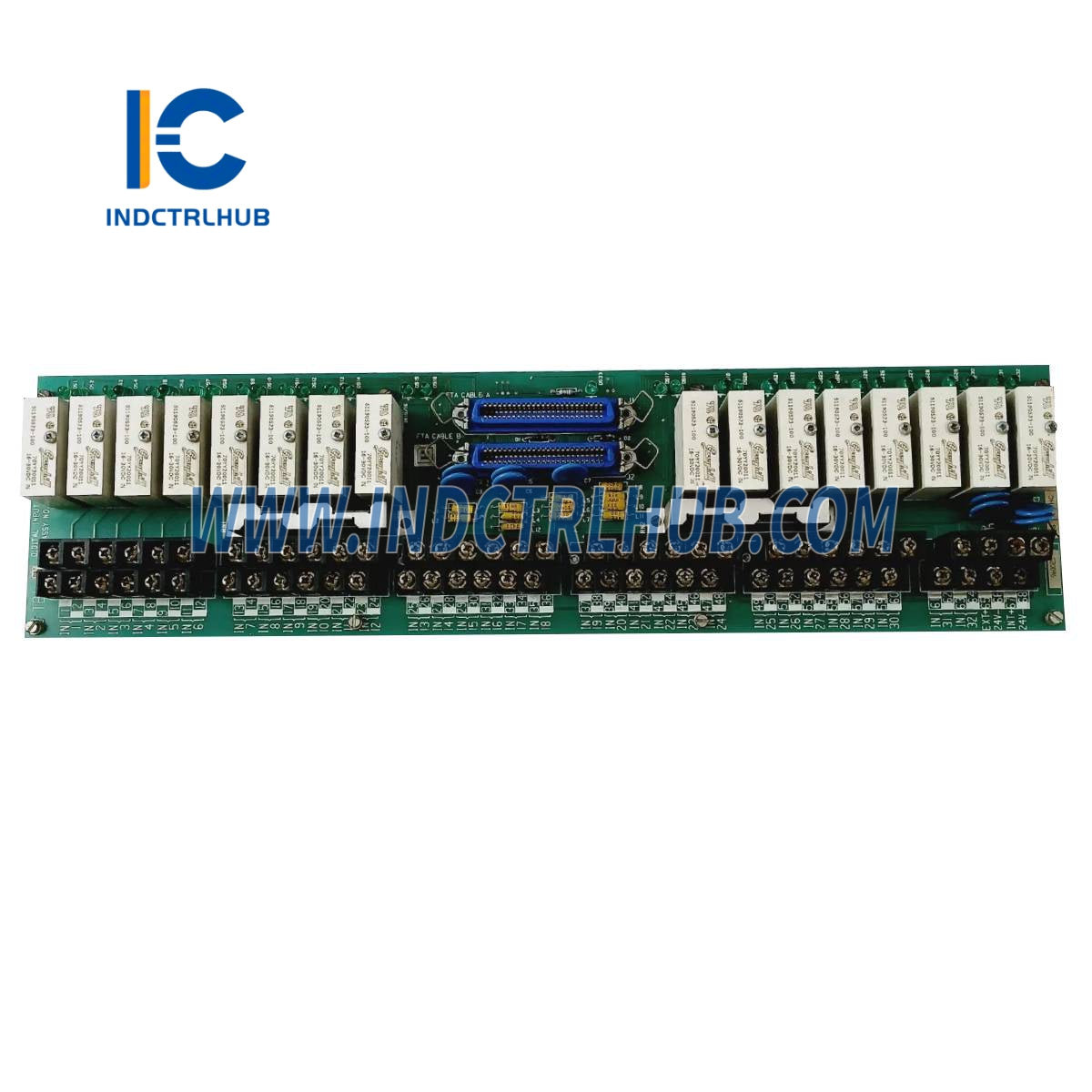

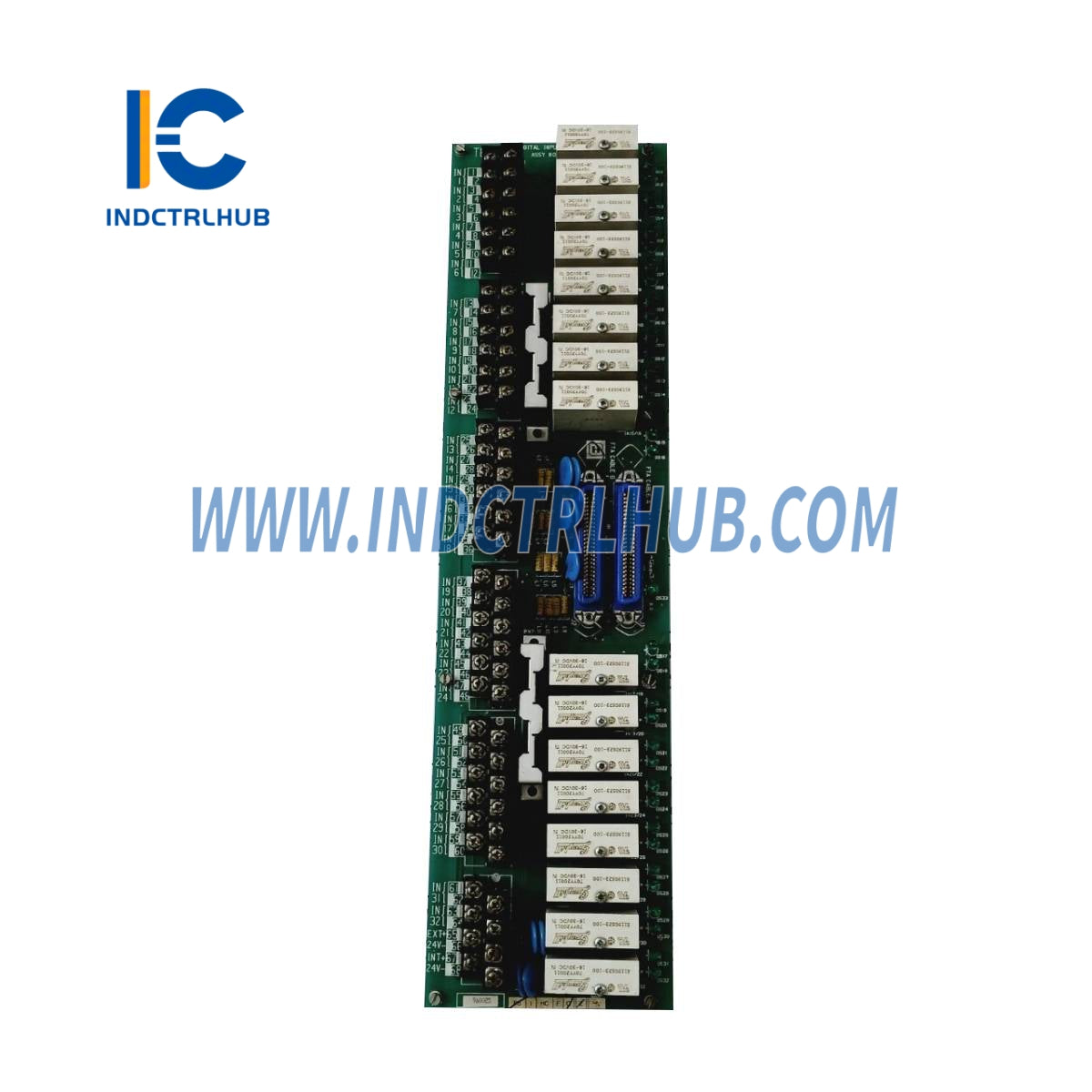

Honeywell MU-TDID52 51304441-200 Digital Input FTA
Product Overview
- The Honeywell MU-TDID52 51304441-200 is a Digital Input Field Termination Assembly (FTA) designed for use in Honeywell’s Universal Control Network (UCN) within the TDC 3000 system. This module supports 32 digital input channels for 24 VDC signals, interfacing with field devices such as switches, relays, and sensors. It uses screw terminals and supports redundancy, making it suitable for industrial automation applications in industries like oil and gas, chemical, and manufacturing. It is not CE-compliant and not conformally coated.
Technical Specifications
- The MU-TDID52 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | MU-TDID52 51304441-200 |
| Manufacturer | Honeywell |

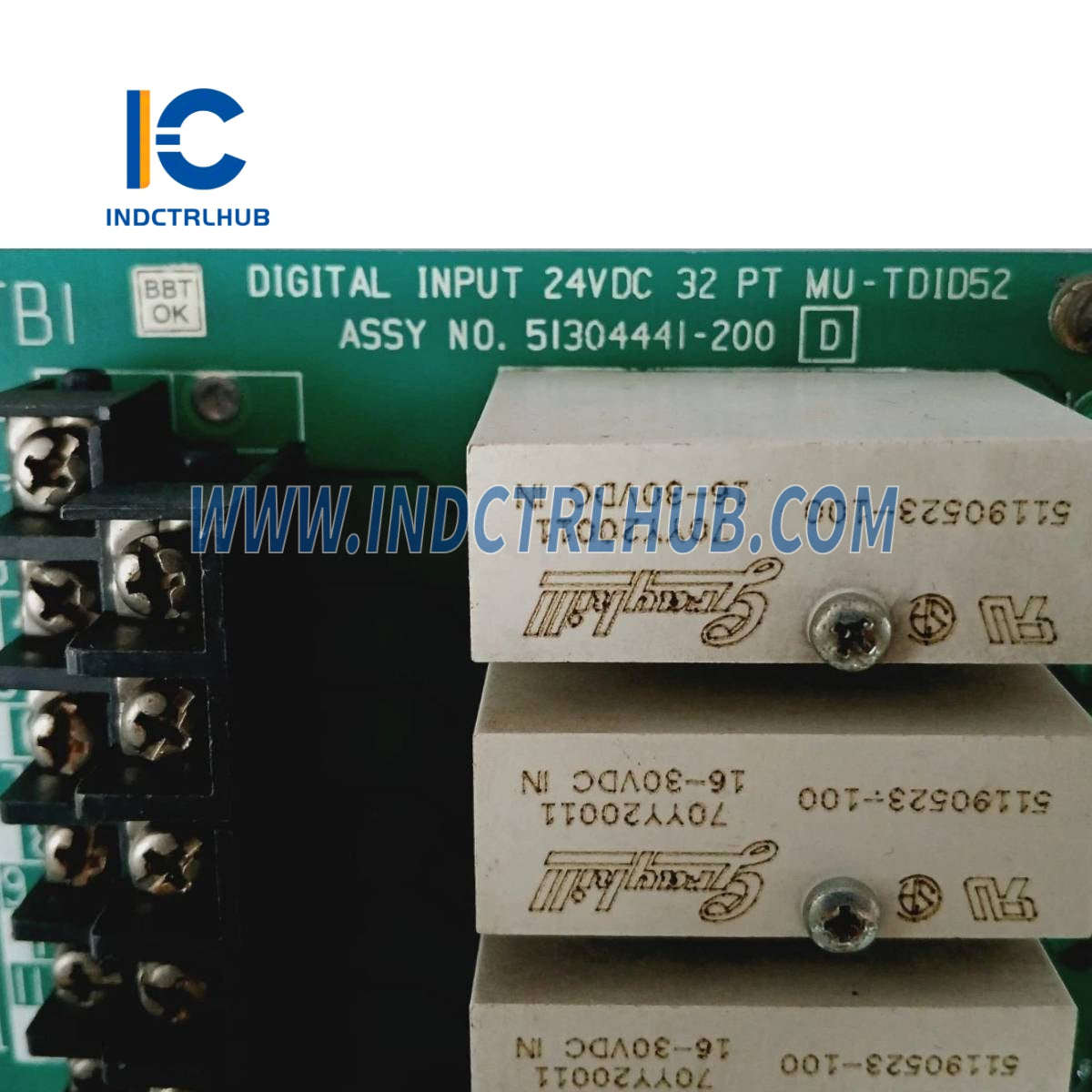

| Description | Digital Input FTA, 24 VDC, 32 Channels |
| Series | TDC 3000 UCN |
| Input Channels | 32 digital inputs |
| Input Type | 24 VDC |

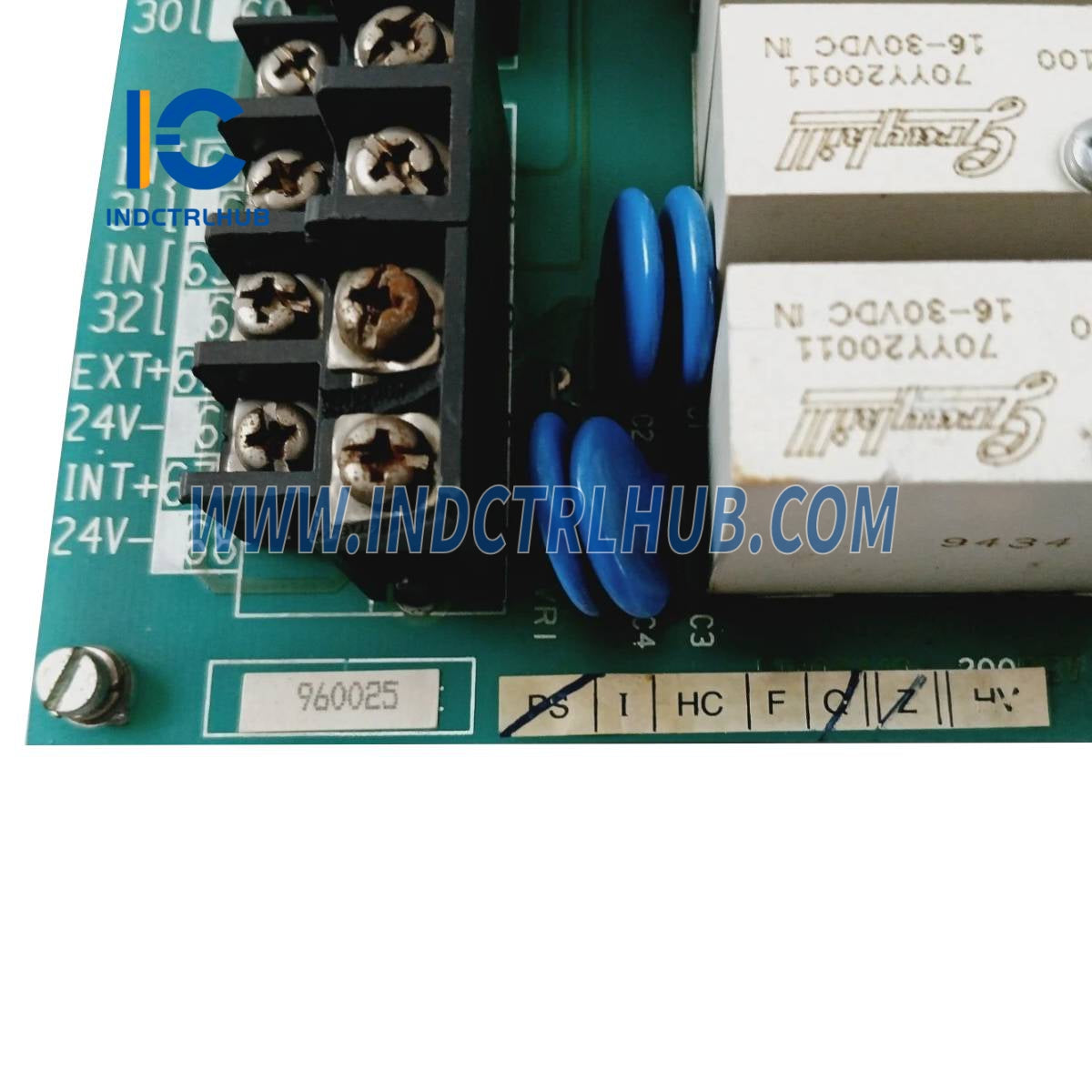

| Terminals | Screw terminals |
| Redundancy | Supported |
| Power Supply | 24 VDC nominal (via system backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approx. 1.1 kg |
Additional Details
- The MU-TDID52 includes the following additional information based on its standard use and documentation:
- Function: Monitors and detects digital signals from field devices, ensuring accurate input data for process control within the TDC 3000 system.

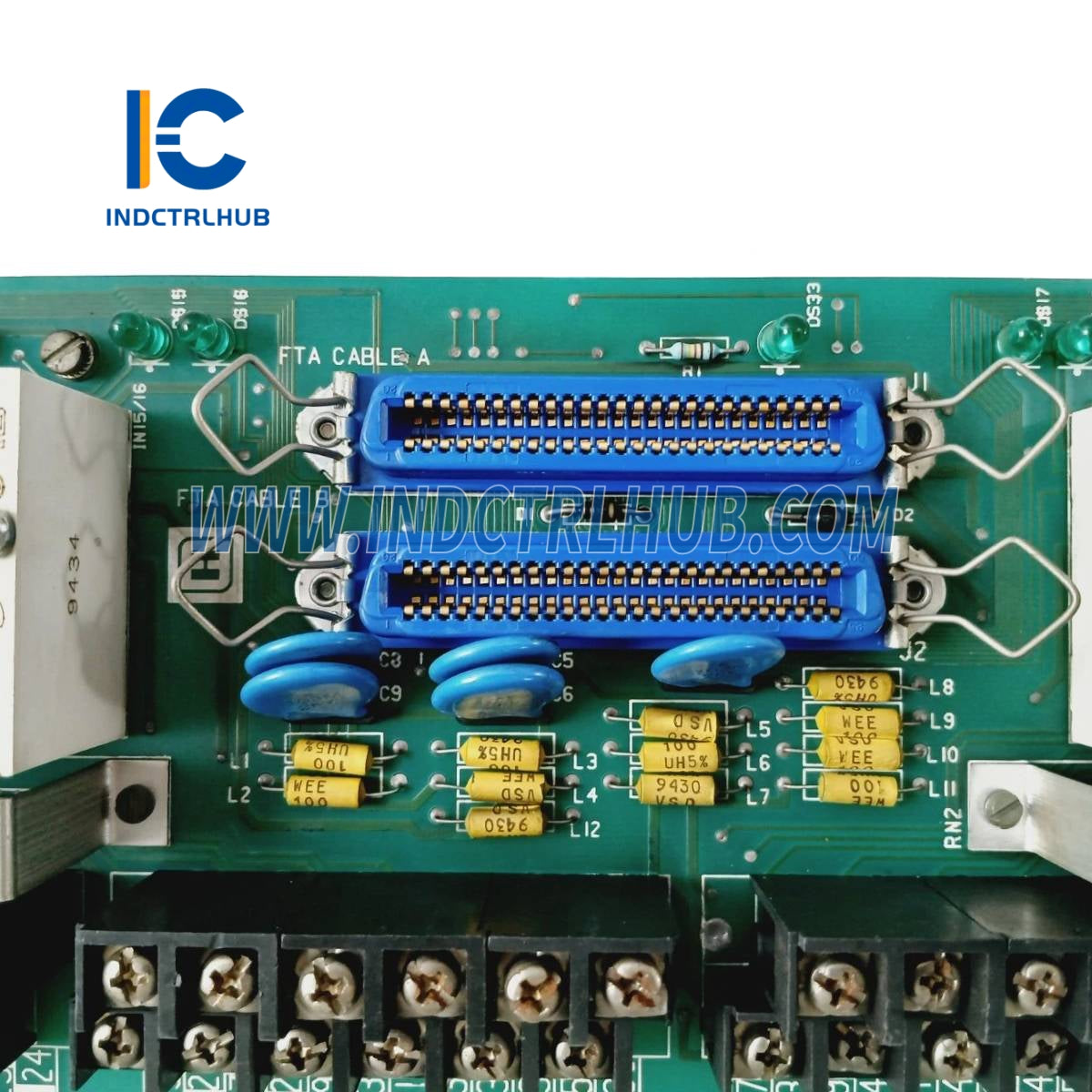

- Mounting: Installs in TDC 3000 UCN racks, interfacing with Input/Output Processors (IOPs) via standard FTA cables.
- Compatibility: Compatible with Honeywell’s TDC 3000 system; integrates with controllers and I/O modules for digital input processing.
- Configuration: Non-CE compliant; uses screw terminals for secure field wiring; supports redundant configurations for enhanced reliability.
- Certifications: Meets UL and other industrial standards (not CE-compliant).
