Product Description

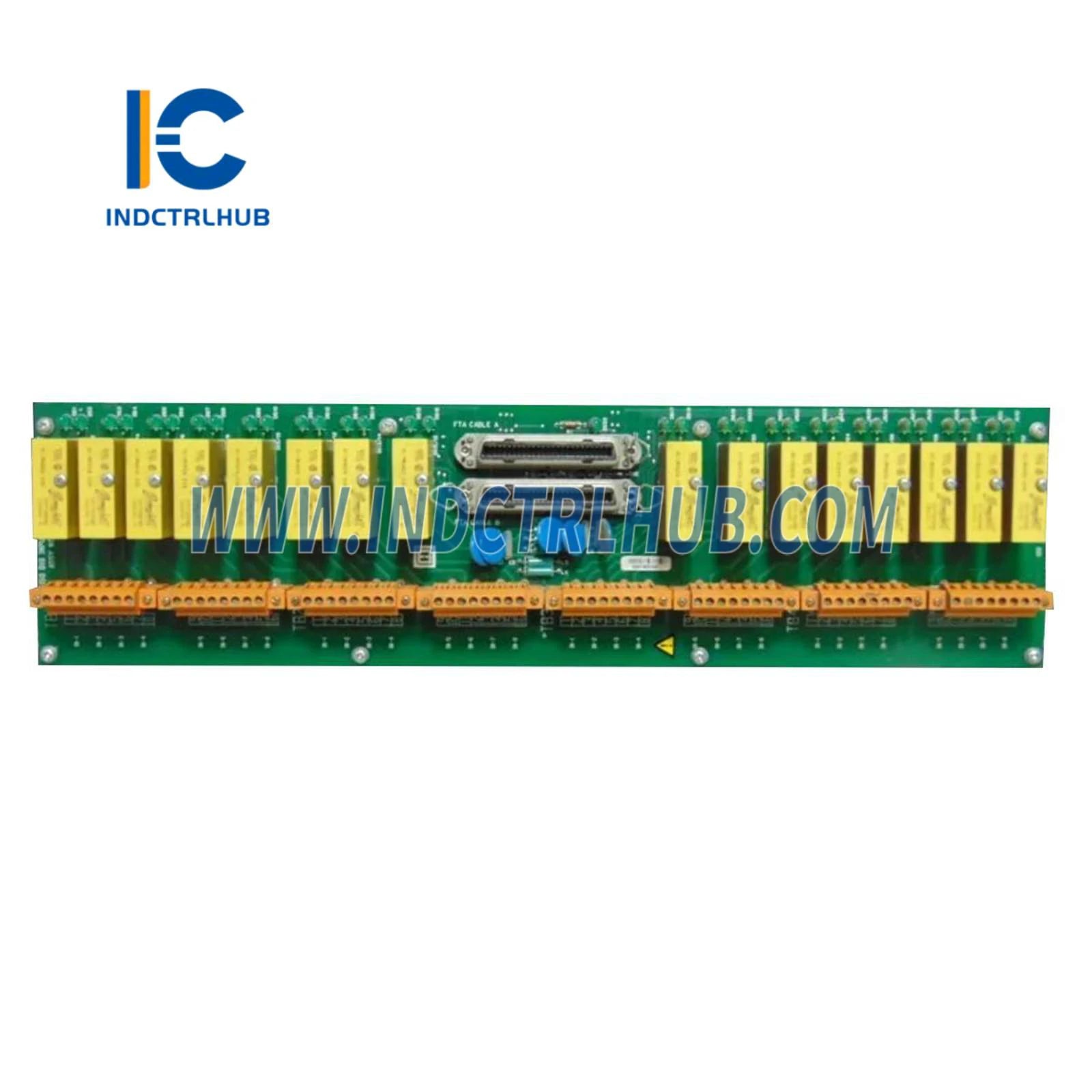

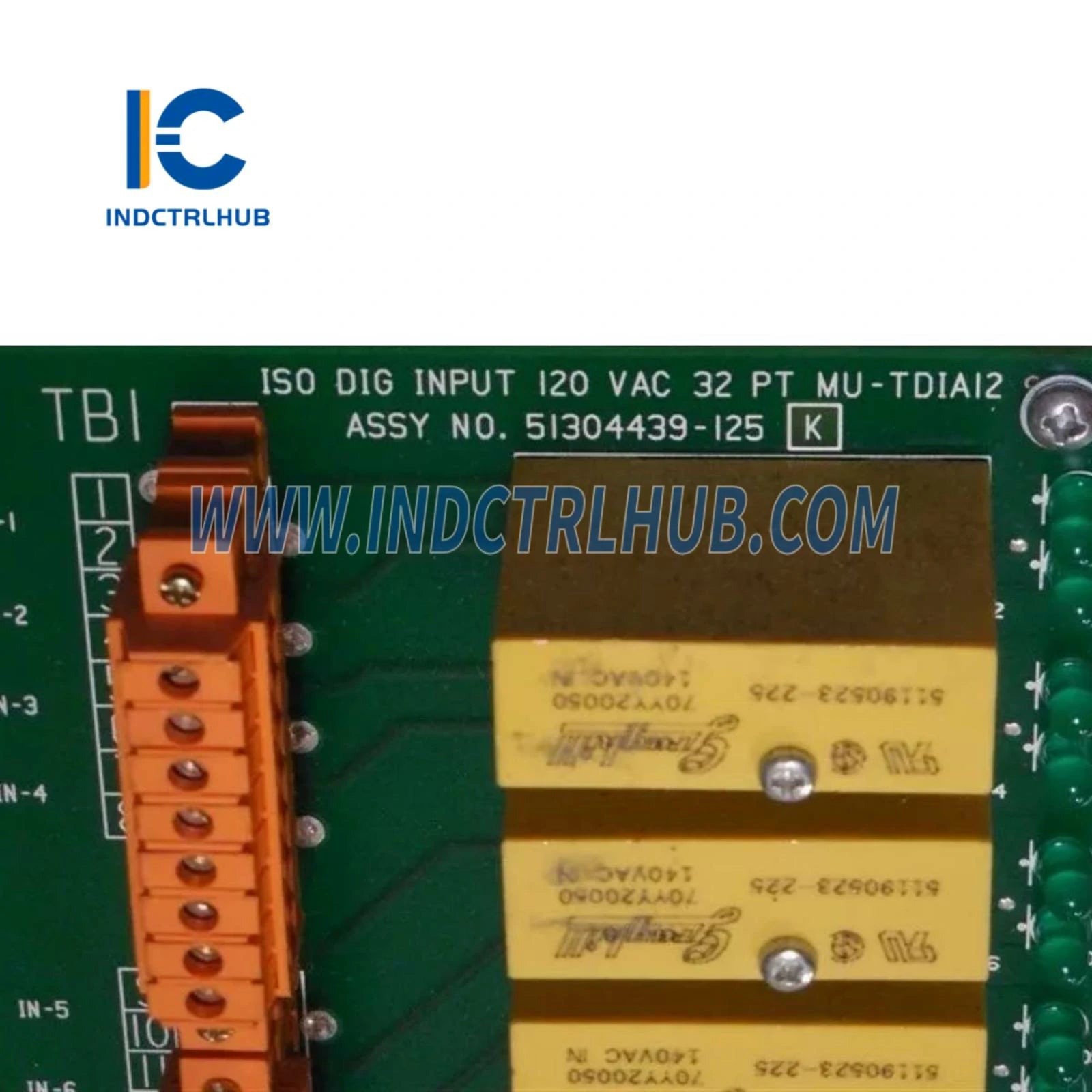

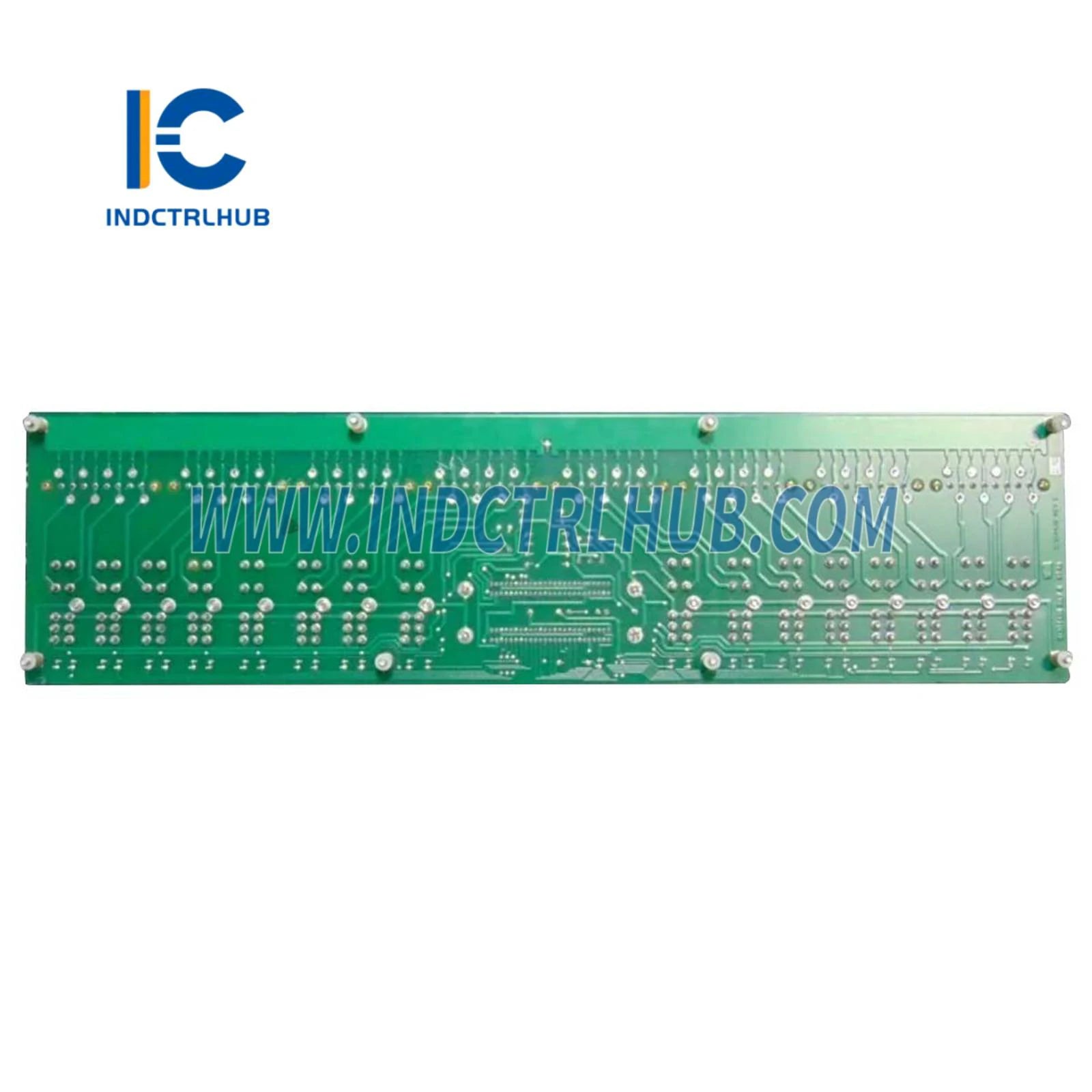

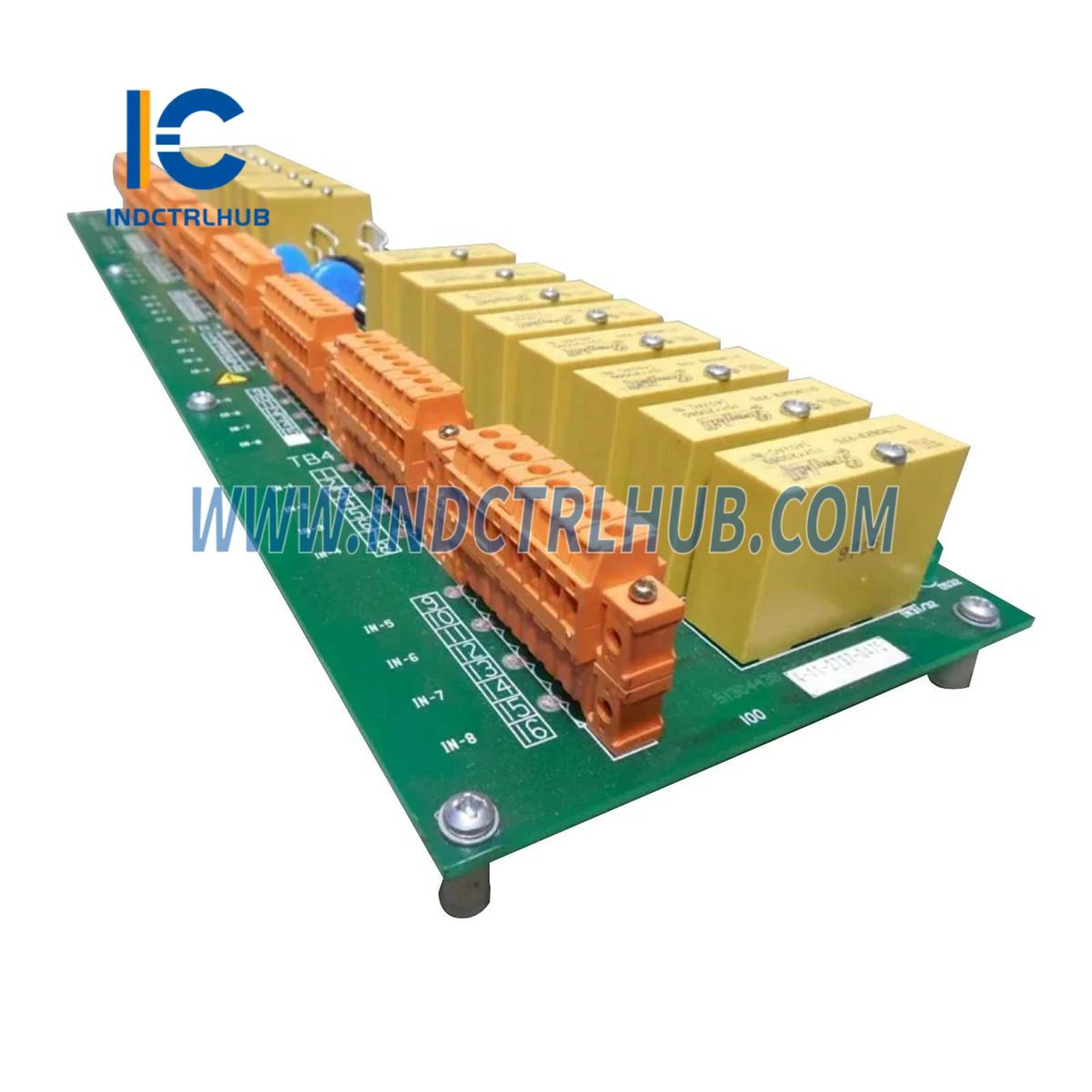

Honeywell MU-TDIA12 Digital Input FTA
Product Overview
- The Honeywell MU-TDIA12 is a Digital Input Field Termination Assembly (FTA) designed for use in Honeywell’s Universal Control Network (UCN) within the TDC 3000 and Experion Process Knowledge System (PKS) platforms. This module supports 32 digital input channels for processing 120 VAC signals from field devices such as switches and sensors. It is optimized for redundancy and is ideal for industrial automation applications in industries like oil and gas, chemical, and manufacturing, where reliable signal processing is critical.
Technical Specifications
- The MU-TDIA12 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | MU-TDIA12 (Assembly: 51304439-100/125) |
| Manufacturer | Honeywell |
| Description | Digital Input FTA, 32 Channels, 120 VAC |
| Series | TDC 3000 / Experion PKS |
| Input Channels | 32 digital inputs |
| Input Voltage | 120 VAC, 47-63 Hz |
| Terminals | Compression terminals |
| Power Supply | 24 VDC nominal (via I/O rack) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Size | Size C - 18 inches (462 mm) |
| Weight | Approx. 0.5 kg |
