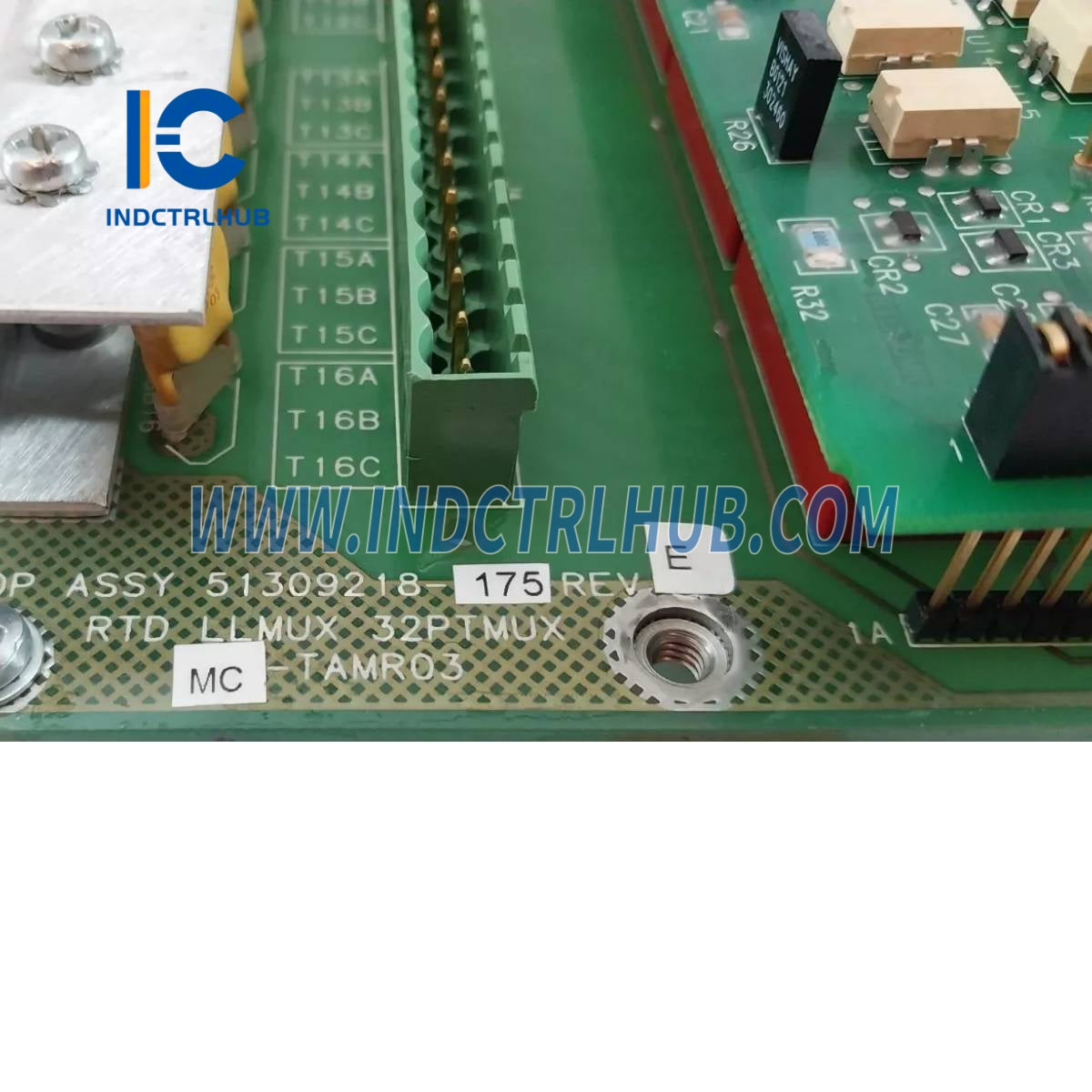

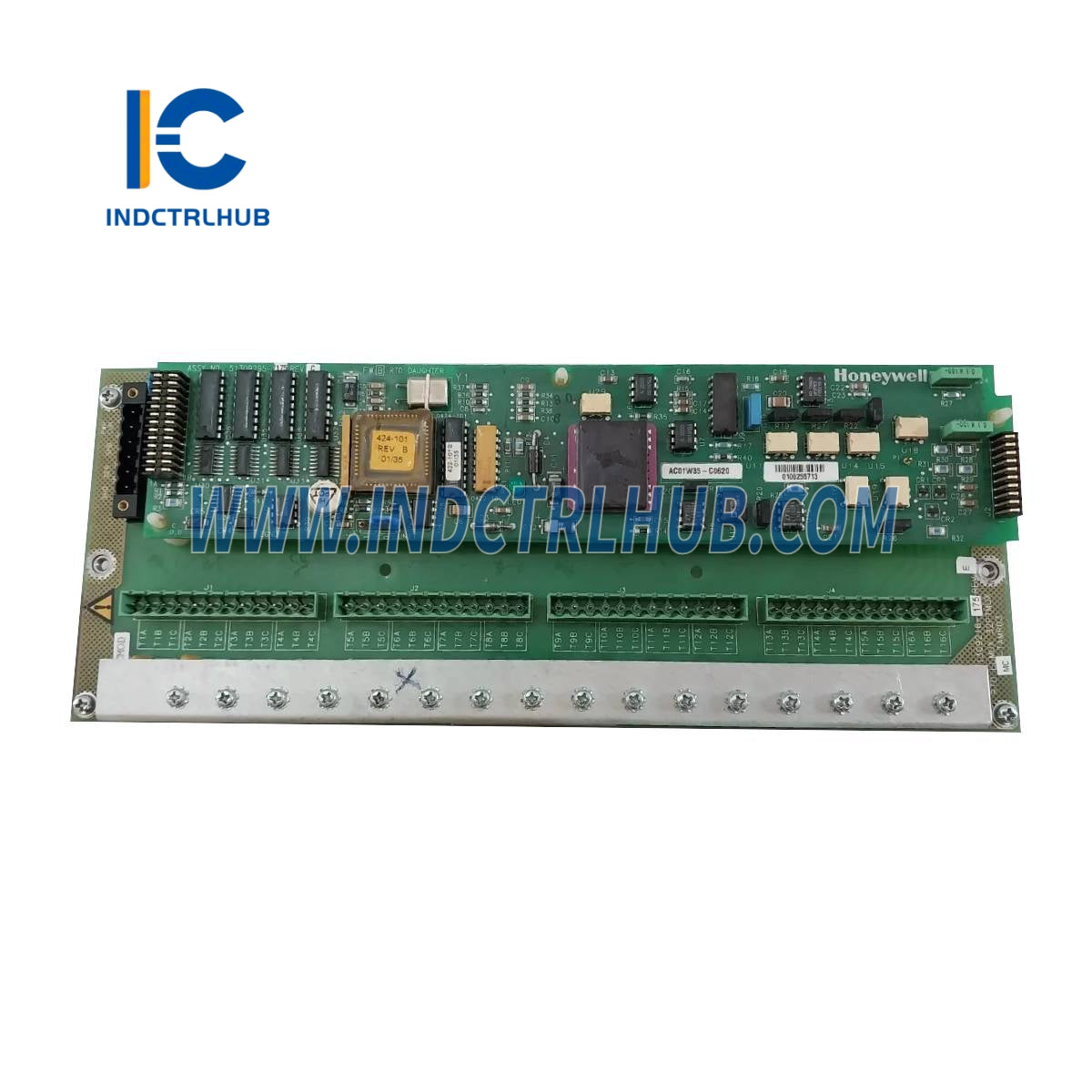

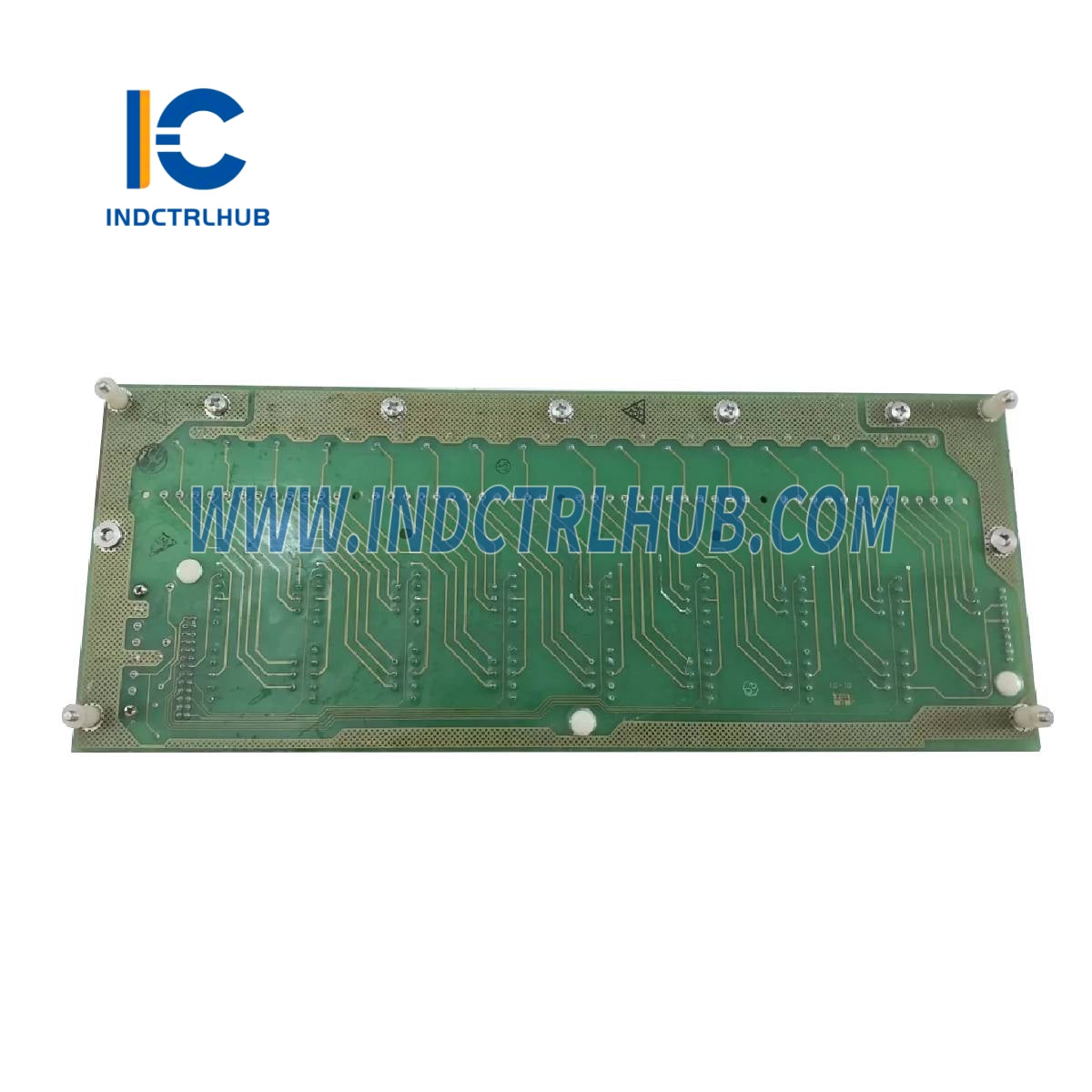

Honeywell MU-TAMR03 51309218-175 Low-Level Analog Input Multiplexer Processor
Honeywell MU-TAMR03 51309218-175 Low-Level Analog Input Multiplexer Processor
Manufacturer: Honeywell
Product No.: 51309218-175
Condition:1000 in stock
Product Type: Low-Level Analog Input Multiplexer Processor
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Details
_
-
Model/Part Number: MU-TAMR03 (51309218-175)
-
Description: Low-Level Analog Input Multiplexer Processor
_
_
Key Specifications
|
Parameter |
Specification |
|---|---|
|
Number of Channels |
32 galvanically isolated inputs |
|
Input Types |
Thermocouple (J, K, E, T, B, S, R, RP), RTD (10Ω, 100Ω, 120Ω), Linear mV |
|
Resolution |
14-bit A/D converter |
|
Input Resolution |
- TC: 10 µV/bit- RTD (100Ω/120Ω): 64 mΩ/bit- RTD (10Ω): 8 mΩ/bit- mV: 20 µV/bit |
|
Input Impedance |
_ 2 MΩ at 100 mV |
|
Scan Rate |
32 samples per second (1 sample per channel per second) |
|
Line Sync Frequency |
Configurable to 50 Hz or 60 Hz |
|
Common Mode Voltage |
±250 V DC or 250 V AC peak |
|
Dielectric Strength |
1500 V AC RMS or ±1500 V DC (channel-to-channel and channel-to-common) |
|
Crosstalk Rejection |
120 dB (DC to 60 Hz) |
|
Accuracy (Hardware) |
±40 µV or ±160 mΩ at 23.5°C ±2°C |
|
Accuracy (Software) |
±0.1°C typical, ±0.5°C max (includes reference junction compensation) |
|
Surge Withstand |
Meets ANSI/IEEE C37.90.1-1978 |
|
Notes |
Equipped with mercury-wetted relays |
_
Product Description
Product Details
_
-
Model/Part Number: MU-TAMR03 (51309218-175)
-
Description: Low-Level Analog Input Multiplexer Processor
_
_
Key Specifications
|
Parameter |
Specification |
|---|---|
|
Number of Channels |
32 galvanically isolated inputs |
|
Input Types |
Thermocouple (J, K, E, T, B, S, R, RP), RTD (10Ω, 100Ω, 120Ω), Linear mV |
|
Resolution |
14-bit A/D converter |
|
Input Resolution |
- TC: 10 µV/bit- RTD (100Ω/120Ω): 64 mΩ/bit- RTD (10Ω): 8 mΩ/bit- mV: 20 µV/bit |
|
Input Impedance |
_ 2 MΩ at 100 mV |
|
Scan Rate |
32 samples per second (1 sample per channel per second) |
|
Line Sync Frequency |
Configurable to 50 Hz or 60 Hz |
|
Common Mode Voltage |
±250 V DC or 250 V AC peak |
|
Dielectric Strength |
1500 V AC RMS or ±1500 V DC (channel-to-channel and channel-to-common) |
|
Crosstalk Rejection |
120 dB (DC to 60 Hz) |
|
Accuracy (Hardware) |
±40 µV or ±160 mΩ at 23.5°C ±2°C |
|
Accuracy (Software) |
±0.1°C typical, ±0.5°C max (includes reference junction compensation) |
|
Surge Withstand |
Meets ANSI/IEEE C37.90.1-1978 |
|
Notes |
Equipped with mercury-wetted relays |
_
