| Channels |
32 HART channels per module |
| Communication |
RS485 serial link to MTL4840 or MTL4841 modules |
| HART Compatibility |
Fully compatible with HART protocol versions 5, 6, and 7 |
| Power Supply |
24 V DC (nominal), 20.5–35 V DC range |
| Power Consumption |
1.2 W typical, 1.5 W maximum |
| Connection |
Screw-clamp terminals for field and system connections |

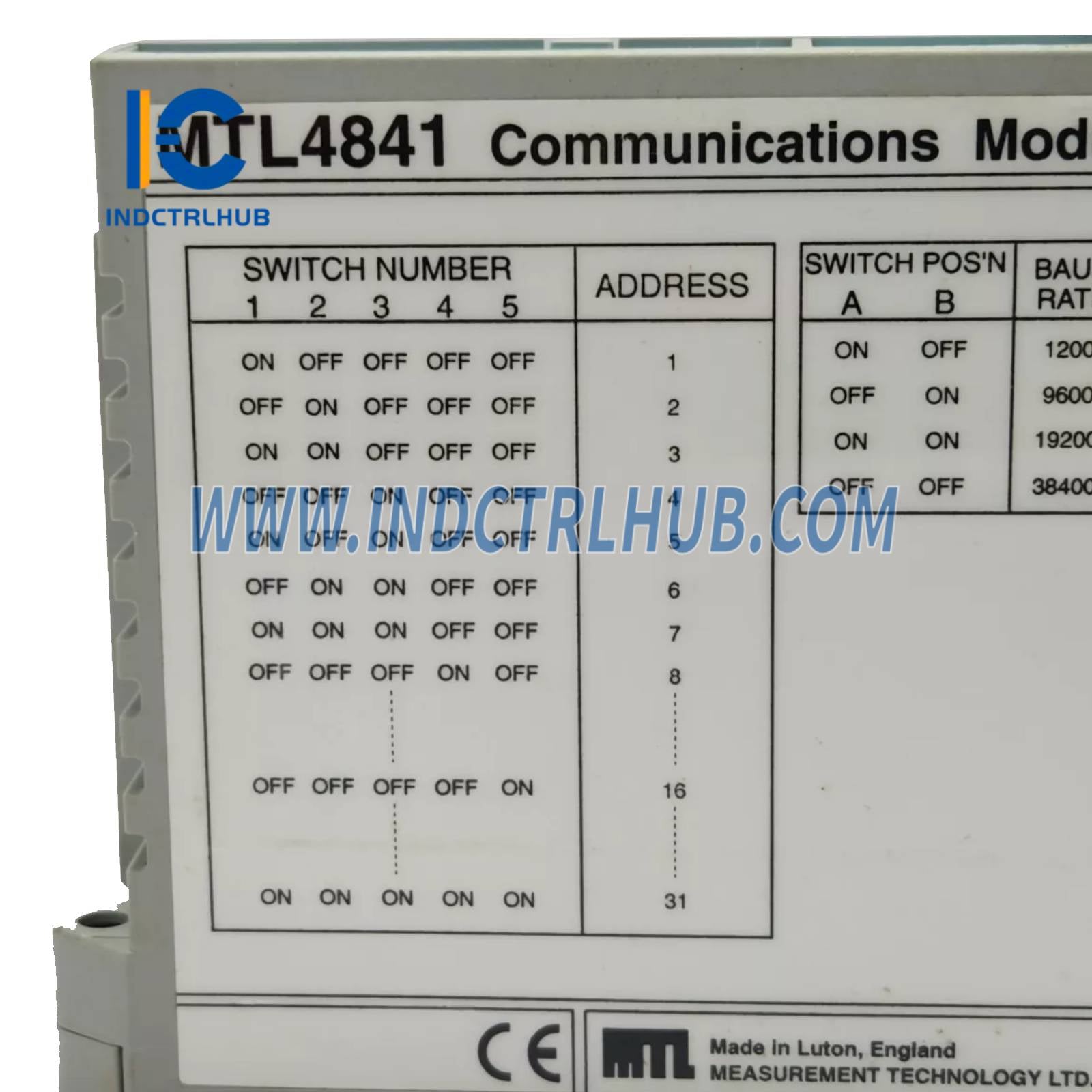

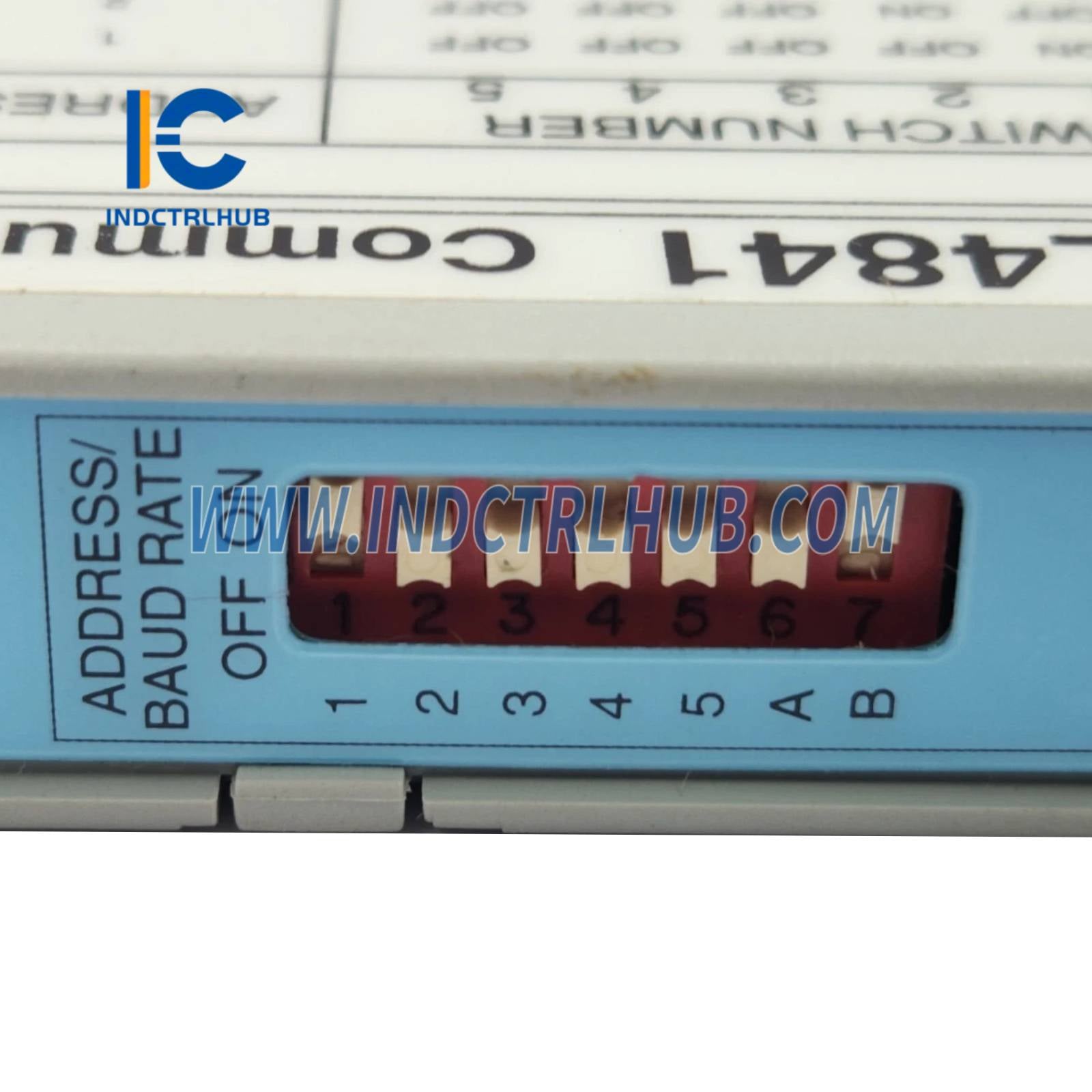

| Baud Rate |
38.4 kbaud (fixed) |

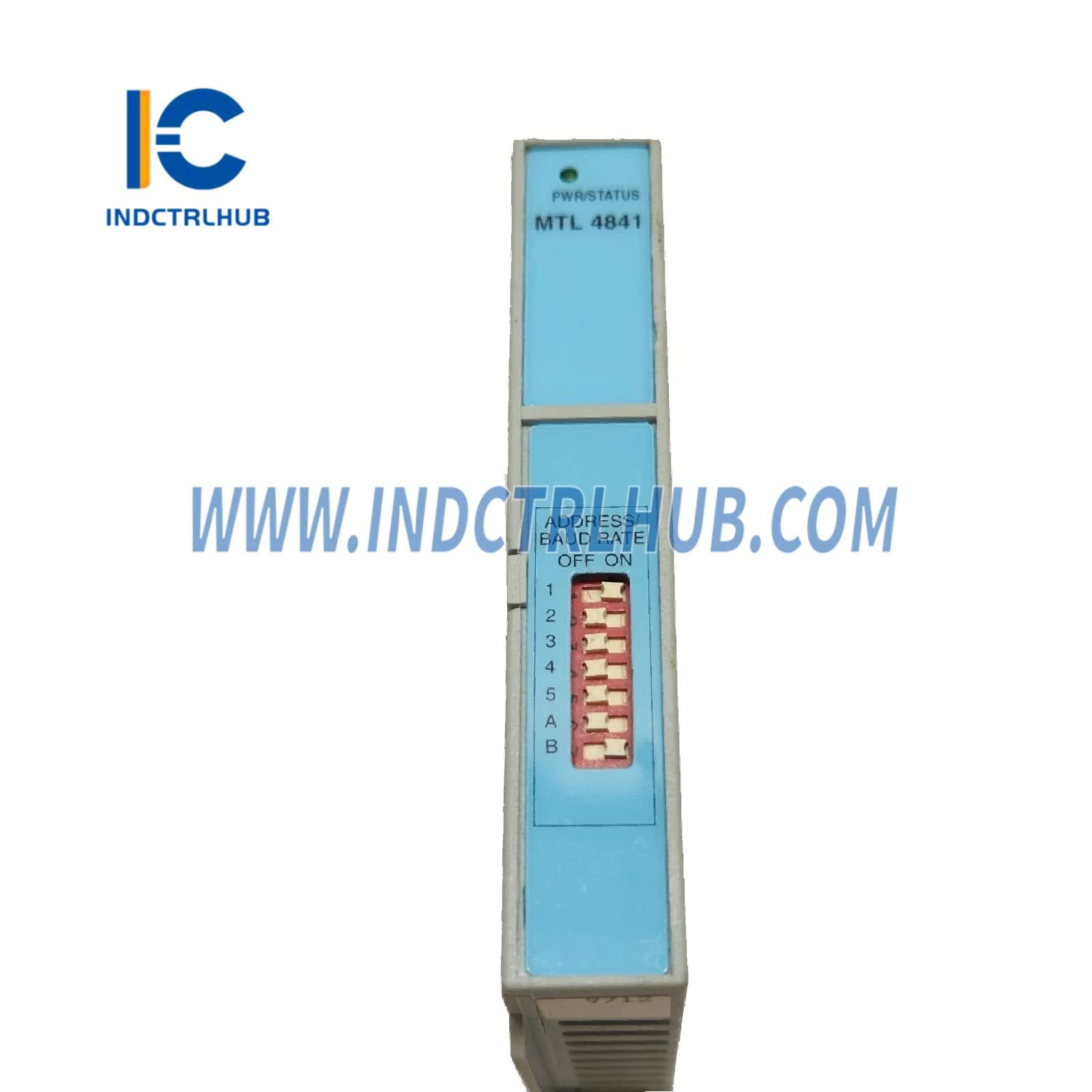

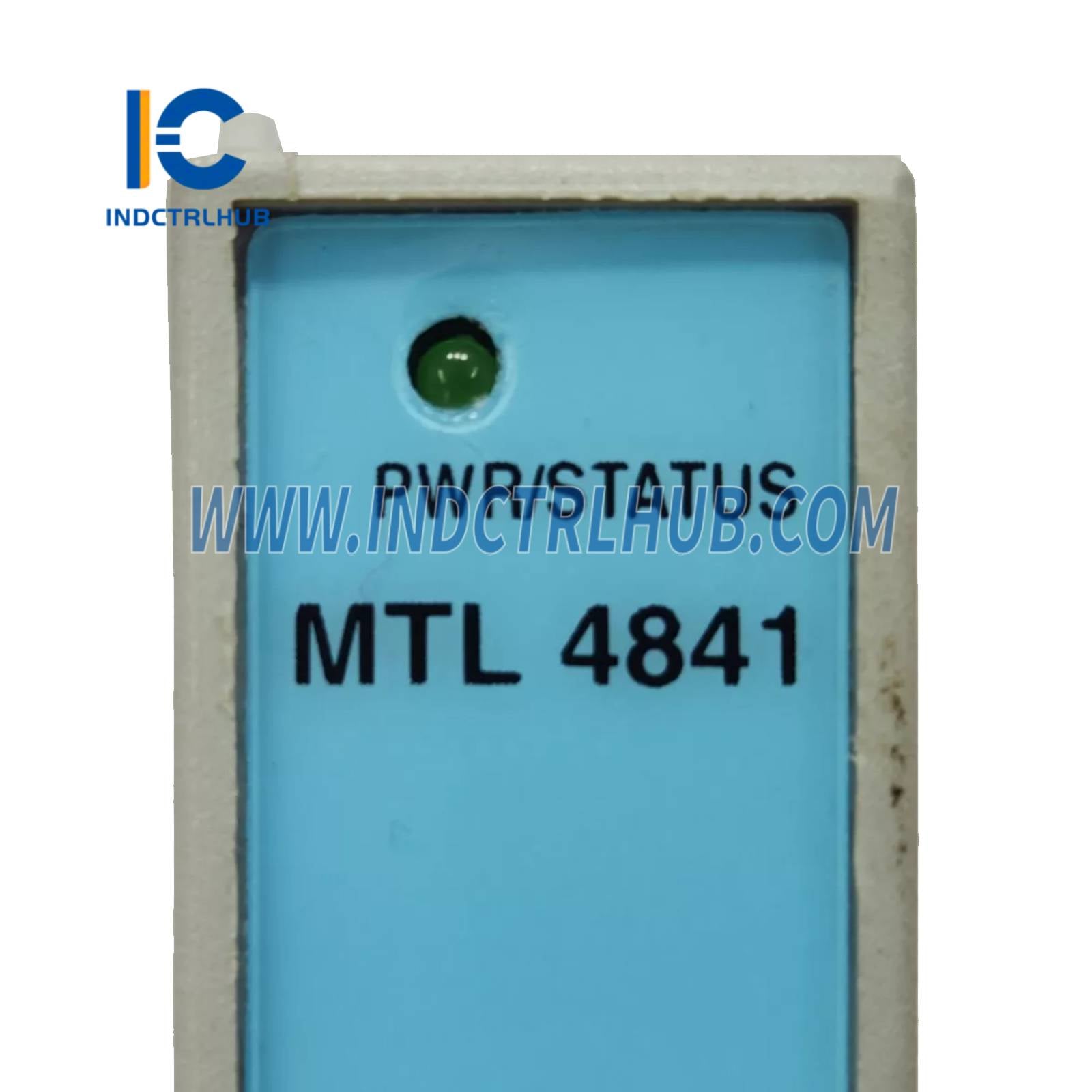

| Diagnostics |
LED indicators for power and communication status |
| Ambient Temperature Range |
-40 to 70°C |
| Mounting |
Standard 35mm DIN rail |
| Dimensions |
104 mm x 16 mm x 123 mm (L x W x H) |
| Weight |
140 g |
| Standards Compliance |
CE, ATEX (II 3 G Ex nA IIC T4 Gc), IECEx, UL |
