Product Description

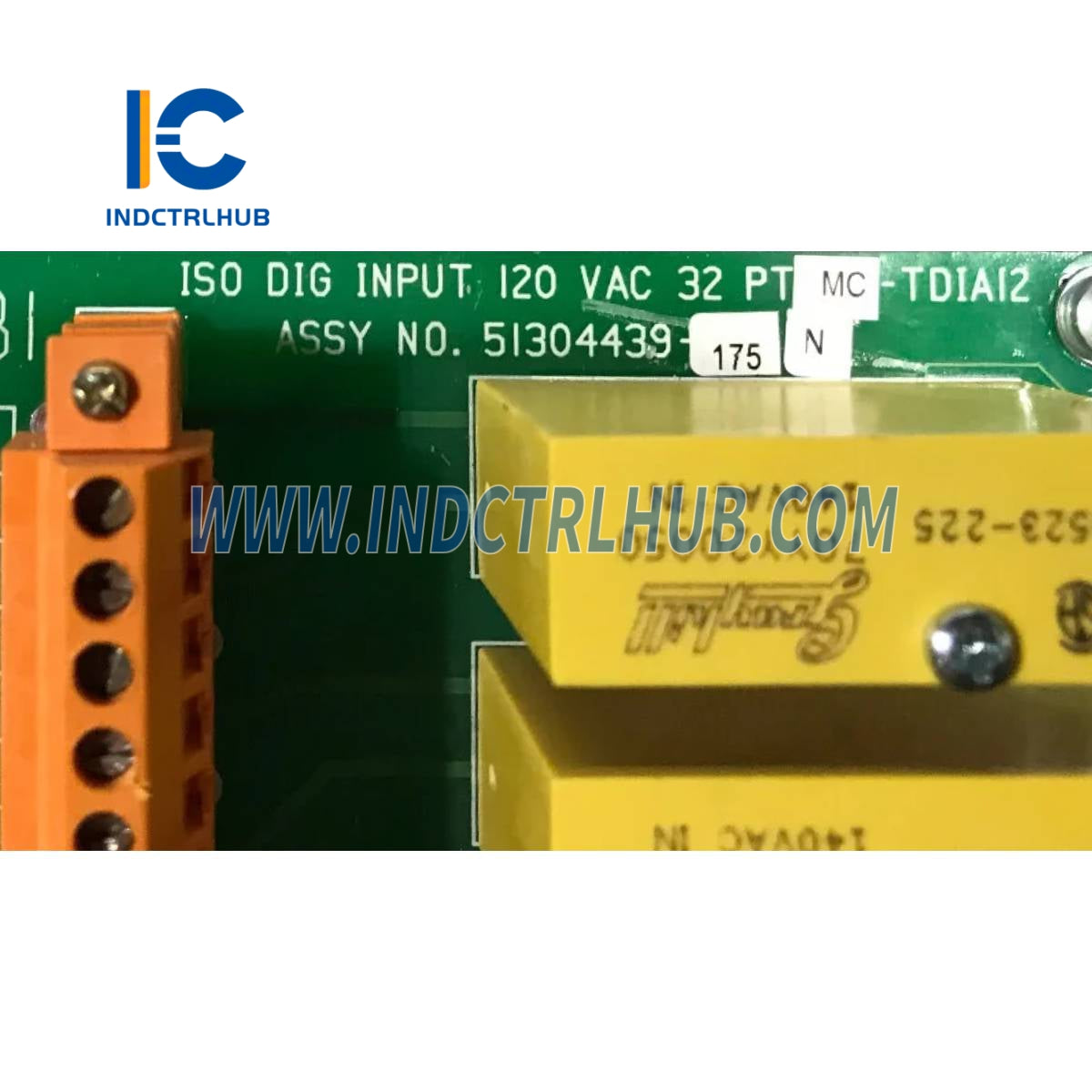

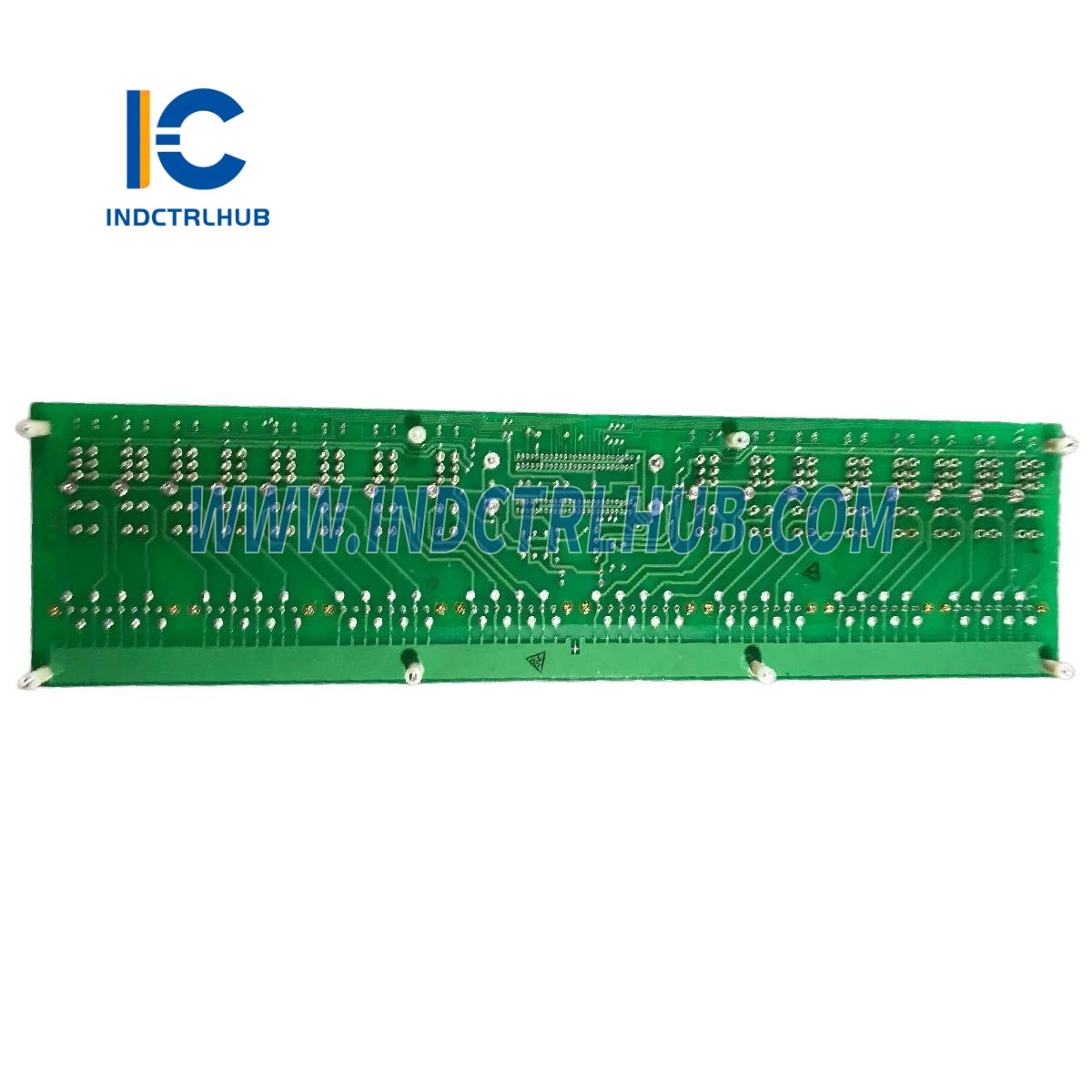

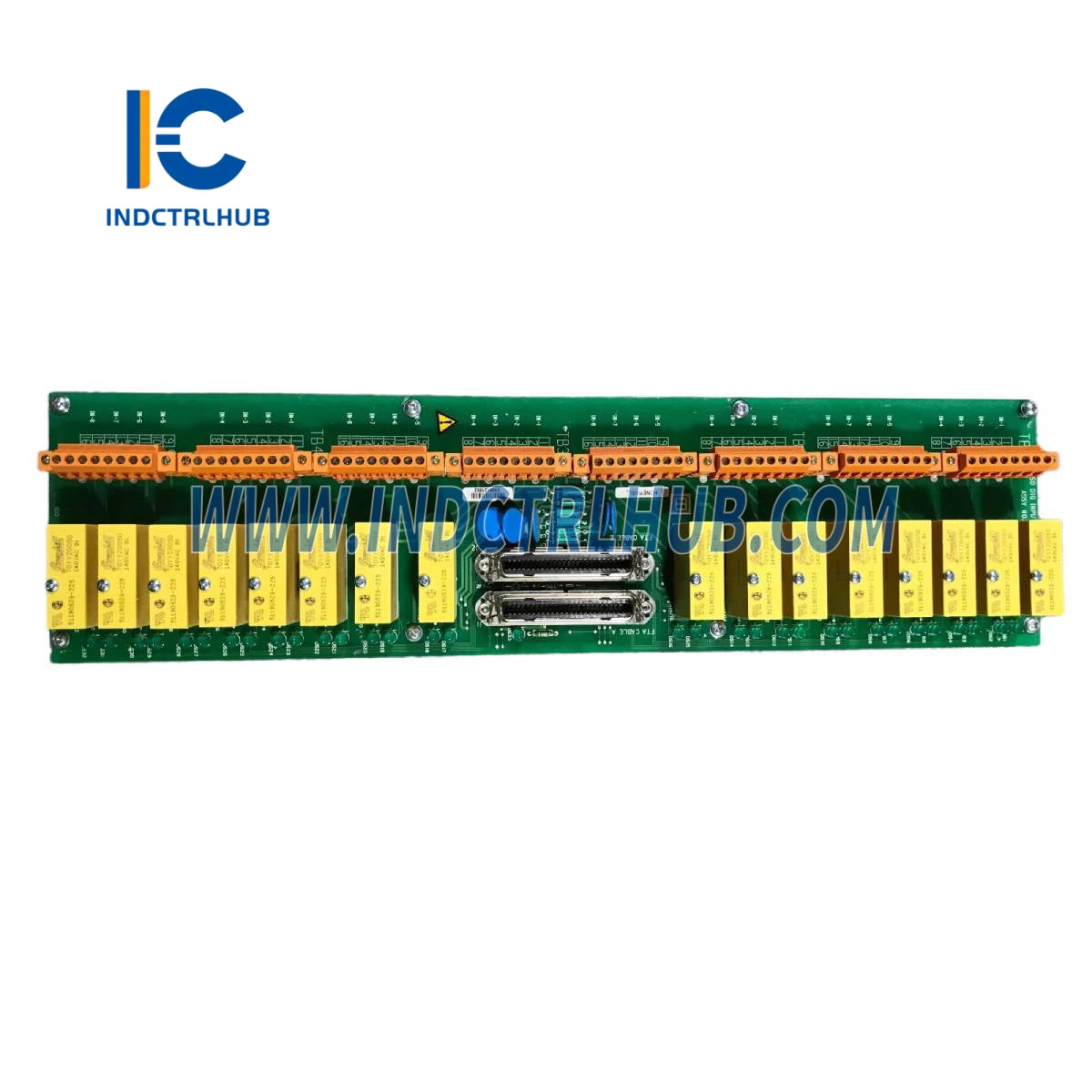

Honeywell MC-TDIA12 51304439-175 Digital Input FTA
Product Overview
- The Honeywell MC-TDIA12 51304439-175 is a Digital Input Field Termination Assembly (FTA) designed for use in Honeywell’s Universal Control Network (UCN) within the TDC 3000 and Experion Process Knowledge System (PKS) platforms. This module supports 32 digital input channels, handling 120 VAC signals from field devices such as switches and sensors. It is optimized for redundancy and is ideal for industrial automation applications requiring reliable signal processing in industries like oil and gas, chemical, and manufacturing.
- [](https://www.dcsmodule.com/mc-tdia12-51304439-175-honeywell-isolated-digital-input-board_p5768.html)
Technical Specifications
- The MC-TDIA12 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | MC-TDIA12 51304439-175 |
| Manufacturer | Honeywell |
| Description | Digital Input FTA, 32 Channels, 120 VAC |
| Series | TDC 3000 / Experion PKS |
| Input Channels | 32 digital inputs |
| Input Voltage | 120 VAC, 47-63 Hz |
| Terminals | Compression terminals |
| Power Supply | 24 VDC nominal (via I/O rack) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approx. 0.5 kg |
Additional Details
- The MC-TDIA12 includes the following additional information based on its standard use and documentation:
- Function: Processes 120 VAC digital input signals from field devices, enabling accurate monitoring of on/off states for process control.
- Mounting: Installs in TDC 3000 or Experion PKS I/O rack, connected to Input/Output Processors (IOPs) via standard FTA cables.
- Compatibility: Compatible with Honeywell’s TDC 3000 Process Manager and Experion PKS C300 Controller; supports redundancy with compatible IOPs for high-reliability applications.
- Configuration: CE-compliant and conformal coated for durability in harsh environments; supports redundant setups for critical systems.
- Certifications: Meets CE, UL, and ATEX standards for industrial environments.
