Product Description
Product Overview

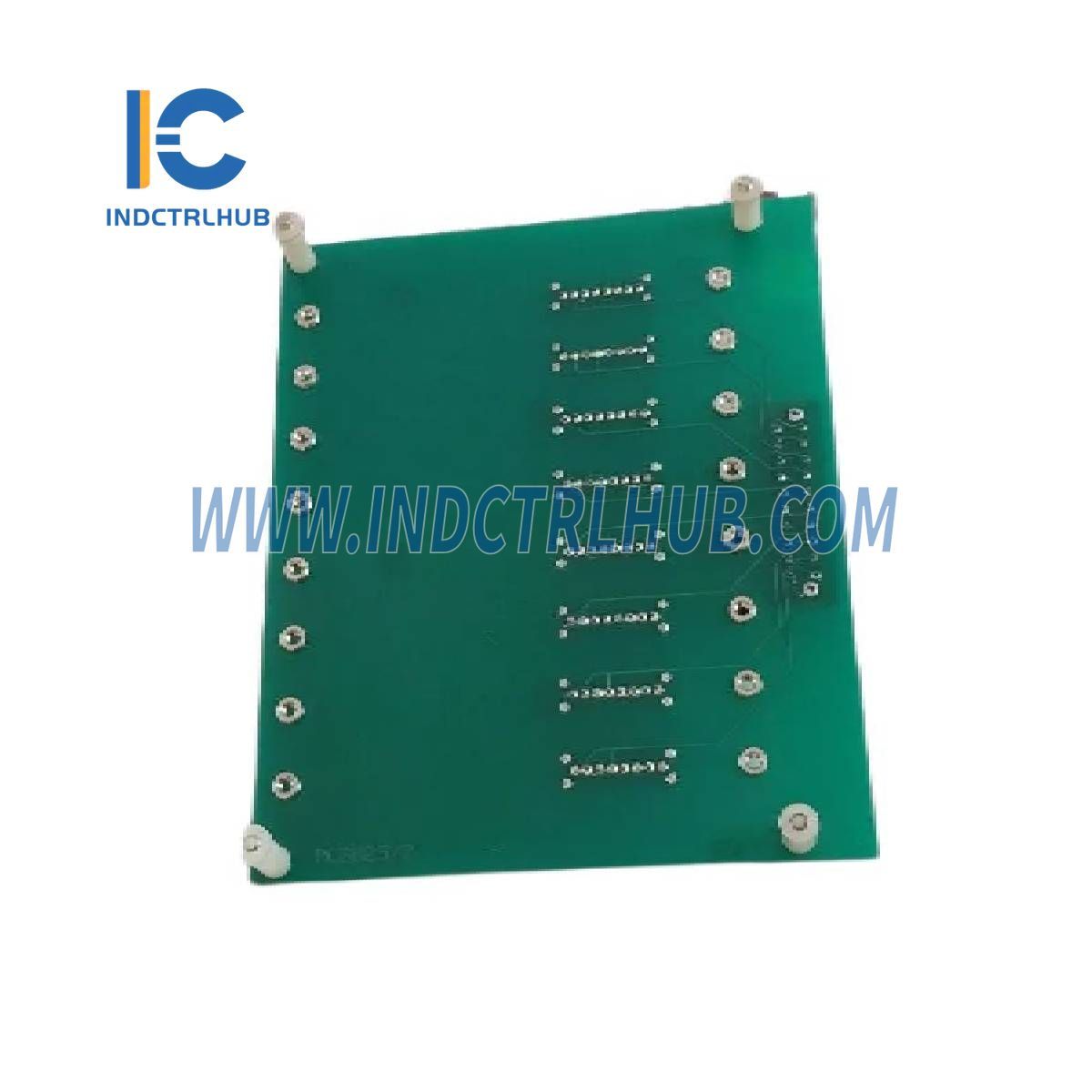

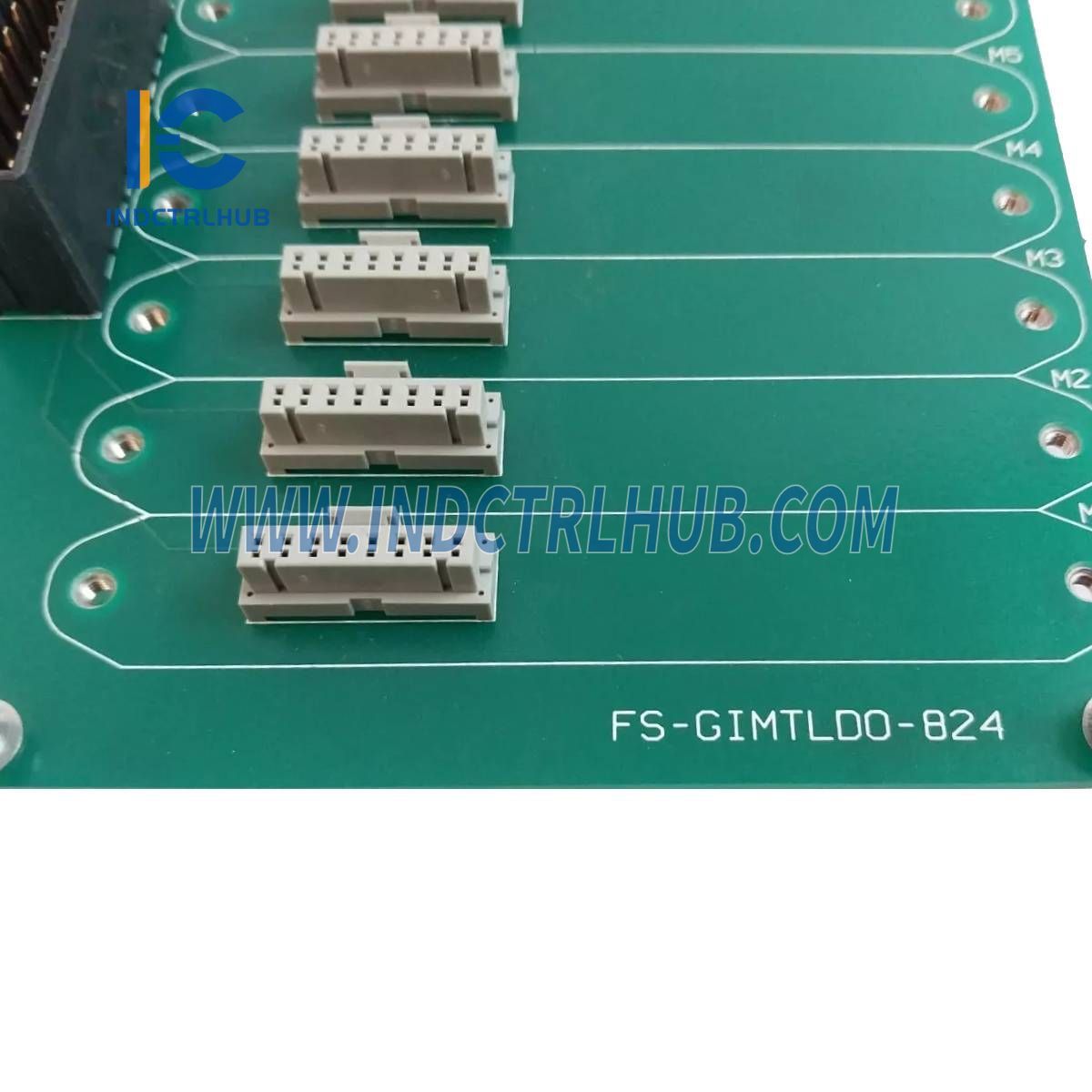

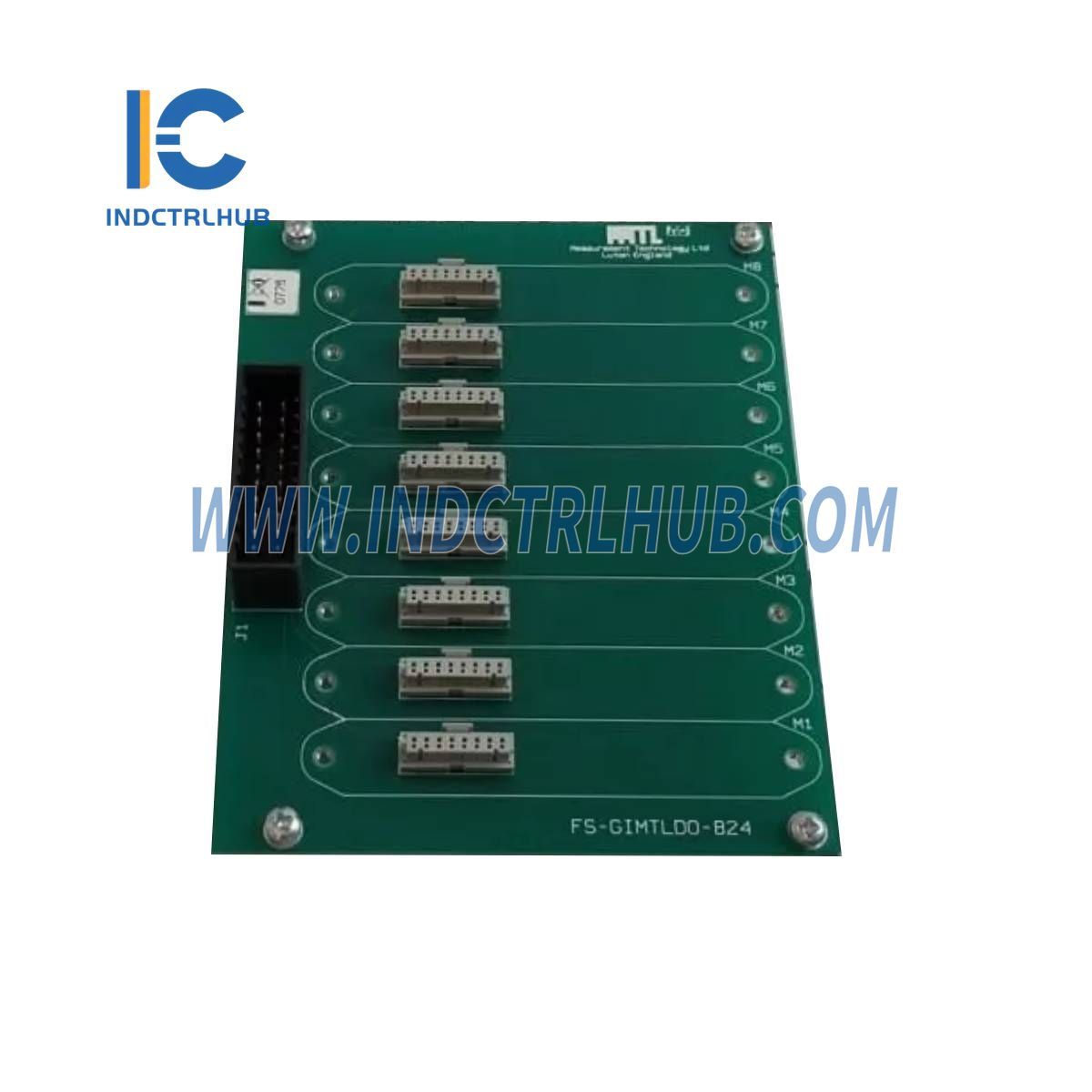

The Honeywell FS-GIMTLDO-824 is likely a Digital Output Field Termination Assembly (FTA) designed for use within Honeywell’s Fail-Safe Controller (FSC) system, part of the TotalPlant Solution (TPS) or related safety systems. Manufactured by Honeywell, a leader in automation solutions, this module serves as an interface between system interconnection cables (e.g., FS-SICC series) and external field wiring, providing eight relay-based, potential-free digital output channels. It is suited for safety-critical applications in oil and gas, chemical processing, and power generation, complying with Safety Integrity Level 3 (SIL3) requirements per IEC 61508. The module facilitates reliable control of field devices such as valves or alarms, ensuring safe operation in distributed control system (DCS) environments.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Honeywell |
| Series | FSC (Fail-Safe Controller) |
| Model/Part Number | FS-GIMTLDO-824 |
| Description | Digital Output Field Termination Assembly, 8 Relay Channels |
| Number of Channels | 8 |
| Output Type | Relay, potential-free (floating, non-commoned) |
| Contact Rating | 2 A at 24 V DC; 0.5 A at 110 V AC |
| Safety Rating | SIL3 per IEC 61508 |
| Wire Size | Up to 2.5 mm² (AWG 14) |
| Operating Temperature | 0 °C to +60 °C (32 °F to +140 °F) |
| Weight | 0.5 kg (1.1 lb) |
