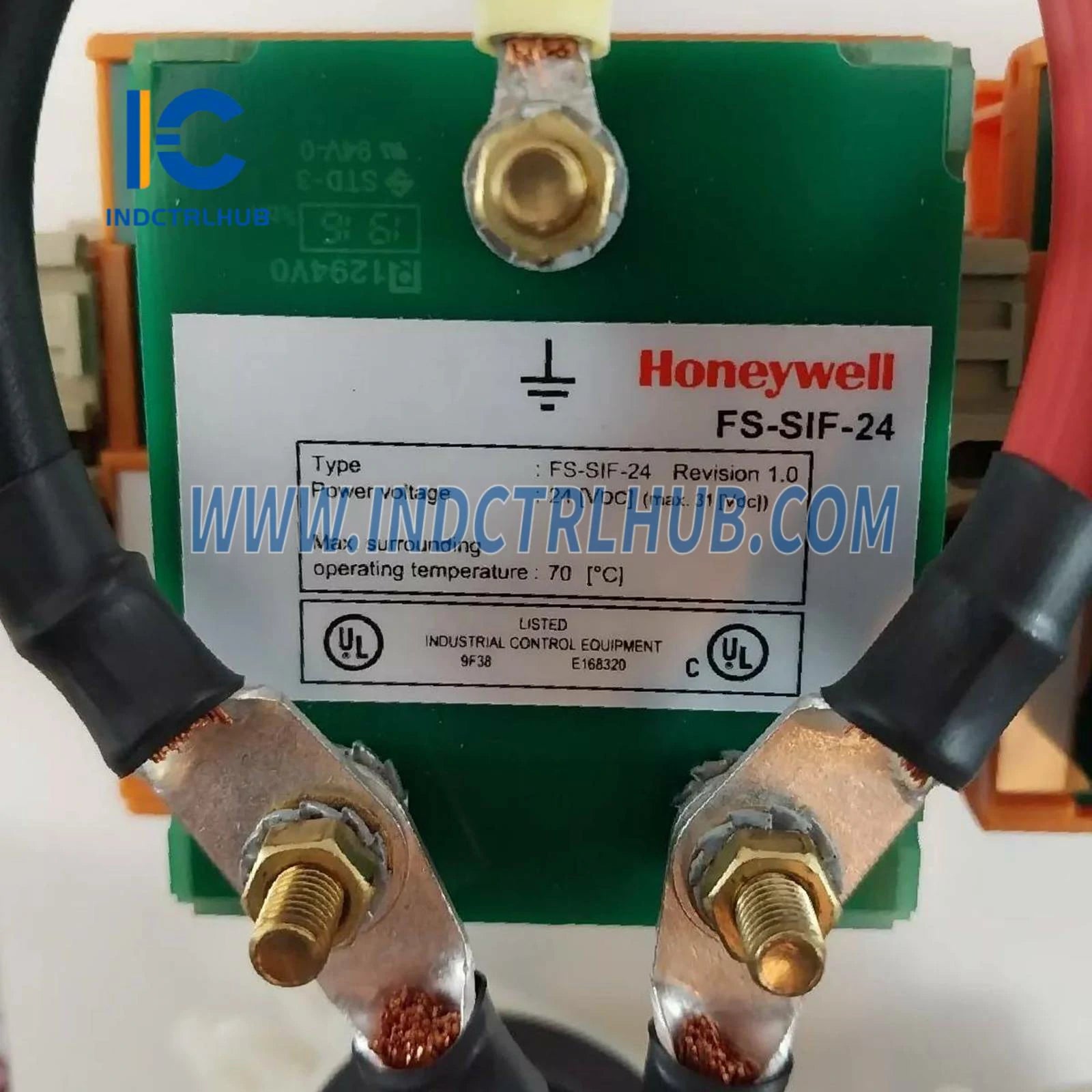

Product Description
General Information
|
Manufacturer |
Honeywell |
|---|---|
|
Model/Part Number |
FS-FEEDER-24R |
|
Description |
Power Supply Module |
|
Approvals |
CE |
Input Terminals
|
Attribute |
Details |
|---|---|
|
Make |
Weidmuller |
|
Type |
WDU 70N/35 |
|
Maximum Cable Size |
95 mm² (AWG 3/0) |
|
Tightening Torque (Min.) |
10 Nm |
Output Terminals
|
Attribute |
Details |
|---|---|
|
Make |
Weidmuller |
|
Type |
WDU 16 |
|
Maximum Cable Size |
16 mm² (AWG 6) |
Fuse Specifications
|
Attribute |
Details |
|---|---|
|
Fuse Rating |
500 mA |
|
Fuse Dimensions |
5x20 mm |
|
Voltage Rating (AC) |
250 V |
|
Voltage Rating (DC) |
300 V |
|
Manufacturer |
Schurter |
|
Manufacturer PN |
0001.2501 |
|
Derating Curve |
Linear from 0.5 A at 25°C to 0.35 A at 70°C |
Relay Specifications
|
Attribute |
Details |
|---|---|
|
Coil Current |
6.6 mA at 24 V DC |
|
Maximum Switching Power |
250 V AC / 6 A |
|
Minimum Switching Power |
12 V / 10 mA |
Terminal Wire Size
|
Minimum |
Maximum |
|---|---|
|
0.5 mm² (AWG 30) |
4 mm² (AWG 12) |
Diode Specifications
|
Attribute |
Details |
|---|---|
|
Peak Reverse Voltage |
1.2 kV |
|
Maximum Continuous Current |
130 A |
|
Peak Current |
2.5 kA |
|
Voltage Drop |
≤ 1.5 V |
Physical Specifications
|
Attribute |
Details |
|---|---|
|
Space Requirements |
873 x 210 x 190 mm (H x W x D) |
|
34.4 x 8.3 x 7.5 in (H x W x D) |
|
|
Weight |
8.8 kg (19.4 lb.) |
