Product Description
Product Overview

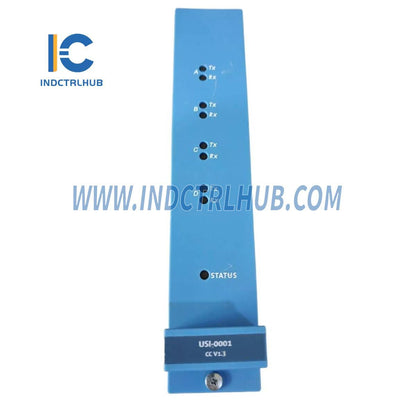

The Honeywell FC-USI-0001 Universal Interface Module is a versatile component designed for integration into Honeywell’s industrial control systems, such as the Safety Manager or Experion platforms. This module serves as a universal safety interface, facilitating secure communication between field devices and control processors. With a 5 V DC power supply, a maximum current of 1.2 A, and a robust design rated for a wide temperature range, it is approved by CE, TUV, UL, CSA, and FM standards, ensuring reliability in industrial automation applications.
Technical Information
| Parameter | Specifications |
|---|---|
| Manufacturer | Honeywell |
| Model/Part Number | FC-USI-0001 |
| Description | Universal Interface Module |
| Type Numbers | FS-USI-0001 V1.2 FC-USI-0001 CCV1.2 |
| Operating Temperature | -5°C to +70°C (23°F to 158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Relative Humidity | 10% to 95% (non-condensing) |
| Approvals | CE, TUV, UL, CSA, FM |
| Power Supply Voltage | 5 V DC ± 5% (4.75 V to 5.25 V) |
| Power Supply Current | Max. 1.2 A |
| Dimensions (HxWxD) | 176 x 35.2 x 212 mm (6.93 x 1.39 x 8.35 in) |
| Weight | 0.7 kg (1.54 lb) |
