Product Description
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Honeywell |
|
Model/Part Number |

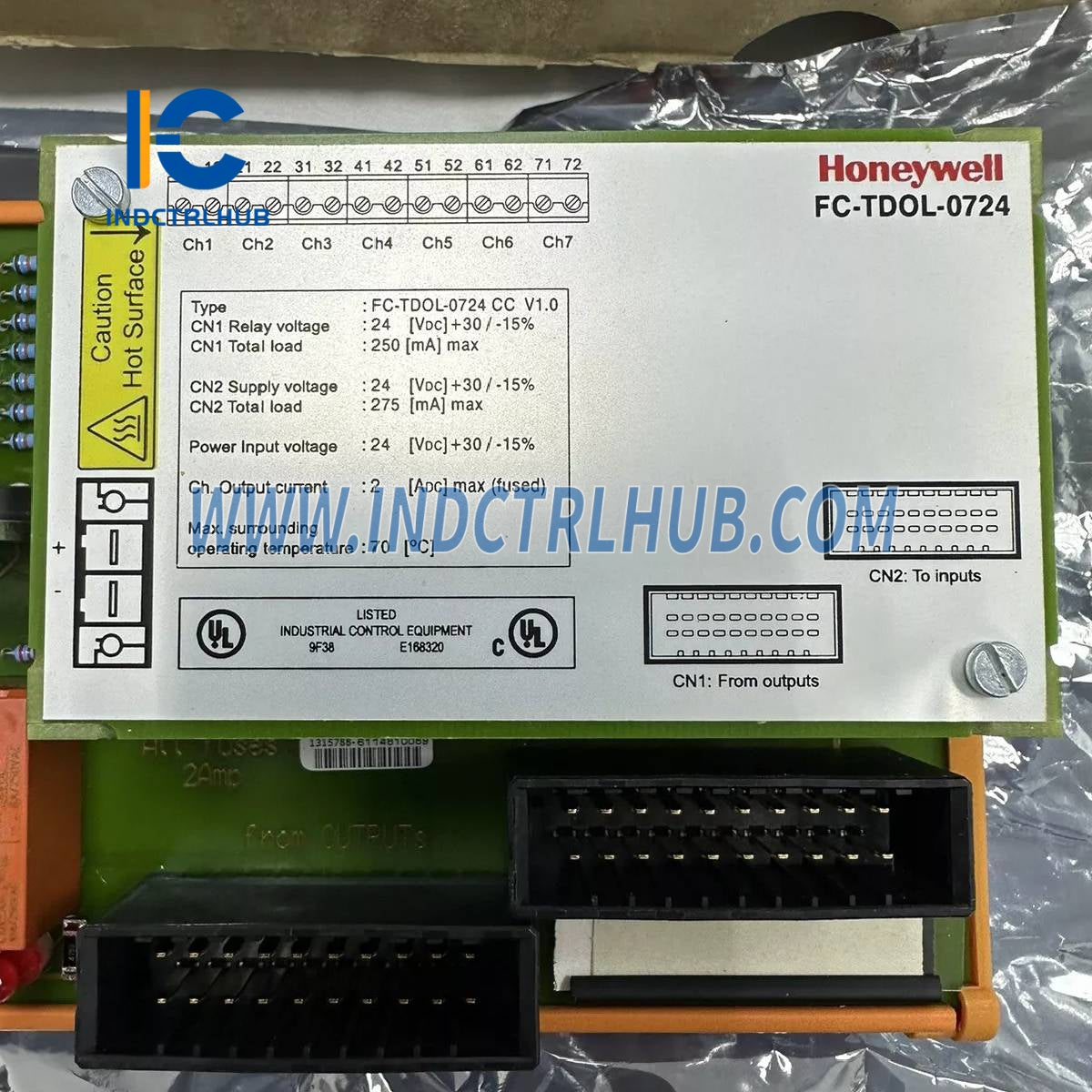

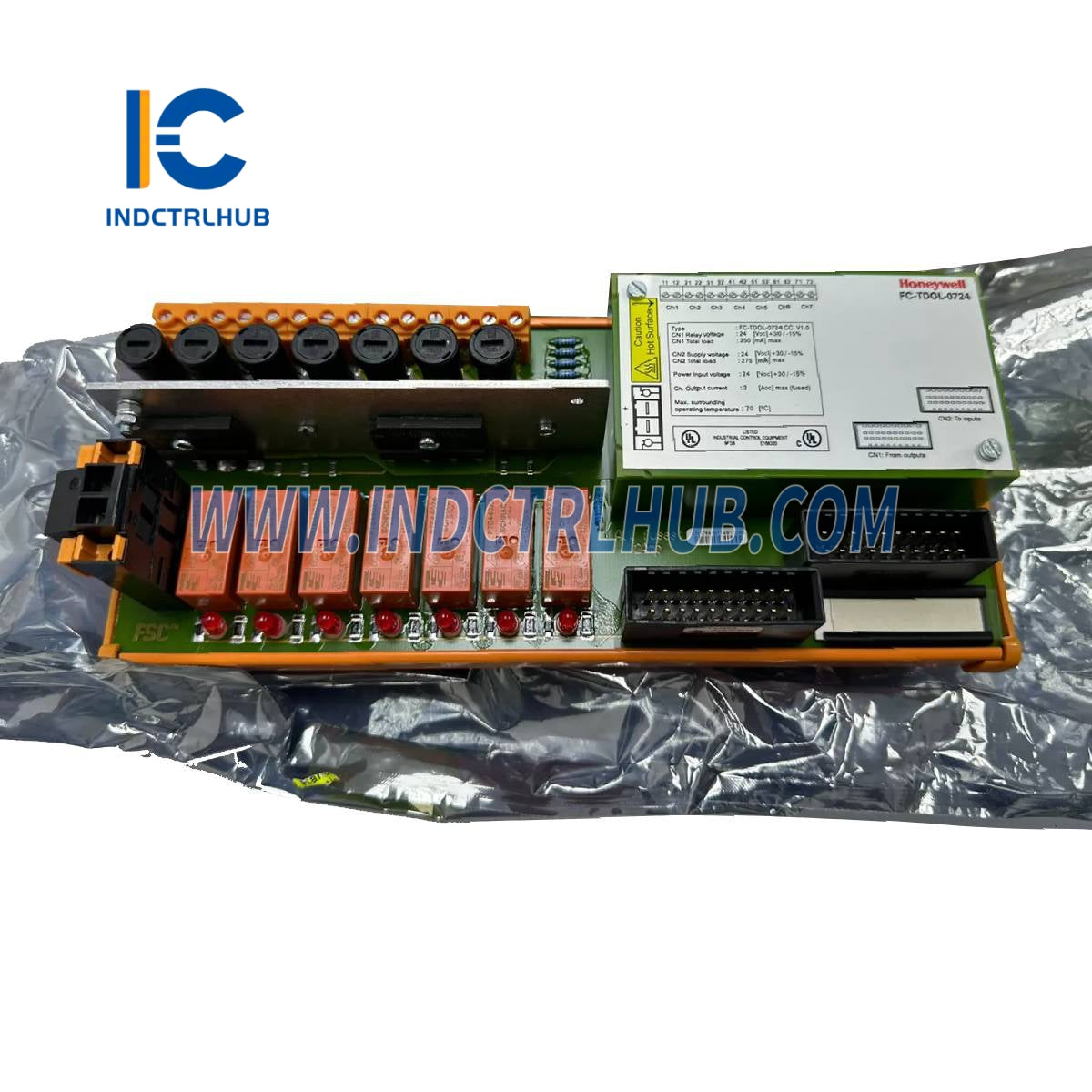

FC-TDOL-0724 |
|
Description |
7-Channel Digital Output Module, 24VDC, with diagnostics |
Specifications
General
|
Parameter |
Specification |
|---|---|
|
Type Number |
FC-TDOL-0724 |
|
Approvals |
CE, TUV, UL, CSA (pending) |
Output Characteristics
|
Feature |
Specification |
|---|---|
|
Number of Channels |
7 |
|
Max Output Current per Channel |
2 A |
|
Output Load |
24 VDC, resistive or inductive with spark suppression diode |
|
Output Supply Voltage |
24 VDC ±20% |
|
Maximum Load Resistance |
2200 Ω |
|
Leakage Current to Load |
~1.1 mA @ 24 V |
|
No Load Output Voltage |
OFF: 90% of supply voltageON: 100% of supply voltage |
|
Short-Circuit Detection Threshold |
200 Ω < RTh < 400 Ω |
Fuse Information
|
Feature |
Specification |
|---|---|
|
Fuse Rating |
2 A |
|
Dimensions |
5 × 20 mm |
|
Voltage Rating (AC) |
250 V |
|
Voltage Rating (DC) |
300 V |
|
Manufacturer |
Littelfuse |
|
Part Number |
0213002 |
|
Derating Curve |
Linear from 2 A @ 25°C to 1.9 A @ 70°C |

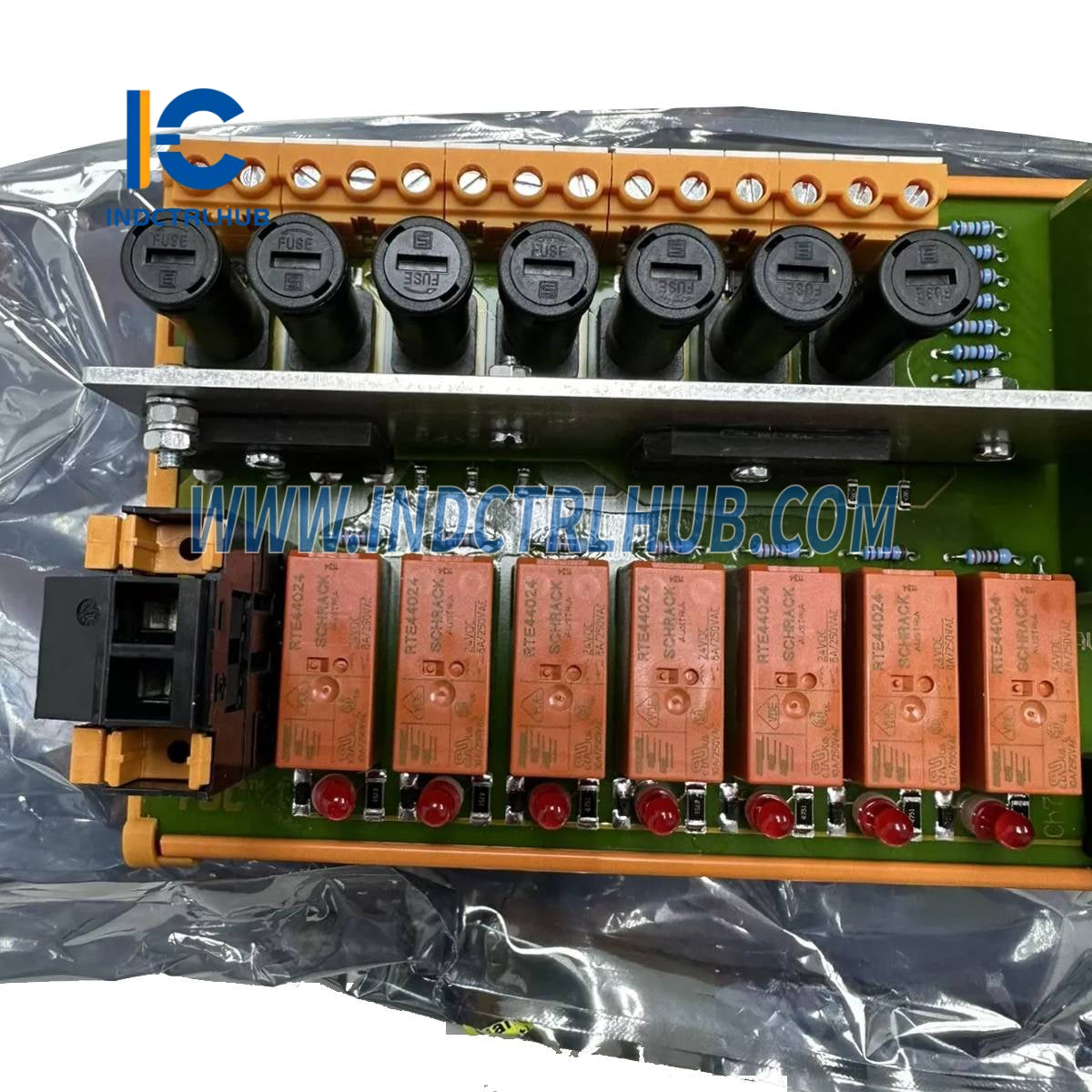

Relay Contact Details
|
Feature |
Specification |
|---|---|
|
Max Switched Power |
150 Watts |
|
Electrical Life |
100,000 switch operations |
|
Mechanical Life |
30,000,000 switch operations |
Power Consumption
|
Condition |
Consumption |
|---|---|
|
Field Power (24 VDC) |
< 9 mA (all channels OFF) |
|
Relays + Channel 8 (via TSDO-0824) |
~200 mA (max. 250 mA at Vmax) |
|
Read Back Circuit (via SDI-1624) |
<110 mA (single), <210 mA (redundant), max 275 mA |
Physical Dimensions
|
Feature |
Specification |
|---|---|
|
Module Size (L × W × H) |
240 × 109 × 80 mm (9.45 × 4.29 × 3.15 in) |
|
DIN Rail Type |
TS32 / TS35 × 7.5 |
|
Used Rail Length |
241 mm (9.49 in) |
Termination & Connectors
|
Terminal Type |
Specification |
|---|---|
|
Channel Screw Terminals |
Max wire diameter: 2.5 mm (AWG 14) |
|
Strip length: 7 mm (0.28 in) |
|
|
Tightening torque: 0.5 Nm (0.37 ft-lb) |
|
|
Power Connector |
2-pole header with keying |
|
Connector Make & Type |
Weidmüller: BVZ 7.62HP/02/180F SN |
|
Keying Strip |
Weidmüller: BV/SV7.62HP KO, strip length: 8 mm |
|
Connectable Conductors |
0.5–6 mm² (AWG 20–AWG 10) |
