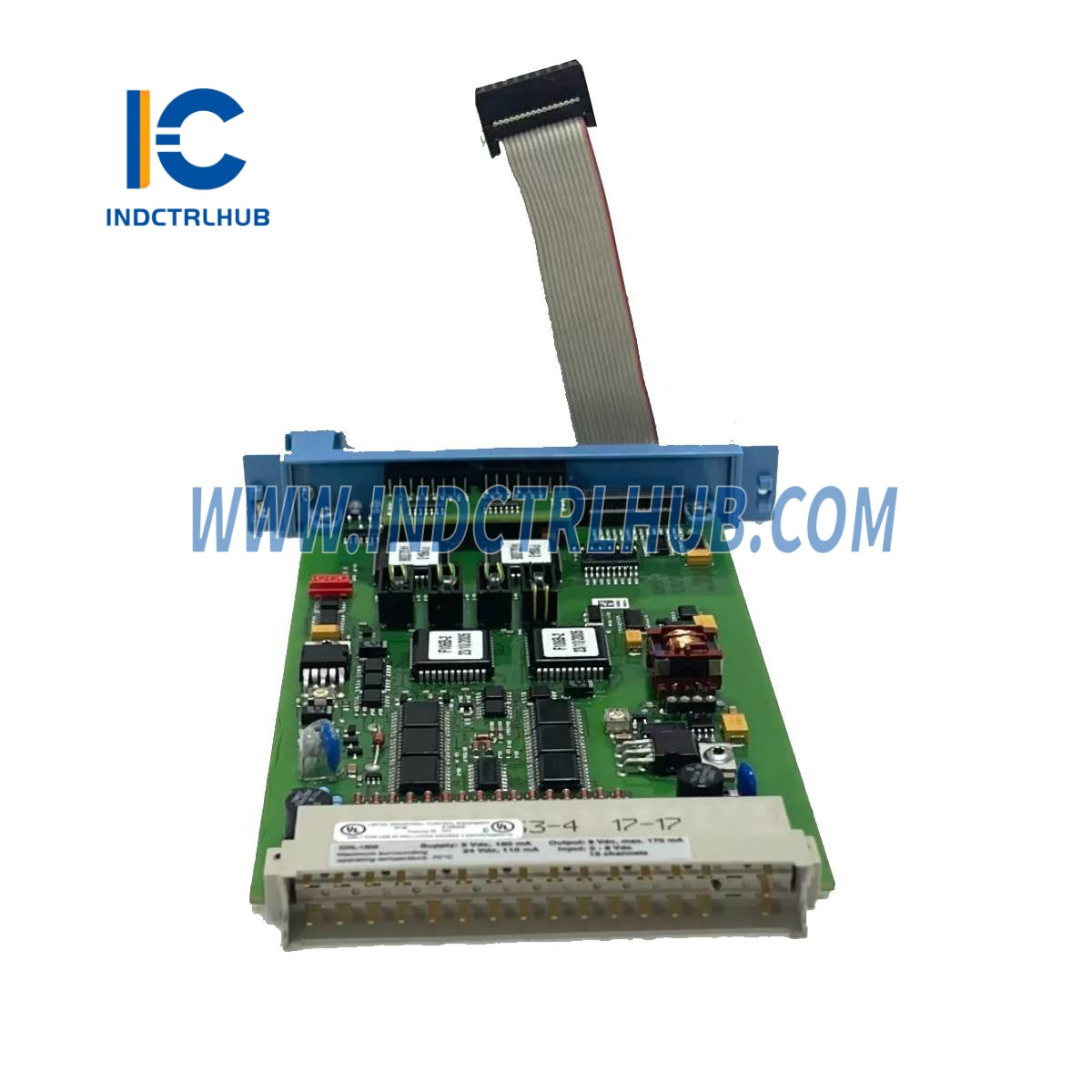

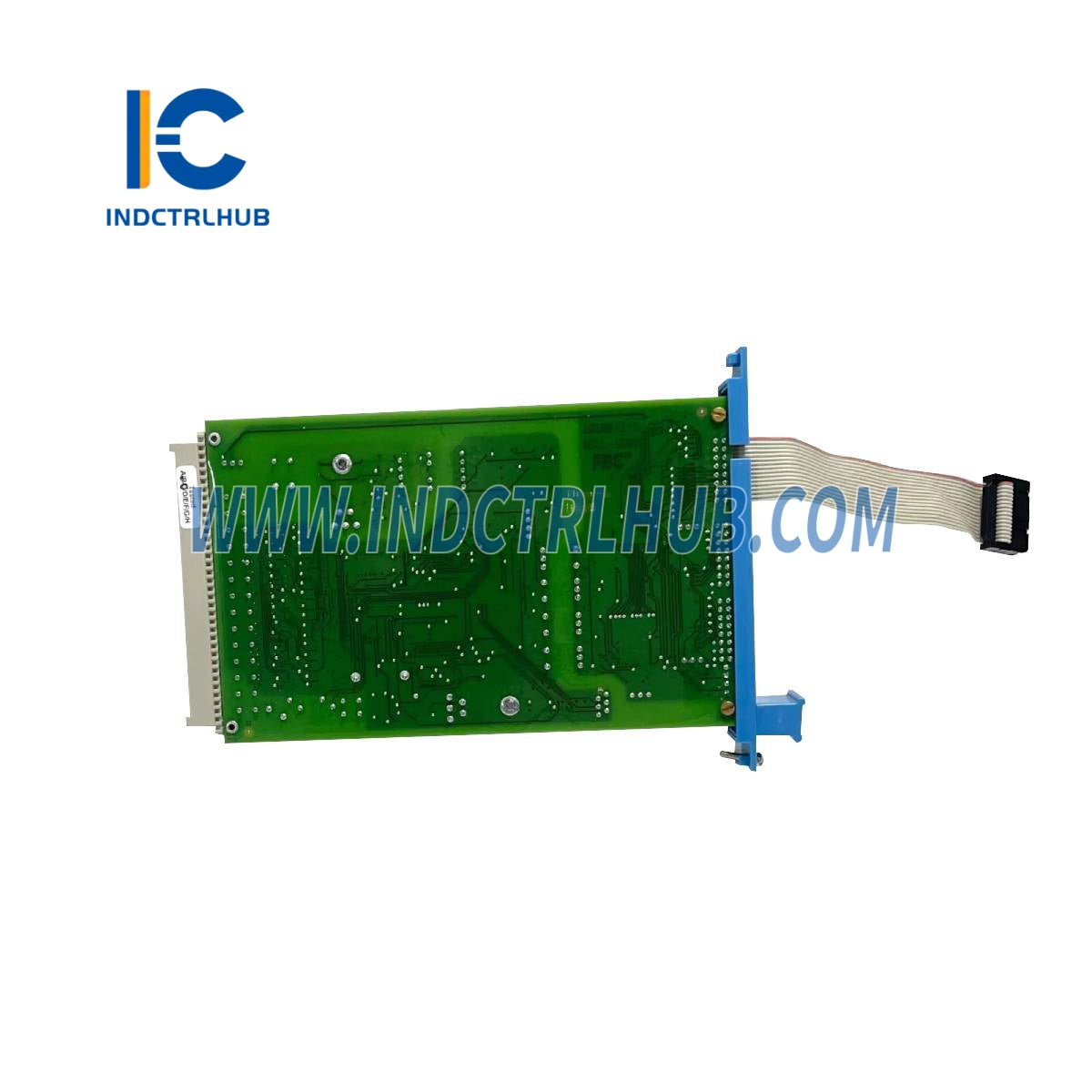

Product Description
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Honeywell |
|
Model/Part Number |
FC-SDIL-1608 C.C |
|
General Type Numbers |
FS-SDIL-1608, FC-SDIL-1608, FA-SDIL-1608 |
|
Description |
16-Channel Digital Input Module (NAMUR-compliant) |
|
Approvals |
CE, TUV, UL, CSA, FM |
Technical Specifications
Physical & Mechanical
|
Parameter |
Specification |
|---|---|
|
Space Requirement |
4 TE, 3 HE (4 HP, 3U) |

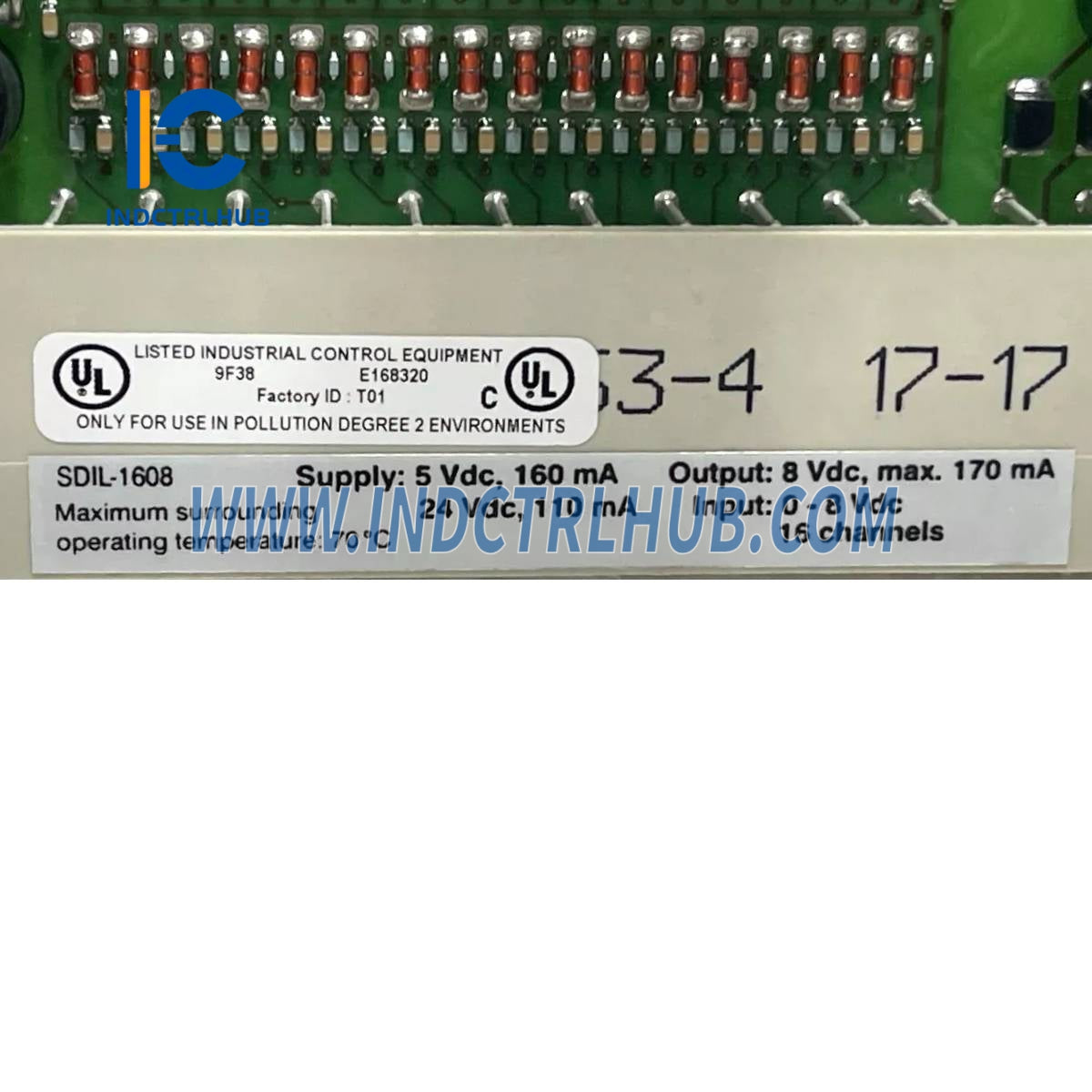

Power Requirements
|
Supply |
Current Consumption |
|---|---|
|
5 V DC |
160 mA |
|
24 V DC |
110 mA |
Inputs (in combination with BN-1608)
|
Parameter |
Specification |
|---|---|
|
Number of Channels |
16 |
|
Input Type |
NAMUR (DIN-compliant) |
|
Switch Level |
1.4 – 1.9 mA |
|
Hysteresis |
0.2 mA ± 0.05 mA |
|
Input Filter |
First-order low-pass, 100 Hz |
|
Field Wire Resistance |
Max. 50 Ω |
Loop Supply (8 V)
|
Parameter |
Specification |
|---|---|
|
Output Voltage |
7.9 – 8.7 V |
|
Output Current |
170 mA (short-circuit proof) |
|
Max Load Capacitance |
100 nF |
Earth Connection Monitor
|
Parameter |
Specification |
|---|---|
|
Number of Monitors |
1 |
|
Input Resistance |
Typically 0.5 MΩ (–40V < U < 40V) |
|
Test Current |
Typically 0.5 mA |
|
Output Voltage |
Typically 0.5 V DC |
|
Field Fault Voltage |
Max. 250 V AC |
Connector Coding
|
Component |
Code |
|---|---|
|
Module Connector |
Holes A5, C29 |
|
Chassis Connector |
Large pins A5, C29 |
