Product Description
|
Category |
Details |
|---|---|
|
Manufacturer |
Honeywell |
|
Model/Part Number |

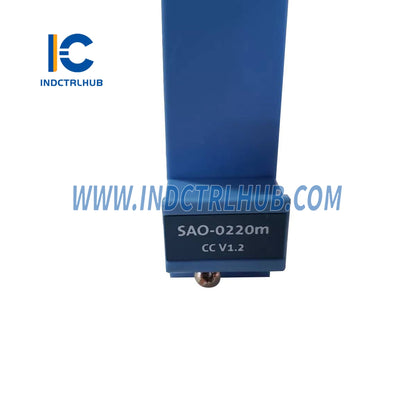

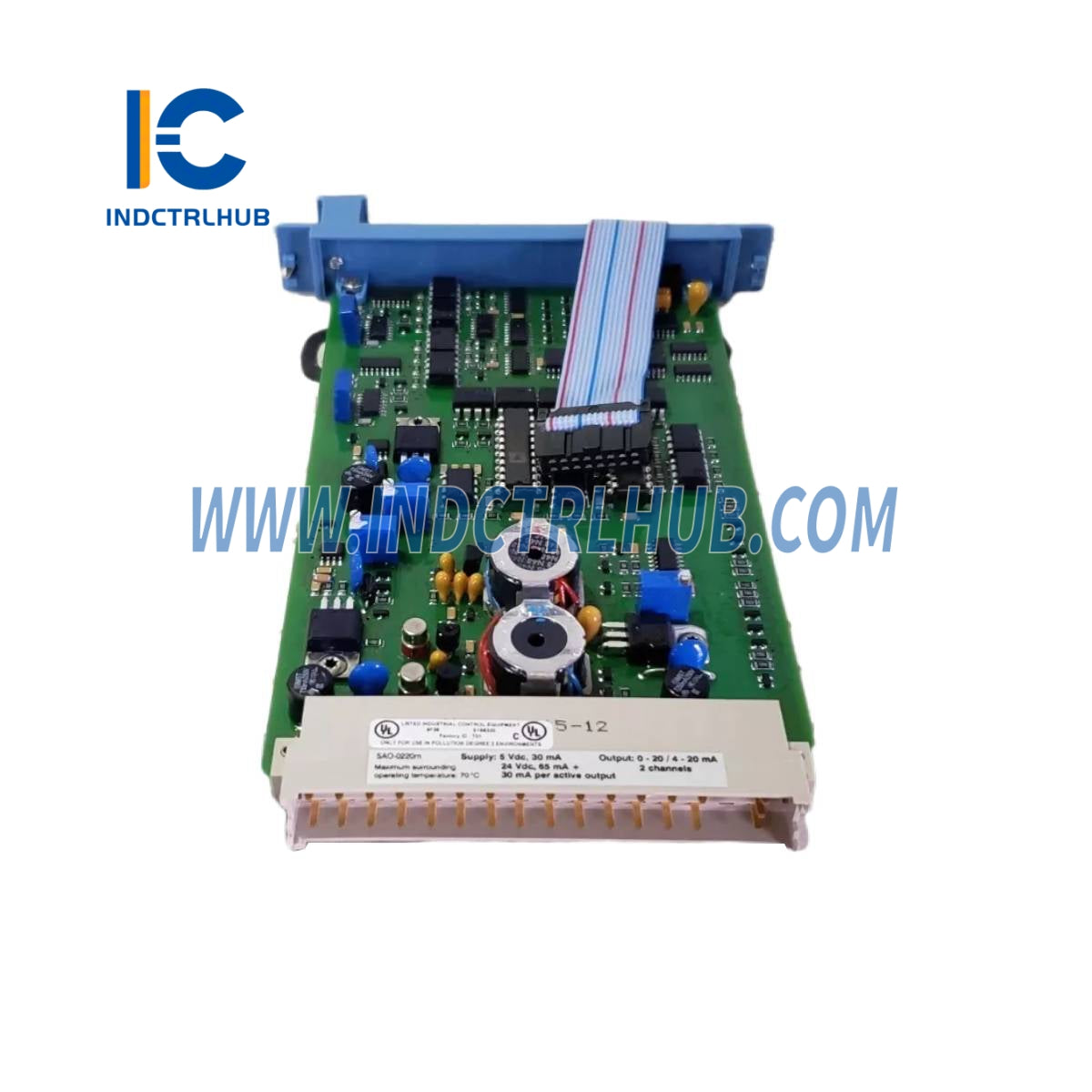

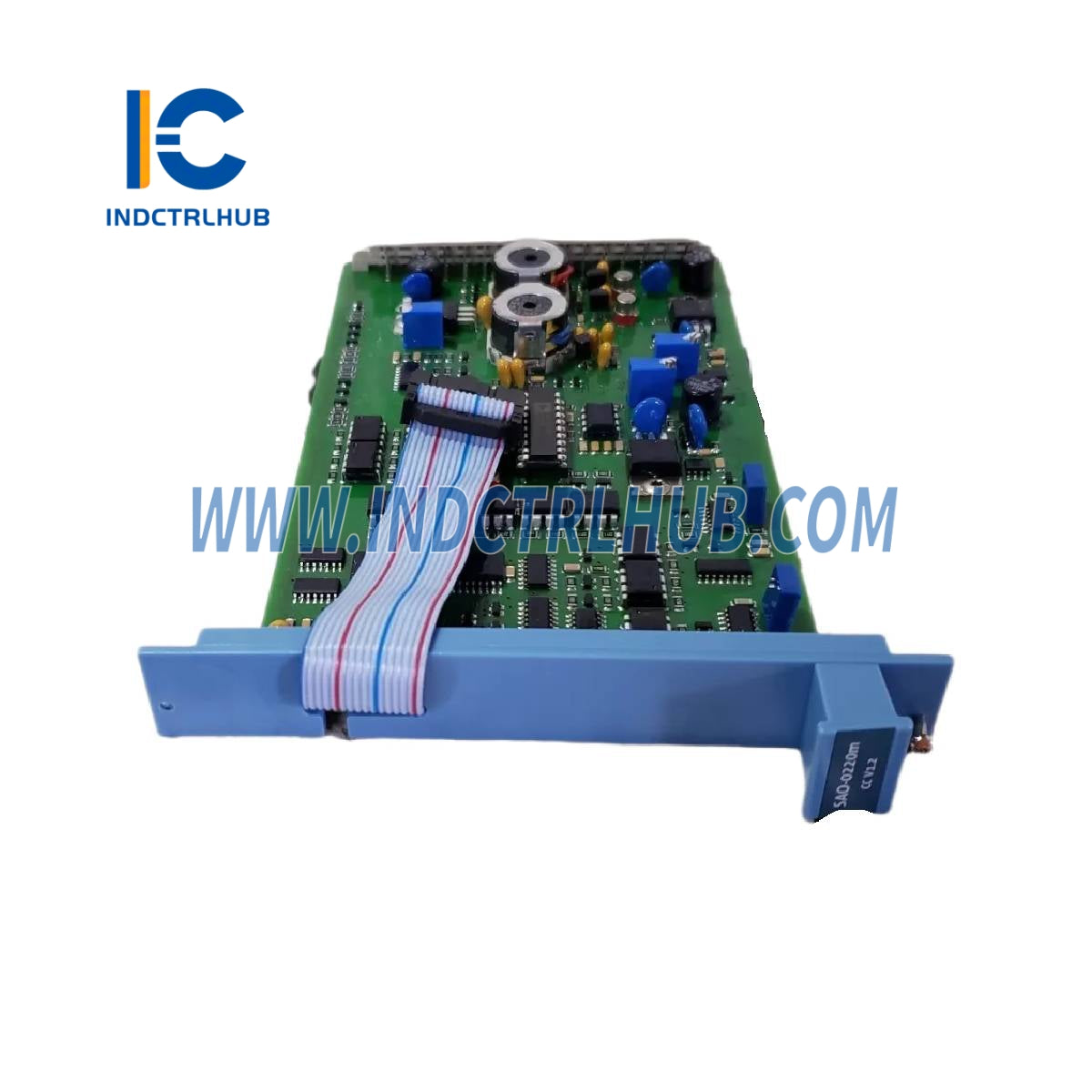

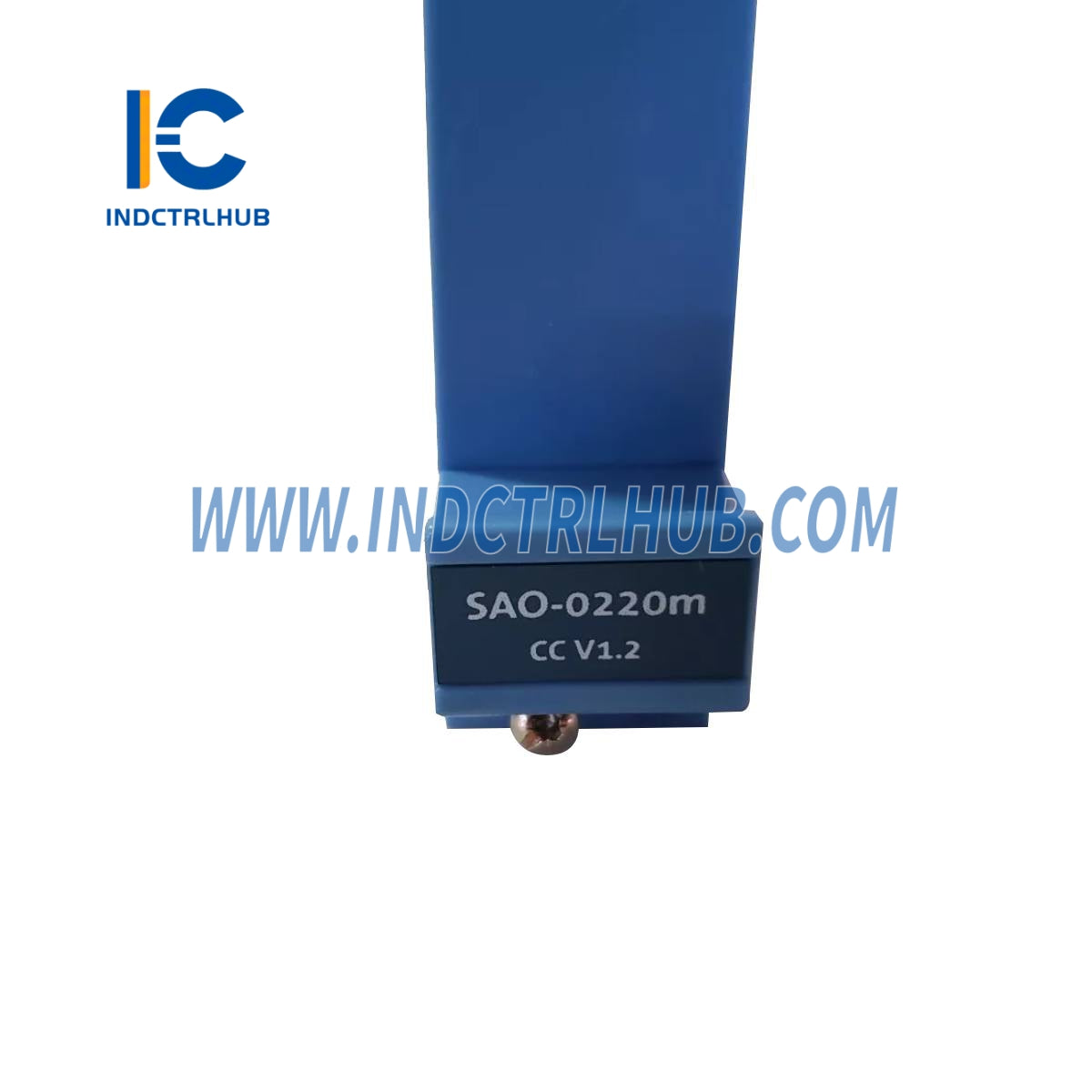

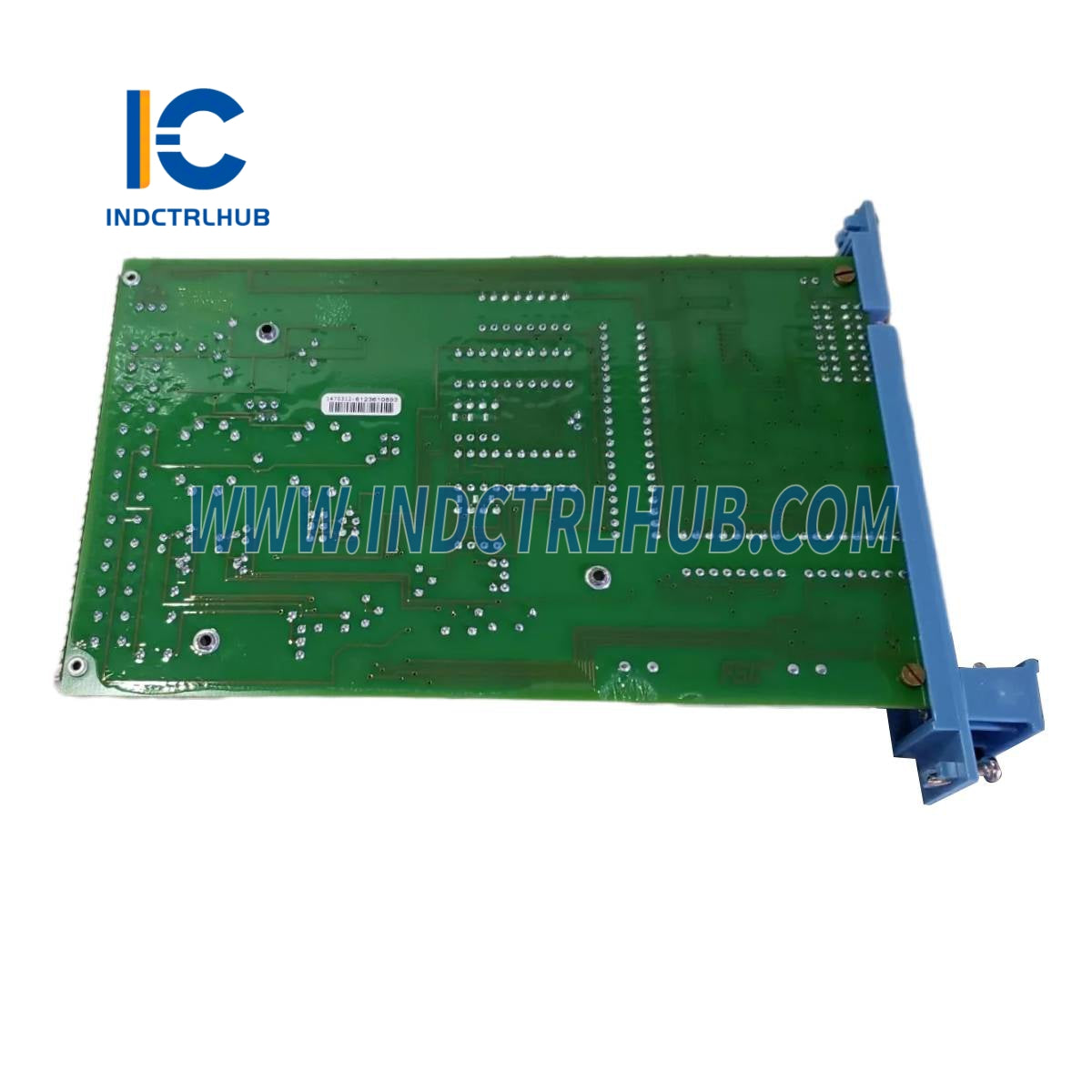

FC-SAO-0220M V1.2 |
|
General Type Numbers |
FS-SAO-0220m, FC-SAO-0220m |
|
Approvals |
CE, TUV, UL, CSA, FM |
|
Space Requirements |
4 TE, 3 HE (= 4 HP, 3U) |
|
Power Requirements |

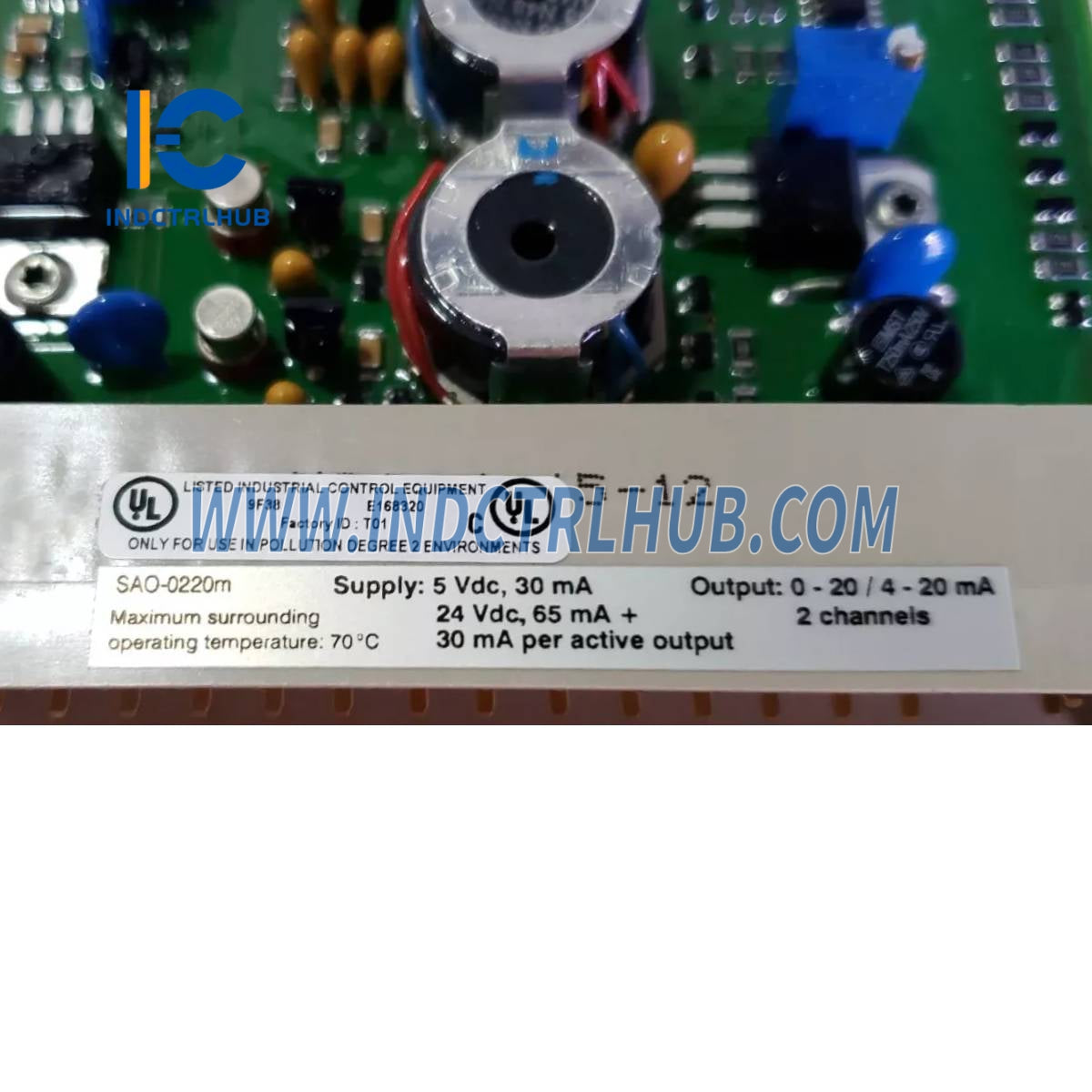

5 V DC @ 30 mA; 24 V DC @ 65 mA + 30 mA per active output |
|
Number of Outputs |
2 (Galvanically isolated from supply voltage; 0V1 and 0V2 interconnected) |
|
Output Type |
Active or Passive |
|
Output Current Range |
0–20 mA / 4–20 mA |
|
D/A Converter |
12-bit |
|
Off Current |
< 0.05 mA |
|
Max Load Capacitance |
100 nF |
|
Loop Powering (Active) |
Max loop resistance: 600 Ω; Max output voltage: 30 V DC |
|
External Powering (Passive) |
Max: 40 V DC; Min voltage drop: ≤ 7.5 V |
|
WDG Input Current |
0.5 mA |
|
Key Coding |
Module code: Holes A9, C5; Chassis code: Large pins A9, C5 |
