Product Description
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Honeywell |
|
Model/Part Number |
FC-IOTA-R24 |
|
Description |

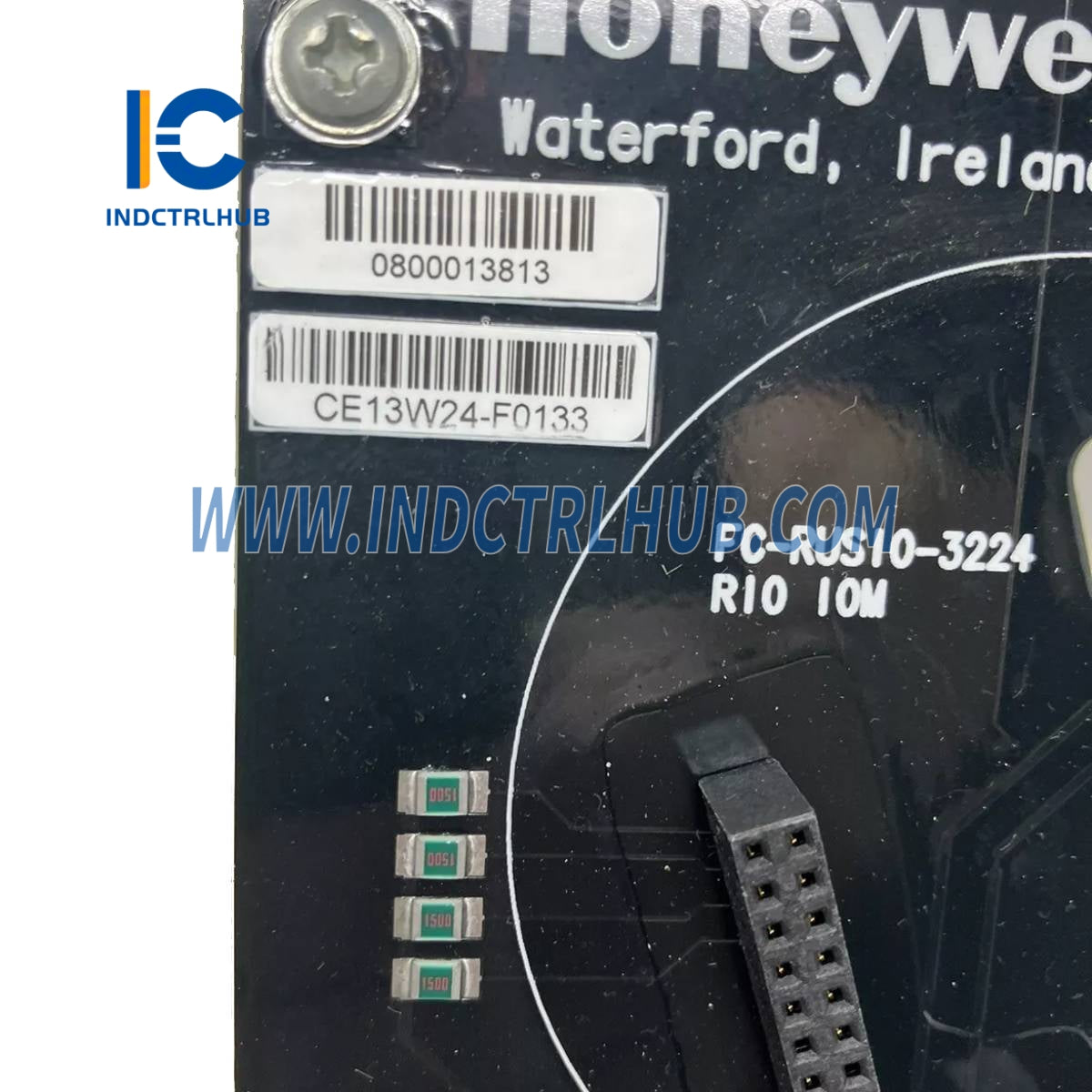

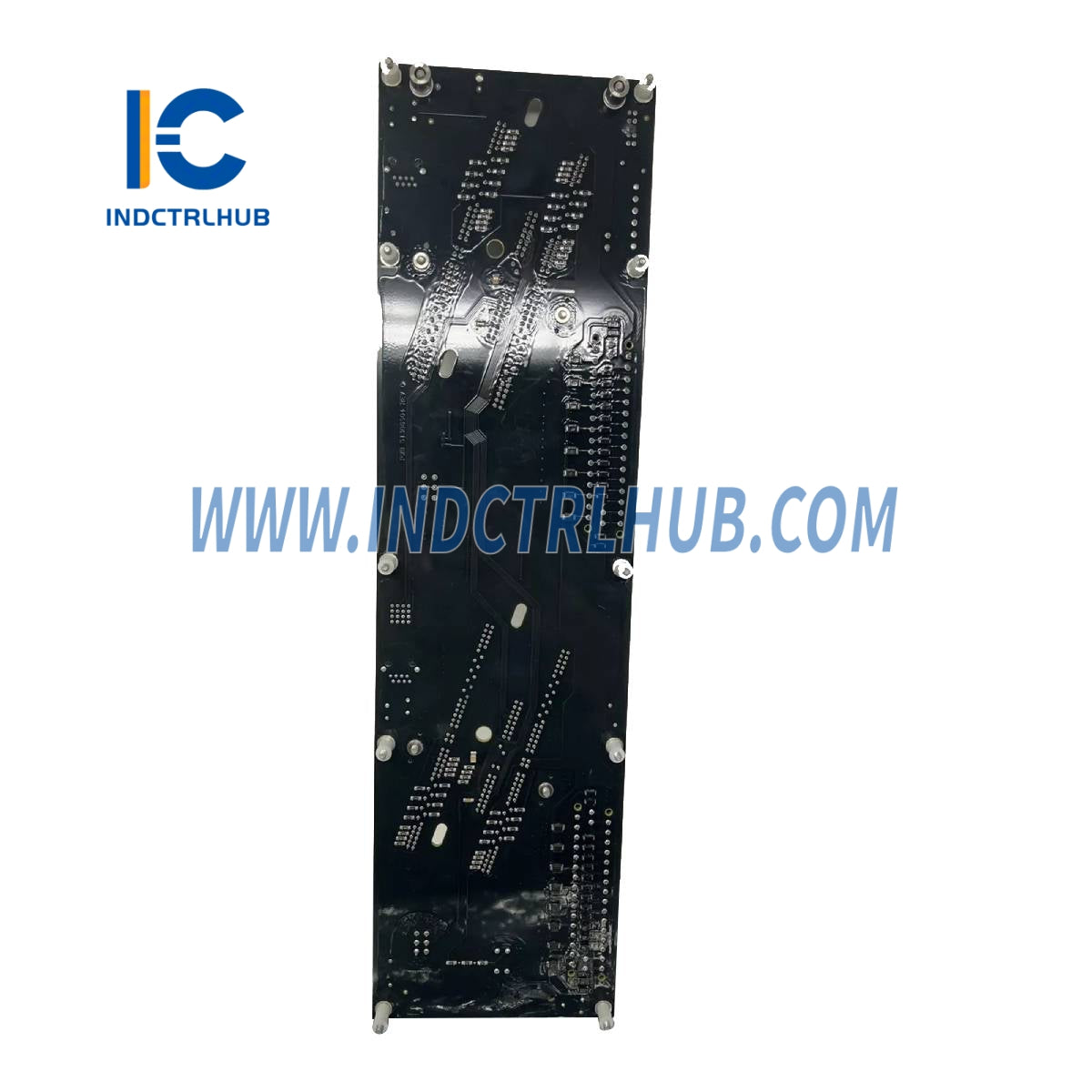

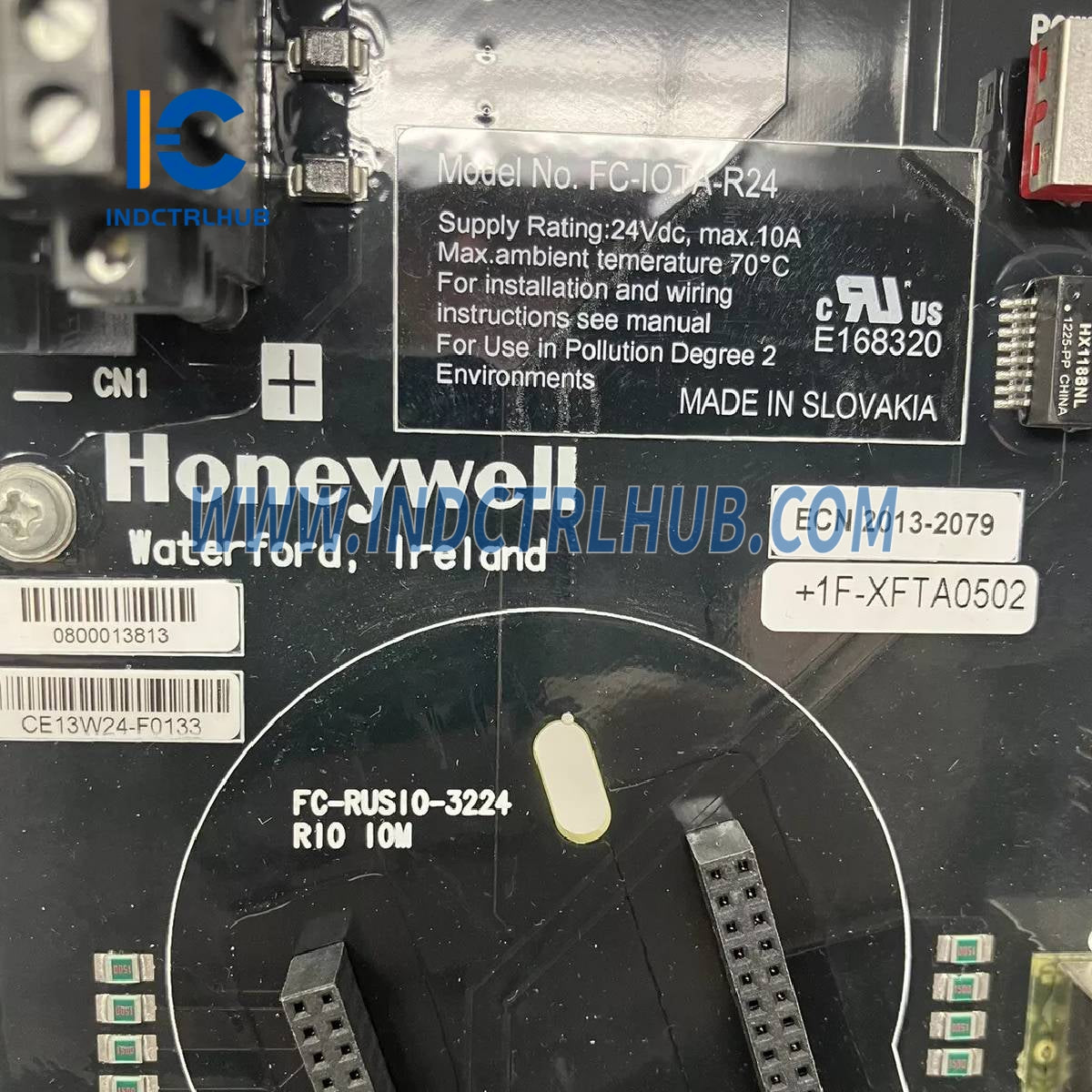

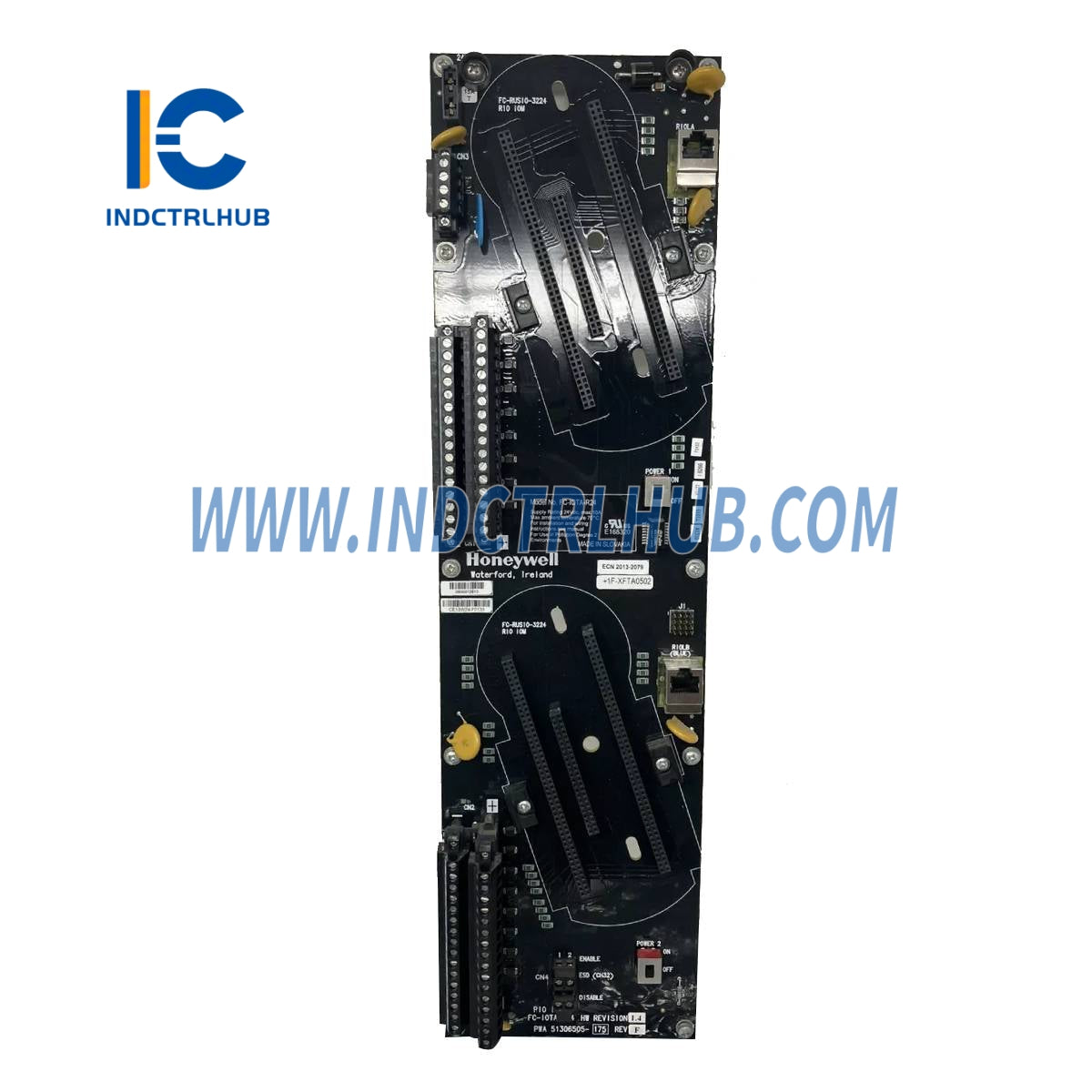

IOTA Power Distribution and Interface Module |
Specifications
General Information
|
Parameter |
Specification |
|---|---|
|
Type Number |
FC-IOTA-R24 |
|
Approvals |
CE, UL, TUV |
|
Pollution Degree |
2 or better |
Environmental Conditions
|
Parameter |
Specification |
|---|---|
|
Operating Temperature |
-40 to +70°C (-40 to +158°F) |
|
Storage Temperature |
-40 to +85°C (-40 to +185°F) |
|
Relative Humidity |
10% to 95% (non-condensing) |
Power Supply
|
Parameter |
Specification |
|---|---|
|
Voltage |
24 V DC (-15% to +30%) |
|
Max Supply Load |
10 A |
|
Reverse Polarity Protection |
Parallel diode (fuse blows under reverse polarity) |
|
Fuse Rating |
15 A |
|
Fuse Type & Dimensions |
Blade type, 5 × 19 mm |
|
Fuse Voltage Rating (DC) |
32 V |
|
Fuse Manufacturer |
Littelfuse |
|
Part Number |
0287015.PXS |
V+ Pins (CN3)
|
Parameter |
Specification |
|---|---|
|
Max Current (Total CN3) |
1 A |
|
Max Voltage Drop |
< 1.5 V (at 0.7 A) |
|
Max Reverse Voltage |
36 V |
Connectivity
|
Connection |
Details |
|---|---|
|
24 V Supply |
2 × M4 (to power rail of the carrier) |
|
Ground |
10 × M3.5 (to metal of the carrier) |
|
Ethernet |
RJ-45 |
|
IO Connectors |
CN1 and CN2: Weidmüller BLZ 5.08/16/90F SN SW |
|
V+ Connector |
CN3: Weidmüller BLZ 5.08/4/90F SN SW |
Screw Terminals (CN1, CN2, CN3)
|
Feature |
Specification |
|---|---|
|
Wire Size Range |
0.50 to 2.50 mm² |
|
Strip Length |
7 mm |
|
Tightening Torque |
0.5 Nm (0.37 ft-lb) |
Physical Characteristics
|
Parameter |
Specification |
|---|---|
|
Dimensions (H × W × D) |
64 × 120.7 × 443.2 mm (2.52 × 4.75 × 17.45 in) |
|
Weight |
0.57 kg (1.26 lbs) |
