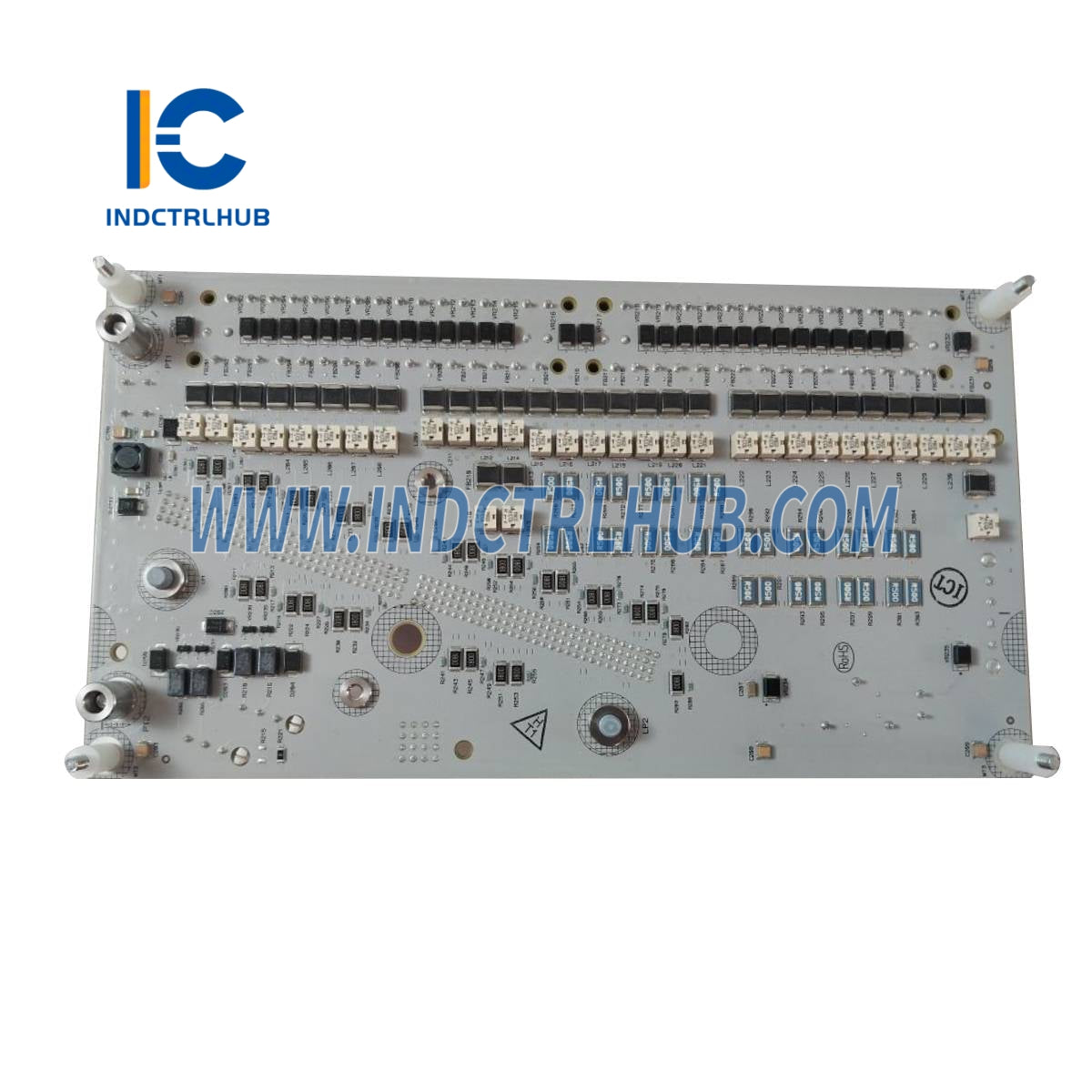

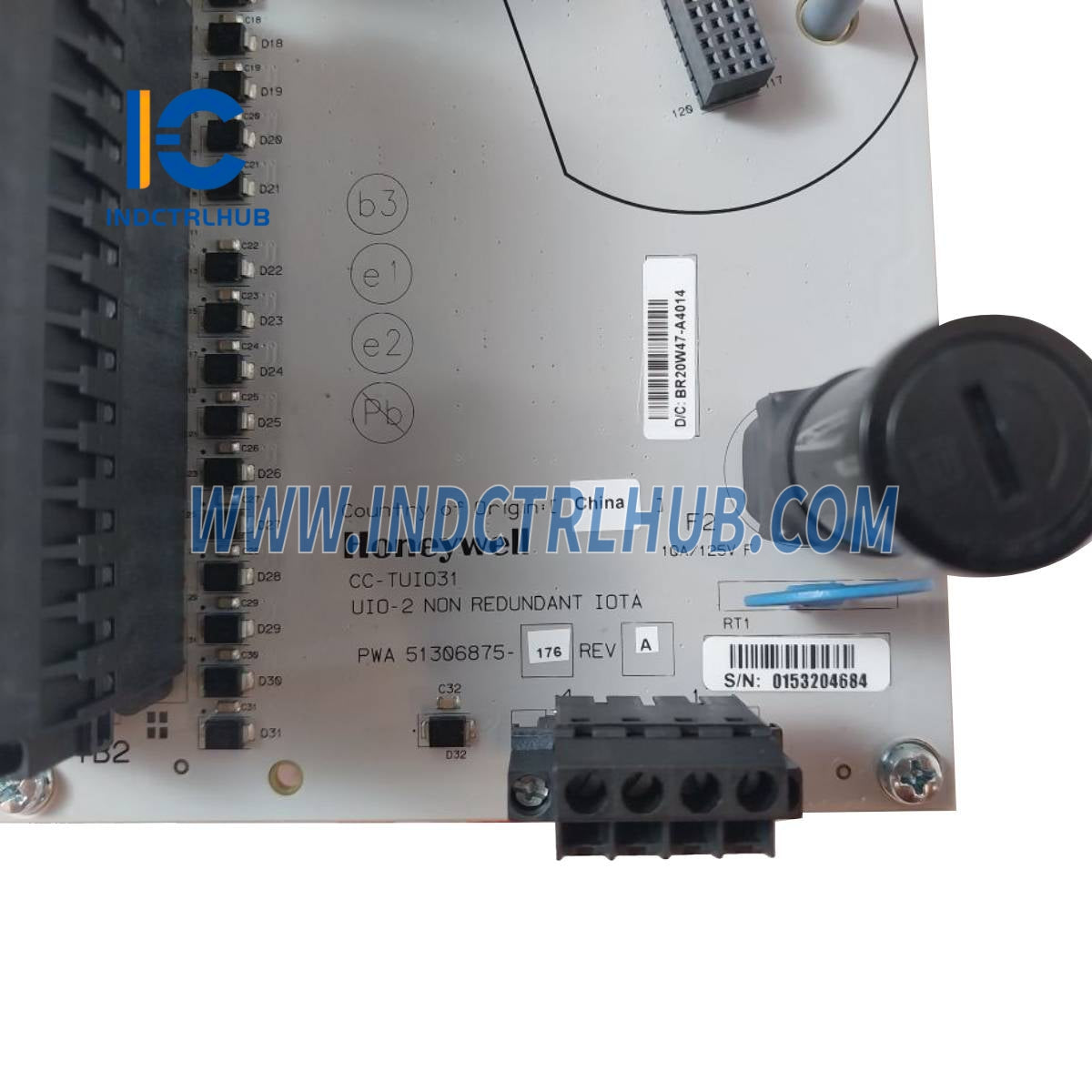

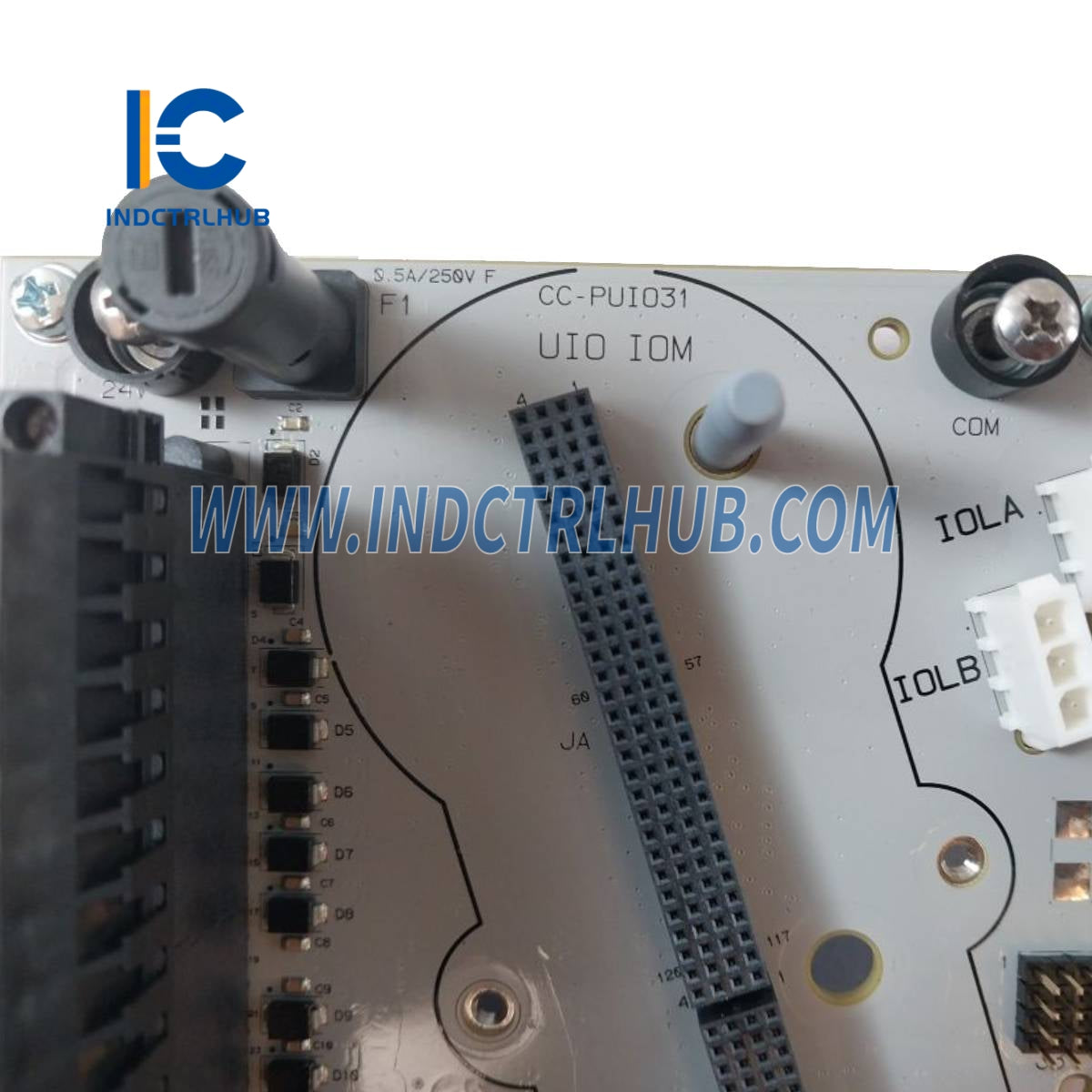

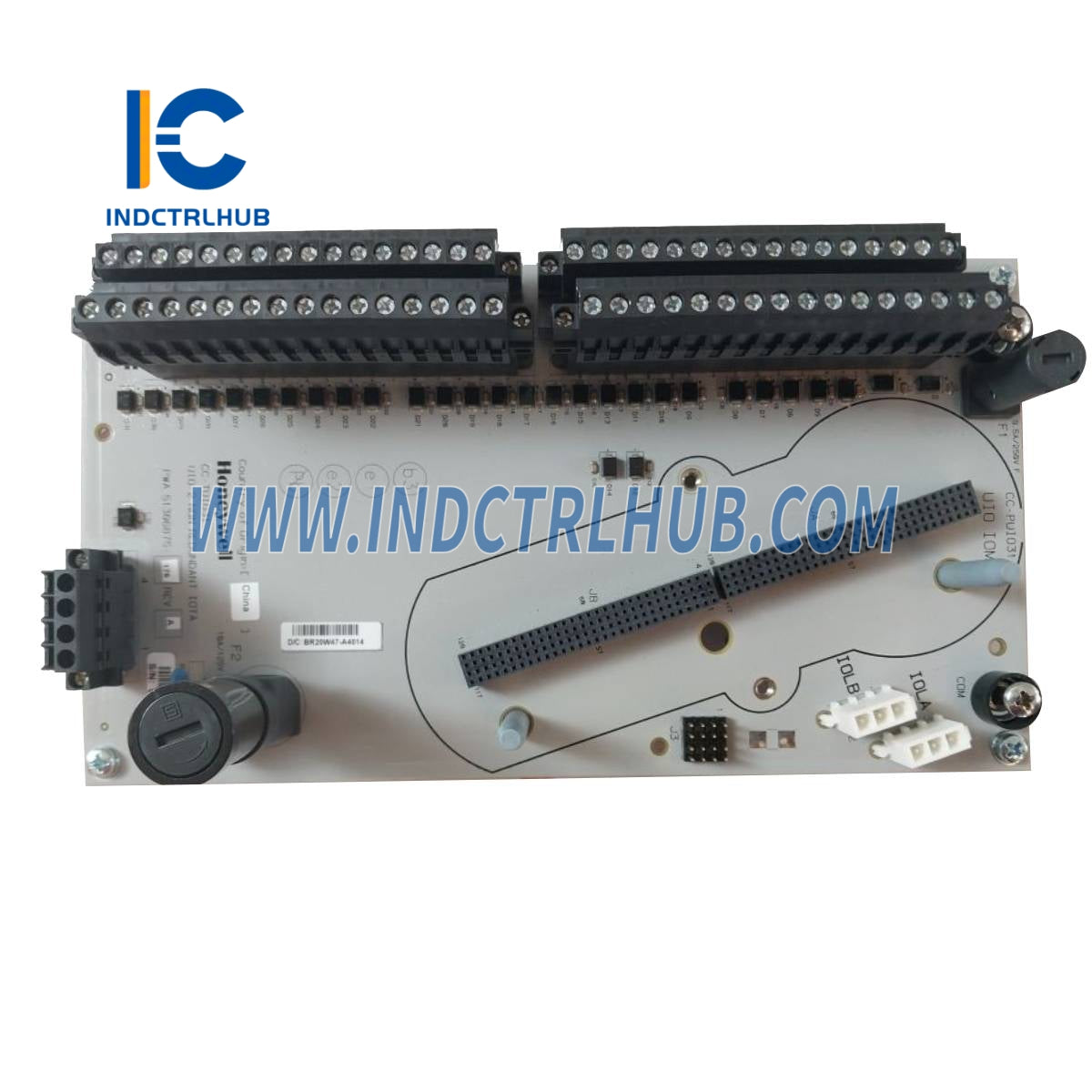

Product Description
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Honeywell |
| Model/Part Number | DC-TUIO31 |
| Description | Universal Input/Output Termination Assembly (IOTA) designed for Honeywell Experion PKS Distributed Control Systems, supporting 32 channels for mixed analog and digital I/O signals in non-redundant applications |
| Key Features | 32 universal I/O channels, non-redundant, supports digital and analog signals, conformal coated for harsh environments, integrates with Series C I/O modules, flexible configuration |
Technical Specifications
| Specification | Details |
|---|---|
| Model | DC-TUIO31 |
| Product Type | Universal I/O Termination Assembly (IOTA) |
| Series | Experion PKS Series C |
| Number of Channels | 32 universal I/O channels |
| Signal Types | Digital (24 VDC), Analog (4-20 mA, 0-10 V) |
| Power Supply | 24 VDC (via system backplane) |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Weight | Approx. 0.4-0.6 kg (0.88-1.32 lbs) |
External Connection Options
| Connection Type | Details |
|---|---|
| Supported Connections | Terminal blocks for field wiring, connects to Series C universal I/O modules via IOTA interface |
Functional Features
| Feature | Details |
|---|---|
| Universal I/O | Handles mixed analog and digital signals for versatile applications |
| Environmental Protection | Conformal coating ensures durability in harsh industrial conditions |
| Compatibility | Seamless integration with Experion PKS C300 controllers |
| Configuration | Software-configurable channels for flexible I/O assignment |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | DC-TUIO31 |
| Configuration | Non-redundant, coated, universal I/O |
Applications and Benefits
| Category | Details |
|---|---|
| Applications | Process automation in oil and gas, chemical, power generation, and manufacturing industries |
| Benefits | Flexible I/O handling, reliable performance, durable design, simplified wiring and maintenance |
