Product Description
Product Overview
| Field | Details |
|---|---|
| Manufacturer | Honeywell |

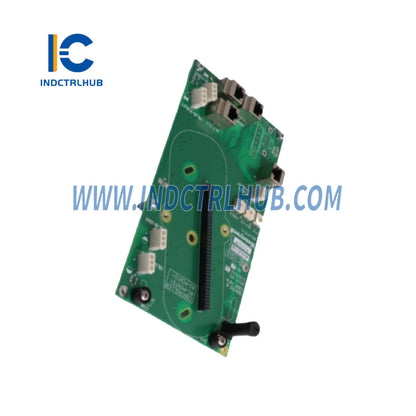

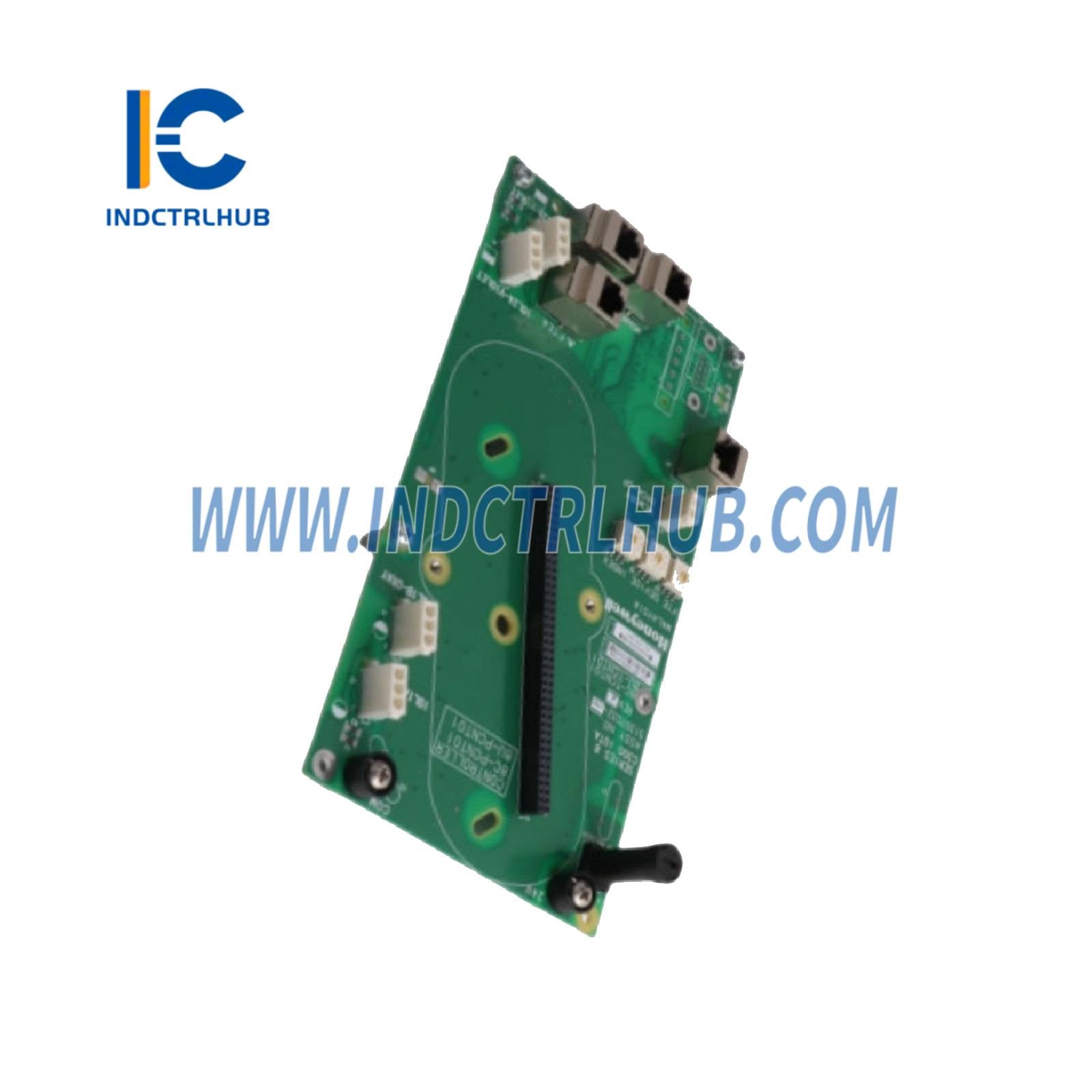

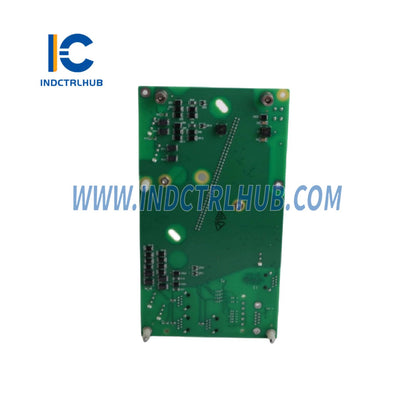

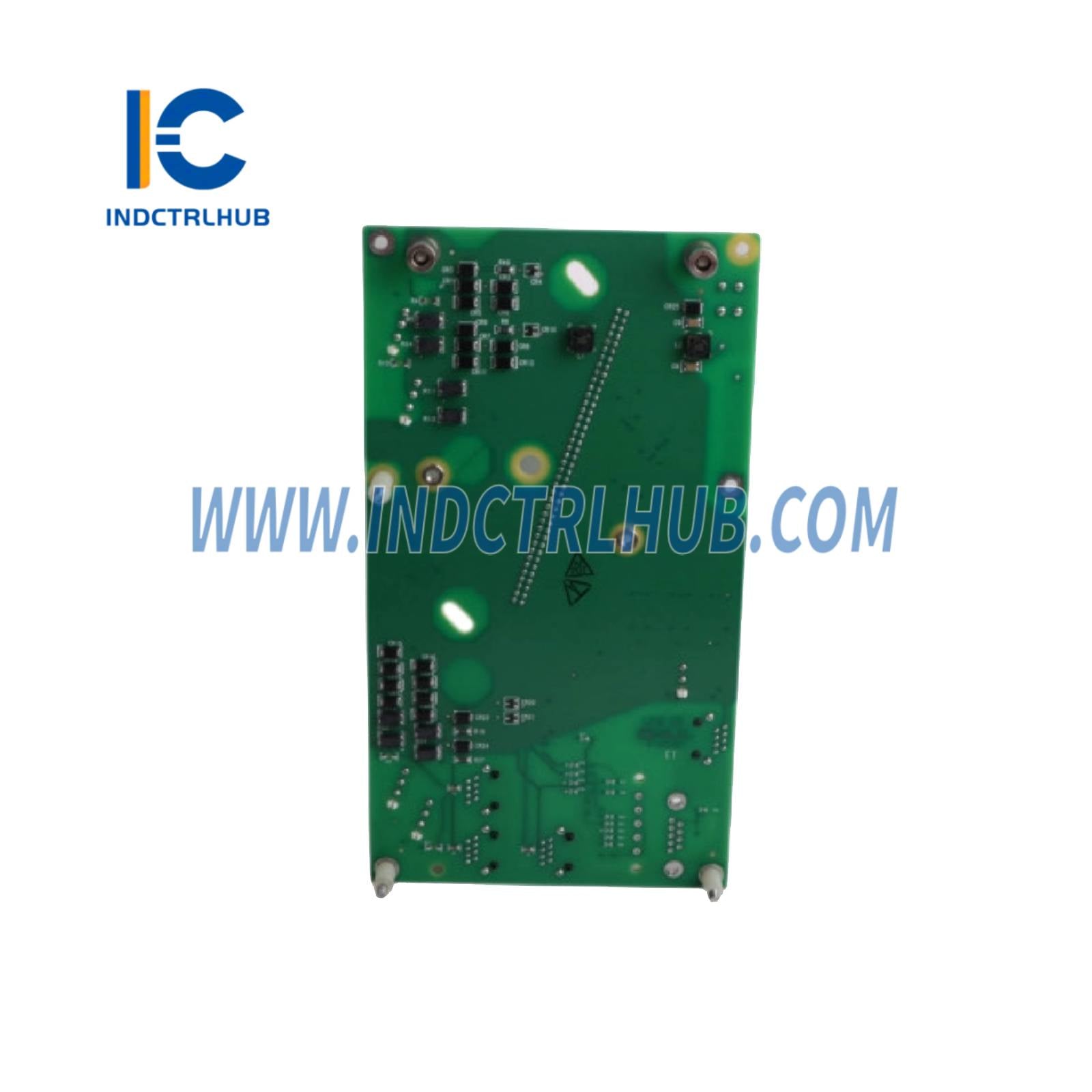

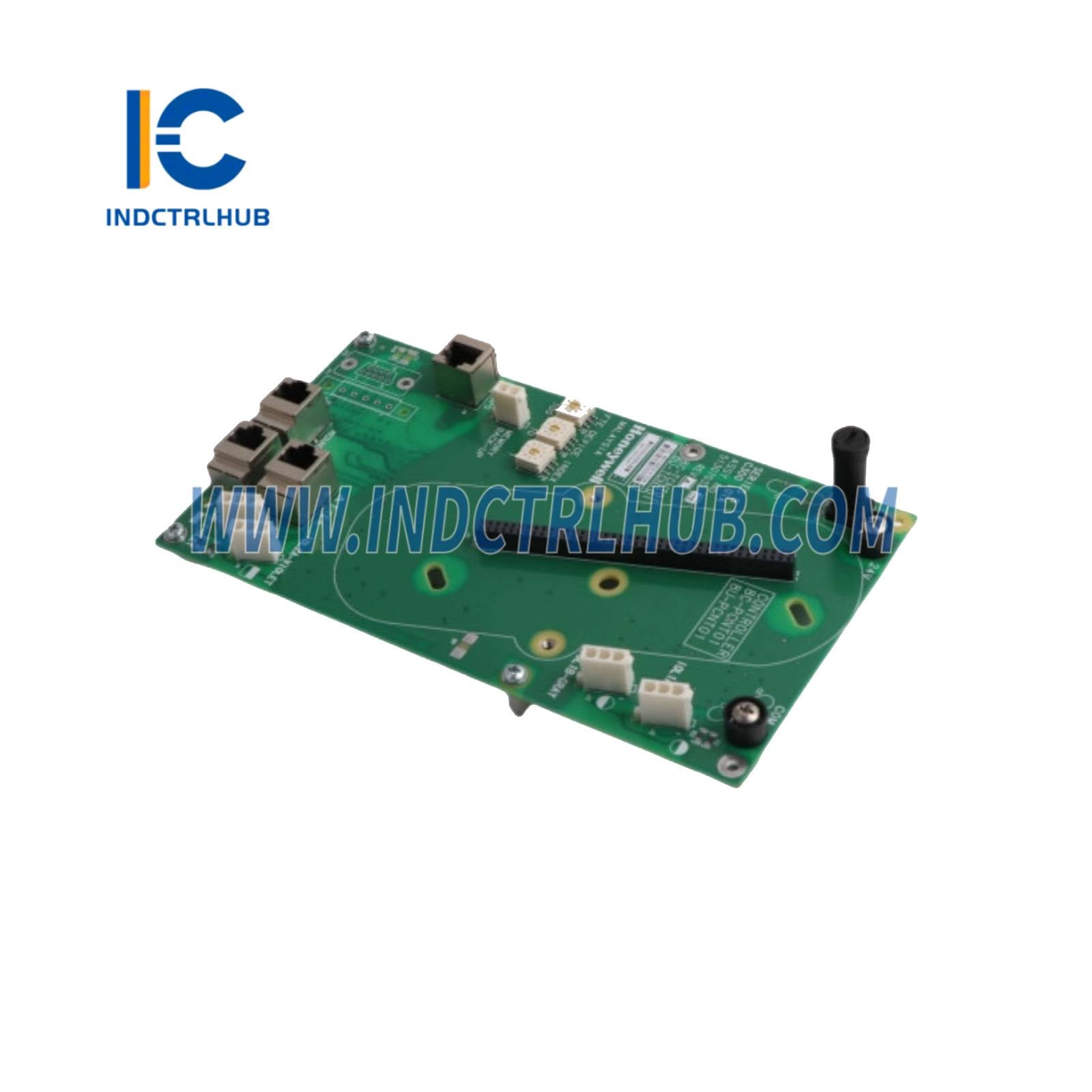

| Part Number | DC-TCNT01 (51307591-175 REVA) |
| Product Type | C300 Controller IOTA (Input/Output Termination Assembly) for Experion Series C |
| Function | Interfaces C300 Controller (CC-PCNT01, CC-PCNT02) with control network |
| System Compatibility | Experion Series C, integrates with C300 Controller via I/O LINK and FTE network |
Functional Specifications
| Feature | Specification |
|---|---|
| Supported Modules | CC-PCNT01, CC-PCNT02 (C300 Controllers) |
| Redundancy | Redundant configuration for high availability |
| Network Connectivity | Fault Tolerant Ethernet (FTE) for supervisory control network |
| Communication | Supports peer-to-peer (P2P) communications with up to 60 controllers (C200, C200E, C300, UOC, vUOC, Safety Managers, PMD Field Controllers, EHPMs) |
| Diagnostics | Monitors and reports controller and network status |
| Field Wiring | Connects via FTE to CF9 modules (Yellow & Green cables) |
| IOTA Size | 12 inches (redundant IOTA) |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | Powered via IOTA carrier 24 VDC bus |
| FTE Interface | Dual FTE ports for redundant network connectivity |
| Galvanic Isolation | Provided for network interfaces |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | Operating: 10% to 90% non-condensing; Storage: 5% to 95% non-condensing |
Physical Specifications
| Parameter | Specification |
|---|---|
| Mounting | Plugs into Series C cabinet, connects to C300 Controller module |
| Size | 12 inches (redundant IOTA) |
