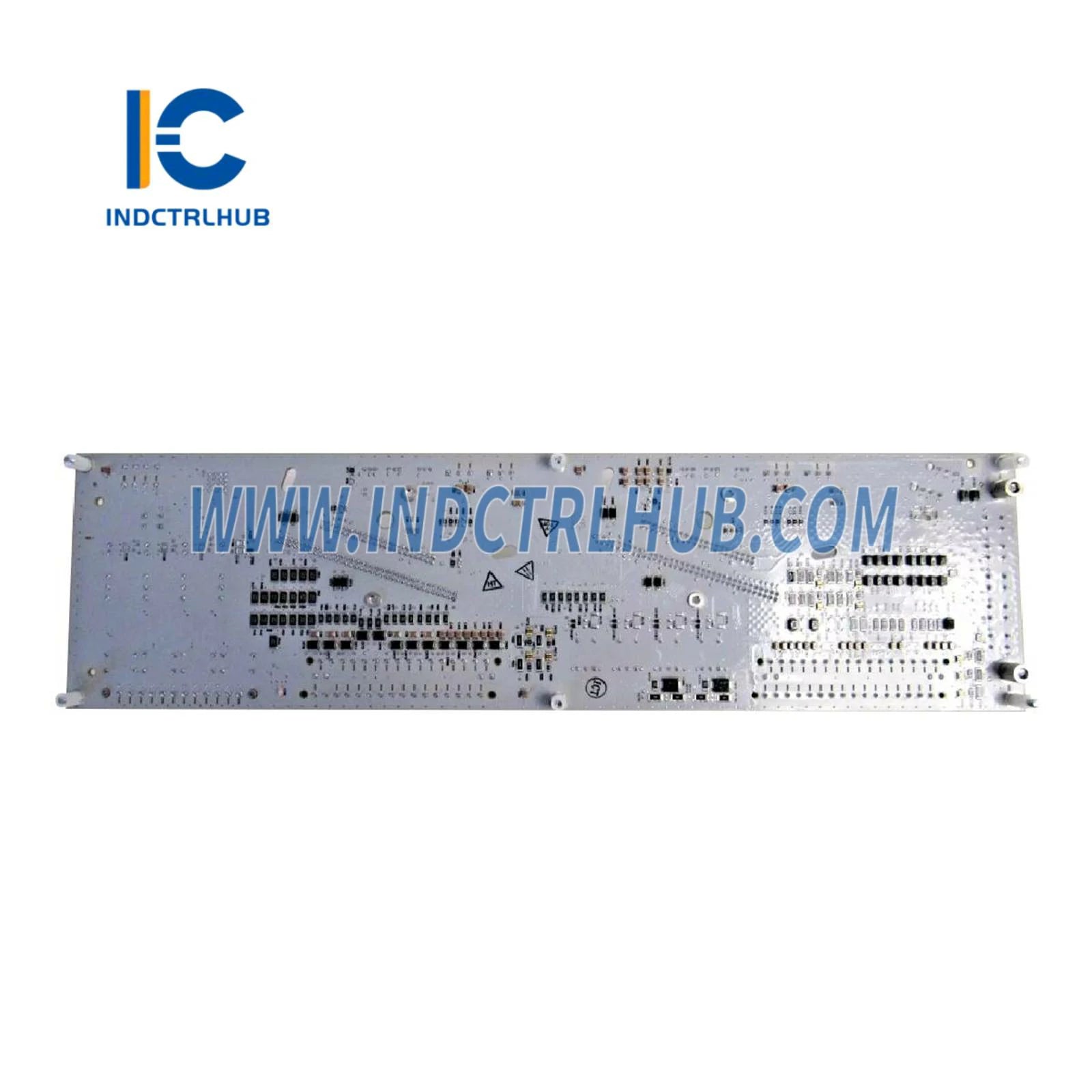

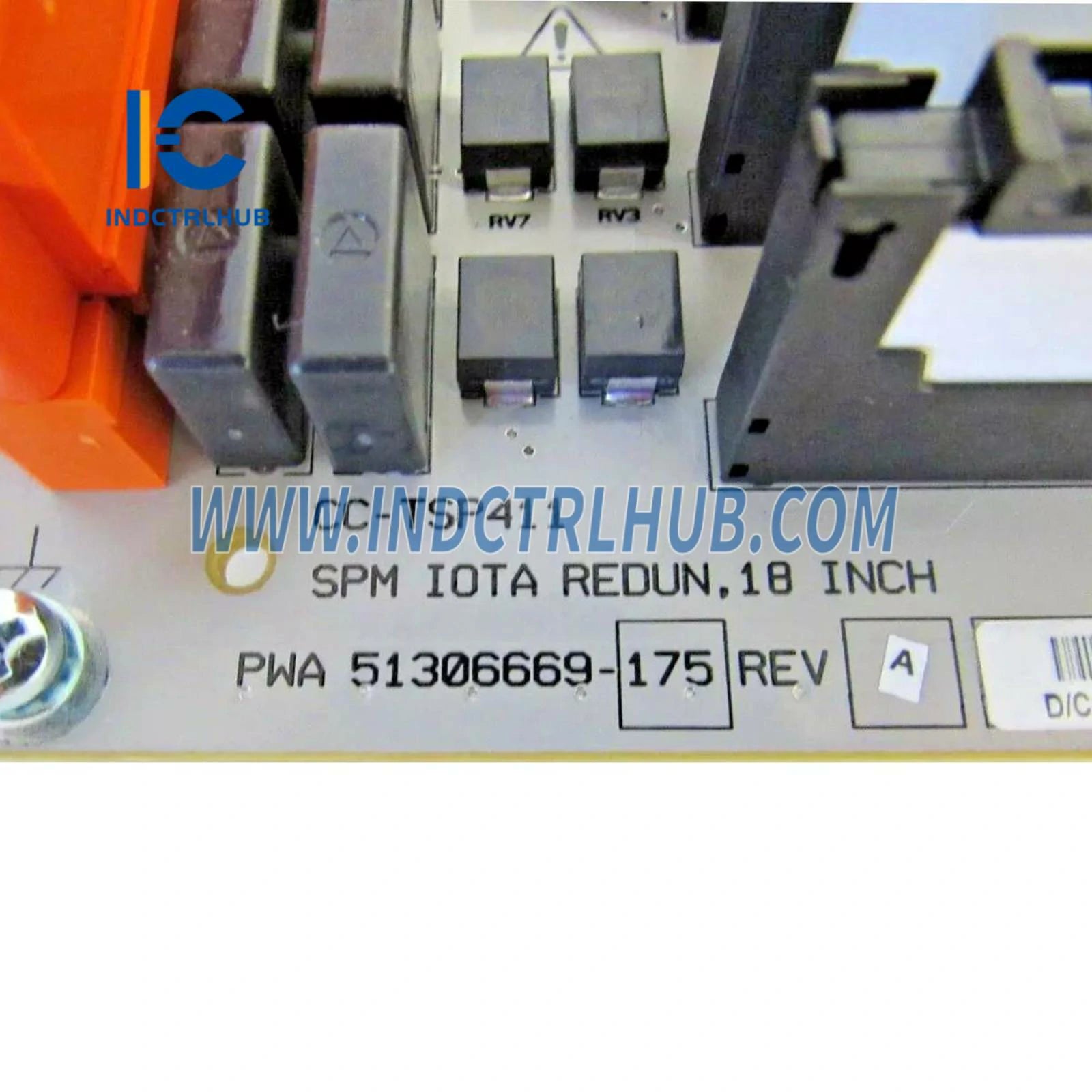

Product Description
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Honeywell |
|
Model/Part Number |
CC-TSP411 |
|
Description |

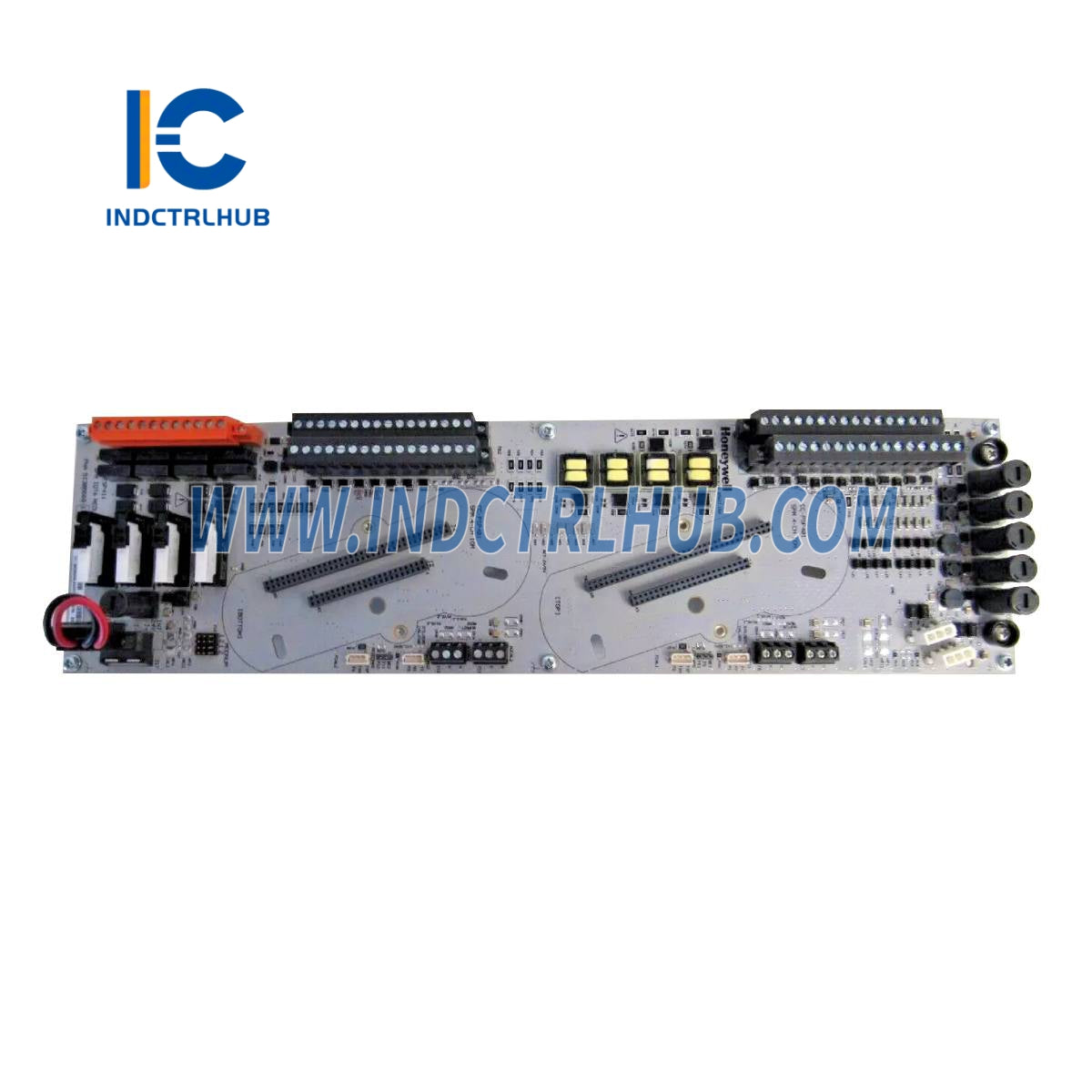

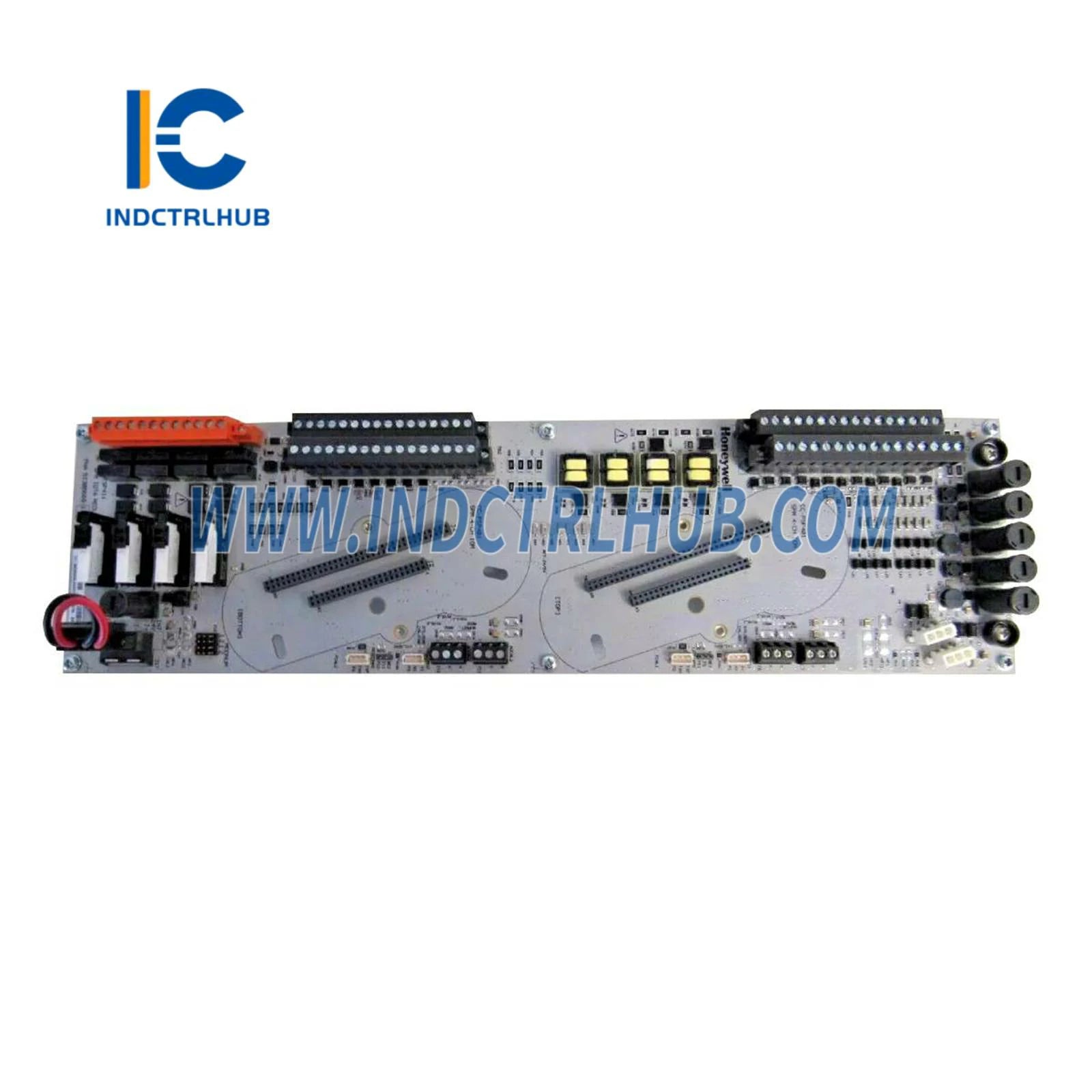

Speed Protection Module (SPM), Redundant 18”, used with active/passive probes |
Detailed Specifications – Speed Protection Module (SPM)
Input Specifications (Speed Inputs)
|
Parameter |
Specification |
|---|---|
|
Module Type |
CC-PSP401 Speed Protection Module |
|
Model Type |
CC-TSP411 Redundant (18”) |
|
Input Channels |
4 |
|
Input Type |
- Magnetic Pickup: Min. > 0.5 Vpk, Max. < 42 Vpk - Active Pickup (TTL/24V) |
|
Input Frequency Range |
- Magnetic: 150 Hz to 25 kHz - Active: 1 Hz to 10 kHz |
|
Active Input Excitation |
5 VDC or 24 VDC |
|
Input Impedance |
- Passive: 2 kΩ @ 1 kHz - Active: >1.5 kΩ |
|
Input Isolation |
±1000 VDC (galvanic) via transformer (on IOTA) for passive probes |
|
Scan Rate |
2.5 ms |
|
Resolution |
0.015% of upscale |
|
Accuracy |
±0.05% of reading |
Digital Outputs
|
Parameter |
Specification |
|---|---|
|
Output Channels |
4 Isolated Channels |
|
Contact Configuration |
Form A (SPST/NO) or Form B (SPST/NC), jumper selectable per output |
|
Contact Type |
Gold-clad silver nickel |
|
Max Load Voltage |
230 VAC (RMS) or 24 VDC |
|
Max Load Current |
- 0.5 A @ 230 VAC (resistive) - 2 A @ 24 VDC (resistive) |
|
Min Load Voltage / Current |
5 VDC / 10 mA |
|
Channel-to-Channel Isolation |
1500 VAC RMS or ±1500 VDC |
|
Turn-On/Off Time |
Max 20 ms (on/off) |
|
Contact Life |
- Mechanical: 10,000,000 operations - Electrical: 200,000 @ 3 A (100% load) |
|
Surge Absorber for Coil |
120 Ω + 0.03 µF per channel |
Analog Inputs
|
Parameter |
Specification |
|---|---|
|
Input Channels |
8 |
|
Input Type |
Voltage or Current (2-wire/self-powered transmitters) |
|
Input Range |
0–5 V, 1–5 V, 0.4–2 V, 4–20 mA (via 250 Ω resistor) |
|
A/D Resolution |
16-bit |
|
Common Mode Voltage |
-6 to +5 V peak (DC to 60 Hz) |
|
Max Normal Mode Input (no damage) |
±30 V (differential) |
