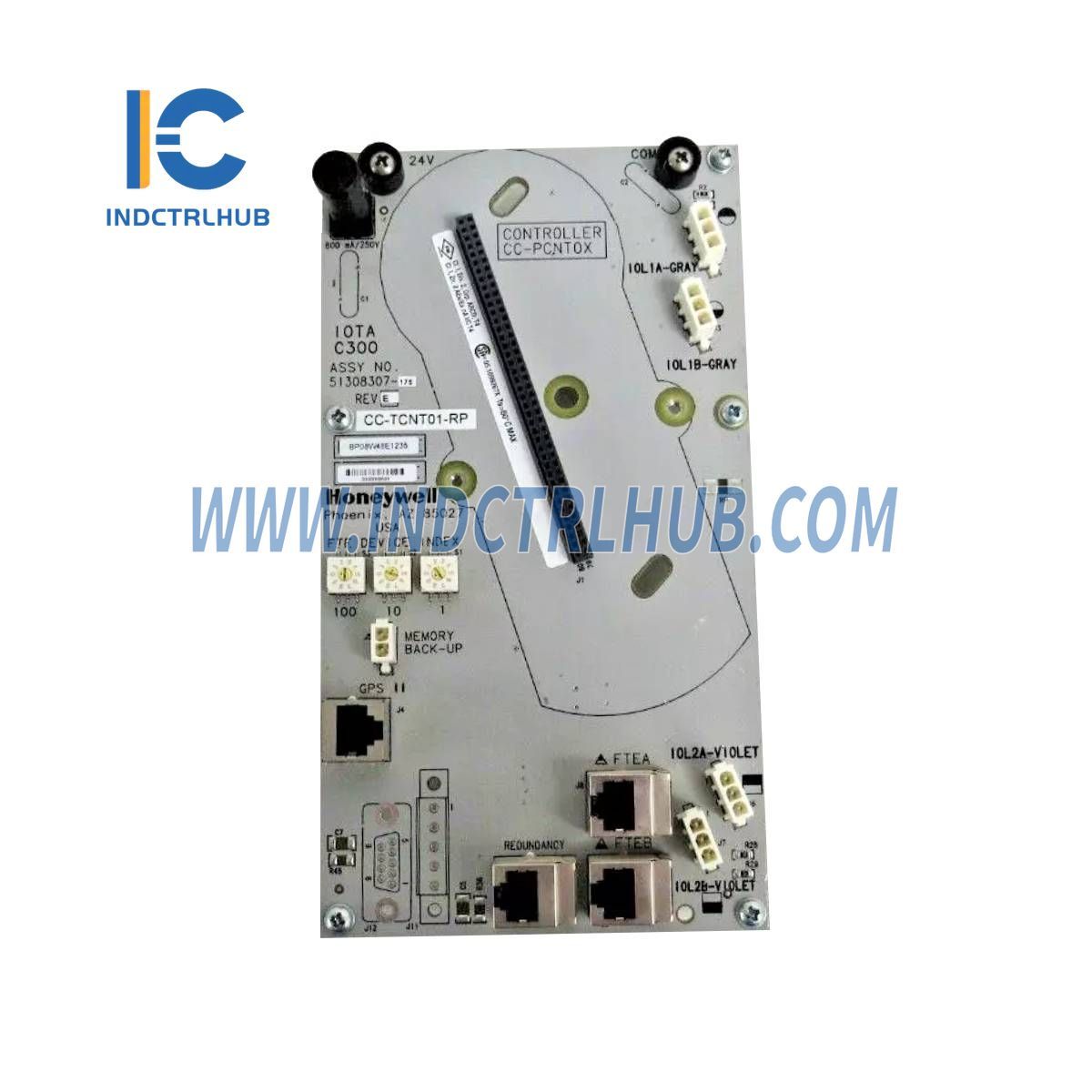

Product Description
General Information
|
Manufacturer |
Honeywell |
|---|---|
|
Model/Part Number |
CC-PCNT01 |
|
Description |
C300 Controller Module |
C300 Capacity and Performance
Configuration Options
|
Parameter |
Specification |
|---|---|
|
Control Networks Supported |
FTE only |
|
Supported C300 Models |
6, 7 |
|
Device Index Configuration |
Between 1 and 510 |
|
IOTA Size |
6 inches |
|
Number of I/O Links Supported |
2 |
|
I/O Link Speeds Available |
375 Kbaud (PMIO Link), 750 Kbaud (Series C IO Link) |
|
Base Execution Periods Supported |
50 ms (Default), 20 ms (optional) |
|
Redundancy Supported |
Yes |
|
Remote – Non-Series C I/O Supported |
Yes – PM I/O or Series A I/O (Limited) |
|
I/O Module Execution Period |
50 ms (Default), 20 ms |
|
Configurable Values for CM/SCM/RCM Execution Periods |
50, 100, 200, 500, 1000, 2000, 5000, 10000, 20000, 300000, 60000 ms (for CMs Only) |
|
Configurable Values of Peer Update Rates (Period) |
100, 200, 500, 1000 ms |
|
C300 Time Source |
SNTP, PTPv2 |
|
SNTP Update Period |
1 minute |
|
PTP Update Period |
30 seconds |
|
GPS Time Support |
No |
