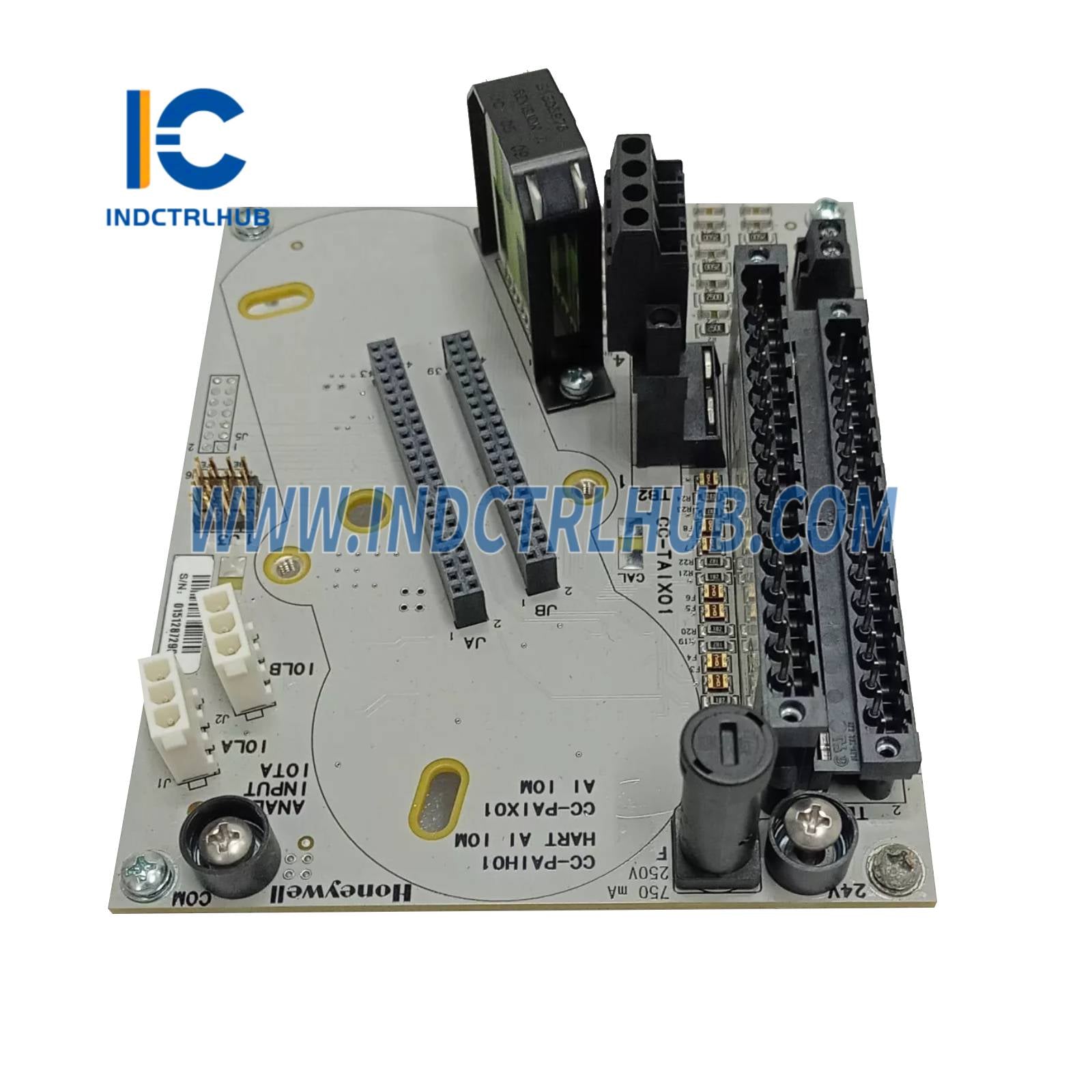

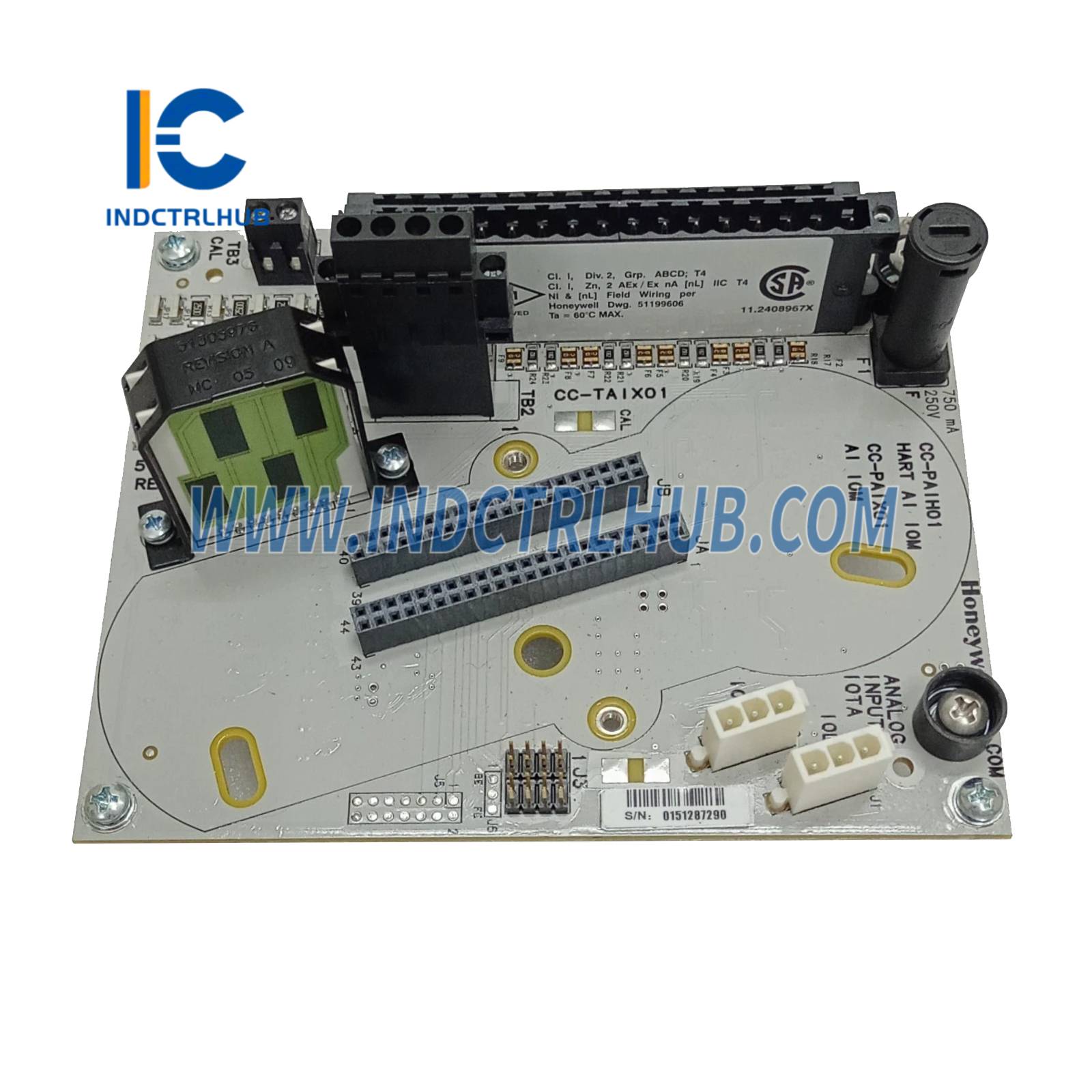

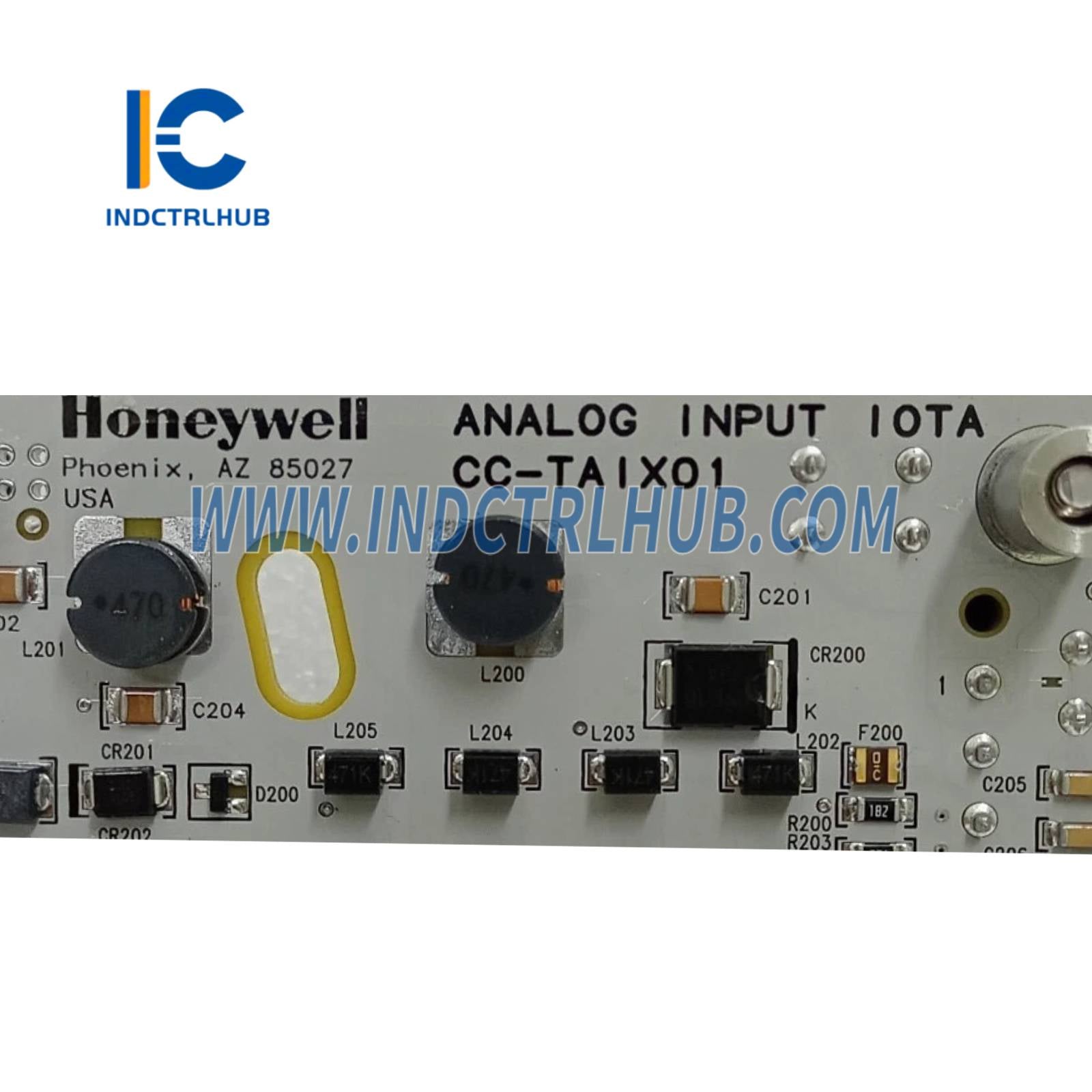

Product Description
Product Overview
| Field | Details |
|---|---|
| Manufacturer | Honeywell |
| Part Number | CC-TAIX01 |
| Product Type | Analog Input IOTA (Input/Output Termination Assembly) for Experion Series C |
| Function | Interfaces analog input modules with field devices |
| System Compatibility | Experion Series C, integrates with C300 Controller via I/O LINK |
Functional Specifications

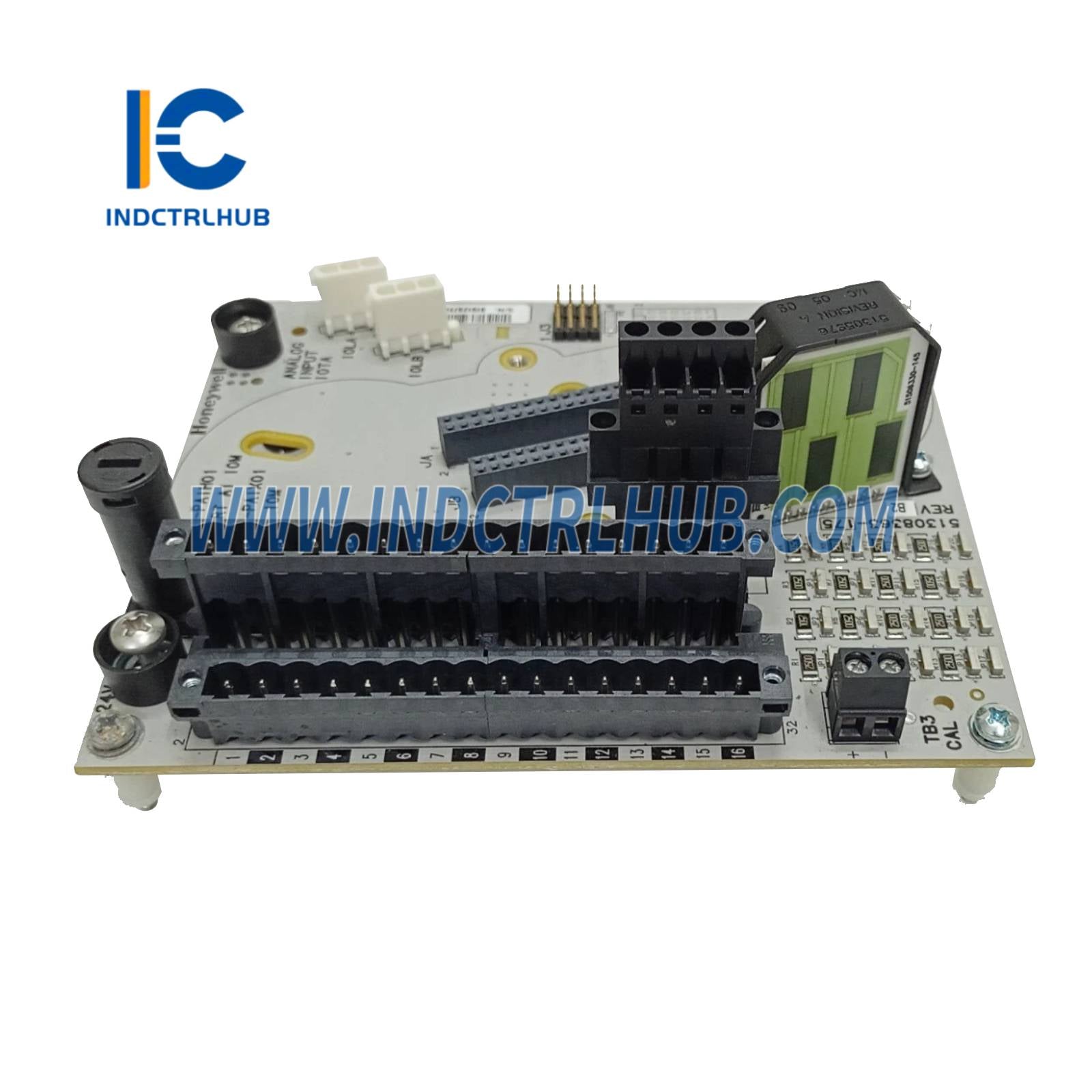

| Feature | Specification |
|---|---|
| Supported Modules | CC-PAIH01, CC-PAIH02, CC-PAIN01 (Analog Input Modules) |
| Input Type | 4-20 mA (2, 3, or 4-wire devices), supports voltage inputs (0-10 V for CC-PAIH01 channels 13-16, CC-PAIH02 channels 1-16 with jumper configuration) |
| Channel Count | 16 channels per IOTA |
| HART Support | Compatible with HART-capable modules (CC-PAIH01, CC-PAIH02) for configuration and status |
| Redundancy | Non-redundant configuration |
| Diagnostics | Supports module diagnostics for input integrity and open wire detection |
| Field Wiring | Accepts up to 13 AWG / 2.5 mm² stranded wire |
Electrical Specifications

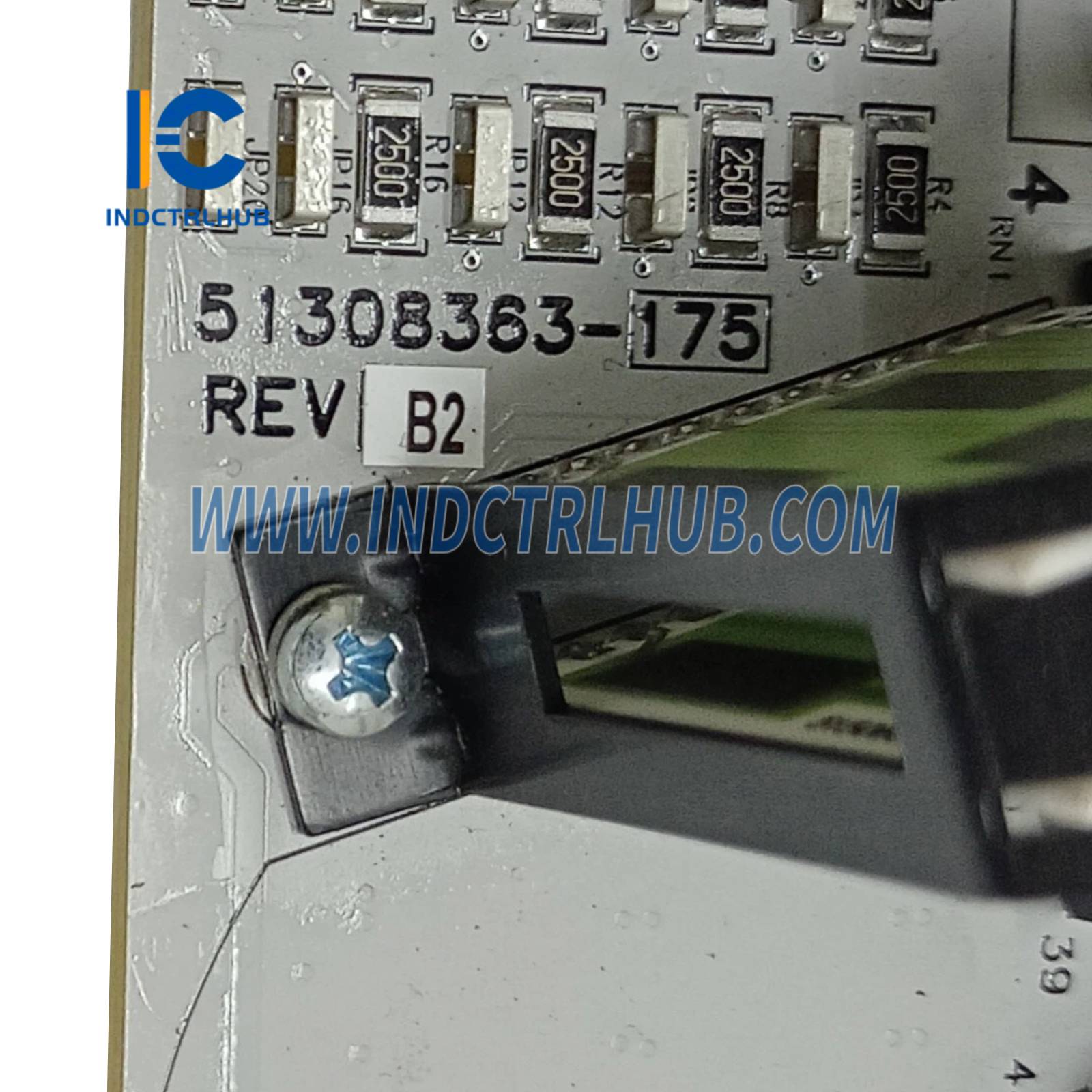

| Parameter | Specification |
|---|---|
| Input Impedance | 250 Ω (current inputs, with jumper for voltage inputs) |
| Non-Incendive Power | Supplies non-incendive field power for 4-20 mA loops (no external marshalling) |
| Open Wire Detection | Supported for 4-20 mA inputs |
| Voltage Input Jumper | Configurable for voltage inputs (cut 250 Ω resistor jumper for CC-PAIH01/02) |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | Operating: 10% to 90% non-condensing; Storage: 5% to 95% non-condensing |

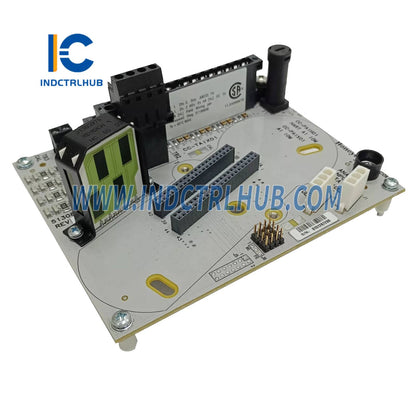

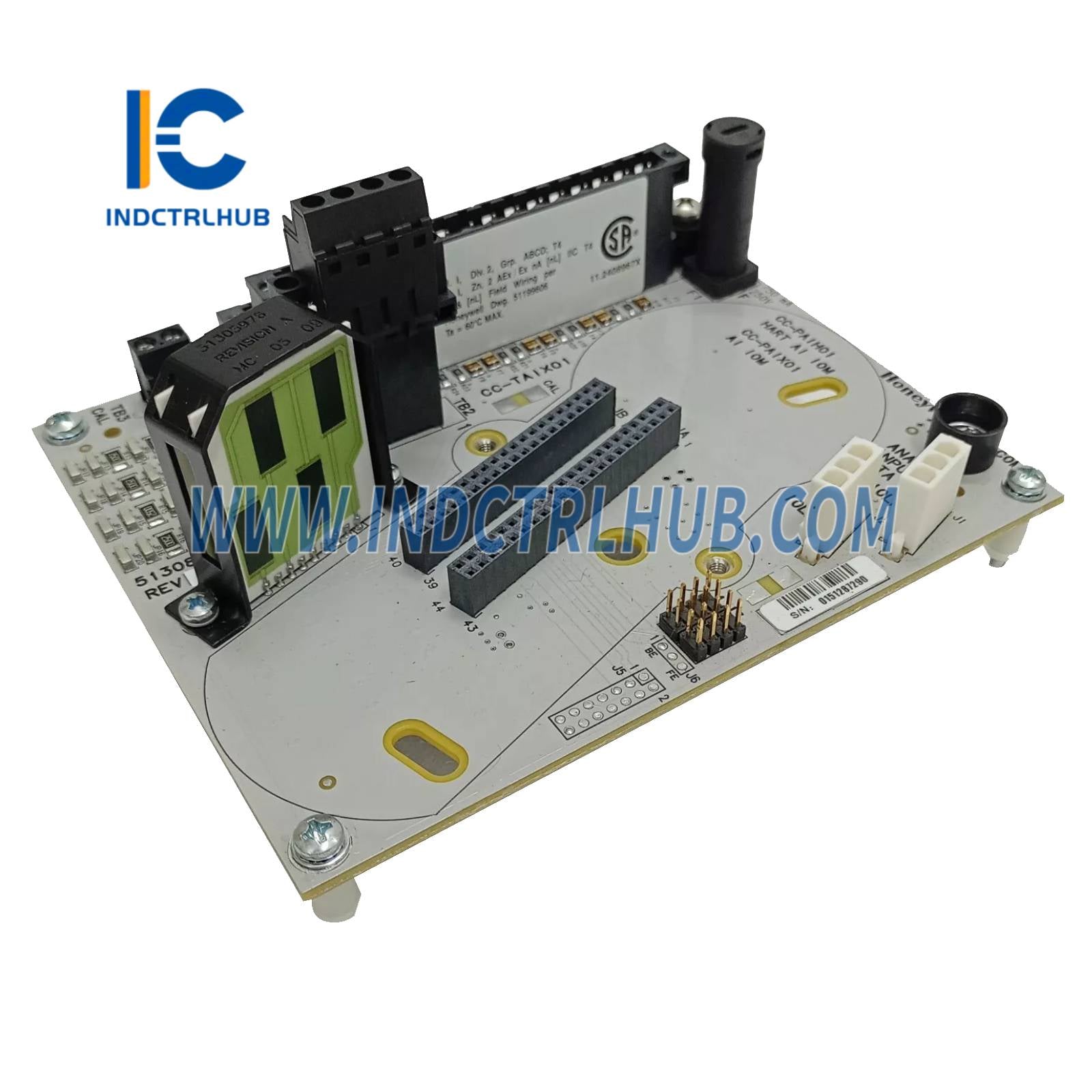

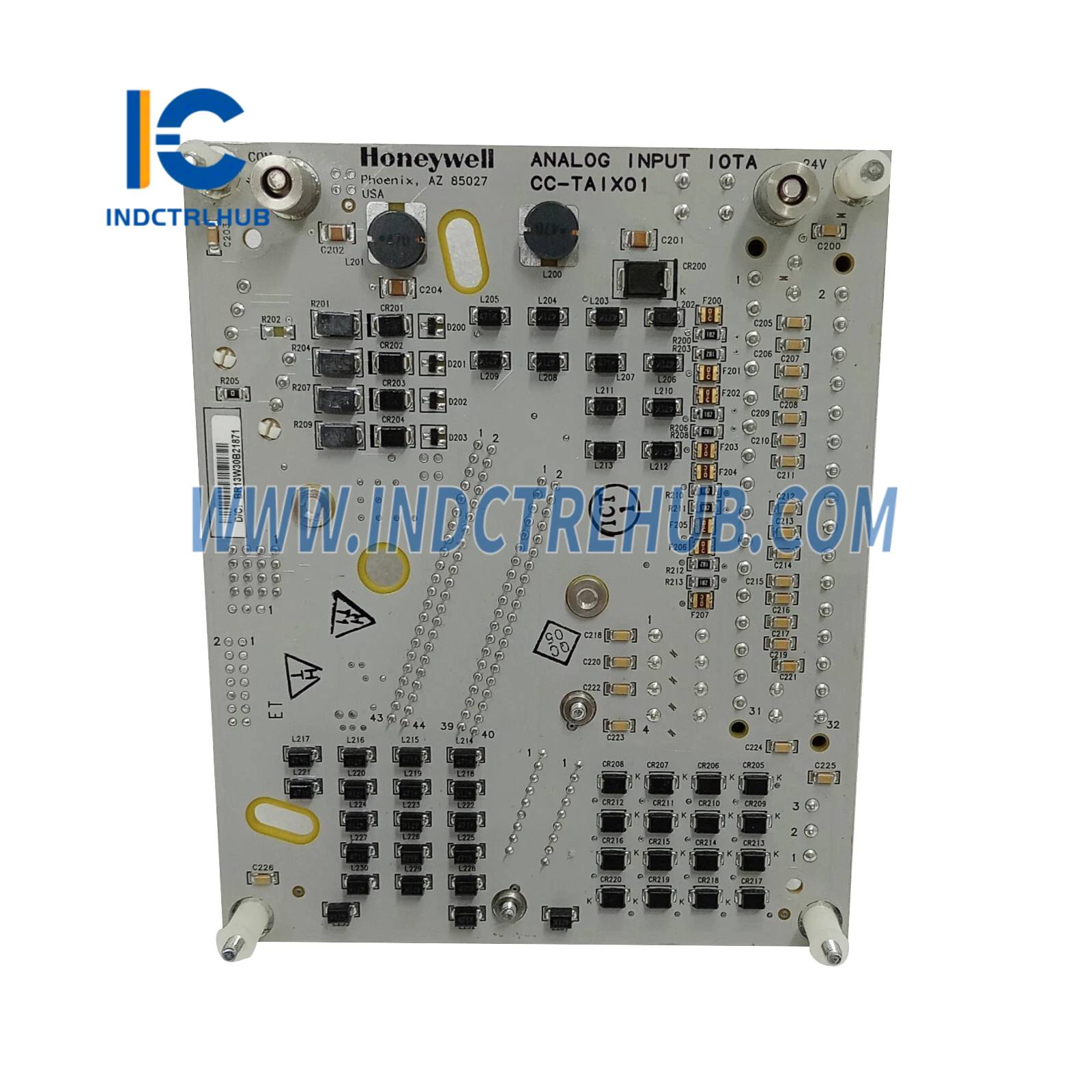

Physical Specifications
| Parameter | Specification |
|---|---|
| Size | 6 inches (non-redundant IOTA) |
| Mounting | Plugs into Series C cabinet, connects to IOM (Input/Output Module) |
