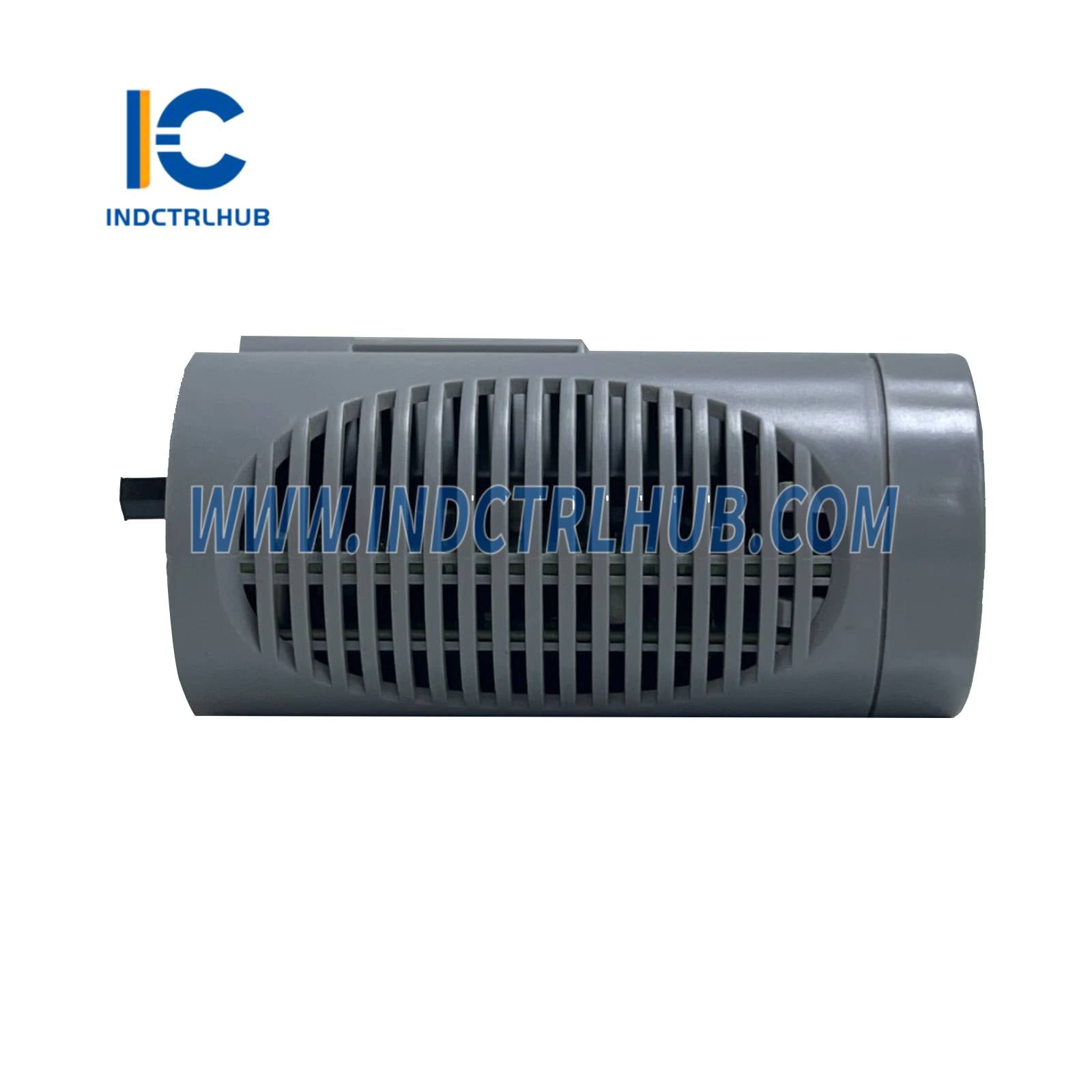

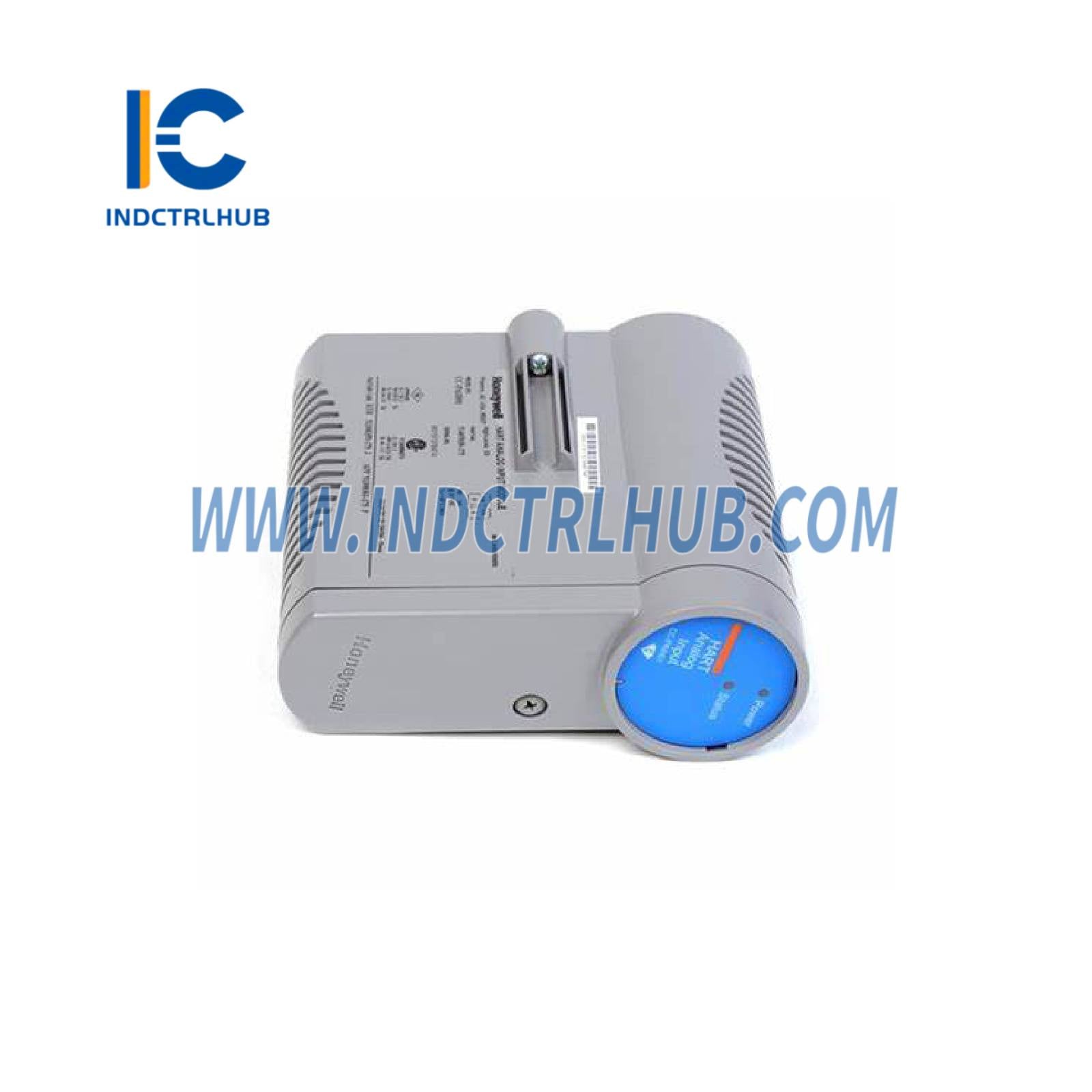

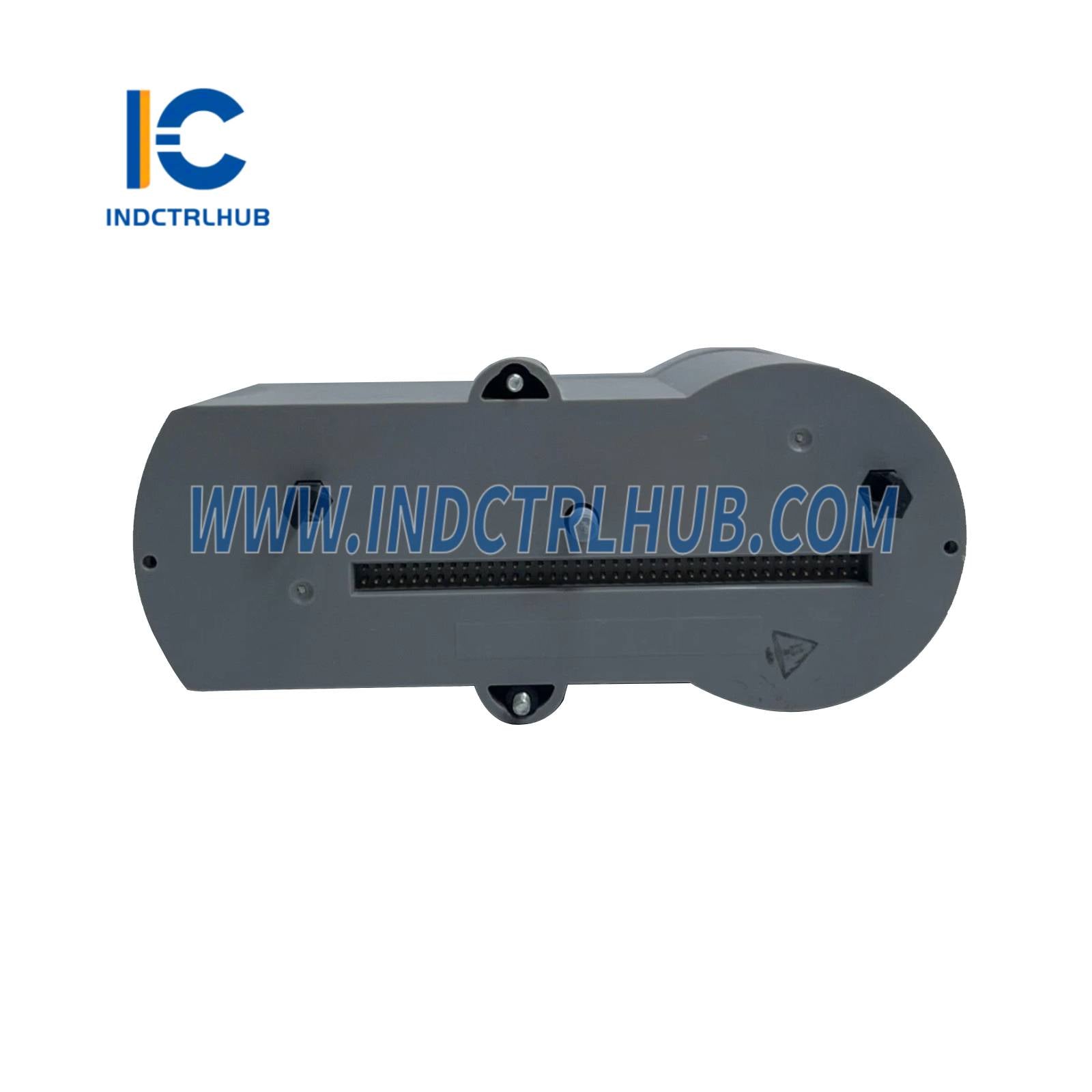

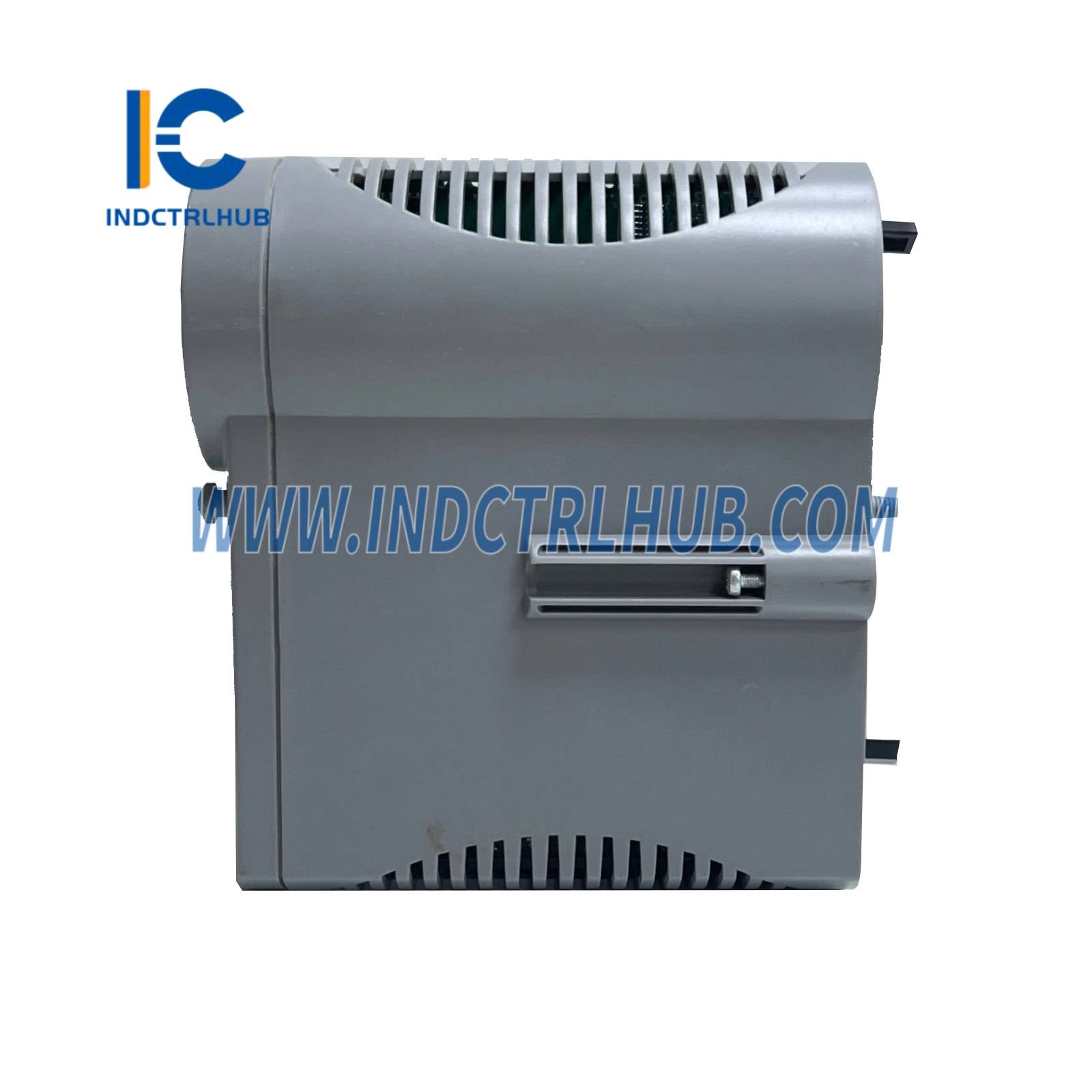

Product Description
Product Overview
| Field | Details |
|---|---|
| Manufacturer | Honeywell |
| Part Number | CC-PWR401 |
| Product Type | Power Supply Module for Experion Series C and TDC 3000 Systems |
| Function | Provides regulated power to control modules in Experion PKS and TDC 3000 |
| System Compatibility | Experion Series C, TDC 3000; integrates with C300 Controller |
Functional Specifications
| Feature | Specification |
|---|---|
| Power Output | 24 VDC, 40 A nominal output |
| Redundancy | Supports redundant power configurations for uninterrupted operation |
| Hot-Swappable | Replaceable without system power-down, minimizing downtime |
| Backup Assembly | Includes 24 V backup battery assembly for power failure protection |
| Backup Duration | Up to 30 minutes of 24 VDC (20 A) output during AC power failure |
| Diagnostics | Internal diagnostics for power supply status monitoring |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Input Power | 100-240 VAC, 50/60 Hz |
| Output Voltage | 25-26 VDC (20 A) with AC input; 24-25 VDC (20 A) with battery backup |
| Power Consumption | 40 A maximum |
| Number of Power Supplies | One (redundant configuration requires additional module) |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | Operating: 10% to 90% non-condensing; Storage: 5% to 95% non-condensing |
Physical Specifications
| Parameter | Specification |
|---|---|
| Weight | Approximately 2.0 kg |
| Design | Compact for easy installation in Series C cabinets |
