Product Description

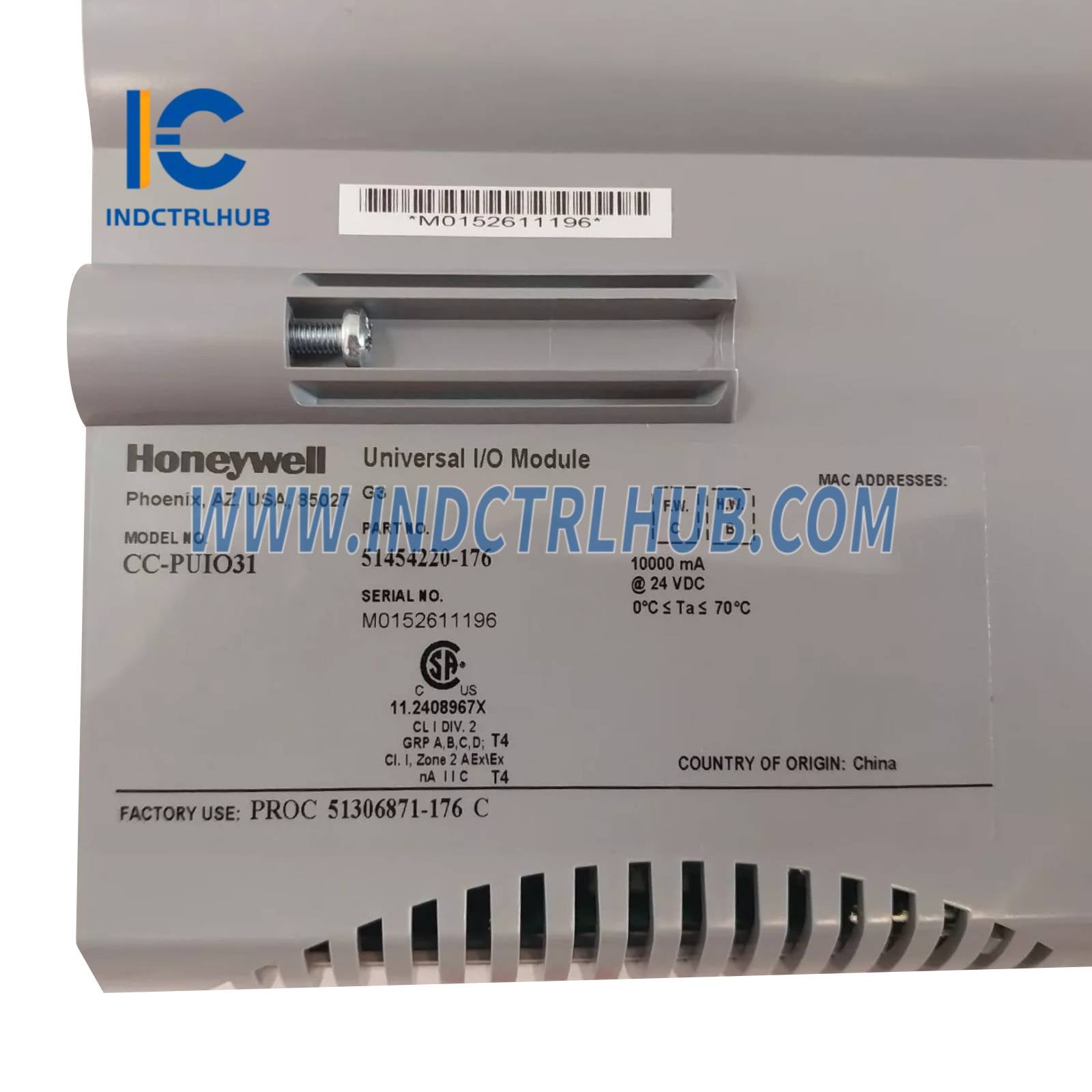

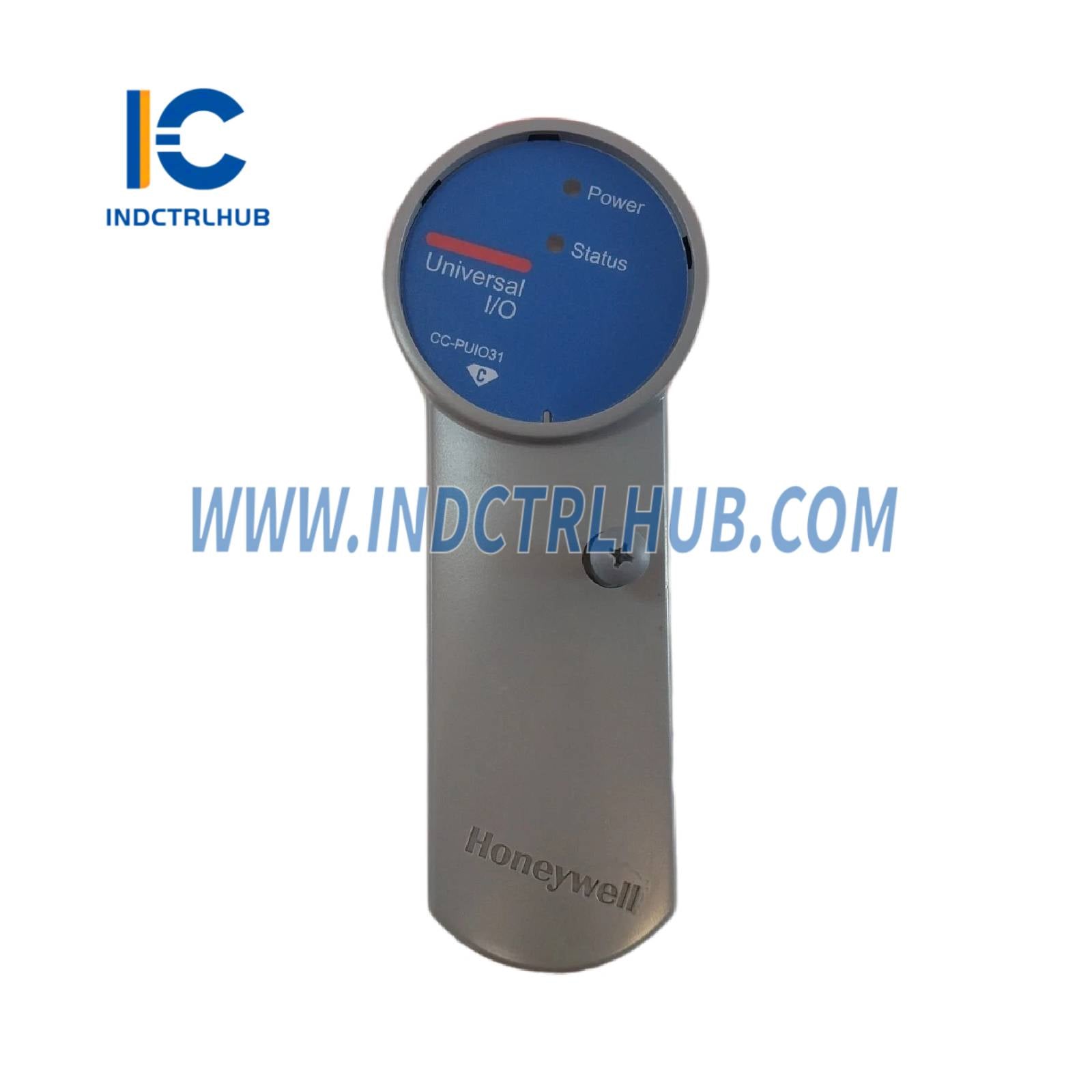

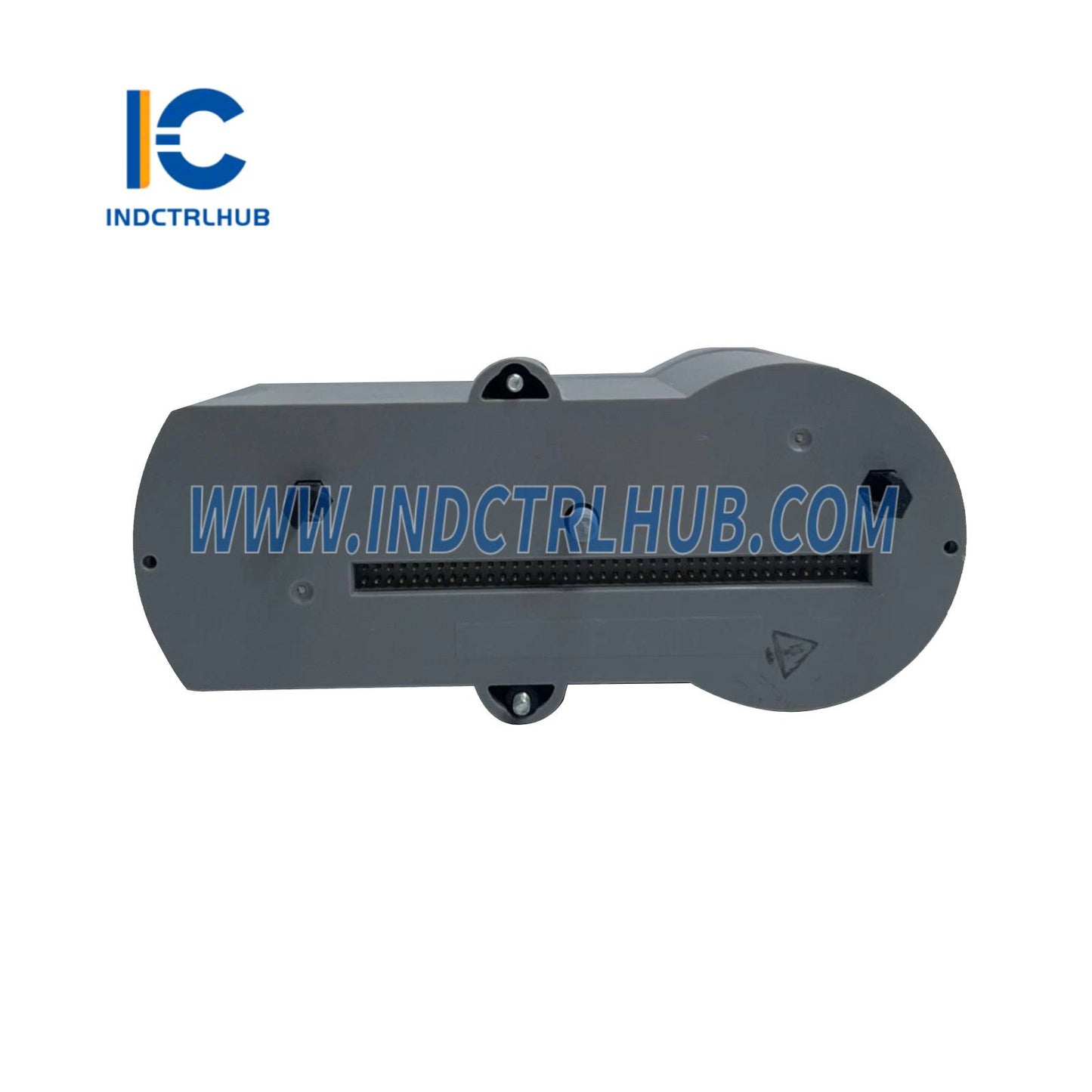

Product Overview
| Field | Details |
|---|---|
| Manufacturer | Honeywell |
| Part Number | CC-PUIO31 (51454220-176) |
| Product Type | Universal Input Output Module for Experion Series C |
| Function | Interfaces with analog input, analog output, digital input, and digital output field devices |
| System Compatibility | Experion Series C I/O, integrates with C300 Controller via I/O LINK |
Functional Specifications
| Feature | Specification |
|---|---|
| Channel Configuration | 32 channels, each user-configurable as: |
| - Analog Input (AI): 4-20 mA, 0-10 V | |
| - Analog Output (AO): 4-20 mA | |
| - Digital Input (DI): 24 VDC | |
| - Digital Output (DO): 24 VDC | |
| - Digital Input Sequence of Events (DISOE): 1 ms resolution, 30 ms PV scan | |
| - Pulse Input: Supported on any 4 channels | |
| Scan Rate | Fast scan (Priority I/O Module Scan) |
| Diagnostics | Extensive self-diagnostics |
| Redundancy | Optional redundancy supported |
| Safety Features | Configurable safe-state (FAILOPT) behaviors per channel |
| Protection | Electronic short circuit protection |
| Open wire detection for AI, DI, and DISOE channels | |
| Field Wiring | Supports non-incendive field wiring for Zone 2, Division 2 hazardous locations |
Model Specifications
| Parameter | Specification |
|---|---|
| I/O Module | CC-PUIO31 |
| IOTA Models | - CC-TUIO31 (Non-Redundant, 8 inches) |
| - CC-TUIO41 (Redundant, 12 inches) | |
| Channel Count | 32 channels per module |
| Field Connectors | Accepts up to 13 AWG / 2.5 mm² stranded wire |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Analog Input | 4-20 mA (2, 3, or 4-wire devices), 0-10 V; open wire detection supported |
| Analog Output | 4-20 mA, 0.5% of full scale accuracy |
| Digital Input | 24 VDC, open voltage: 24 VDC, closed contact detection: 1.8-7 mA |
| Digital Output | 24 VDC, latched, pulsed, or pulse width modulated output per channel |
| Pulse Input | Supports linear counting, 8P generation, quadrature input for custody transfer |
| Input Filter (DI) | First-order low-pass, 16 Hz |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | Operating: 10% to 90% non-condensing; Storage: 5% to 95% non-condensing |
