Product Description

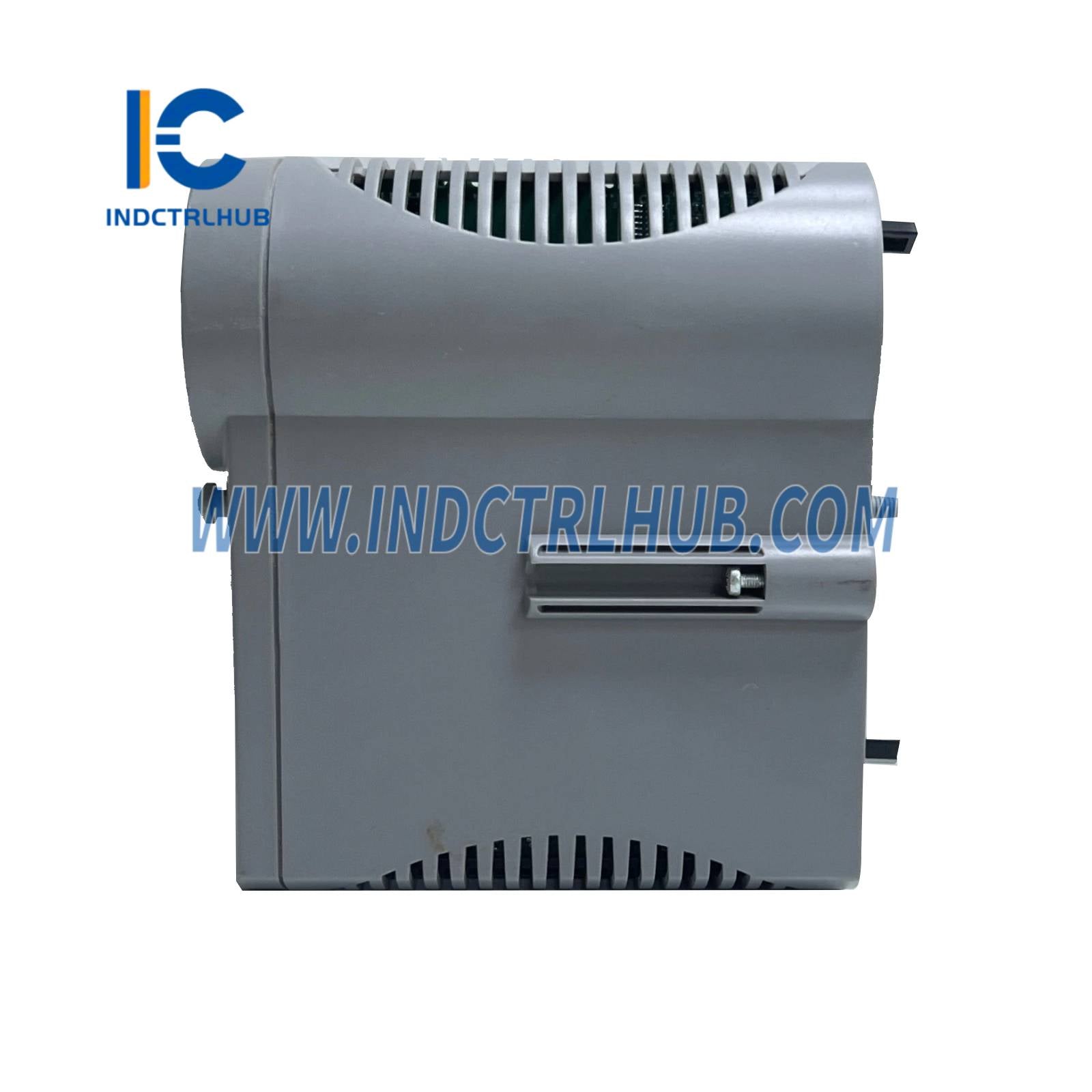

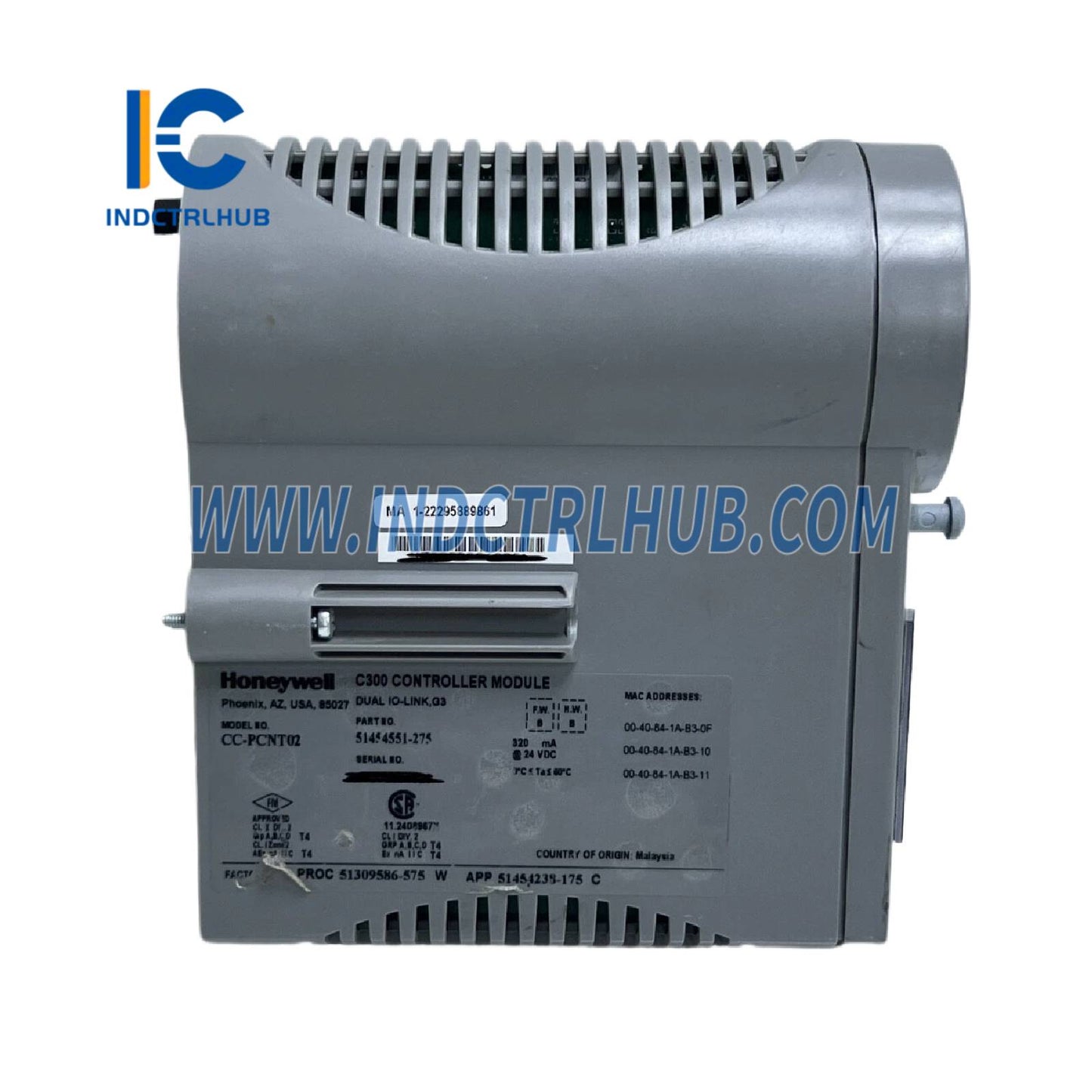

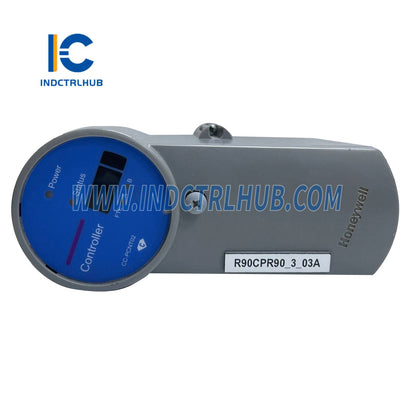

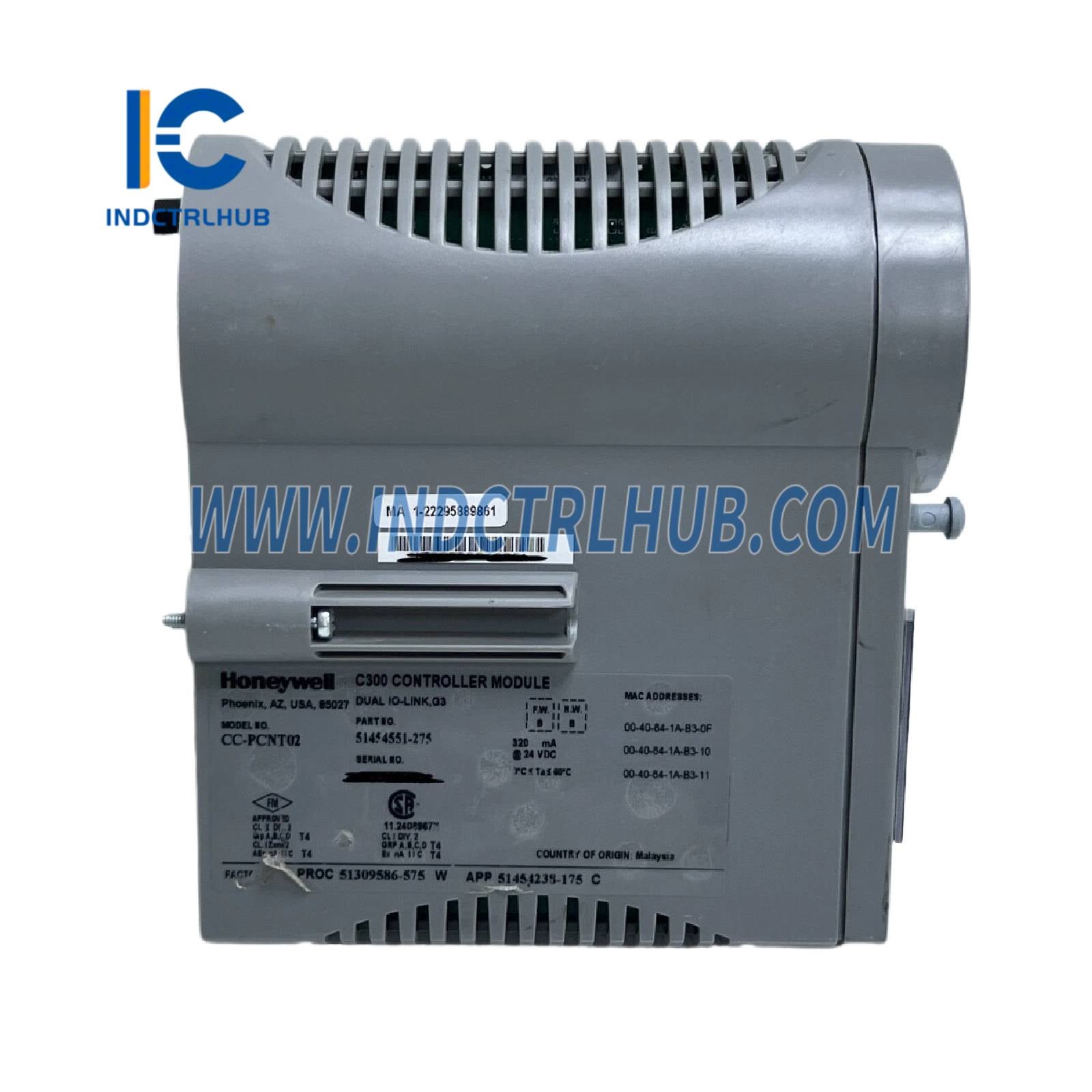

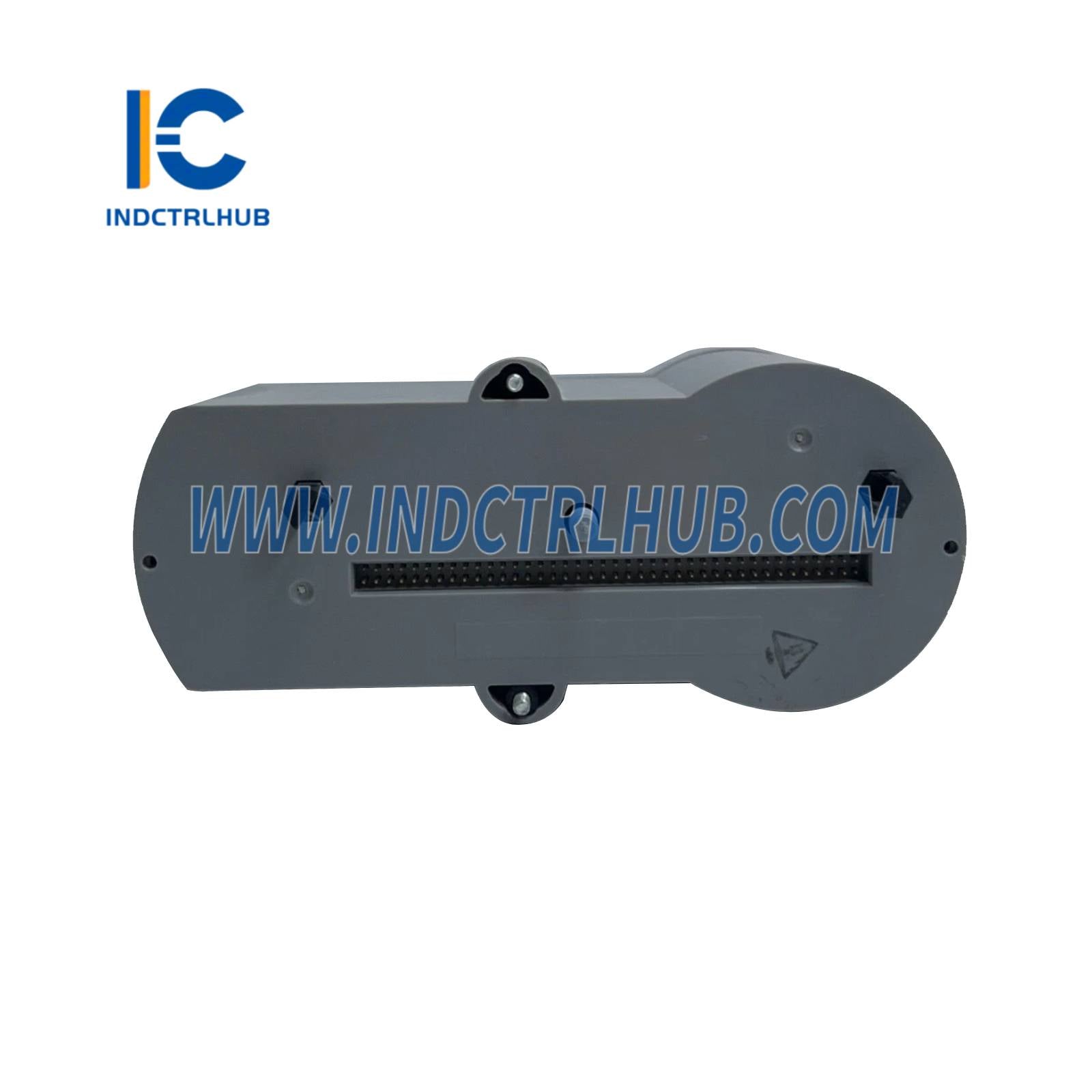

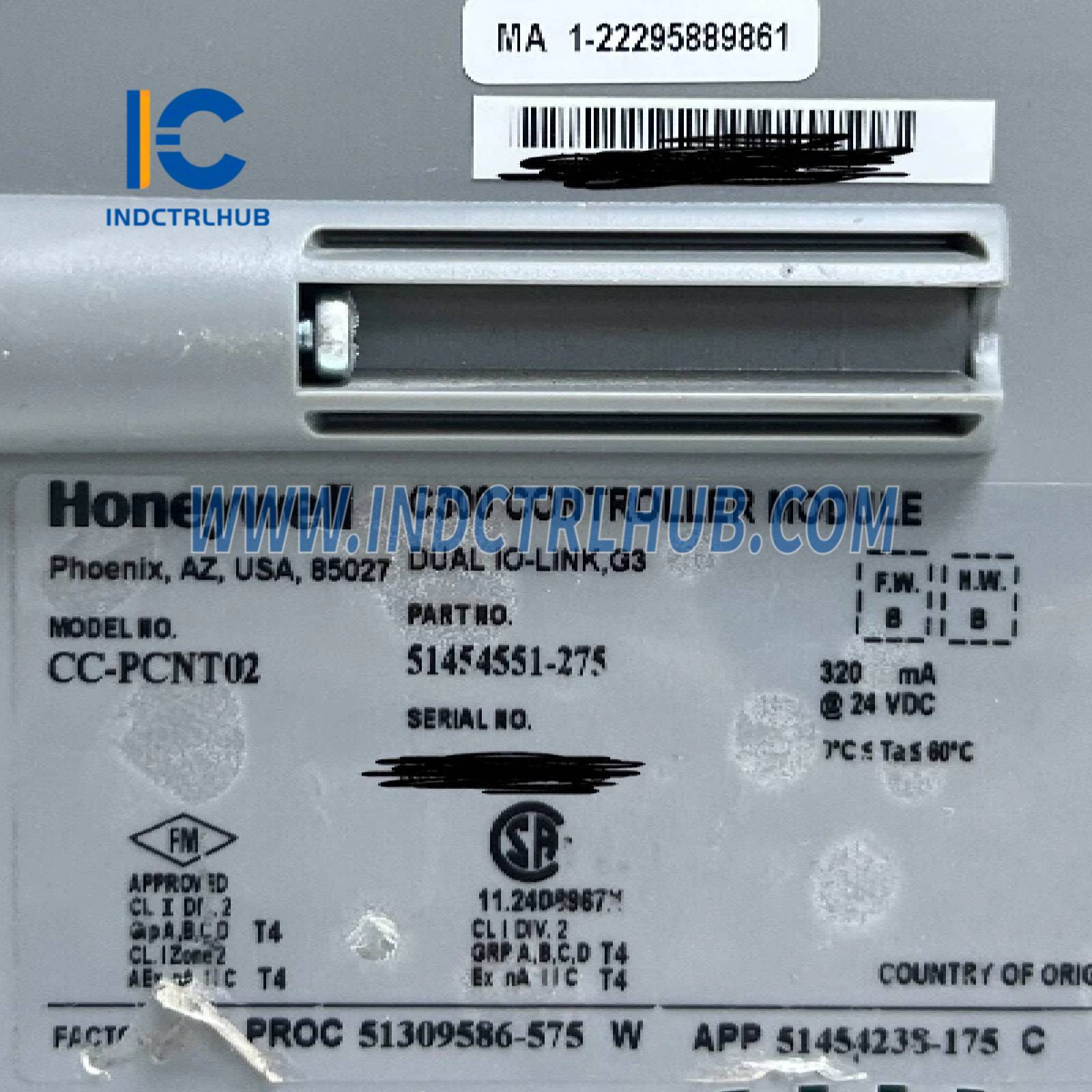

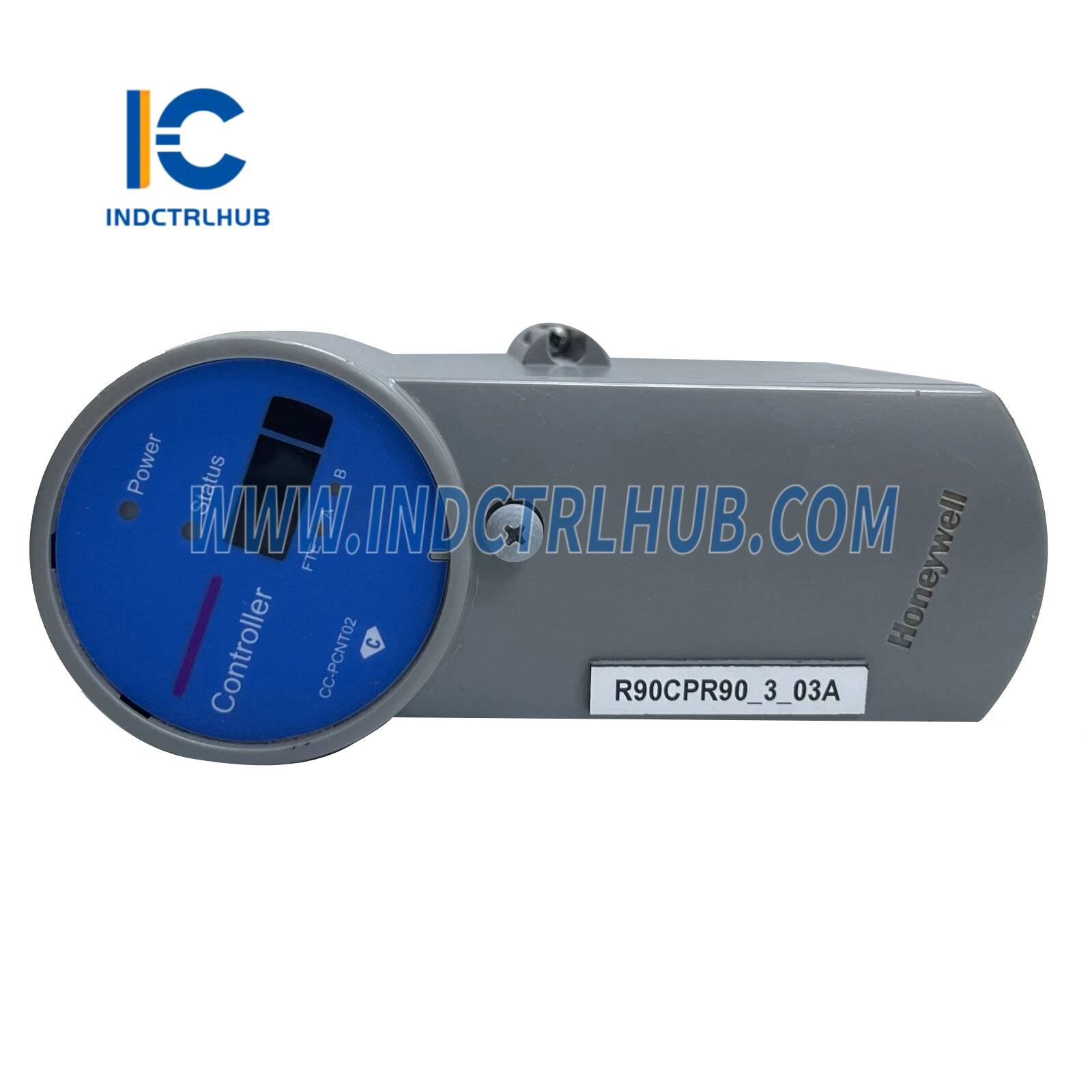

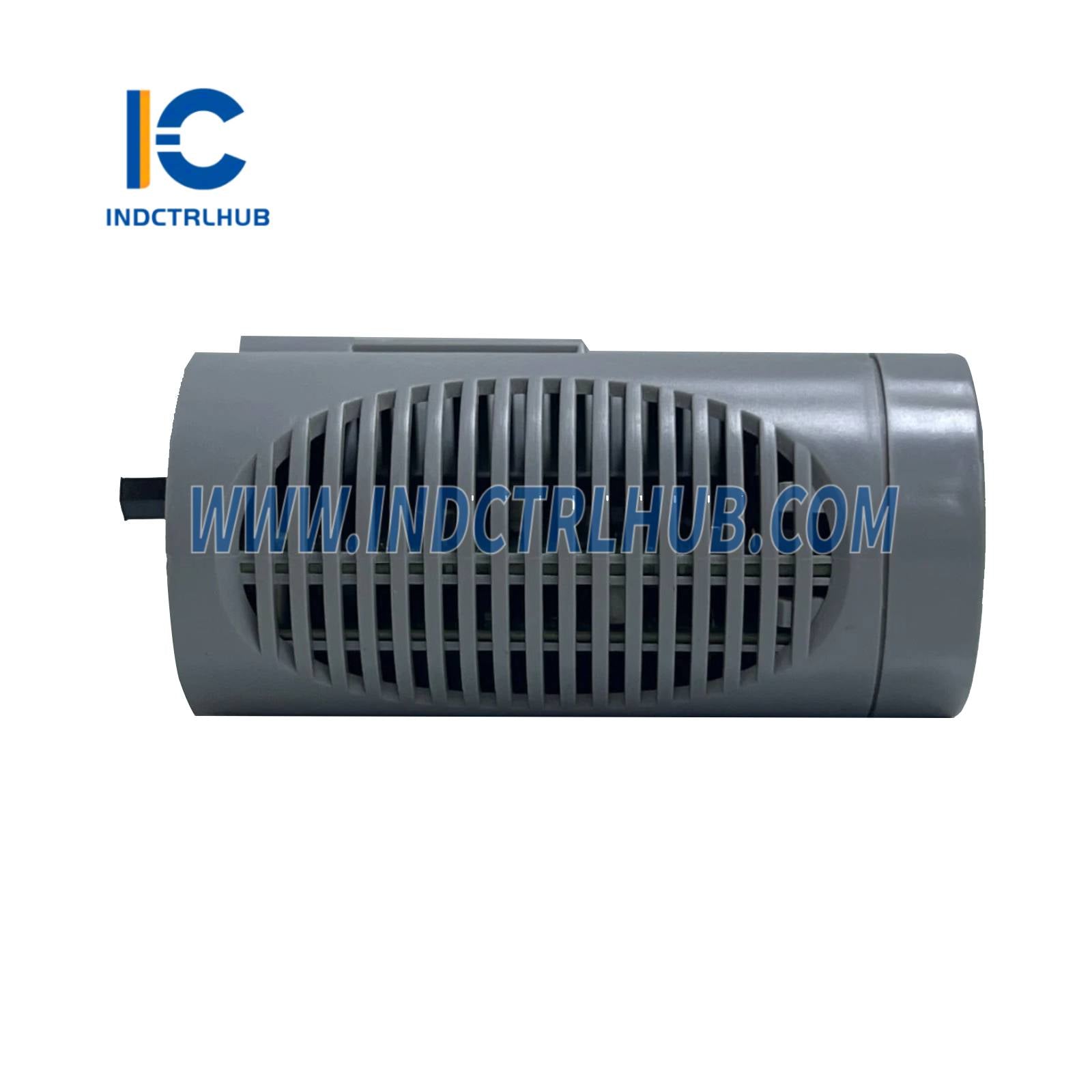

Product Overview
| Field | Details |
|---|---|
| Manufacturer | Honeywell |
| Part Number | CC-PCNT02 |
| Product Type | C300 Controller for Experion PKS System |
| Function | Process controller for loop and logic control in Experion PKS |
| System Compatibility | Experion PKS, supports Series C I/O, PM I/O, and FTE network integration |
Functional Specifications
| Feature | Specification |
|---|---|
| Processing Capability | Executes control strategies in Control Execution Environment (CEE) |
| Execution Periods | 50 ms (standard), 20 ms (for Turbo Machinery Control applications) |
| Processing Units (PUs) | 50 ms CEE: 5500 XUs available; 20 ms CEE: 5000 XUs available for control, I/O, and communications |
| I/O Support | Supports Series C I/O (64 IOMs for 50 ms CEE, 80 for 20 ms CEE with PM I/O or Series C IOMs), Series A I/O (8 IOMs, 50 ms CEE only) |
| Redundancy | Supports redundant controller configurations via FTE network |
| Communication | Fault Tolerant Ethernet (FTE) for supervisory control network; supports peer-to-peer (P2P) communications with up to 60 controllers (C200, C200E, C300, UOC, vUOC, Safety Managers, PMD Field Controllers, EHPMs) |
| Diagnostics | Monitors and reports I/O module and controller status |
| Extended Functionality | Requires extended functionality firmware for EIM and Profit Controller support |
Memory Specifications
| Feature | Specification |
|---|---|
| Memory Units (MUs) | 1 MU = 1024 Bytes; total available CEE user memory (TOTALMEMINK) not specified |
| Block Configuration | Maximum 4000 tagged blocks (CMs, SCMs, RCCMs, IOMs) per C300 CEE |
| Component Blocks | Maximum 200 component blocks per CM; 1000 per SCM/RCCM/MR |
| Parallel Paths | Maximum 10 parallel paths executing in SCM/RCCM/MR simultaneously |
I/O Capacity
| Feature | Specification |
|---|---|
| 50 ms CEE | 64 Series C IOMs; 8 Series A IOMs |
| 20 ms CEE | 80 Series C or PM I/O IOMs; Series A I/O not supported |
Communication Performance
| Feature | Specification |
|---|---|
| Parameter Access Rate | Maximum 6000 parameters per second (PPS) for peer communications (PEERRATEAVG and PEERRATEMAX) |
| Peer Connections | Supports connections to C300, C200, ACE, FIM4 nodes |
| Console Stations | Supports multiple console stations associated with Experion Server/cluster |
| Message Rate | Calculated from Exchange blocks, Push block stores, and SCM block stores |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | Operating: 10% to 90% non-condensing; Storage: 5% to 95% non-condensing |
