Product Description
🔍
Product Details
|
Category |
Details |
|---|---|
|
Manufacturer |
Honeywell |
|
Model/Part Number |

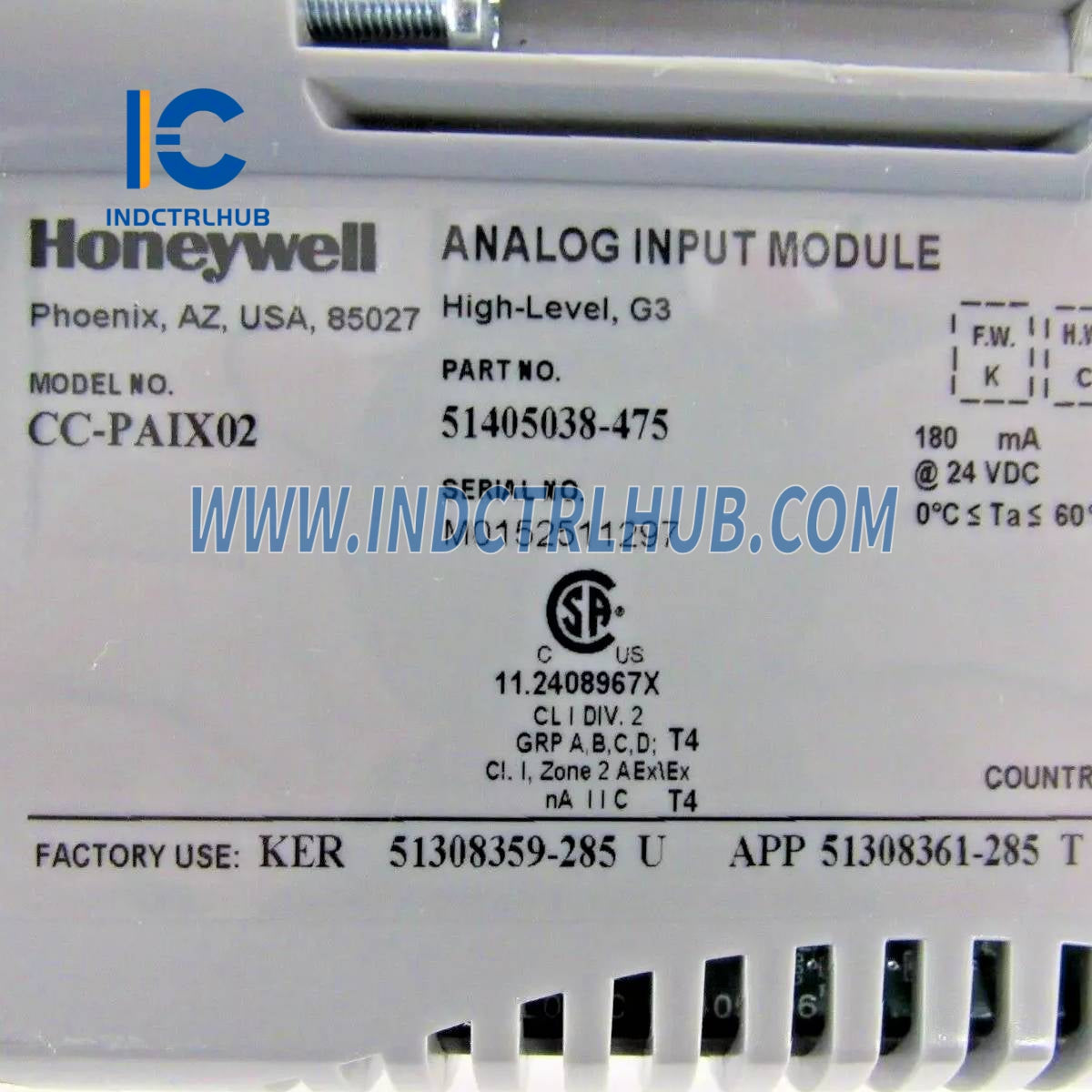

CC-PAIX02 |
|
Description |

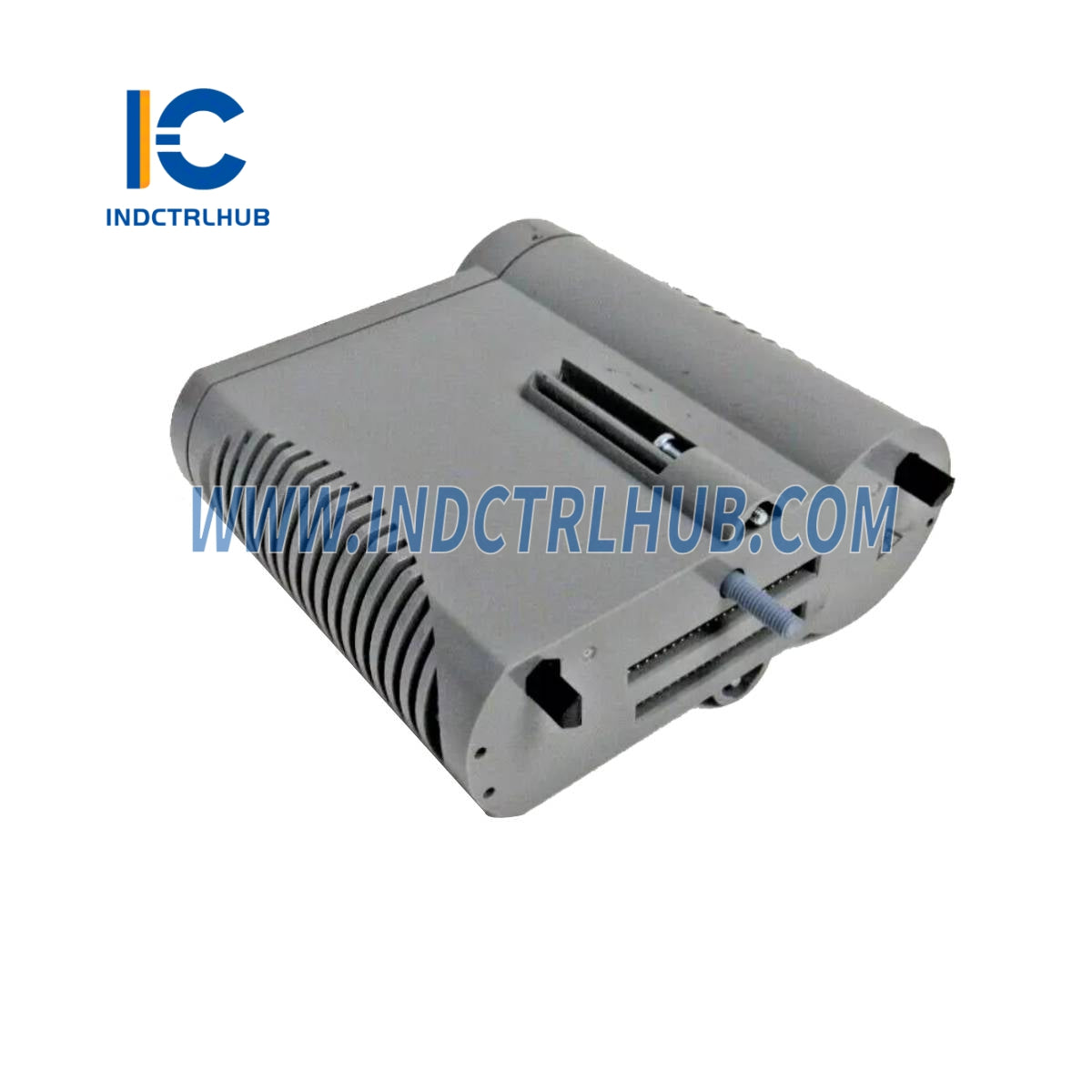

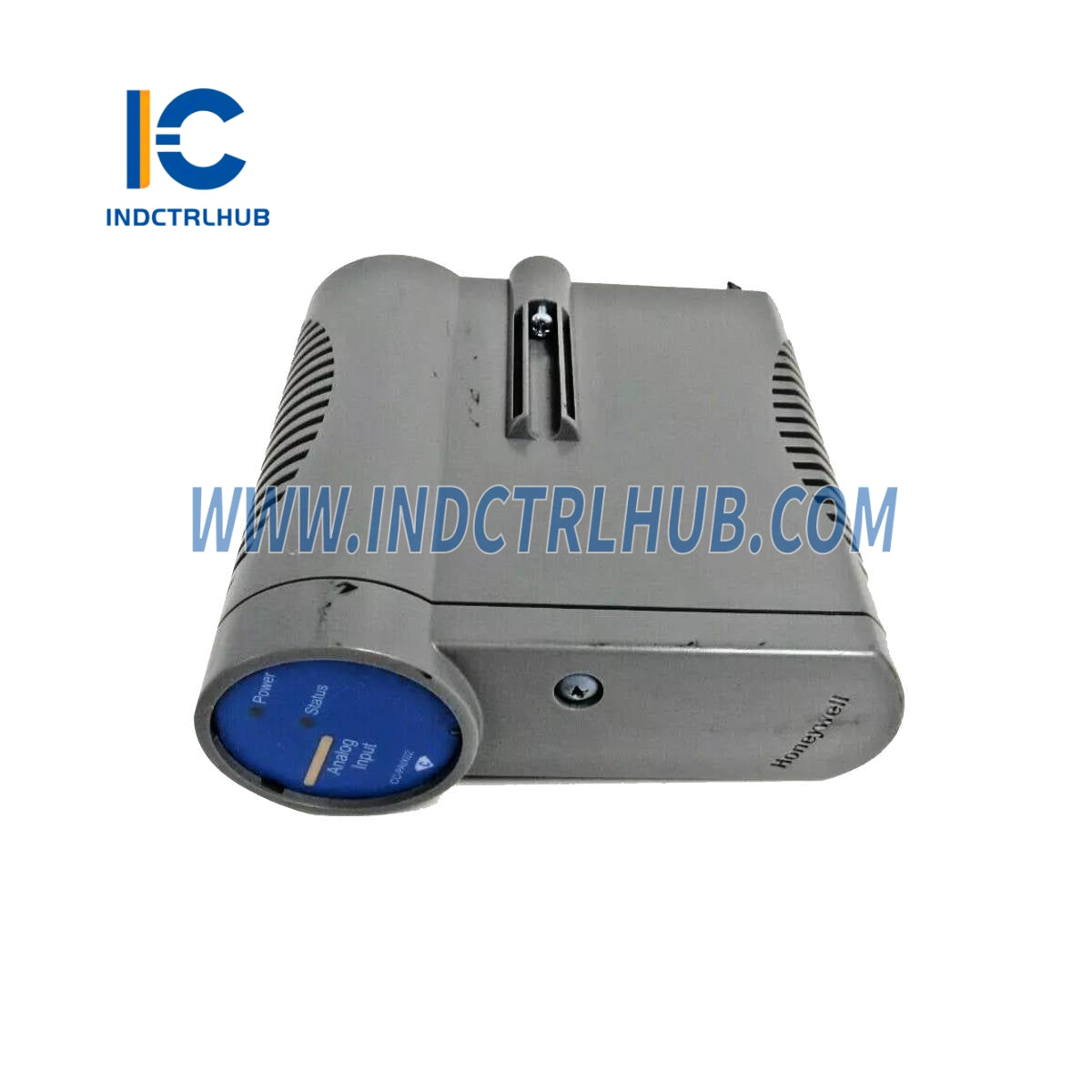

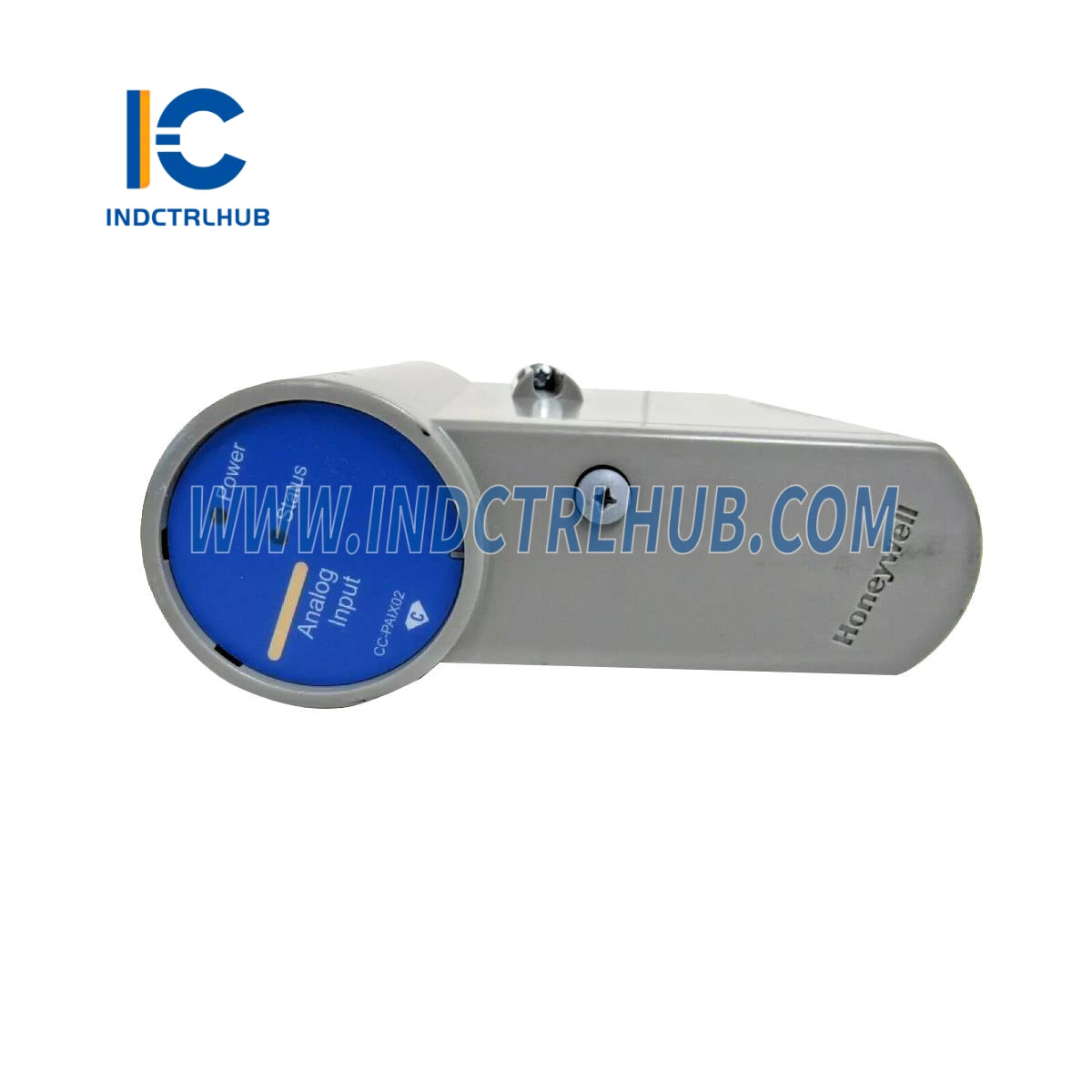

High-Level Analog Input Module |
|
System Series |
Experion PKS (Series C) |
|
Function |
Provides high-accuracy analog input processing for voltage and current signals |
⚙️
Technical Specifications – Analog Input
|
Parameter |
Specification |
|---|---|
|
I/O Model |
CC-PAIX02 – High-Level Analog Input |
|
Compatible IOTA Modules |
Non-Redundant: CC-TAIX01, CC-GAIX21, CC-TAID01 Redundant: CC-TAIX11, CC-GAIX11, CC-TAID11 |
|
Input Channels |
16 Channels total (12 Single-Ended, 4 Differential) |
|
Input Type |
Voltage, current (2-wire or self-powered transmitters) |
|
Input Range |
0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4–20 mA (via 250 Ω resistor) |
|
A/D Converter Resolution |
16 bits |
|
Common Mode Rejection Ratio (CMRR) |
70 dB (DC to 60 Hz with 500 Ω imbalance) |
|
Common Mode Voltage |
–6 V to +5 V peak |
|
Normal Mode Rejection Ratio (NMRR) |
19 dB @ 60 Hz |
|
Normal Mode Filter Response |
Single-pole RC, -3 dB @ 6.5 Hz |
|
Maximum Normal Mode Input |
±30 V (no damage on differential inputs) |
|
Crosstalk |
–60 dB (channel-to-channel, DC to 60 Hz) |
|
Input Impedance (voltage input) |
>10 MΩ (powered) |
|
Input Scan Rate |
50 ms |
|
Hardware Accuracy |
±0.075% FS @ 23.5°C ±2°C ±0.15% FS from 0 to 60°C |
|
Field Power Conditioning |
Individually protected, current-limited, non-incendive compliant |
