Product Description
🔍
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Honeywell |
|
Model/Part Number |

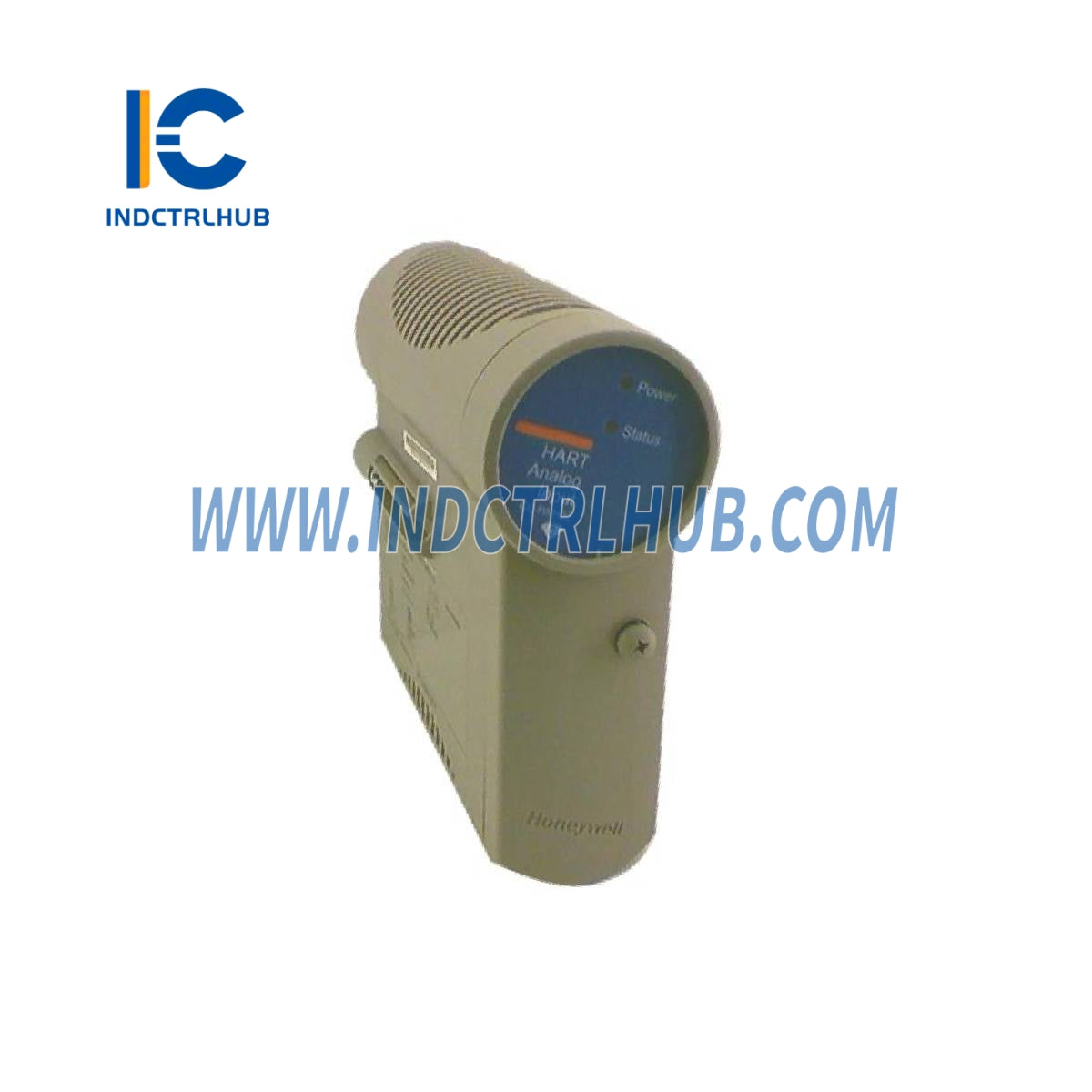

CC-PAIH02 |
|
Description |
High-Level Analog Input Module with HART Communication |
|
Input Channels |
16 Channels (12 Single-Ended / 4 Differential) |
|
Function |
Voltage / Current Input Processing (with HART support) |
|
IOTA Compatibility |
Non-Redundant: CC-TAIX01, CC-GAIX21, CC-TAID01Redundant: CC-TAIX11, CC-GAIX11, CC-TAID11 |
⚙️
Technical Specifications
Signal Characteristics
|
Parameter |
Specification |
|---|---|
|
Input Type |
Voltage, Current (2-wire or self-powered) |
|
Input Range |
0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4–20 mA (via 250 Ω) |
|
A/D Resolution |
16 bits |
|
Input Impedance (Voltage) |
> 10 MΩ (powered) |
|
Common Mode Rejection (DC to 60 Hz) |
70 dB (500 Ω source imbalance) |
|
Normal Mode Rejection at 60 Hz |
19 dB |
|
Normal Mode Filter |
Single-pole RC, -3 dB @ 6.5 Hz |
|
Max Normal Mode Input |
±30 V (no damage) |
|
Common Mode Voltage Range |
-6 to +5 V peak |
|
Channel Crosstalk |
-60 dB (DC to 60 Hz) |
|
Scan Rate |
50 ms |
Accuracy & Performance
|
Condition |
Accuracy |
|---|---|
|
@ 23.5°C ± 2°C (CMV = 0 V) |
±0.075% of full-scale |
|
@ 0°C to 60°C |
±0.15% of full-scale |
Additional Features
|
Feature |
Details |
|---|---|
|
Transmitter Field Power Conditioning |
Individually protected current limiting, no fuses required |
|
HART Protocol Support |
Yes |
