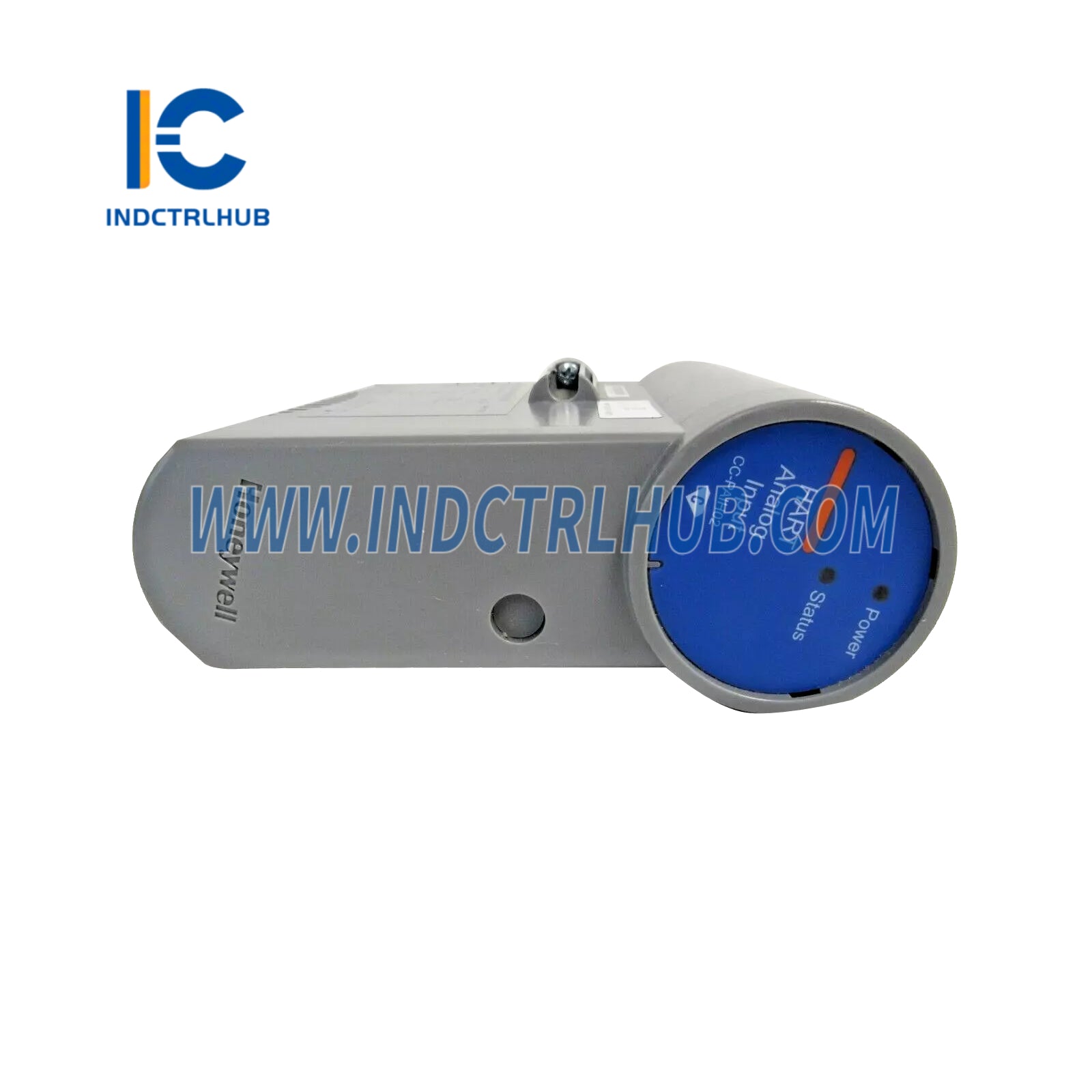

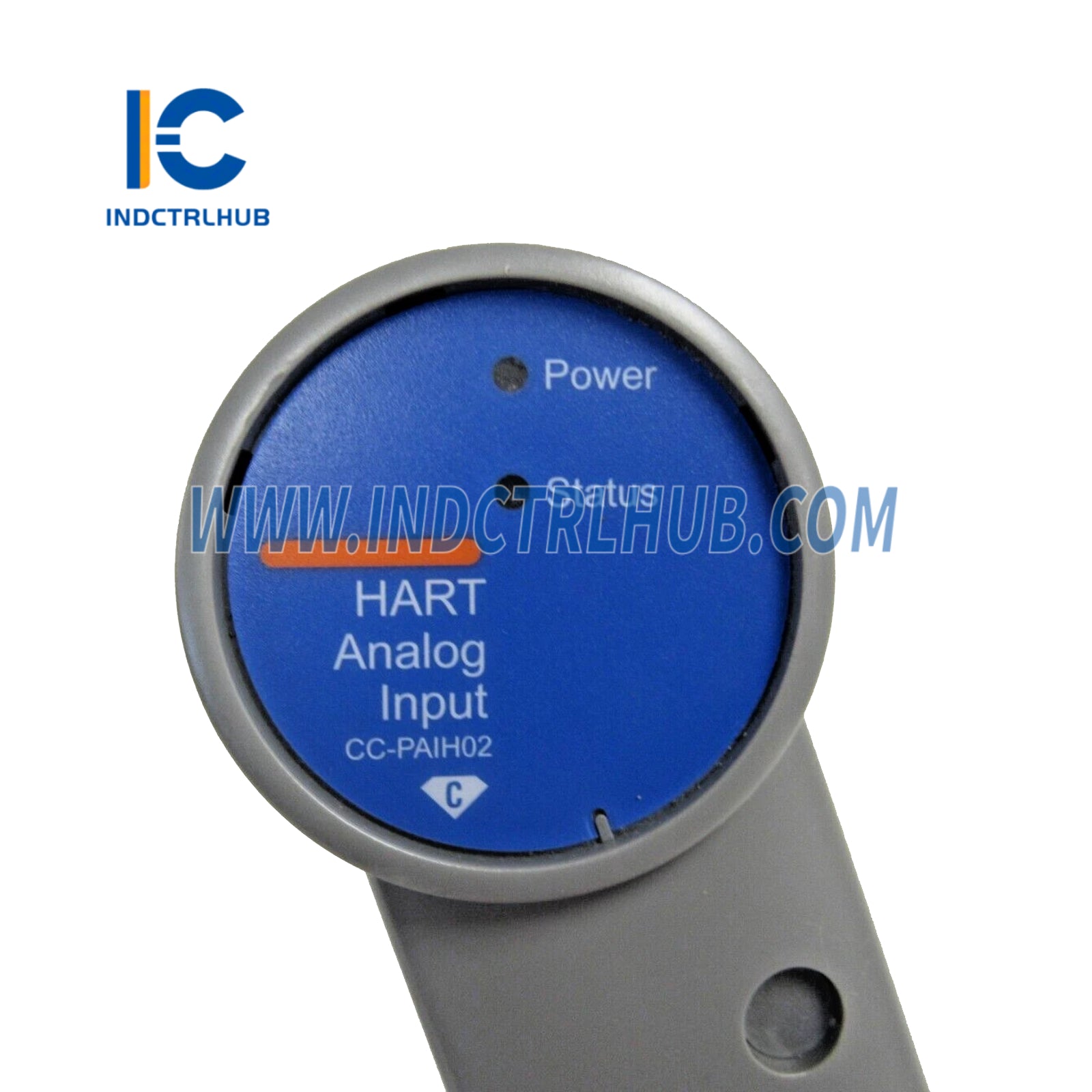

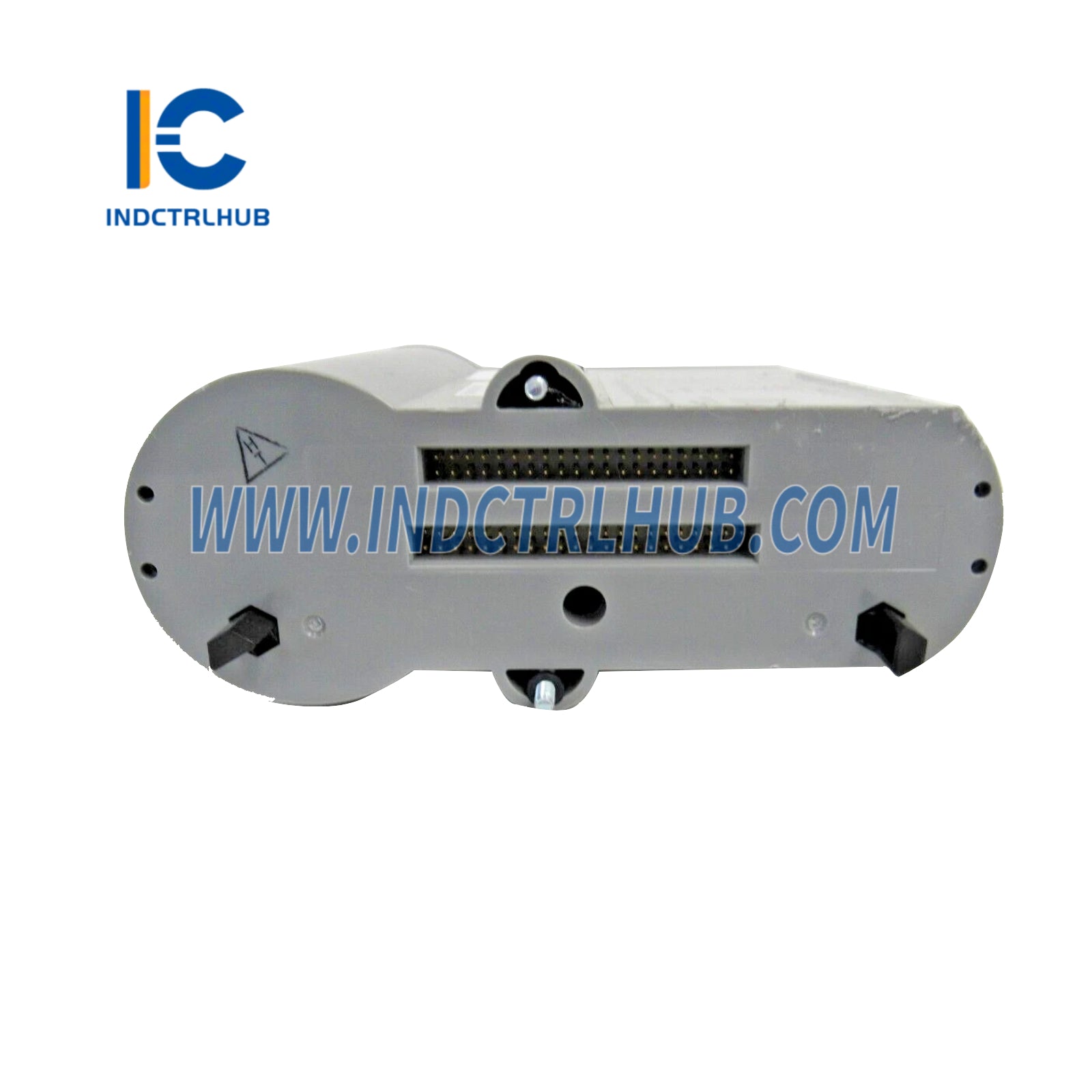

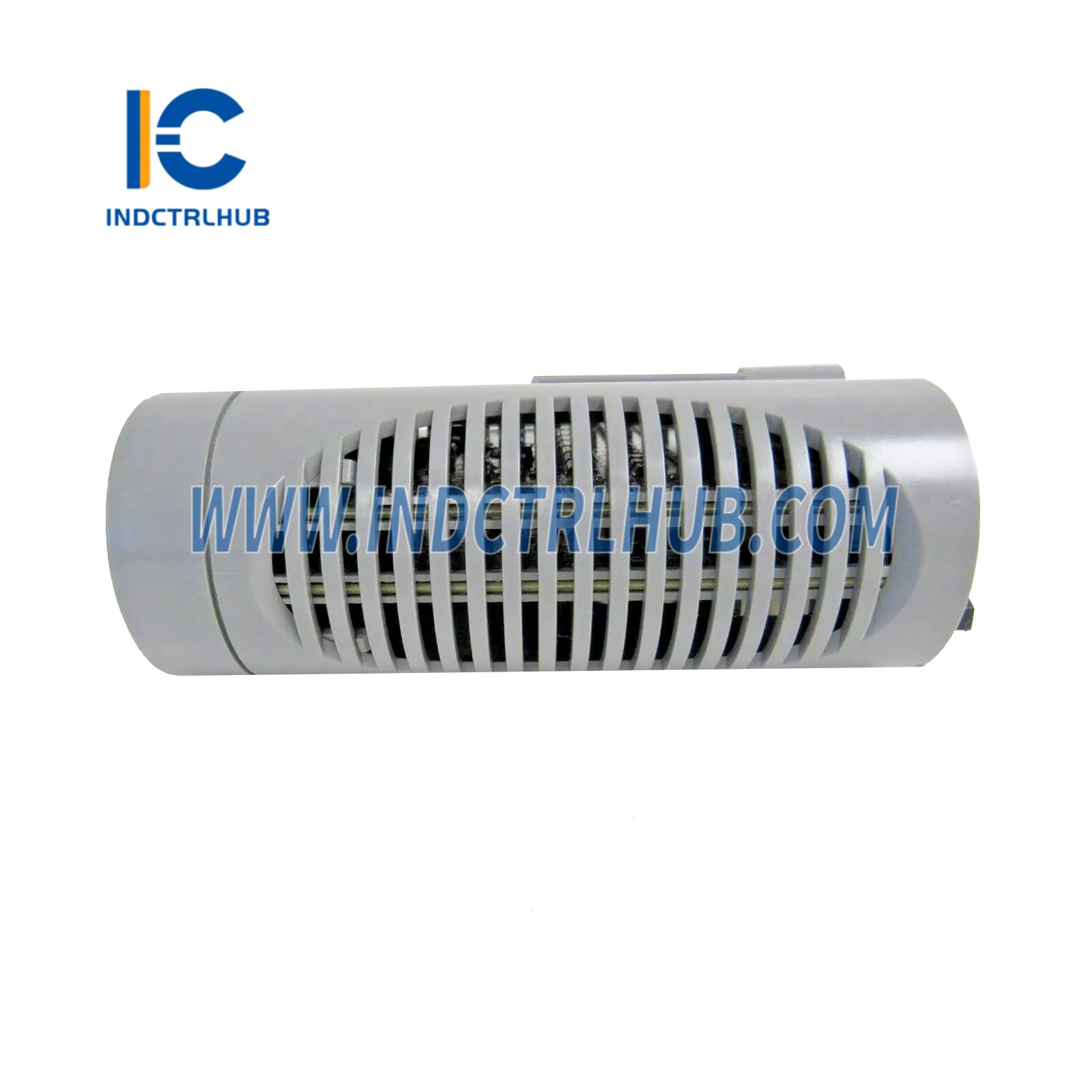

Product Description
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Honeywell |
|
Model/Part Number |

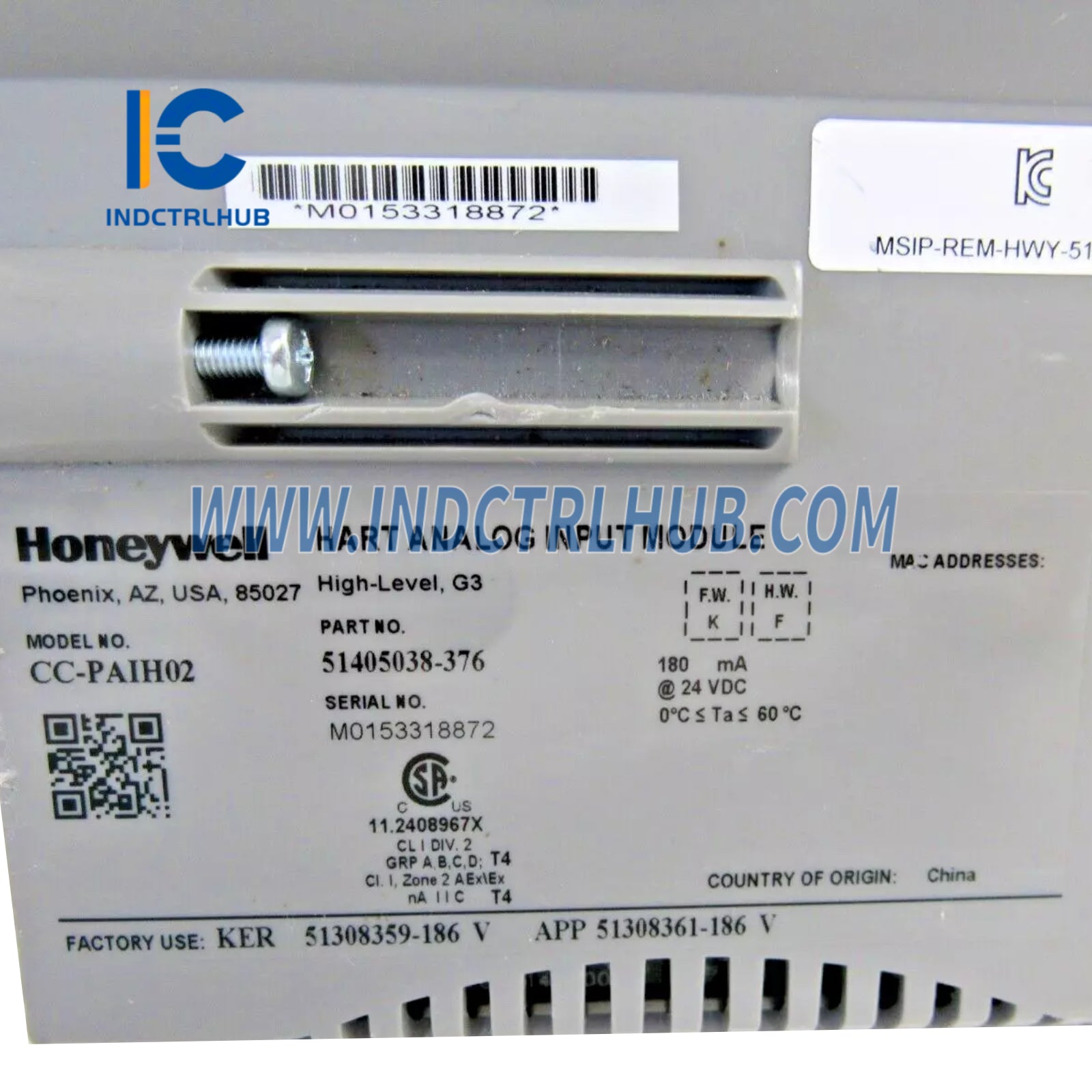

CC-PAIH02 / 51405038-376 |
|
Description |

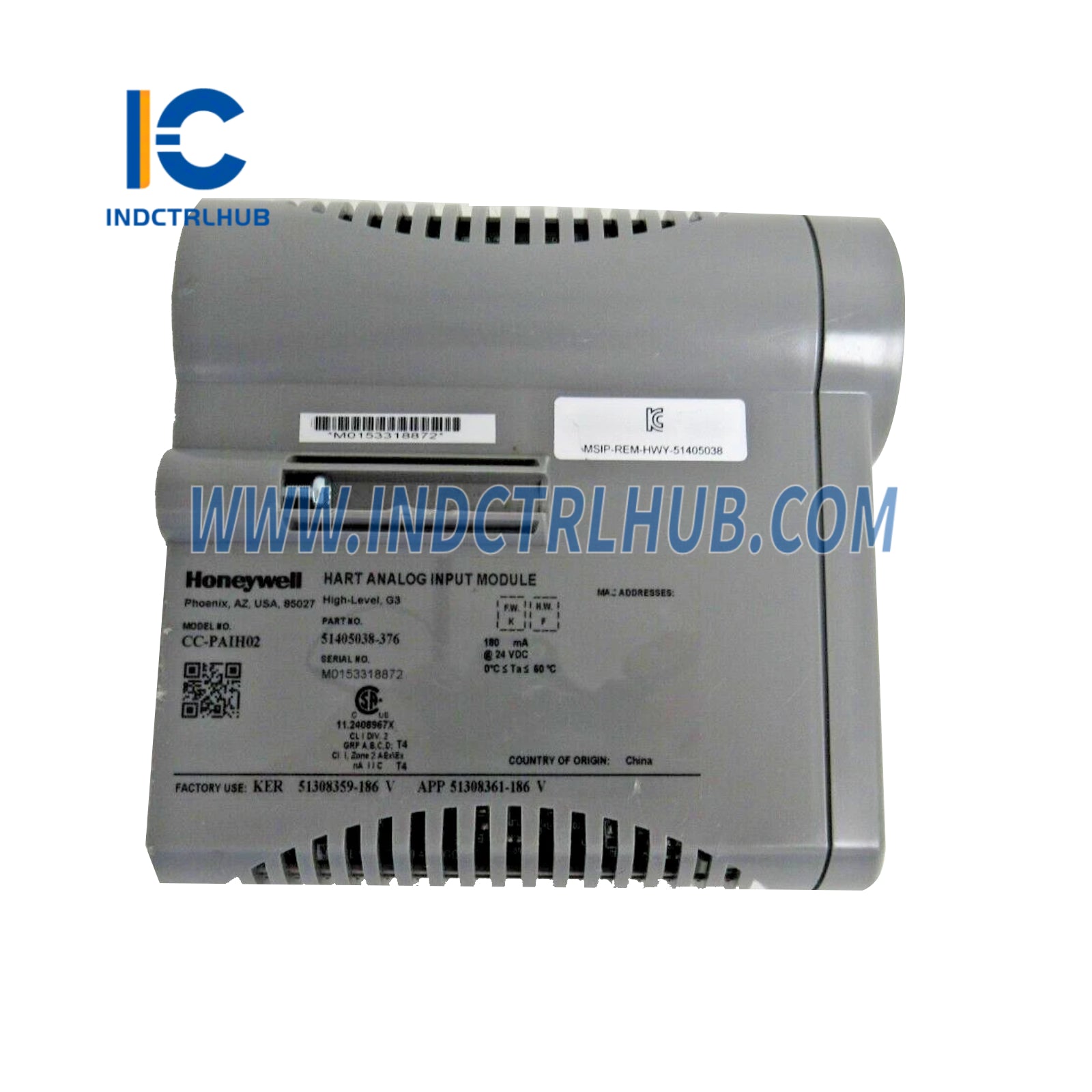

High-Level Analog Input Module with HART communication capability, designed for use in distributed control systems. Supports a wide range of voltage and current input types including HART-enabled transmitters. |
Technical Specifications
|
Specification |
Details |
|---|---|
|
Input / Output Model |
CC-PAIH02 – High-Level Analog Input with HART |
|
Compatible IOTA Models |
Non-Redundant: CC-TAIX01, CC-GAIX21, CC-TAID01 Redundant: CC-TAIX11, CC-GAIX11, CC-TAID11 |
|
Input Type |
Voltage, current (2-wire or self-powered transmitters) |
|
Input Channels |
16 total: 12 Single-Ended, 4 Differential |
|
Input Range |
0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4–20 mA (via 250 Ω resistor) |
|
A/D Converter Resolution |
16 bits |
|
Input Scan Rate |
50 ms |
|
Input Impedance (Voltage Inputs) |
> 10 MΩ powered |
|
Maximum Normal Mode Input |
± 30 V (differential inputs, no damage) |
|
Common Mode Voltage Range |
-6 to +5 V peak |
|
Common Mode Rejection Ratio |
70 dB (dc to 60 Hz, 500 Ω source imbalance) |
|
Normal Mode Rejection Ratio |
19 dB at 60 Hz |
|
Normal Mode Filter Response |
Single-pole RC, -3 dB @ 6.5 Hz |
|
Crosstalk (Channel-to-Channel) |
-60 dB (dc to 60 Hz) |
|
Hardware Accuracy |
± 0.075% of full-scale @ 23.5°C ± 2°C ± 0.15% of full-scale @ 0–60°C |
Functional Features
|
Feature |
Details |
|---|---|
|
Transmitter Field Power Conditioning |
Individually protected current limiting circuits for Class 1, Div 2 non-incendive interfacing. No fusing required |
|
HART Compatibility |
Supported |
|
Channel Isolation |
Galvanic isolation per channel |
