Product Description
Product Details
-

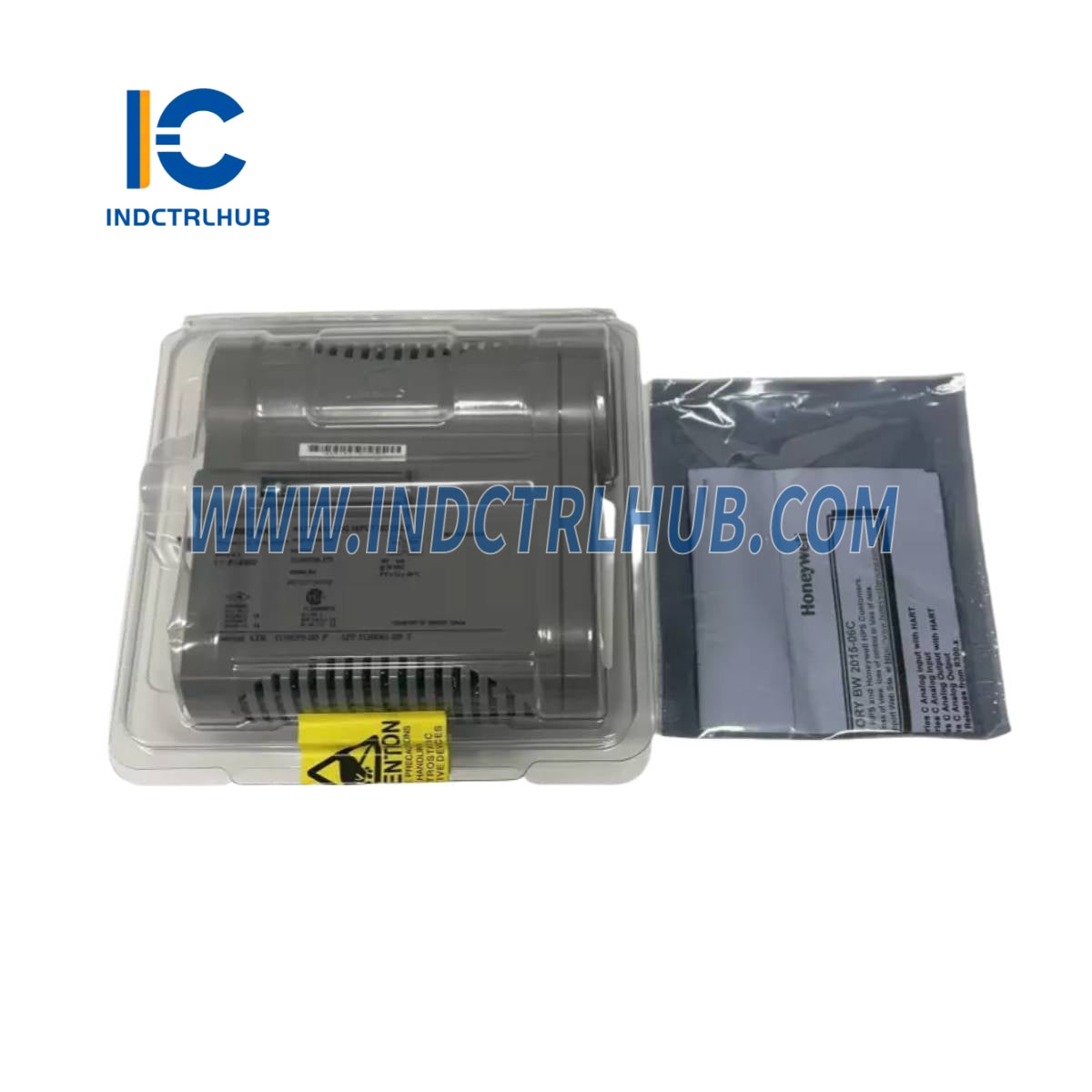

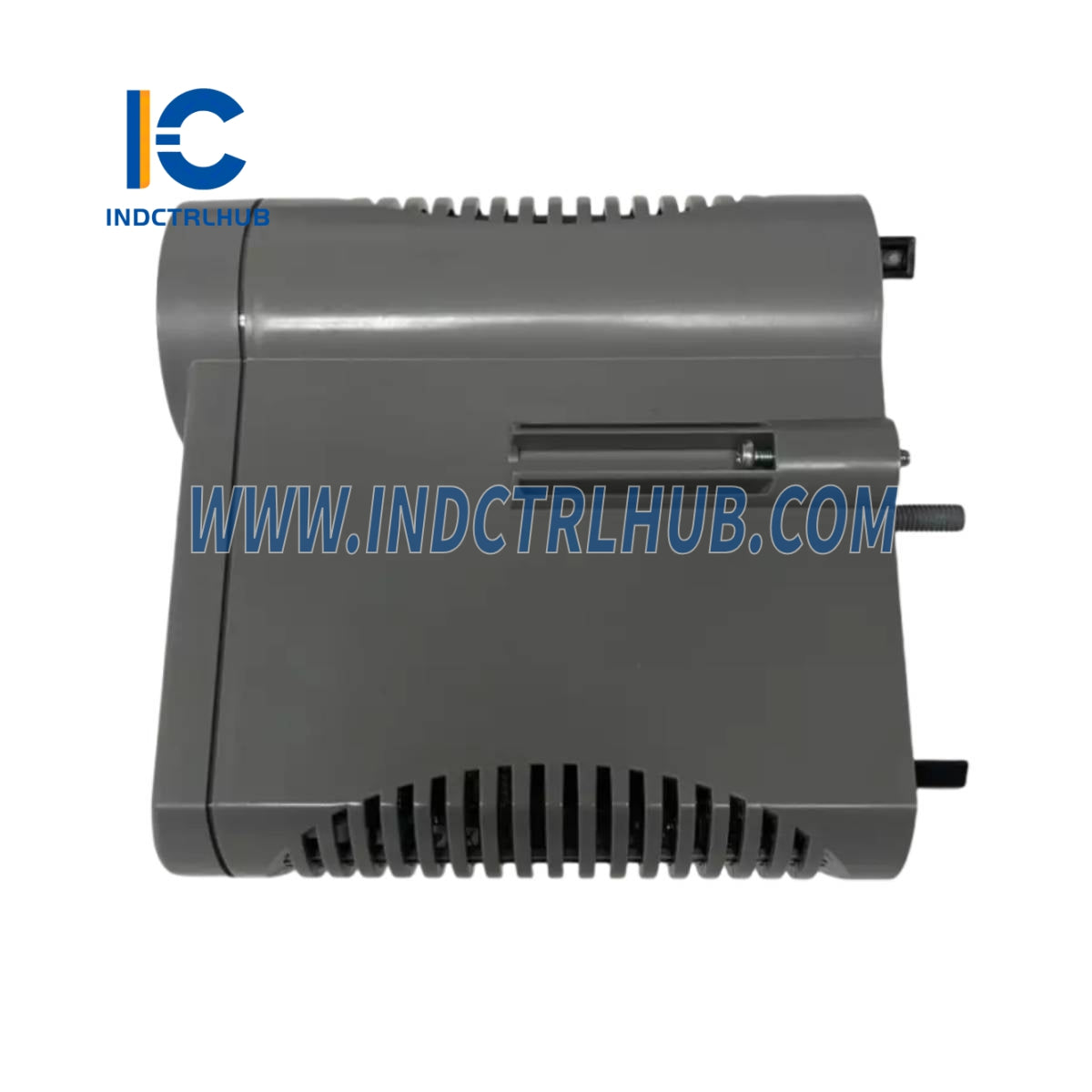

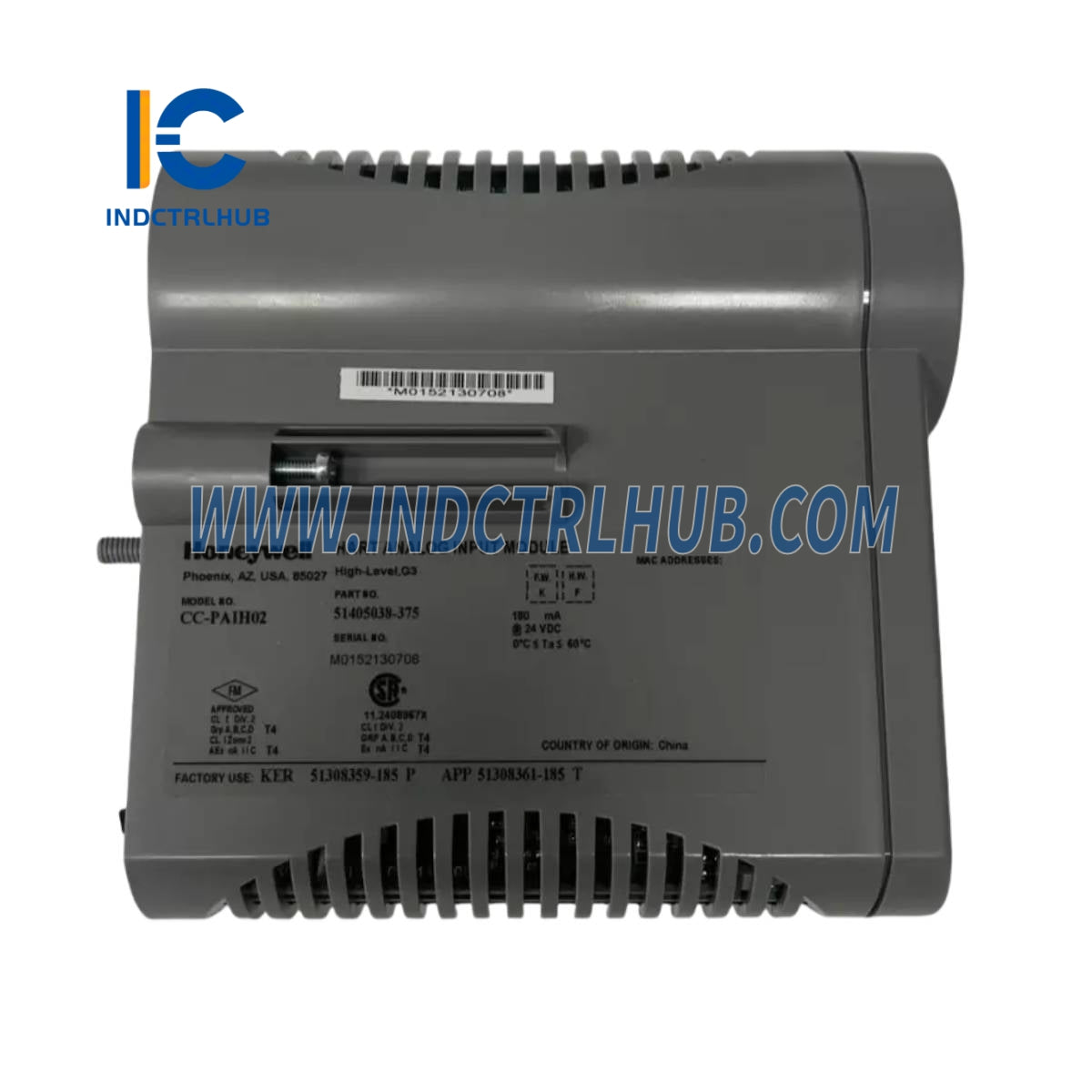

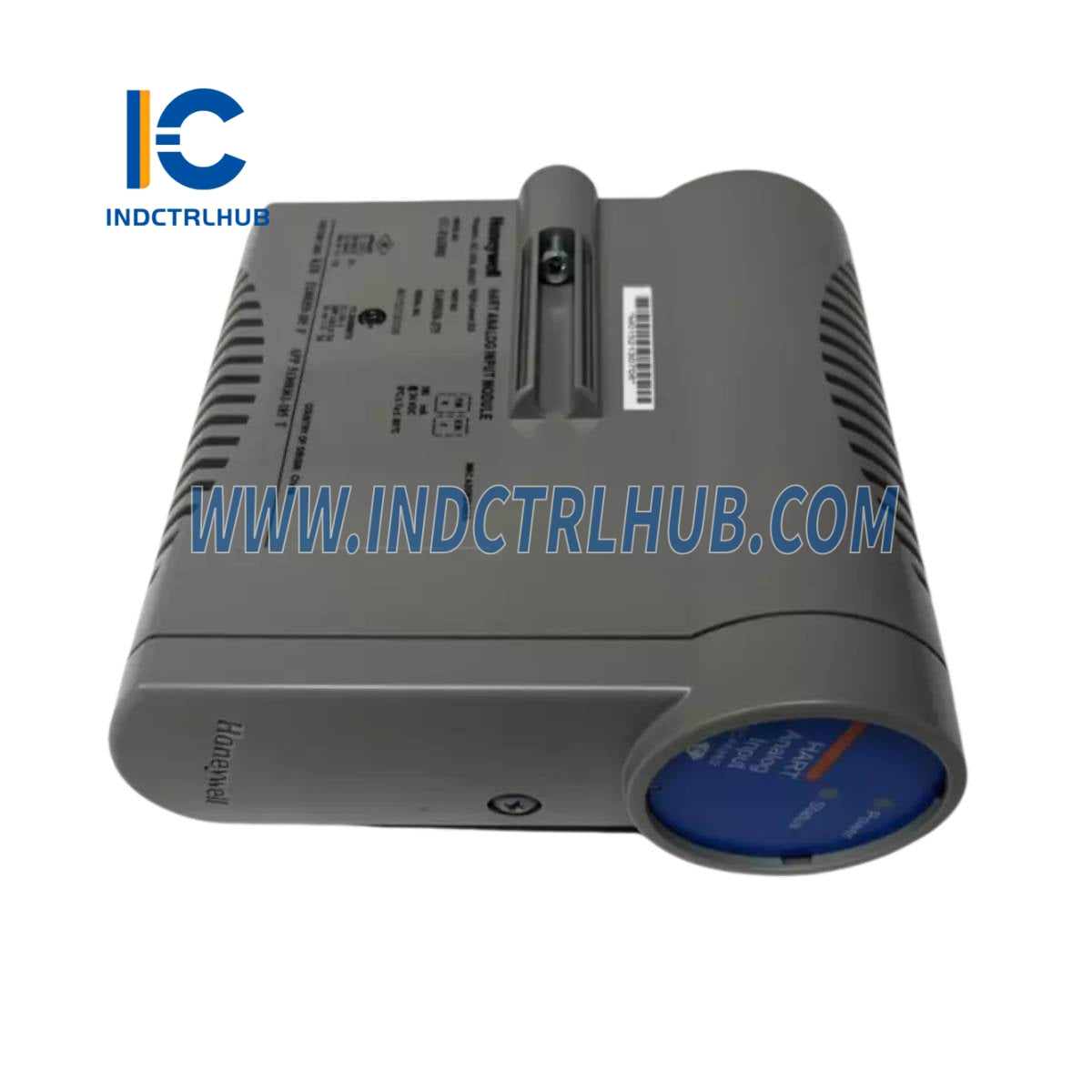

Manufacturer: Honeywell
-
Model/Part Number: CC-PAIH02 51405038-375
-
Description: High-Level Analog Input Module with HART communication
Detailed Specifications – Analog Input with HART
|
Category |
Specification |
|---|---|
|
Model Type |
CC-PAIH02 – High-Level Analog Input with HART |
|
Compatible IOTA Models |
Non-Redundant: CC-TAIX01, CC-GAIX21, CC-TAID01Redundant: CC-TAIX11, CC-GAIX11, CC-TAID11 |
|
Input Type |
Voltage, current (2-wire or self-powered transmitters) |
|
Number of Channels |
16 Channels total (12 Single-Ended, 4 Differential) |
|
Common Mode Rejection Ratio |
70 dB (DC to 60 Hz, with 500 Ω source imbalance) |
|
Common Mode Voltage |
-6 to +5 V peak (DC to 60 Hz) |
|
A/D Converter Resolution |
16 bits |
|
Input Ranges |
0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4–20 mA (using 250 Ω load) |
|
Normal Mode Rejection Ratio |
19 dB at 60 Hz |
|
Normal Mode Filter Response |
Single-pole RC, -3 dB at 6.5 Hz |
|
Max Normal Mode Input |
±30 V (differential input, non-damaging) |
|
Crosstalk (DC to 60 Hz) |
-60 dB (channel-to-channel) |
|
Input Impedance (Voltage) |
> 10 MΩ (powered) |
|
Input Scan Rate |
50 milliseconds |
|
Accuracy (@ CMV = 0 V) |
±0.075% full-scale (at 23.5°C ±2°C)±0.15% full-scale (0 to 60°C) |
|
Field Power Conditioning |
Individually protected, current-limiting circuits for Class 1, Div 2 (non-incendive), no fuses required |
