Product Description

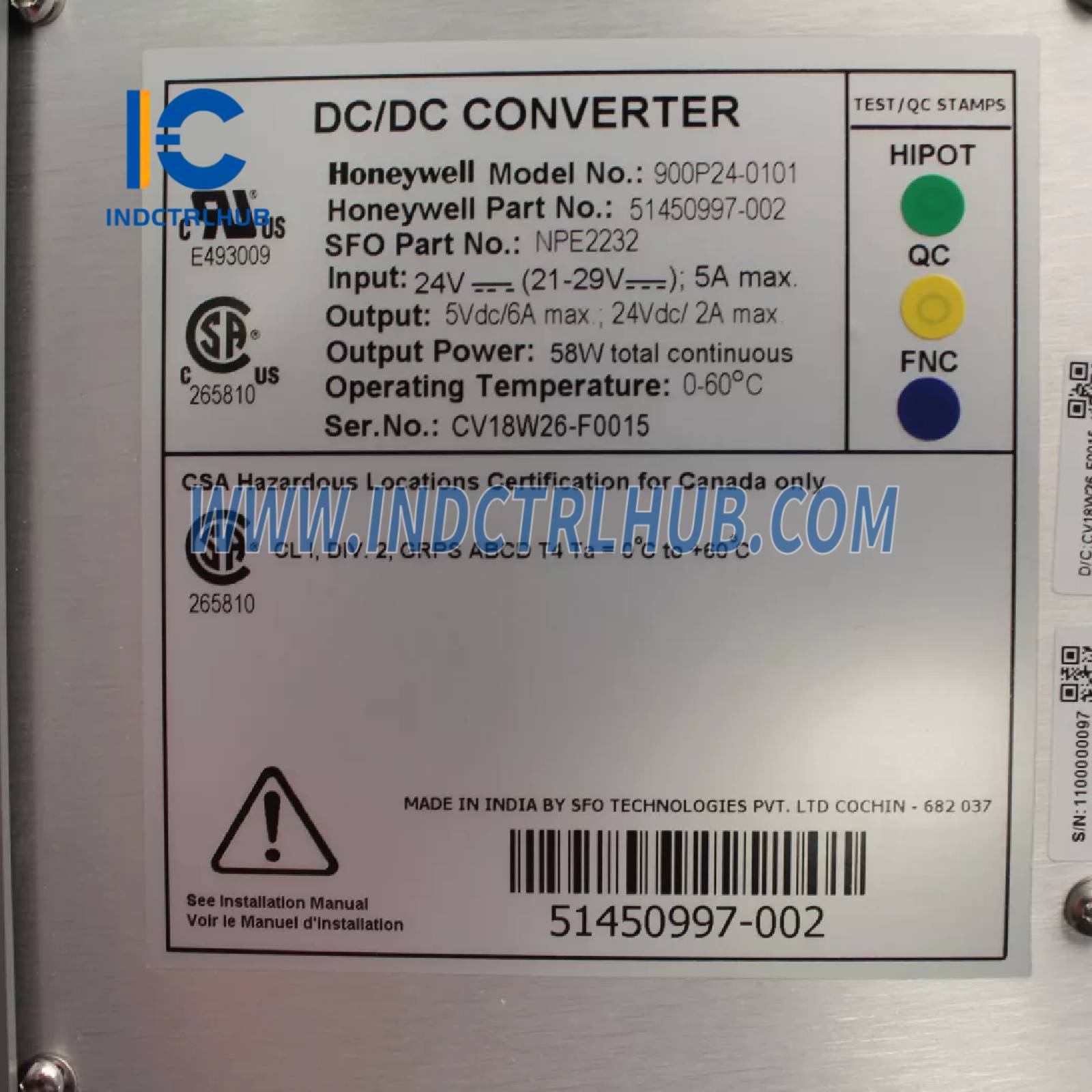

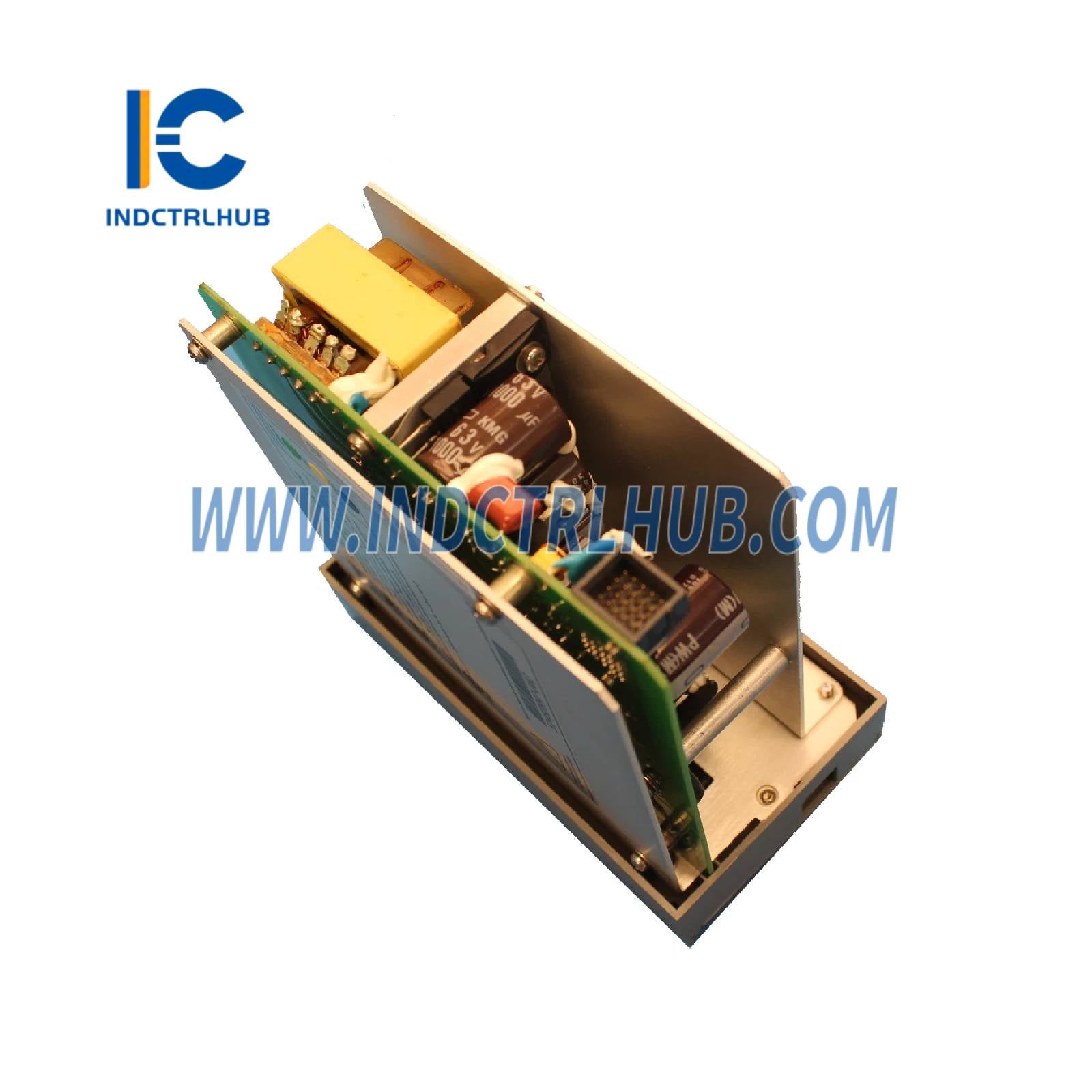

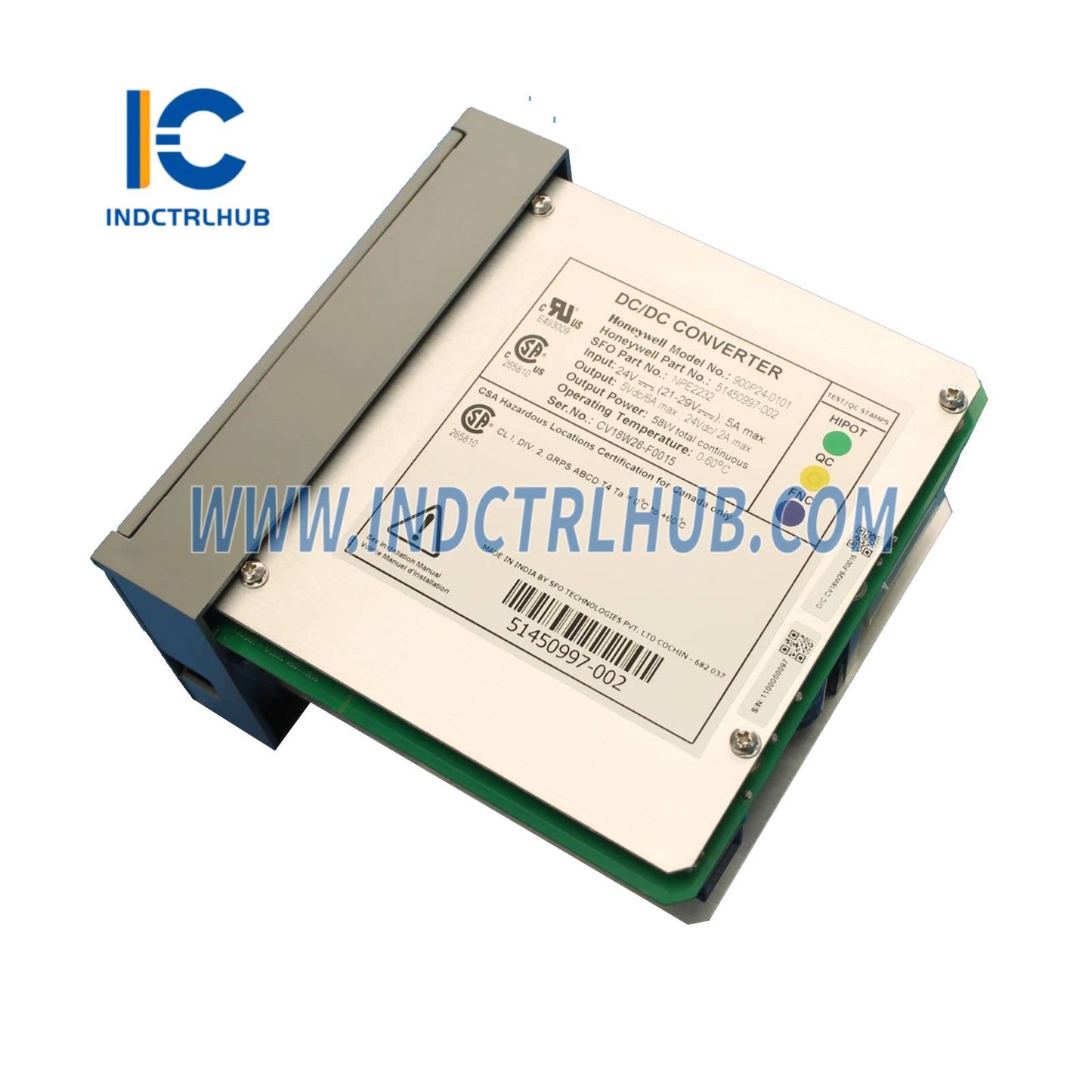

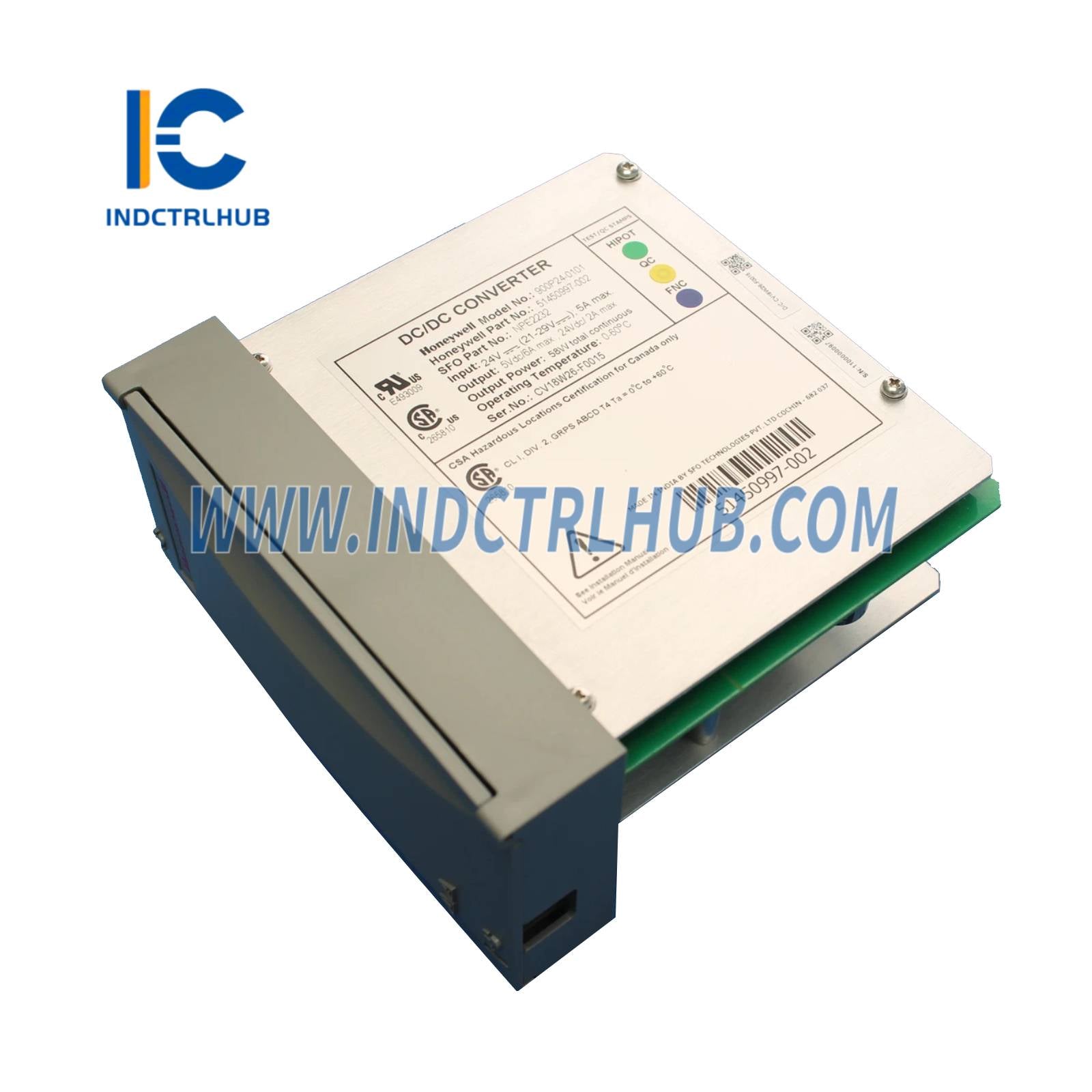

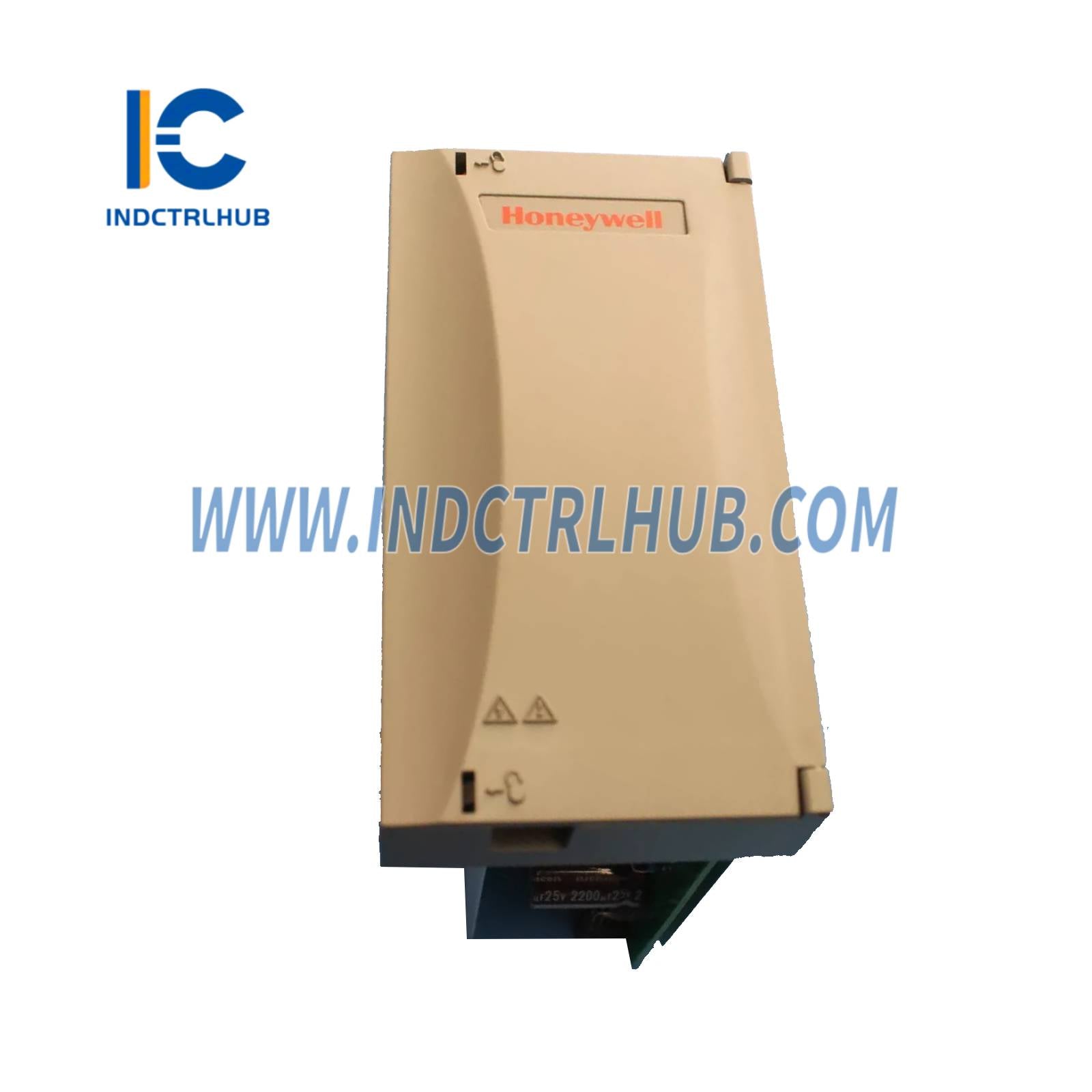

Honeywell 900P24-0101 ControlEdge PLC Power Supply Module
Product Overview
- Description: The Honeywell 900P24-0101 is a power supply module designed for use in Honeywell’s ControlEdge Programmable Logic Controller (PLC) system.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Series | ControlEdge PLC |
| Model/Part Number | 900P24-0101 |
| Model Type | Power Supply Module |
| Function | Provides regulated power to ControlEdge PLC system components |
| Display | LED indicators (power status, fault) |
| Inputs | 100–240 VAC or 24 VDC (depending on configuration) |
| Outputs | 24 VDC (regulated, for system components) |
| Communication Interfaces | Not applicable (interfaces via ControlEdge backplane) |
| Signal Conditioning | Internal voltage regulation, overcurrent/overvoltage protection |
| Accuracy | ±5% voltage regulation (typical) |
| Redundancy | Supports redundant power supply configurations |
| Diagnostics | LED status indicators, fault reporting via ControlEdge system |
| Compatibility | Honeywell ControlEdge PLC system |
| Power Supply | 100–240 VAC or 24 VDC (input) |
| Power Consumption | 20 W typical, 30 W max (depending on system load) |
| Environmental Specifications | Operating Temperature: -40°C to +70°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (when installed in ControlEdge rack) |
| Dimensions | Approx. 130 mm (H) x 35 mm (W) x 150 mm (D) |
| Weight | 0.6 kg (approx.) |
| Mounting | Plugs into ControlEdge PLC rack |
| Certifications | CE, UL, CSA, ATEX, IECEx (system-dependent) |
