Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Honeywell |
|
Model Number |

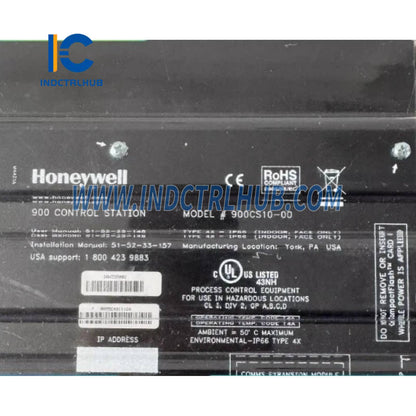

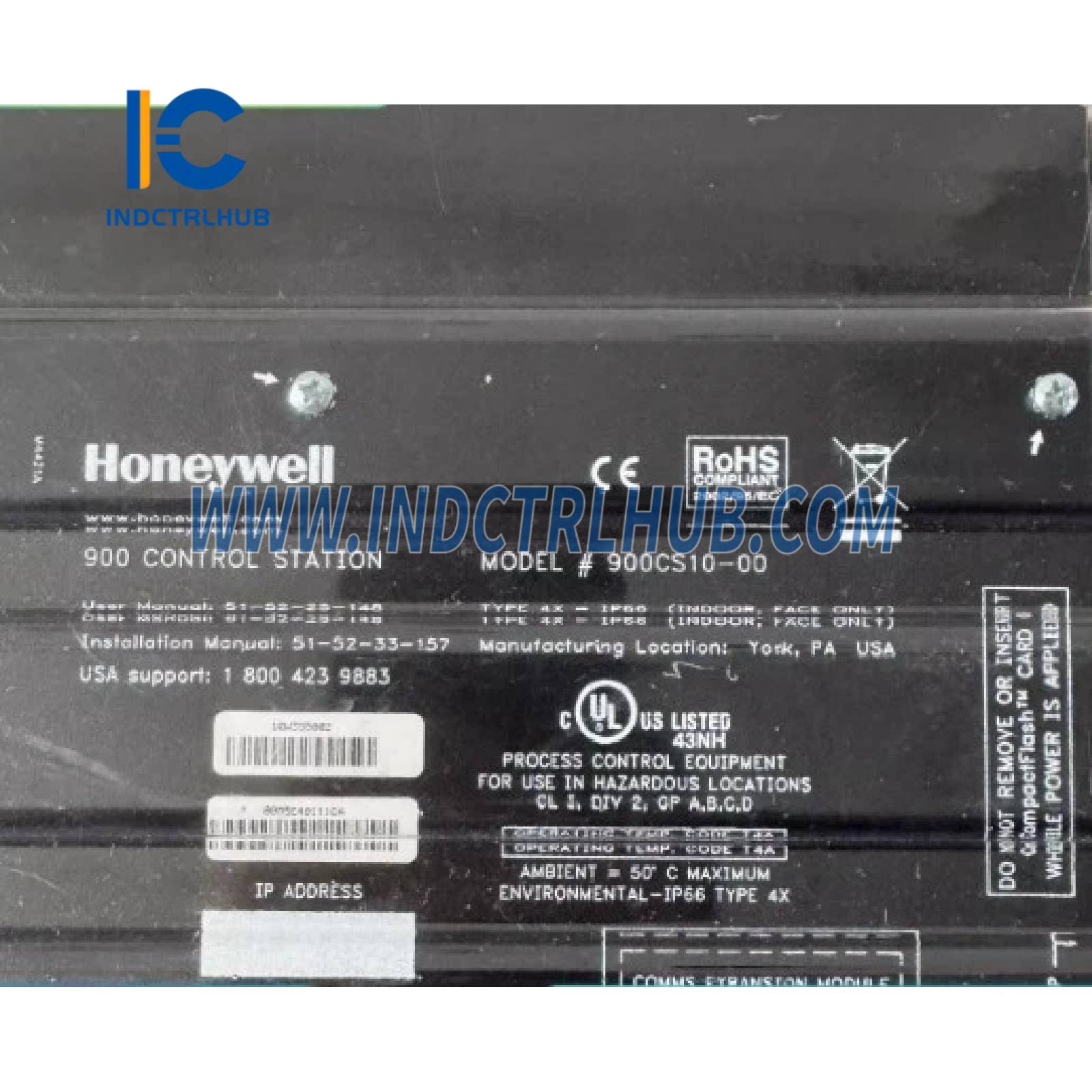

900CS10-00 |
|
Product Type |
Control Station |
|
Display Size |
10” TFT color display |
|
Application |
Operator Interface for HC900 Controller |
Technical Specifications
|
Category |
Specification |
|---|---|
|
Power Supply |
24 VDC, 29 W minimum |
|
Mounting |
Panel-mounted with 14 kep nuts, gasket included |
|
Enclosure Rating |
Type 4X (face only), IP66 |
|
Environmental |
Operating Temp: 0–50°C, Storage Temp: -20–70°C, Humidity: Max 80% RH (non-condensing) |
|
Altitude |
Up to 2000 meters |
|
Shock/Vibration |
Shock: 35g, 9ms in 3 directions; Vibration: 5–150 Hz, 2g, X/Y/Z, 1.5 hr each |
|
USB Support |
USB 3.0 (available on 900CS10 only) |
|
Flash Memory Module |
Optional Compact Flash (4MB to 2GB, UL listed Smart Modular SG9CF required) |
|
Communication Ports |
Ethernet (10/100Base-T), RS485, RS232 |
|
Programming |
Via USB (preferred before mounting), or Ethernet |
|
Compliance |
UL, CSA, FM approved (Class I Div 2, Groups A-D), CE, EN 61010-1, EN 55011, IEC 61326 |
|
Electromagnetic Immunity |
Meets IEC standards for ESD, EM field, surge, EFT/burst, magnetic field, etc. |
