Product Description
Product Overview
Manufacturer: Honeywell
Model/Part Number: 900CP1-0300
Description: Control Processor Module

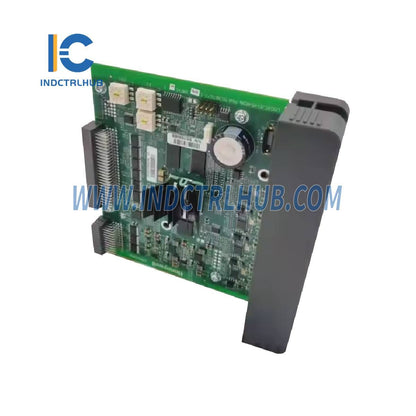

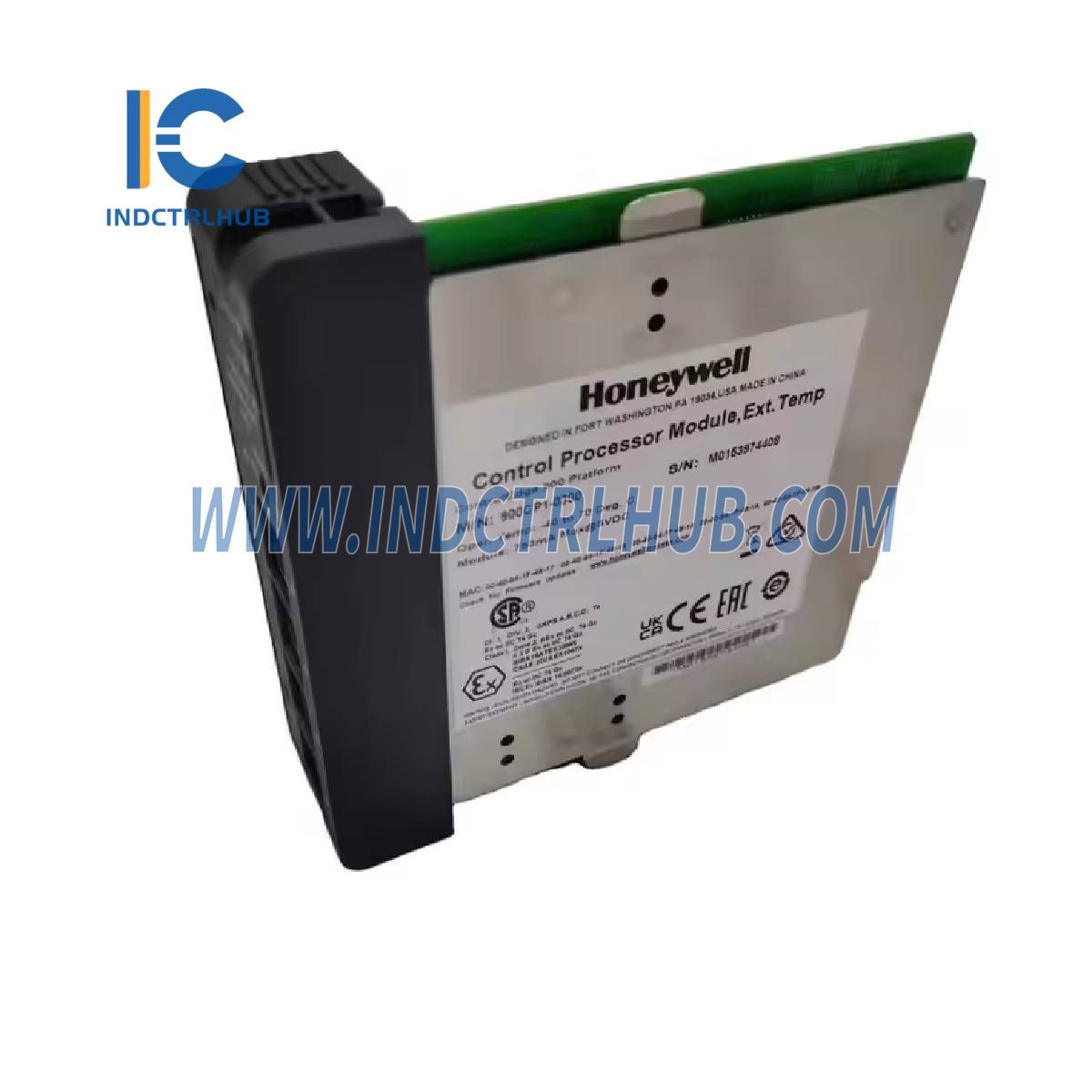

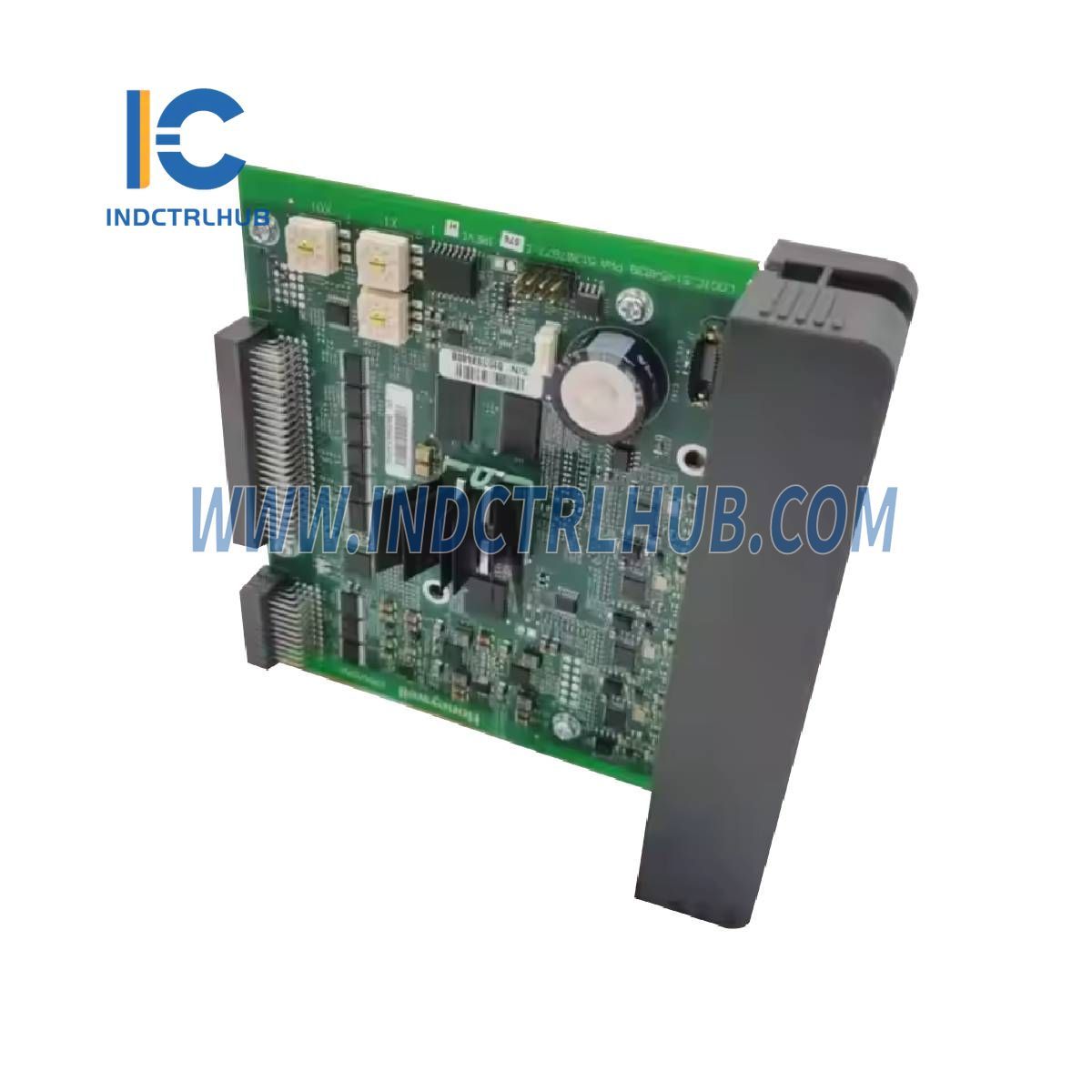

The Honeywell 900CP1-0300 is a Control Processor Module designed for ControlEdge PLC systems. It features a rack-based modular hardware design, supporting various I/O configurations and redundancy options for enhanced reliability.
Technical Specifications
Performance and Capability
| Item |
Specification |
| Maximum I/O Modules per Controller |
144¹² |
| Maximum Analog Channels per Controller |
2304¹² |
| Maximum Digital Channels per Controller |
4608¹² |
| Maximum Expansion I/O Racks (Non-Redundant Controller) |
11 |
| Maximum Expansion I/O Racks (Redundant Controller) |
12 |
| Command Execution Time |
85µs per 1000 commands in ST |
Notes:
- I/O capability may decrease depending on EtherNet/IP connections and PROFINET IO Devices. Refer to the performance calculator tool for precise details.
- I/O capability varies based on I/O module type selection and combination. See section 2.5 for more details.
- Only applicable to 900 IO modules, not MasterLogic IO modules.
Hardware Specification and Features
| Item |
Specification |
| Processor |
Dual Core ARM® Cortex™-A9 (32-bit) 667 MHz |
| User Programming Memory (Flash) |
10 MB (Program: 5 MB, Data: 5 MB) |
| Flash Memory |
256 MB (900CP1-0200 & 900CP1-0300) / 512 MB (900CP2-0100) |
| SD Card Support |
32GB Class 6 / Class 10 (Industry Standard) |
| Running Memory (RAM) |
256 MB with ECC (900CP1-0200 & 900CP1-0300) / 512 MB with ECC (900CP2-0100) |
| Controller Redundancy |
Supported (Hot Standby) |
| Real-Time Clock |
2 weeks retention after power loss |
| CPU Watchdog |
Auto-reset upon error detection |
| Nonvolatile Memory Data Life |
20+ years (No battery required) |
| Real-Time Clock Resolution |
1 ms |
| I/O Scan Time |
Adjustable (10 ms – 3000 ms) |
| Switchover |
Maintains internal parameters, variables, and outputs during transition |
| Switchover Time |
<100 ms |
| Operating Modes |
Run Locked, Stop Locked, Remote Running, Remote Stopped |

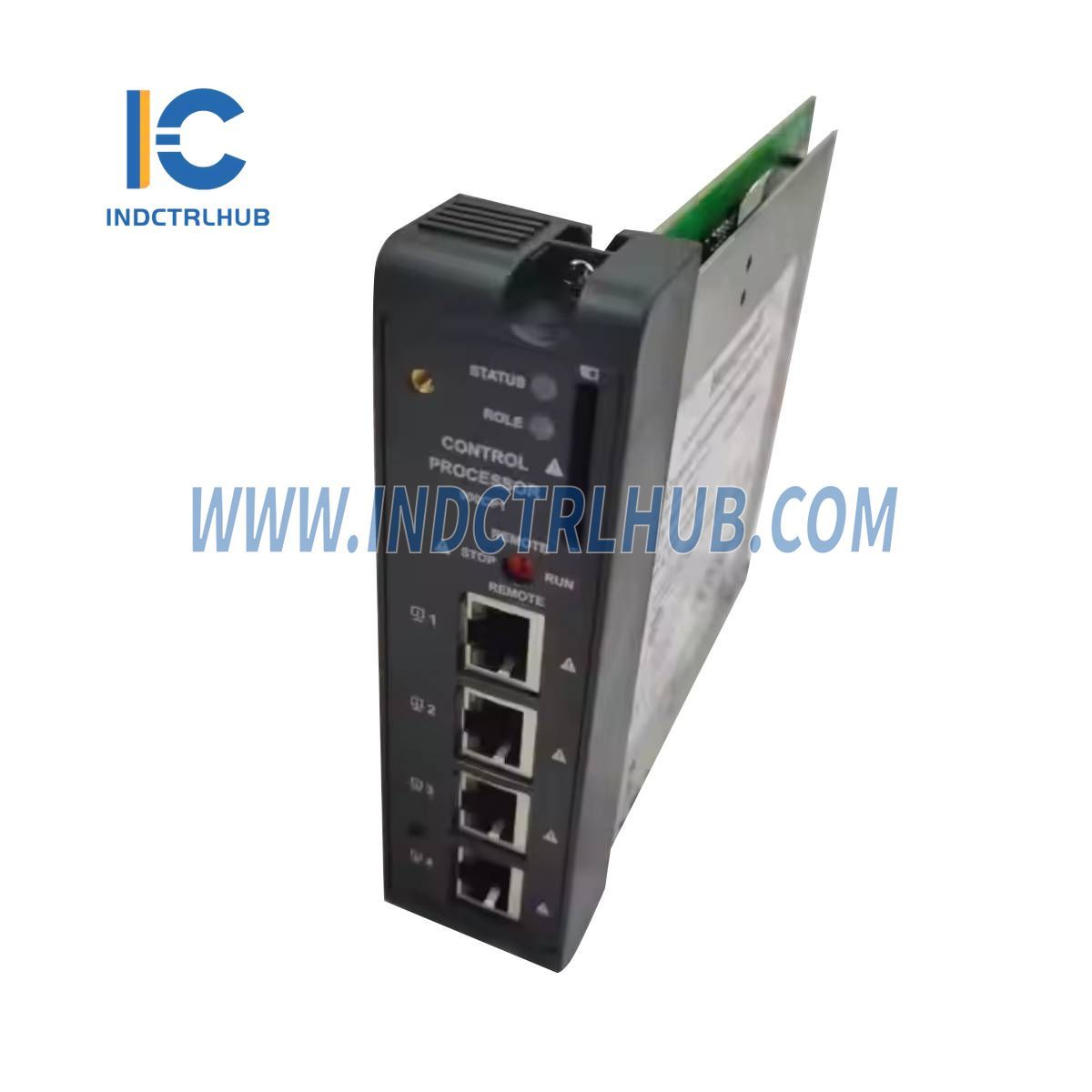

| LED Indicators |
2 LEDs (Three-color) indicate status and role of the CPM |
Datalogging
| Item |
Specification |
| Datalog Media |
Flash memory or optional SD Card |
| Datalog Rate |
Configurable: 1 sec, 5 sec, 10 sec, 1 min, 5 min, 10 min, 1 hour |
| Datalog Timestamp Resolution |
1 ms |
Physical & Environmental Specifications
| Item |
Specification |
| Extended Operating Temperature |
-40°C to 70°C |
| Dimensions (H x W) |
137 mm x 38.1 mm (5.4" x 1.5") |
| Weight |
320g |
