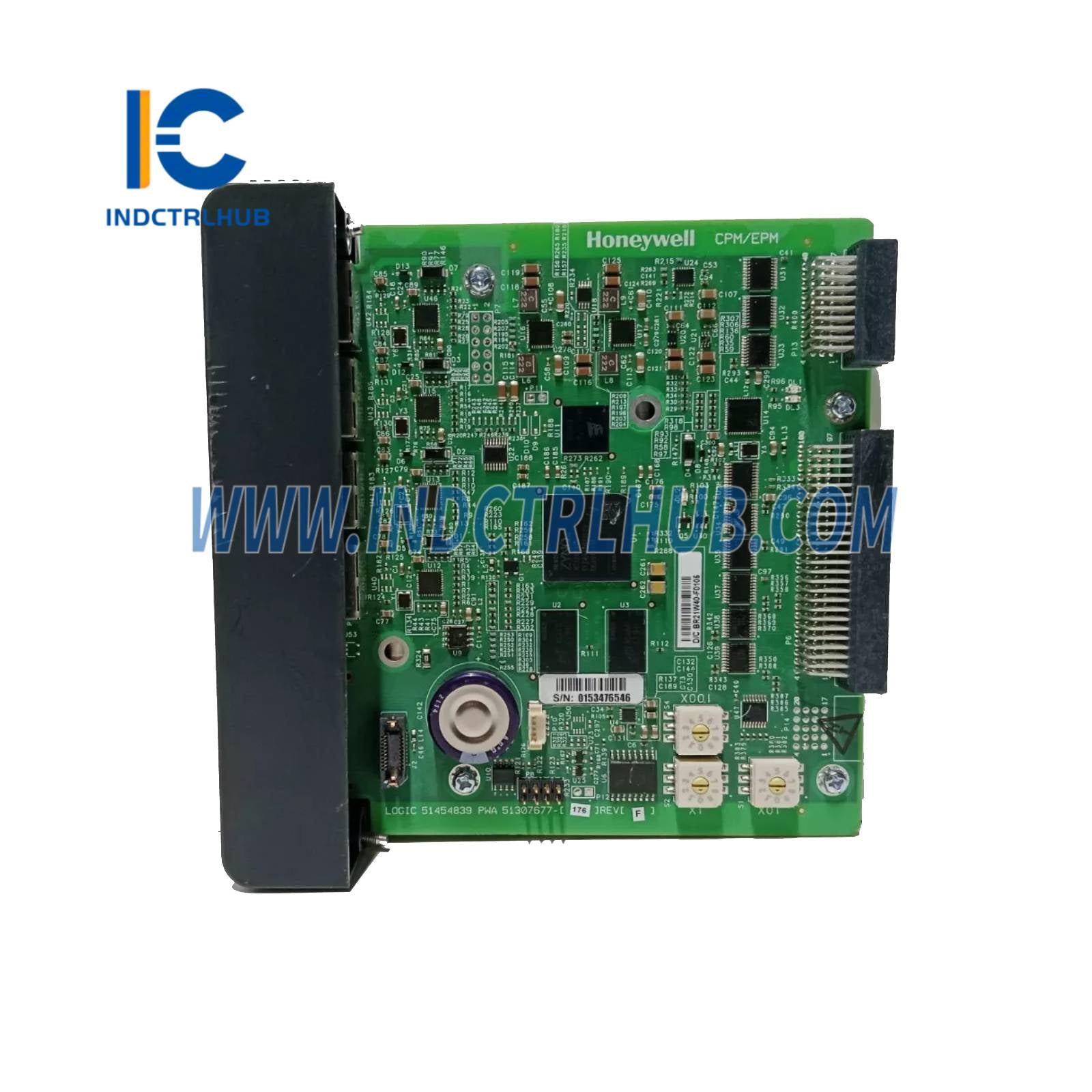

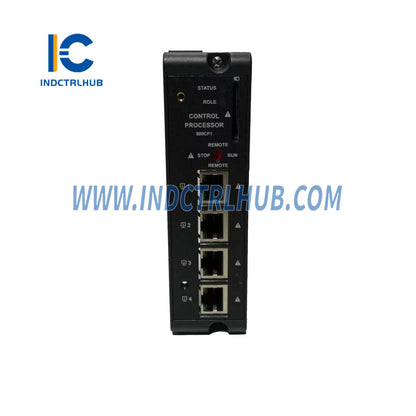

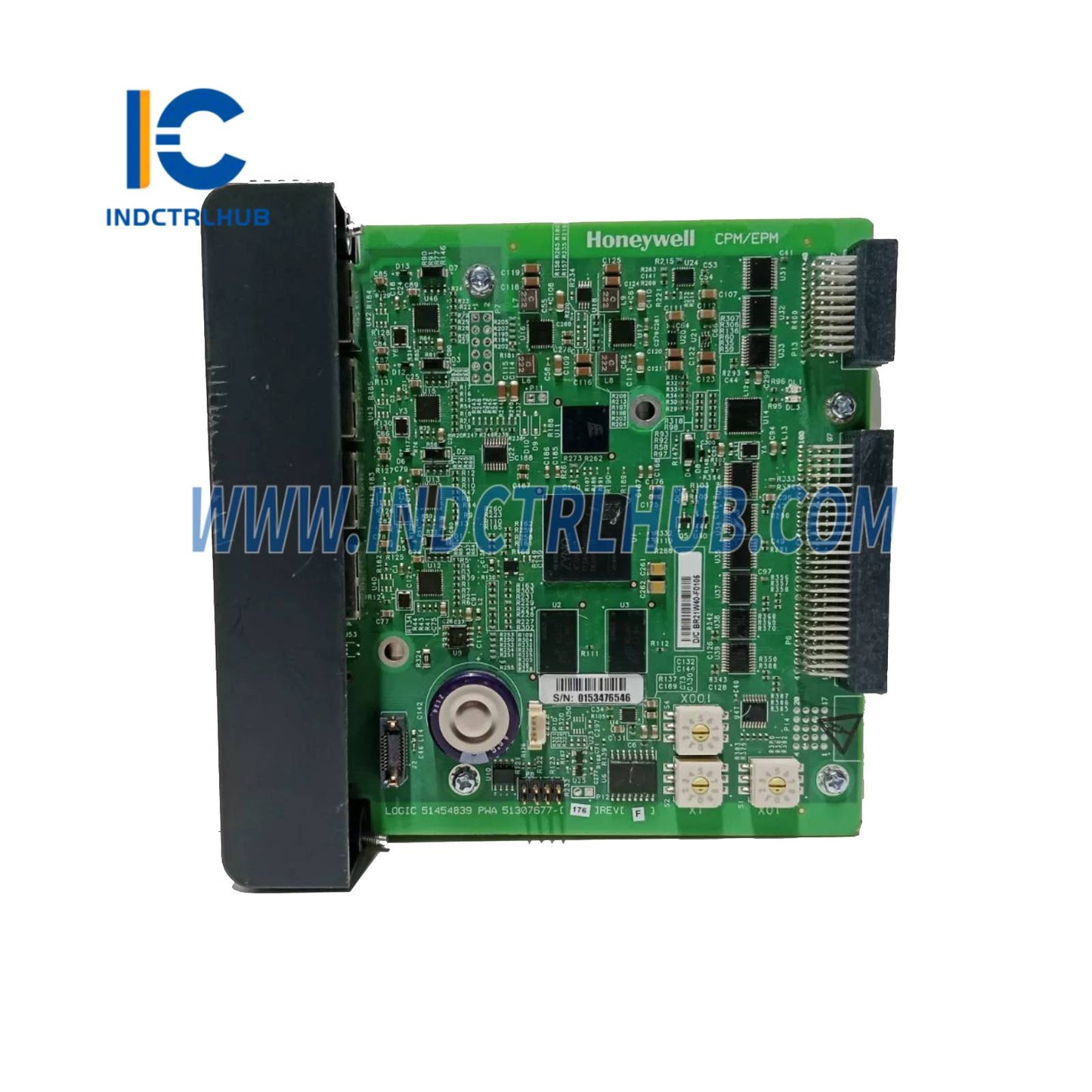

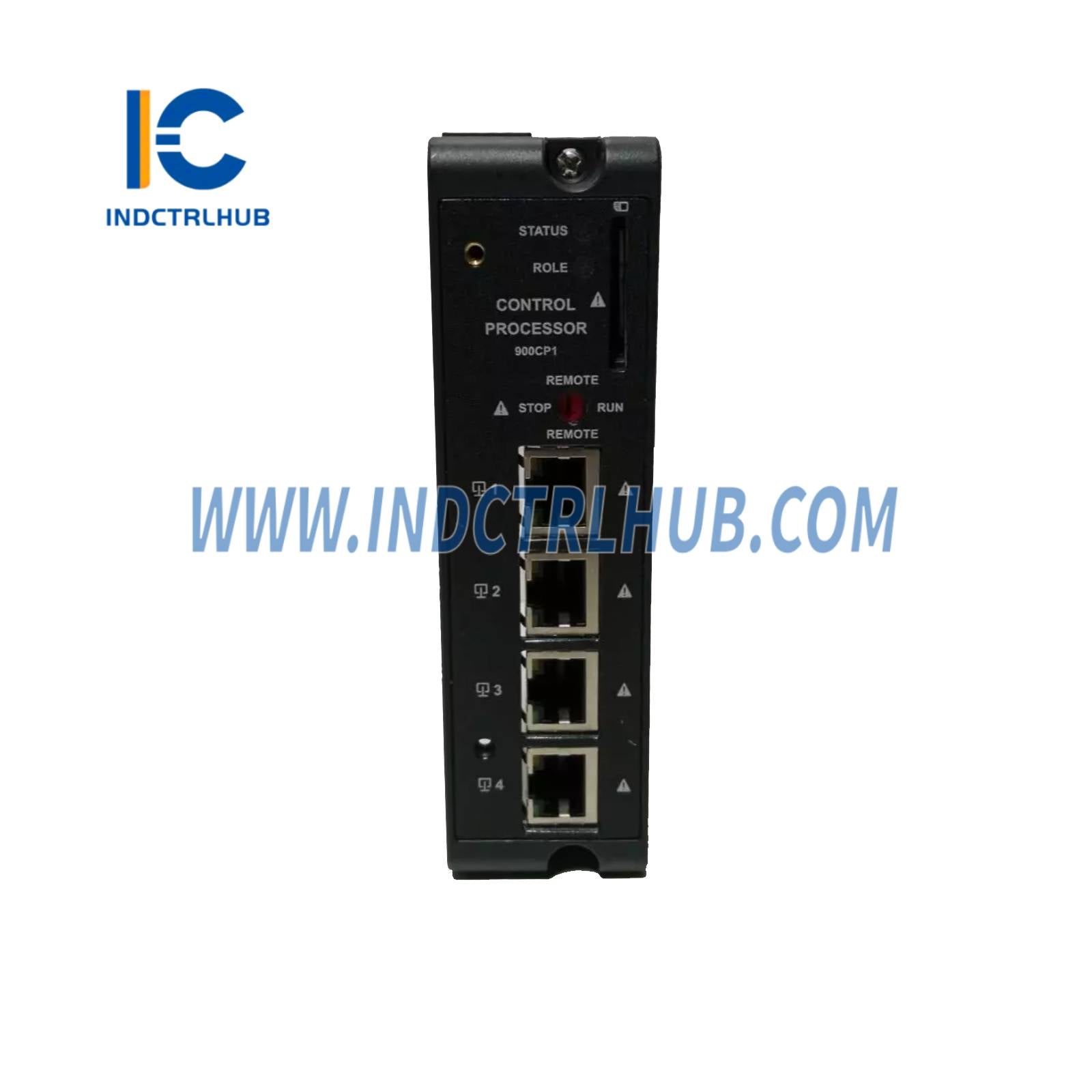

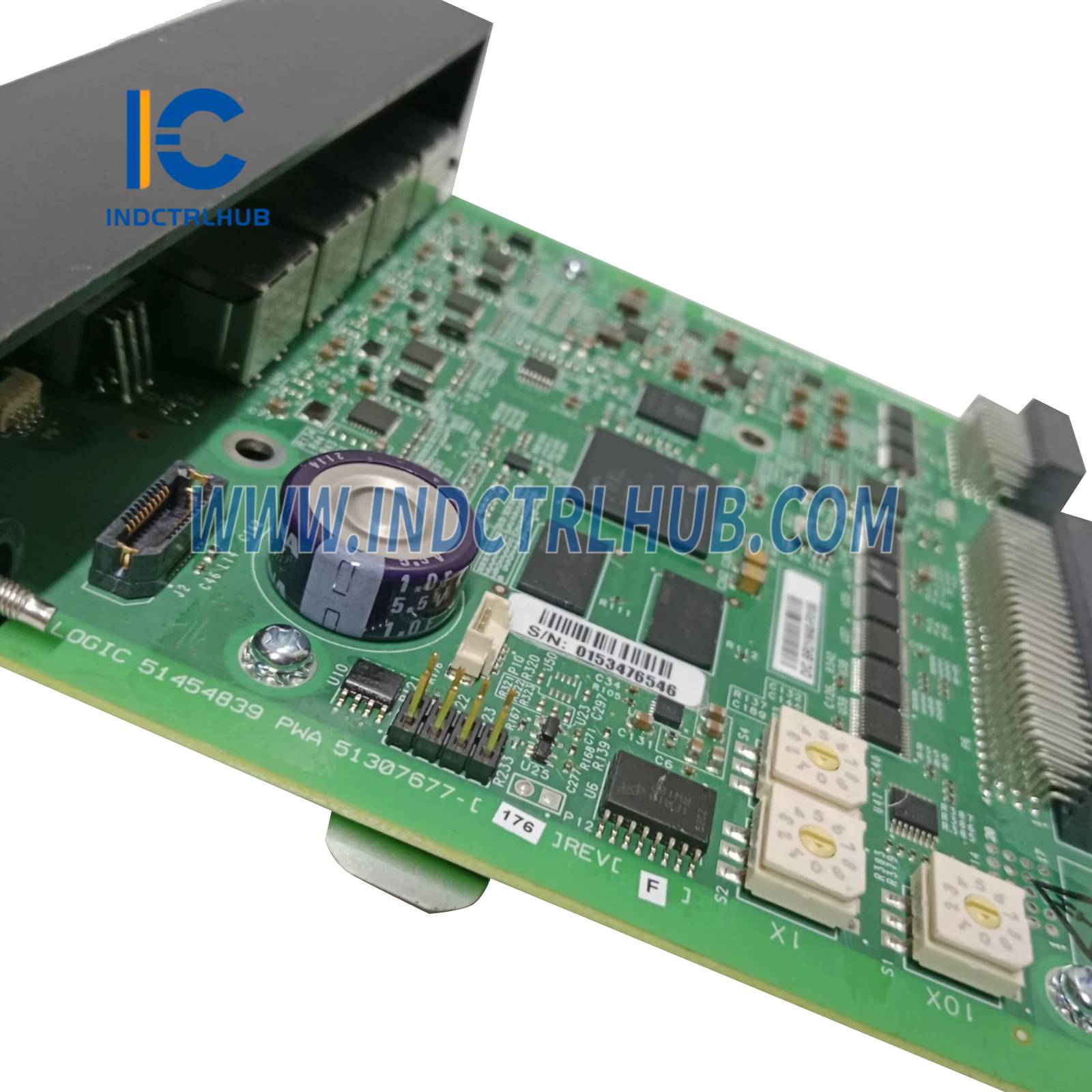

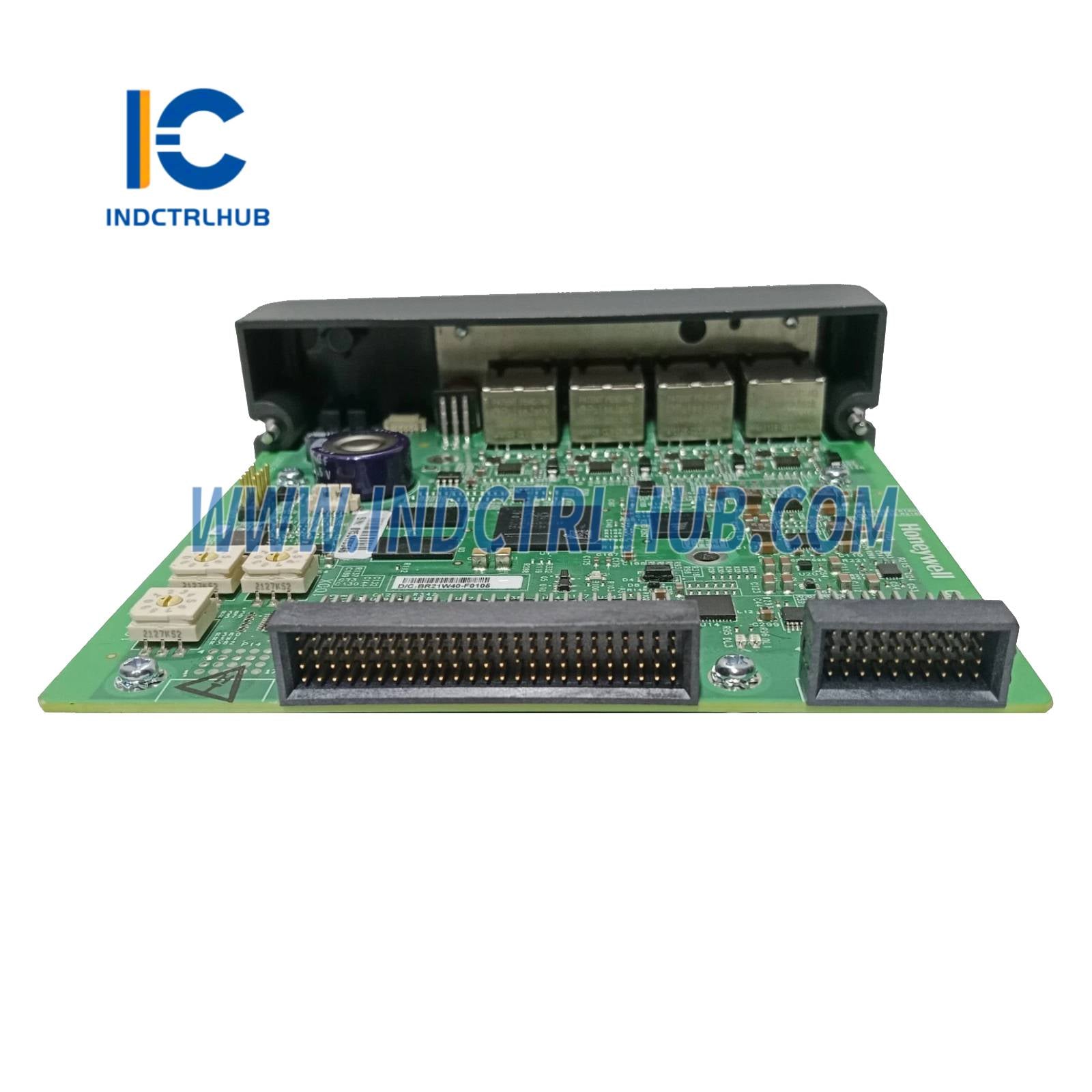

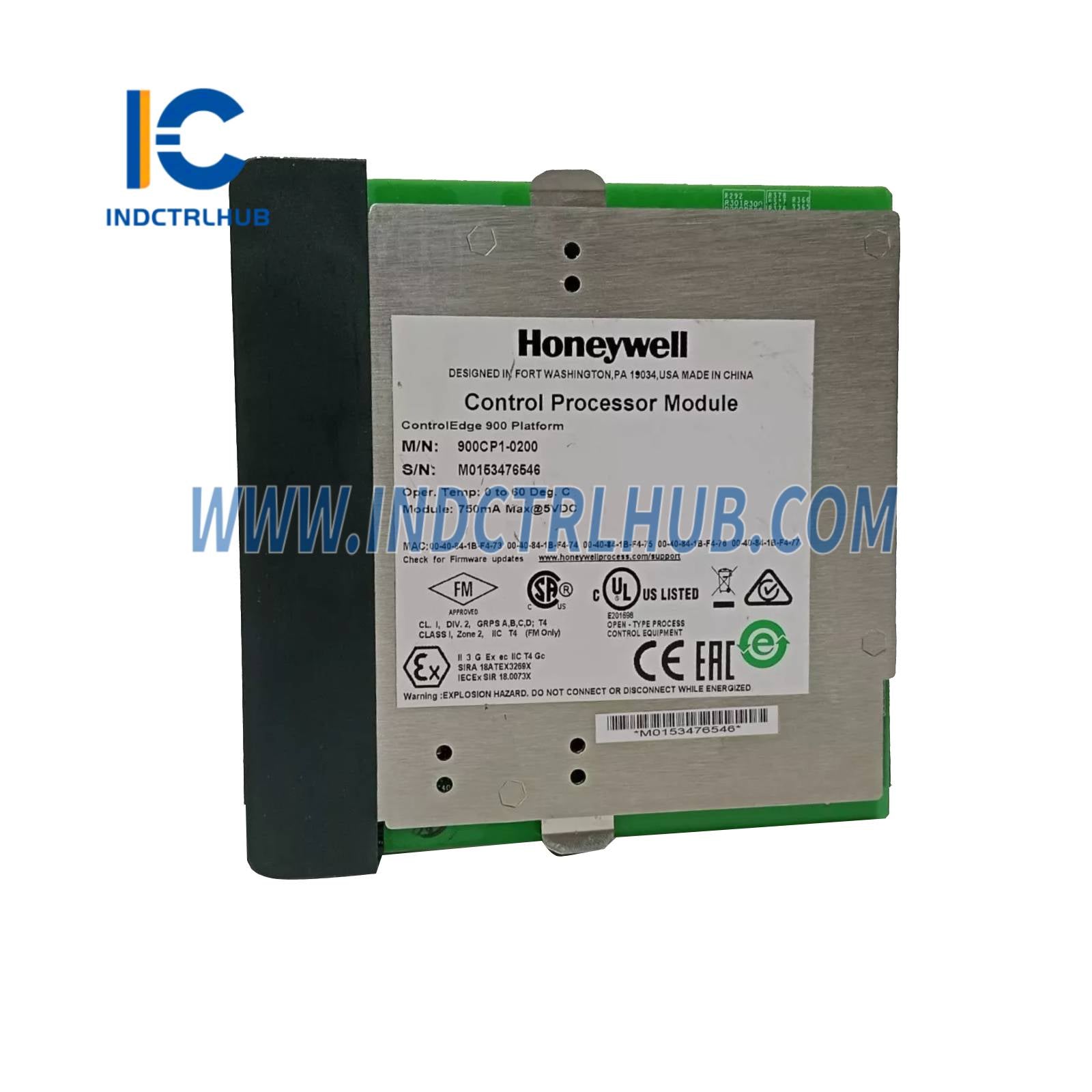

Honeywell 900CP1-0200 Control Processor Module
Honeywell 900CP1-0200 Control Processor Module
Manufacturer: Honeywell
Product No.: 900CP1-0200
Condition:1000 in stock
Product Type: Control Processor Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Attribute |
Description |
|---|---|
|
Manufacturer |
Honeywell |
|
Product Series |
ControlEdge PLC |
|
Model Number |
900CP1-0200 |
|
Model Type |
Control Processor Module |
|
Release |
R180.1 |
_
_
Technical Specifications
_
Performance & Capacity
|
Item |
Specification |
|---|---|
|
Max I/O Modules |
144 |
|
Max Analog Channels |
2304 |
|
Max Digital Channels |
4608 |
|
Max Expansion I/O Racks (Non-Redundant) |
11 |
|
Max Expansion I/O Racks (Redundant) |
12 |
|
Command Execution Time |
85 µs per 1000 ST commands |
_
Hardware Features
|
Item |
Specification |
|---|---|
|
Processor |
Dual Core ARM Cortex-A9, 667 MHz |
|
Programming Memory |
10 MB (5 MB program + 5 MB data) |
|
Flash Memory |
256 MB |
|
RAM |
256 MB ECC |
|
SD Card Support |
Up to 32 GB (Class 6/10) |
|
Real-Time Clock |
2 weeks retention post power loss |
|
Watchdog Timer |
Yes |
|
I/O Scan Time |
10_3000 ms adjustable |
|
Switchover Time |
< 100 ms |
|
Operating Modes |
Run Locked, Stop Locked, Remote Running, Remote Stopped |
|
LEDs |
2 tri-color LEDs indicating status and role |
_
Communication
|
Item |
Specification |
|---|---|
|
Ethernet Ports |
4 _ RJ45, shielded, auto-crossover |
|
Port Speed |
10/100BaseTx, auto-detect |
|
Isolation |
1500 Vrms for 1 min |
|
Transient Protection |
600 W peak pulse (10_1000 µs) |
|
Diagnostic LEDs |
Yes (per port) |
Supported Protocols (Ports 1 & 2):
_
-
MODBUS TCP/UDP
-
OPC UA (Client & Server)
-
HART-IP
-
CDA Responder
-
EtherNet/IP Server
-
DNP3
-
MQTT (Sparkplug B)
-
IEC60870-5-104
-
EUCN (when operating as ELMM)
-
IPsec, FTE, Embedded Firewall
Supported Protocols (Ports 3 & 4):
_
-
EtherNet/IP Client
-
PROFINET IO Controller
_
Datalogging
|
Item |
Specification |
|---|---|
|
Media |
Flash or optional SD card |
|
Interval |
1s, 5s, 10s, 1min, 5min, 10min, 1hr |
|
Timestamp Resolution |
1 ms |
_
Modbus Support
|
Functionality |
Details |
|---|---|
|
Roles |
Master & Slave |
|
Ethernet |
MODBUS TCP/UDP |
|
Serial |
MODBUS RTU/ASCII via 900ES1-0100 |
|
Max Slave Connections |
64 per Ethernet port, 32 per Serial port |
|
Max Master Connections |
16 per Ethernet port |
|
Max Registers |
16000 |
|
Register Size |
16/32/64 bit |
_
OPC UA Support
|
Functionality |
Details |
|---|---|
|
Roles |
Server & Client |
|
Variables (Server) |
2000 |
|
Variables (Client) |
500 |
|
Data Types |
BOOL, SINT, INT, DINT, FLOAT, STRING, DateTime, etc. |
|
Security |
Supports multiple OPC UA security policies |
|
Certificates |
GDS __ush_ and __ull_ model |
_
MQTT Support
|
Item |
Specification |
|---|---|
|
Payload Type |
Sparkplug B |
|
Brokers |
1 active + 1 backup |
|
Data Types |
BOOL, SINT, INT, DINT, REAL, LREAL |
|
QoS Levels |
0, 1, 2 |
|
TLS |
v1.2, v1.3 |
|
Store & Forward |
Supported |
_
Environmental
|
Item |
Specification |
|---|---|
|
Operating Temp |
-40 to +70°C |
|
Storage Temp |
-40 to +85°C |
_
