Product Description
Honeywell 900C73R-0100-43 Redundant I/O Scanner Module
- Manufacturer: Honeywell
- Series: ControlEdge HC900
- Model/Part Number: 900C73R-0100-43
- Description: Redundant I/O Scanner Module for ControlEdge HC900 systems
Overview
The Honeywell 900C73R-0100-43 is a Redundant I/O Scanner Module designed for the ControlEdge HC900 process automation controller. It facilitates high-speed data acquisition and communication between the HC900 controller and I/O modules, supporting redundant configurations for enhanced system reliability. The module is used in industrial applications such as oil and gas, petrochemical, and power generation, ensuring fault-tolerant operation for critical process control.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 900C73R-0100-43 |
| Part Number | 50001439-250+E (50001262-005) |
| Series | ControlEdge HC900 |
| Type | Redundant I/O Scanner Module |
| Function | Manages communication between HC900 controller and I/O modules |
| I/O Support | Analog (AI/AO), Digital (DI/DO), Pulse/Frequency, Specialty I/O |

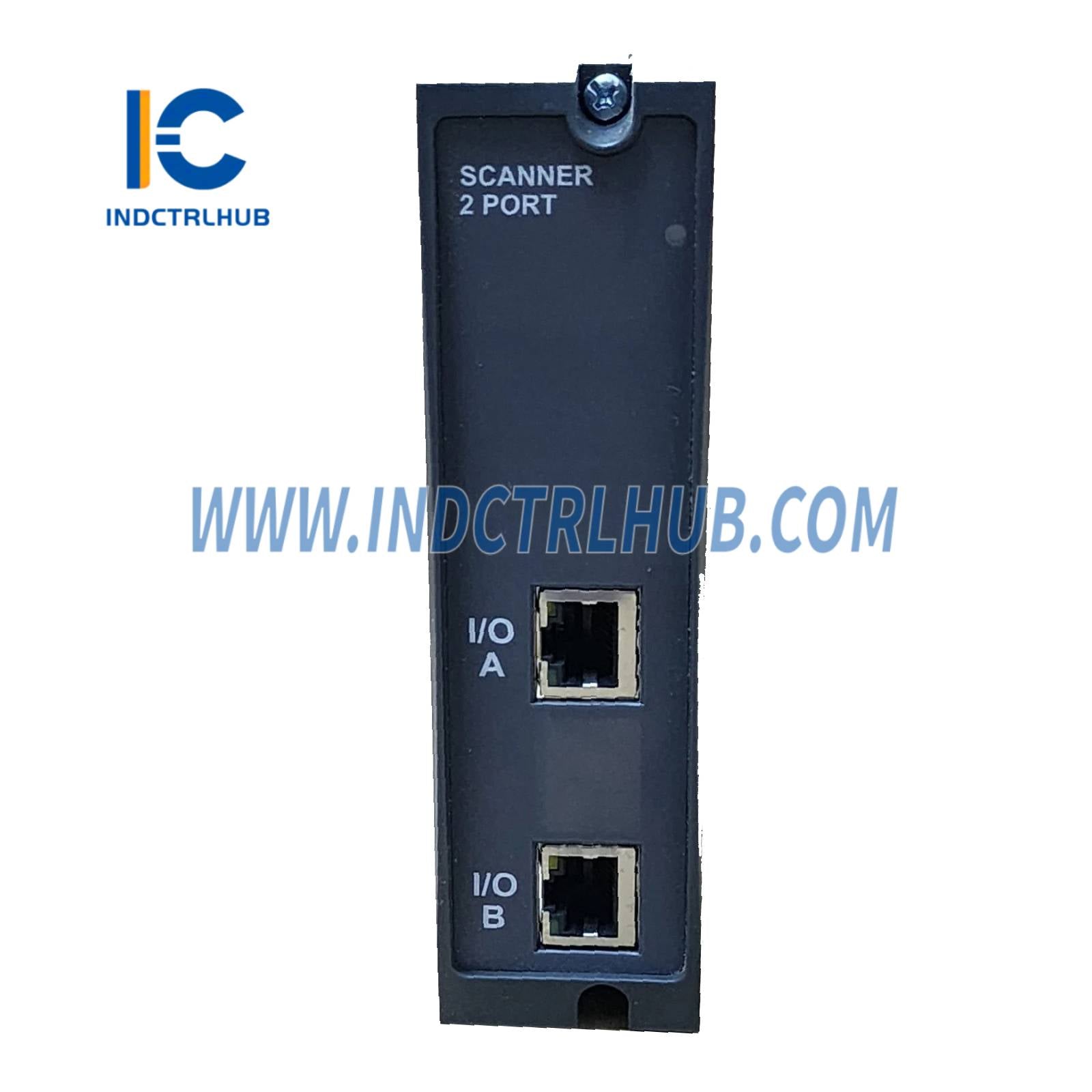

| Communication Ports | Two 10/100 Base-T Ethernet ports |
| Redundancy | Supports 1+1 redundancy for fault-tolerant operation |
| Power Consumption | 770 mA max at 5 VDC |
| Connectors | RJ45 for Ethernet, terminal blocks for I/O connections |
| Compatibility | HC900 racks (4-slot, 8-slot, 12-slot), redundant CPU racks |
| Mounting | Plugs into HC900 redundant rack (e.g., 900RR0-0001) |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Environmental Protection | Designed for indoor industrial environments; EMI/RFI shielding |
| Dimensions | Approx. 120 mm x 80 mm x 30 mm (4.7 x 3.1 x 1.2 in) |
| Weight | Approx. 0.3 kg (0.66 lbs) |
| Certifications | ABS Type Approved, CE, UL, CSA |
| Manual | ControlEdge HC900 Technical Manual |
