Product Description
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Honeywell |
|
Model/Part Number |
900B01-0101 |
|
Description |

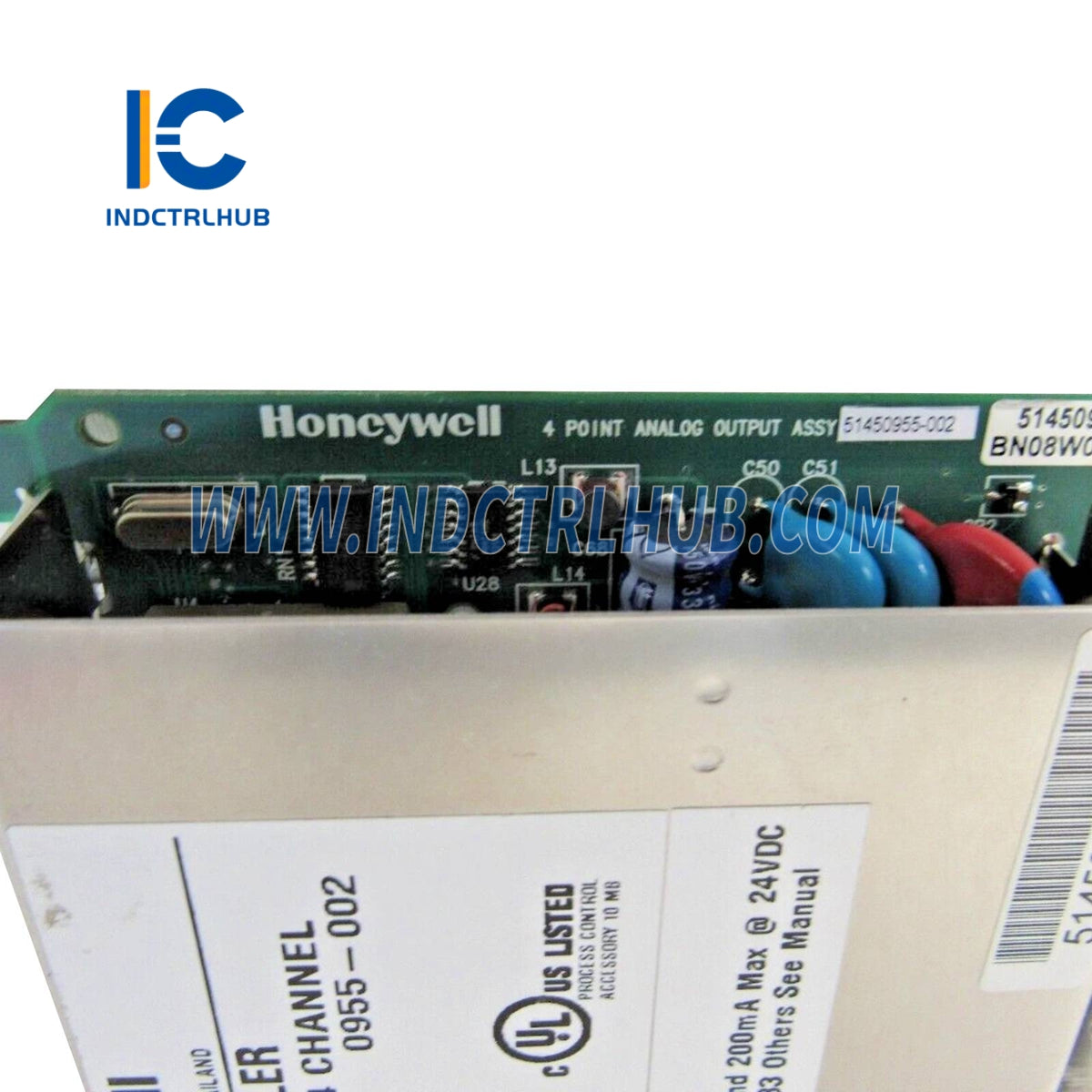

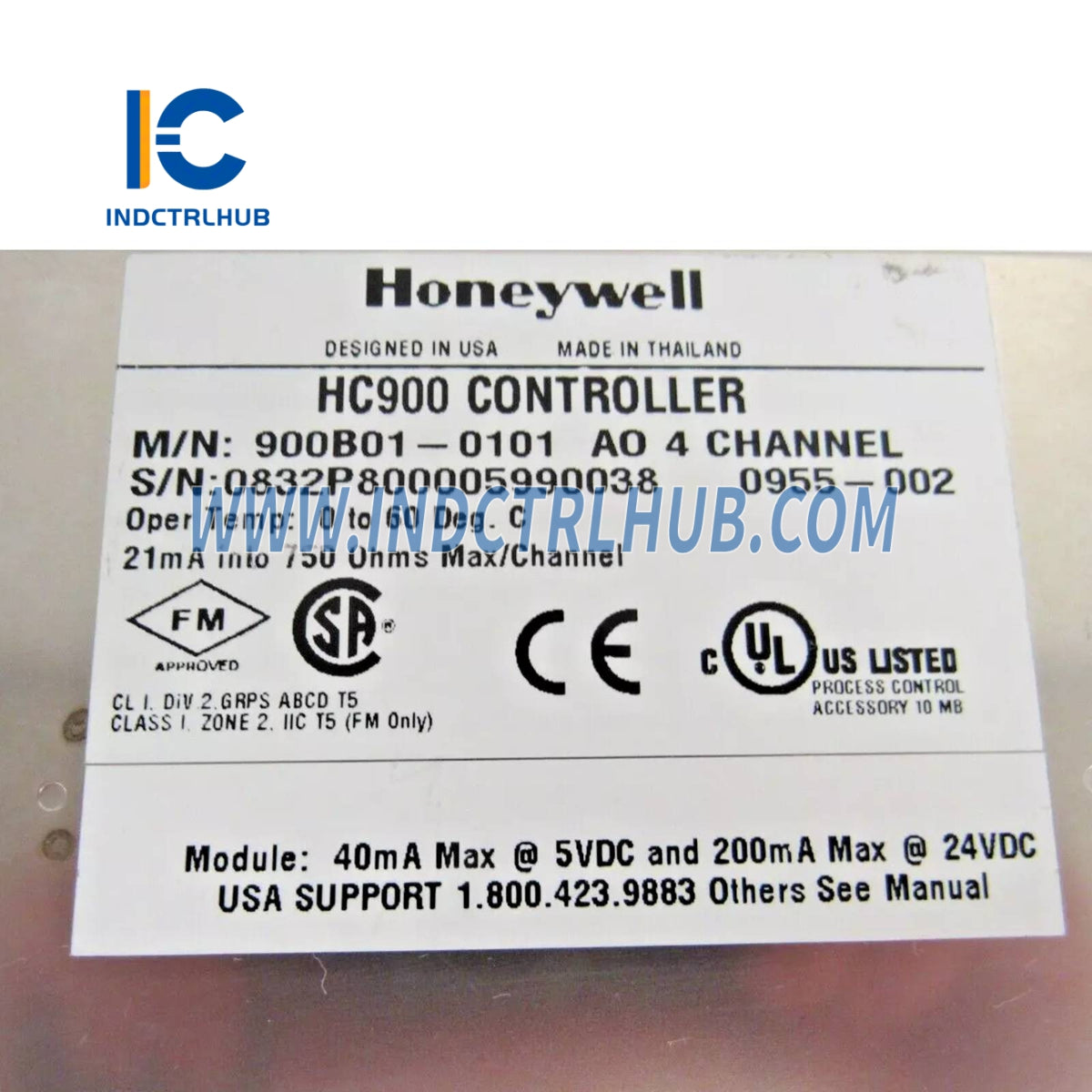

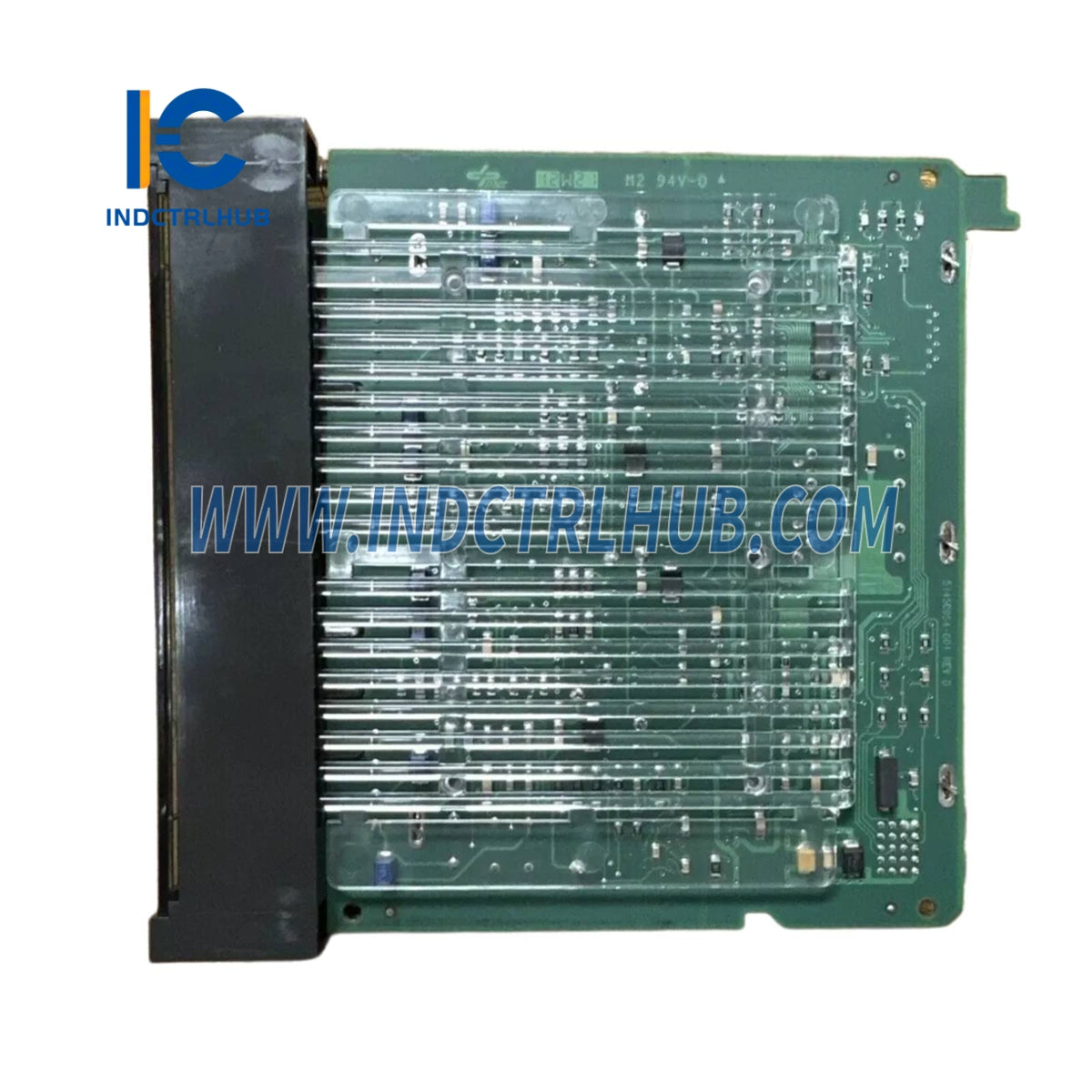

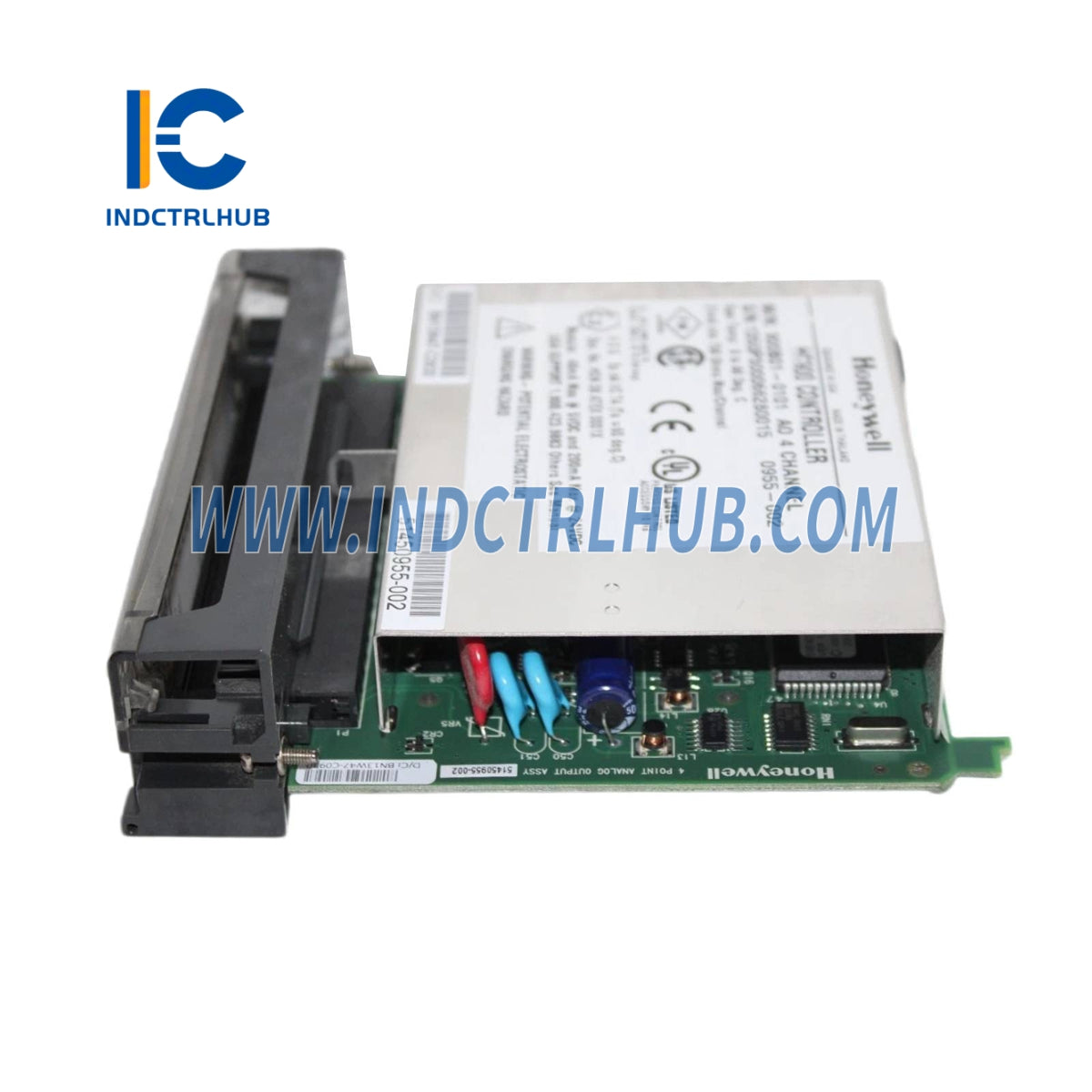

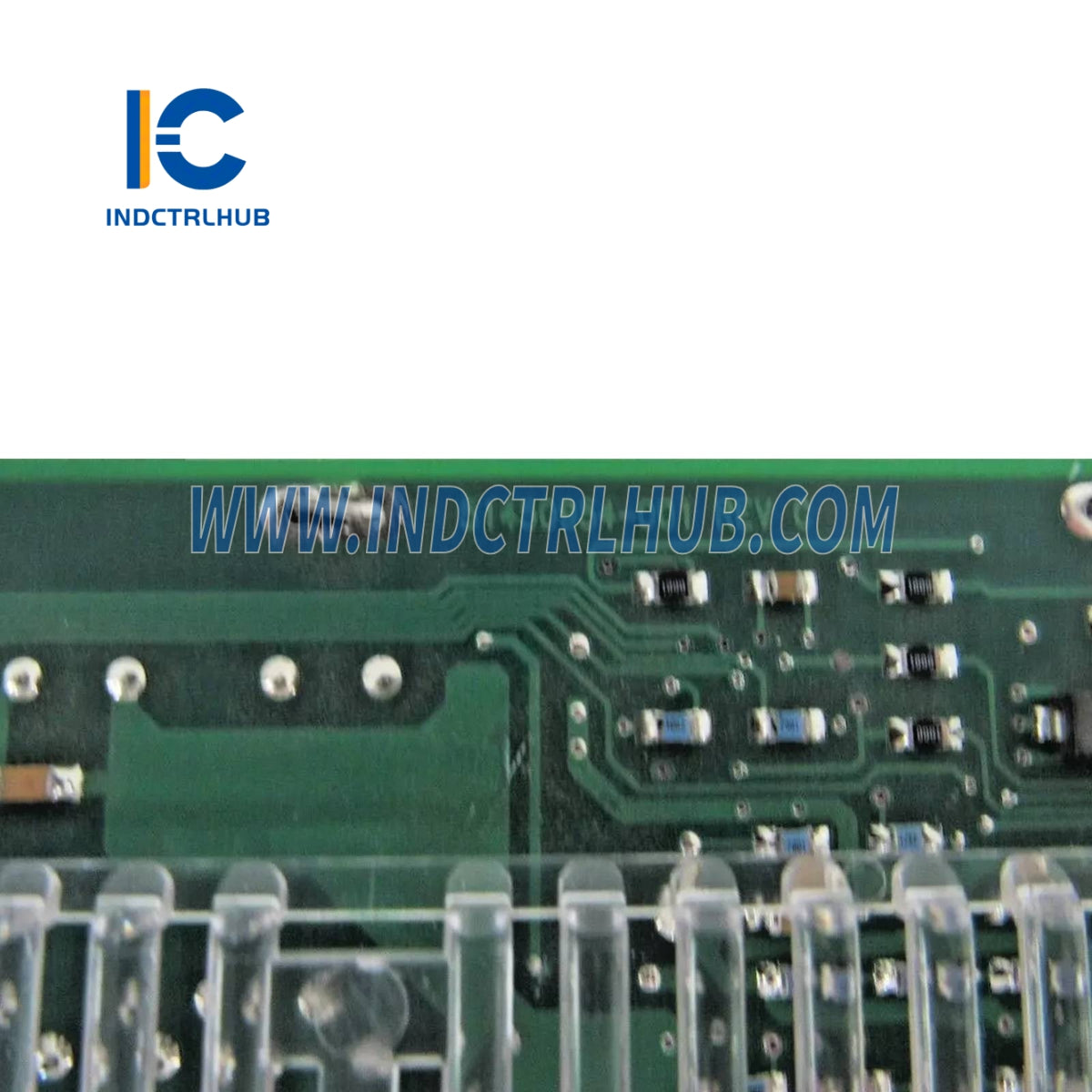

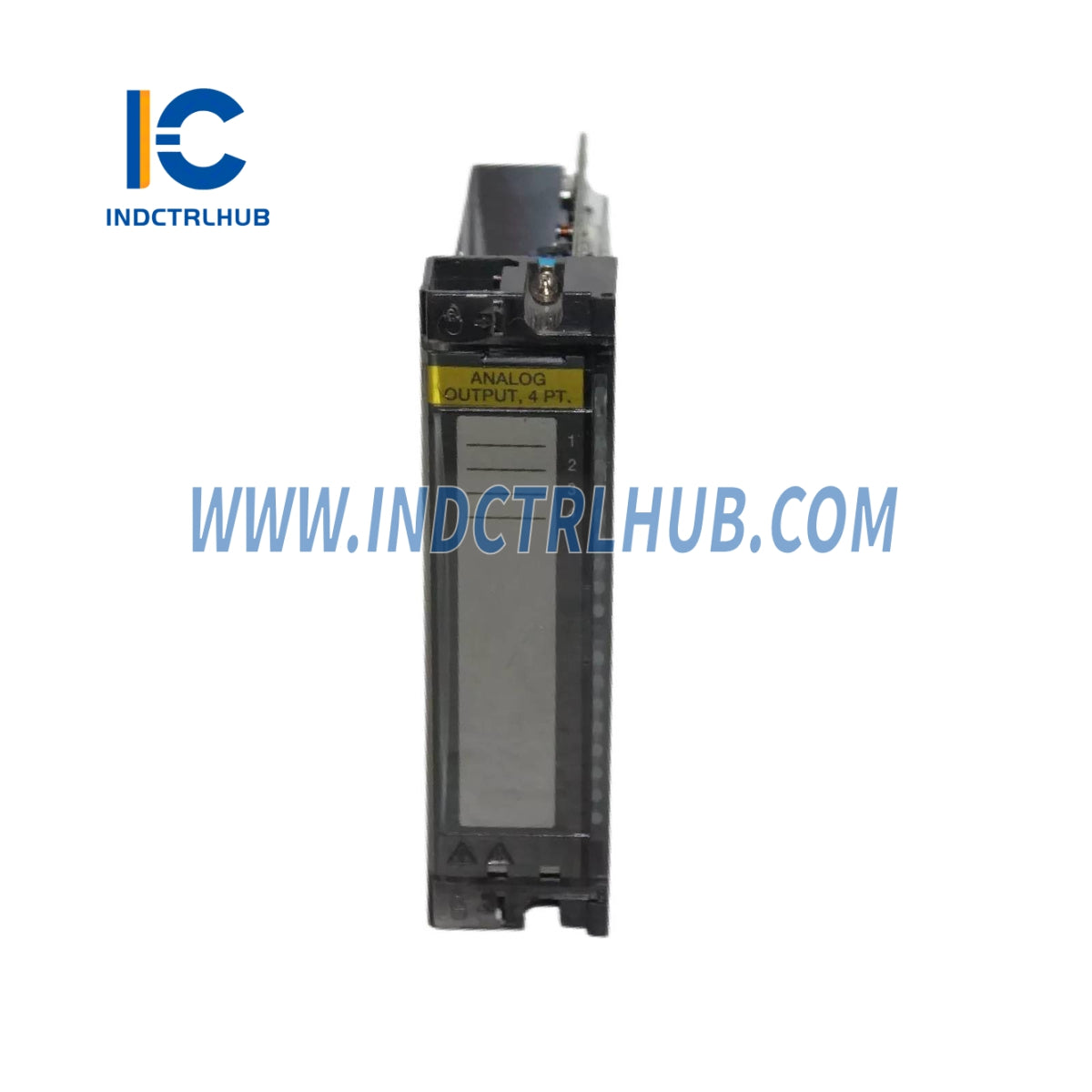

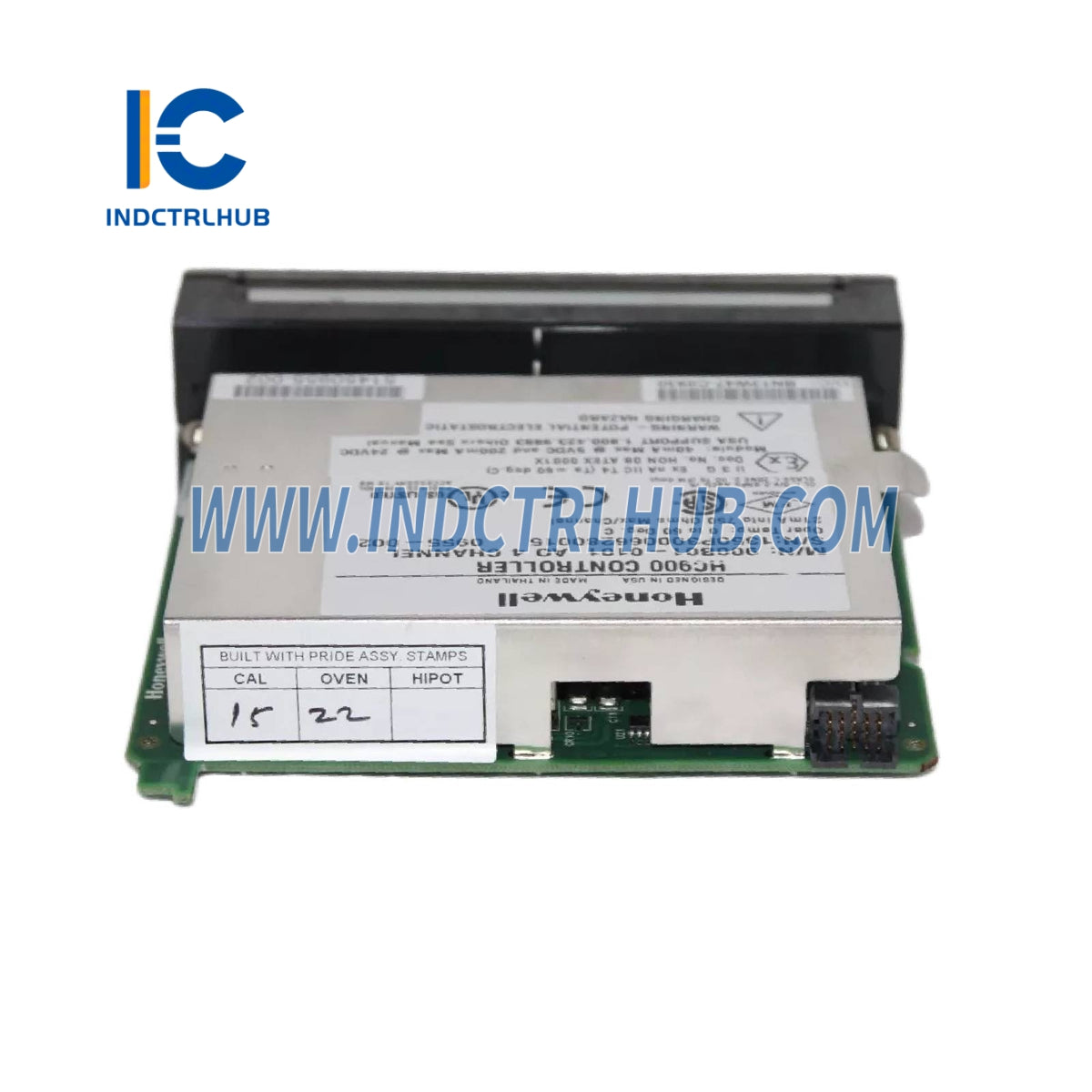

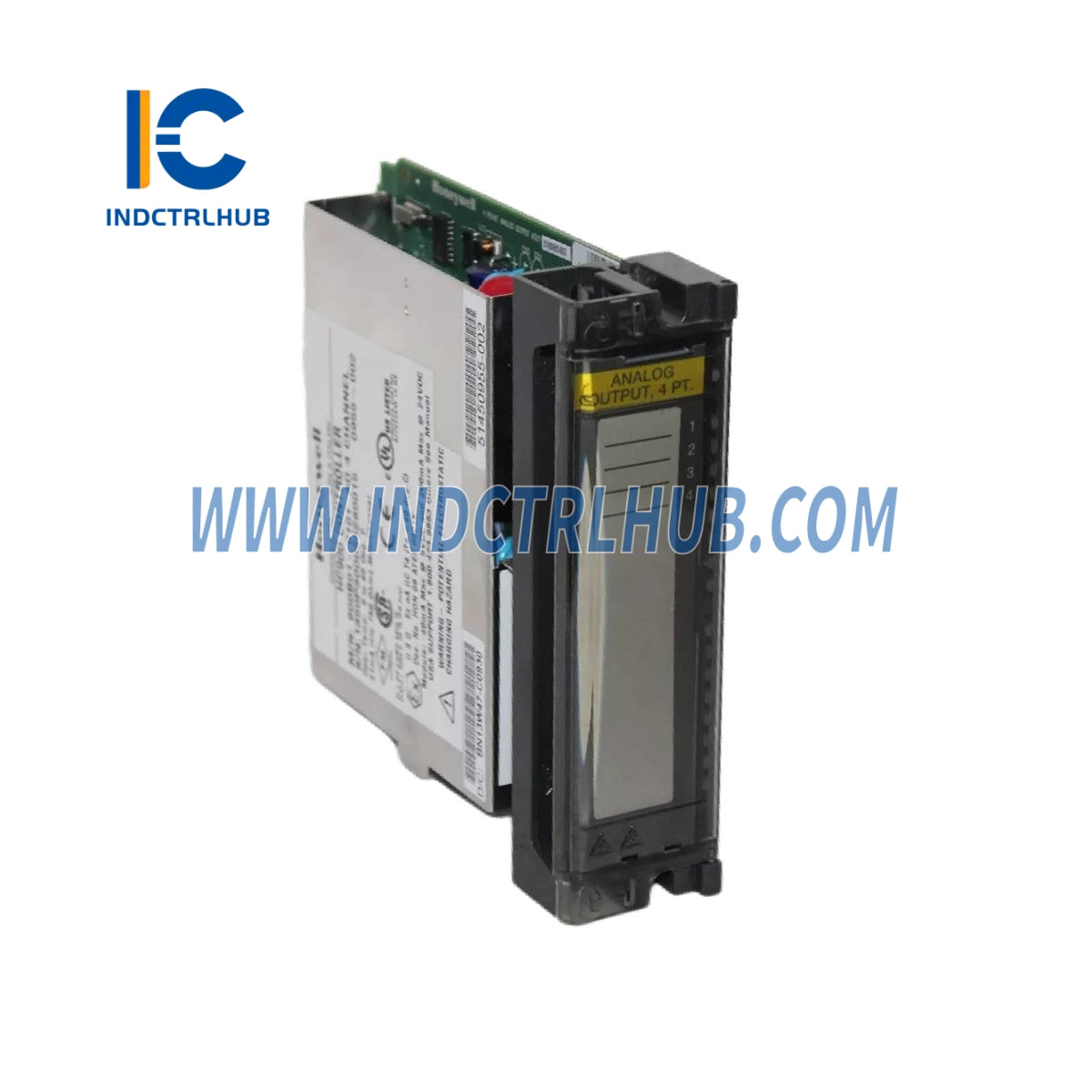

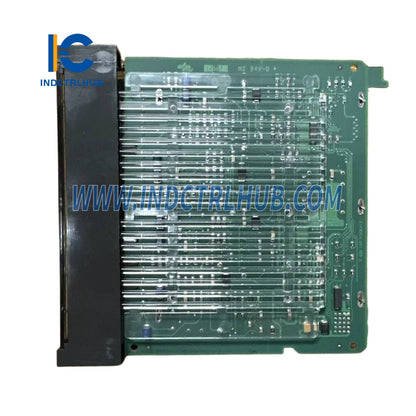

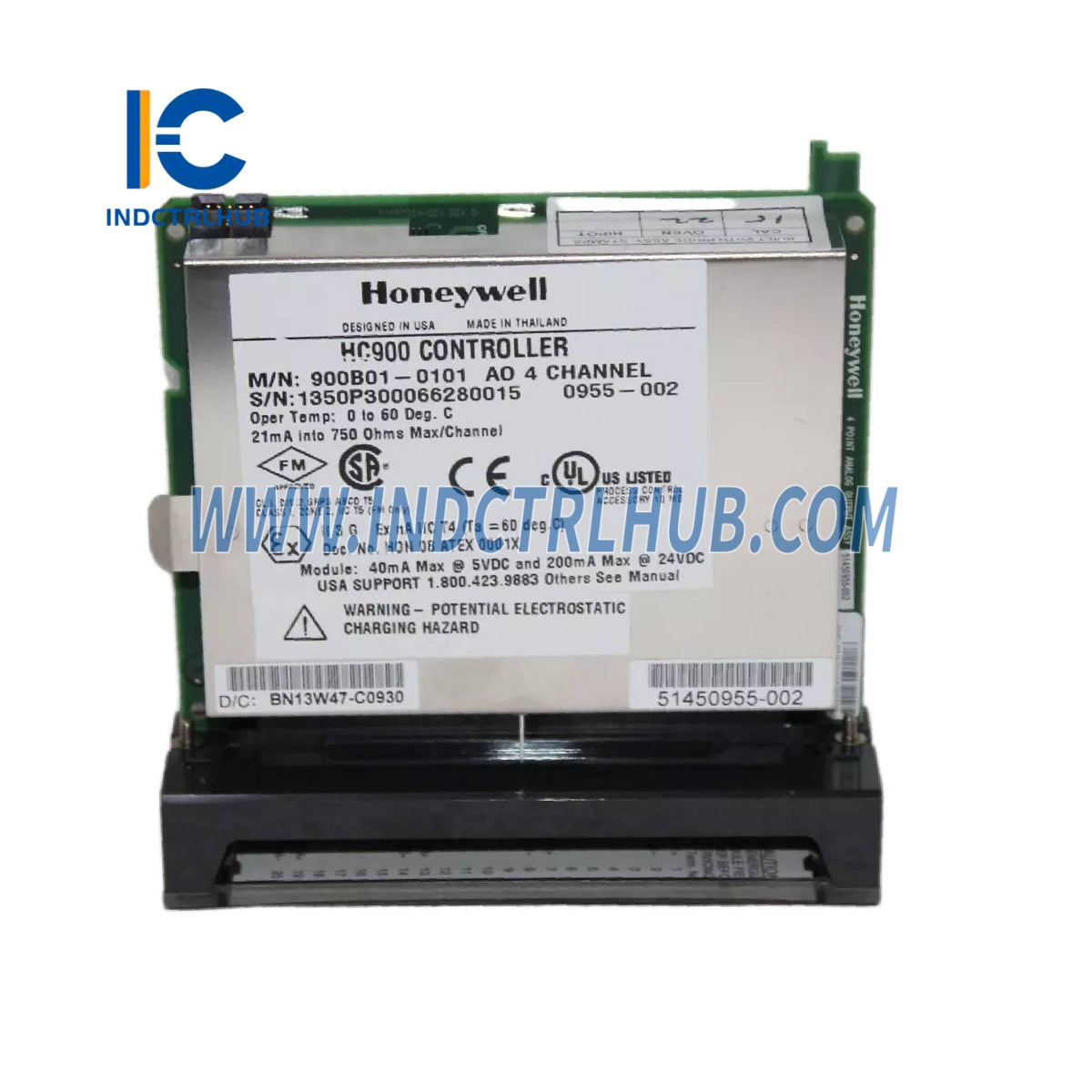

The Analog Output module provides 4 isolated 0 to 21.8 mA outputs, which can be scaled by the user to any span within this range on a per output basis. |
|
Key Features |
4 isolated outputs, user-scalable range, galvanic isolation, 12-bit D/A resolution, factory and field calibration, diagnostics monitoring. |
Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
900B01-0101 |
|
Product Type |
Analog Output Module |
|
Outputs per Module |
4 isolated outputs |
|
Current Range |
0 to 21.8 mA (selectable range for each output) |
|
Load Resistance |
750 ohms maximum |
|
Galvanic Isolation |
500 VDC Channel-to-Channel, 600 VDC from logic |
|
Accuracy |
0.1% full scale at reference conditions |
|
D/A Resolution |
12 bits |
|
Power Supply Loading |
5V: 40mA max, 24V: 200mA max |
|
Minimum Current Sensing |
> 3.5 mA per output |
|
Modules per Rack |
10 max (up to 12 with temperature de-rating) |
|
Calibration Data |
Stored in non-volatile memory, with redundant factory calibration and automatic rejection of bad versions. Individual field calibration for each channel. |
|
Diagnostics |
Monitors factory calibration, field calibration, configuration, and +24 VDC power supply |
|
Output Verification |
Feedback to controller indicating output current flow |
Functional Features
|
Feature |
Details |
|---|---|
|
Field Calibration |
Individual channel field calibration capability |
|
Factory Calibration |
Redundant factory calibration with automatic rejection of bad versions |
|
Diagnostics Monitoring |
Monitors calibration, configuration, and power supply status |
|
Output Verification |
Provides feedback to the controller on output current status |
