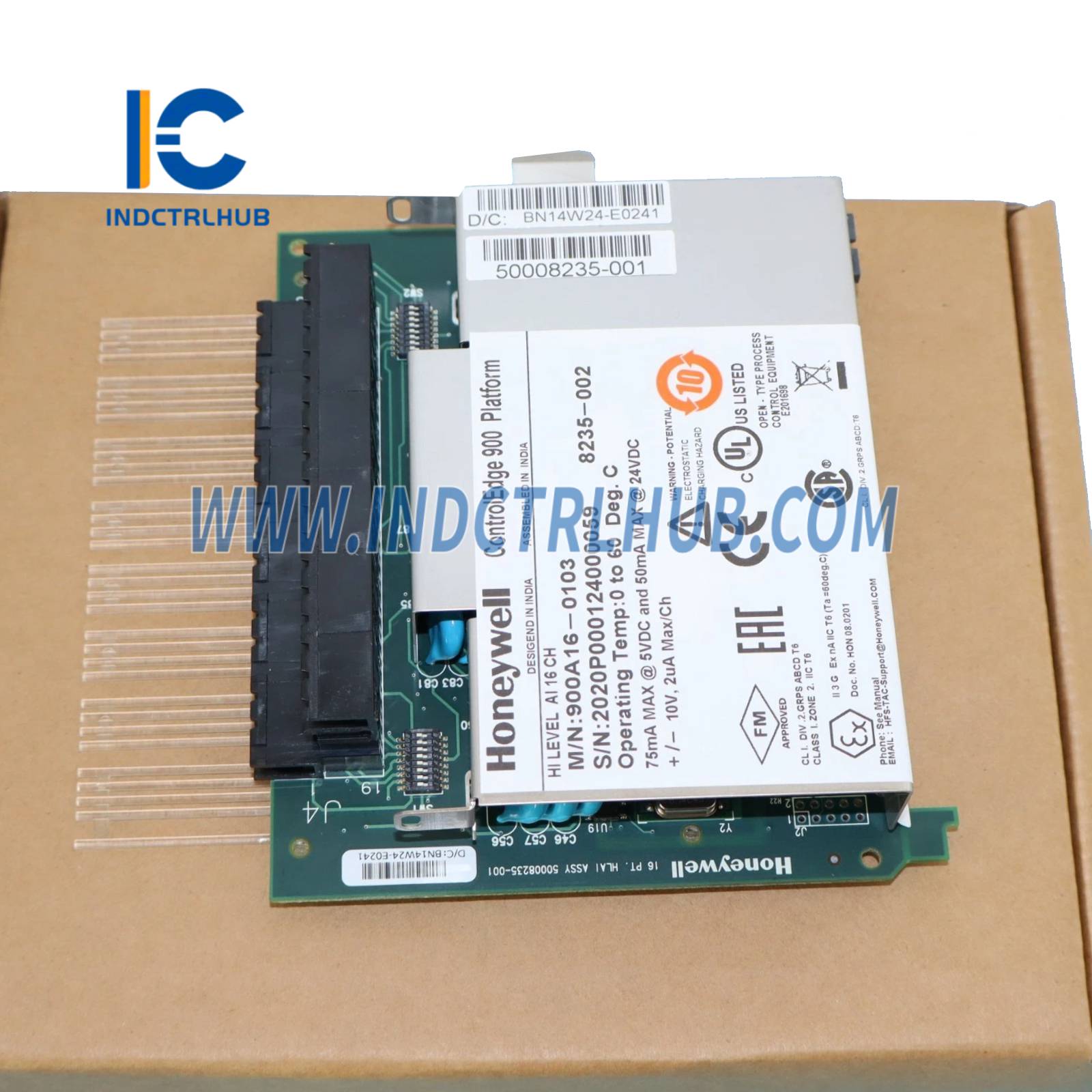

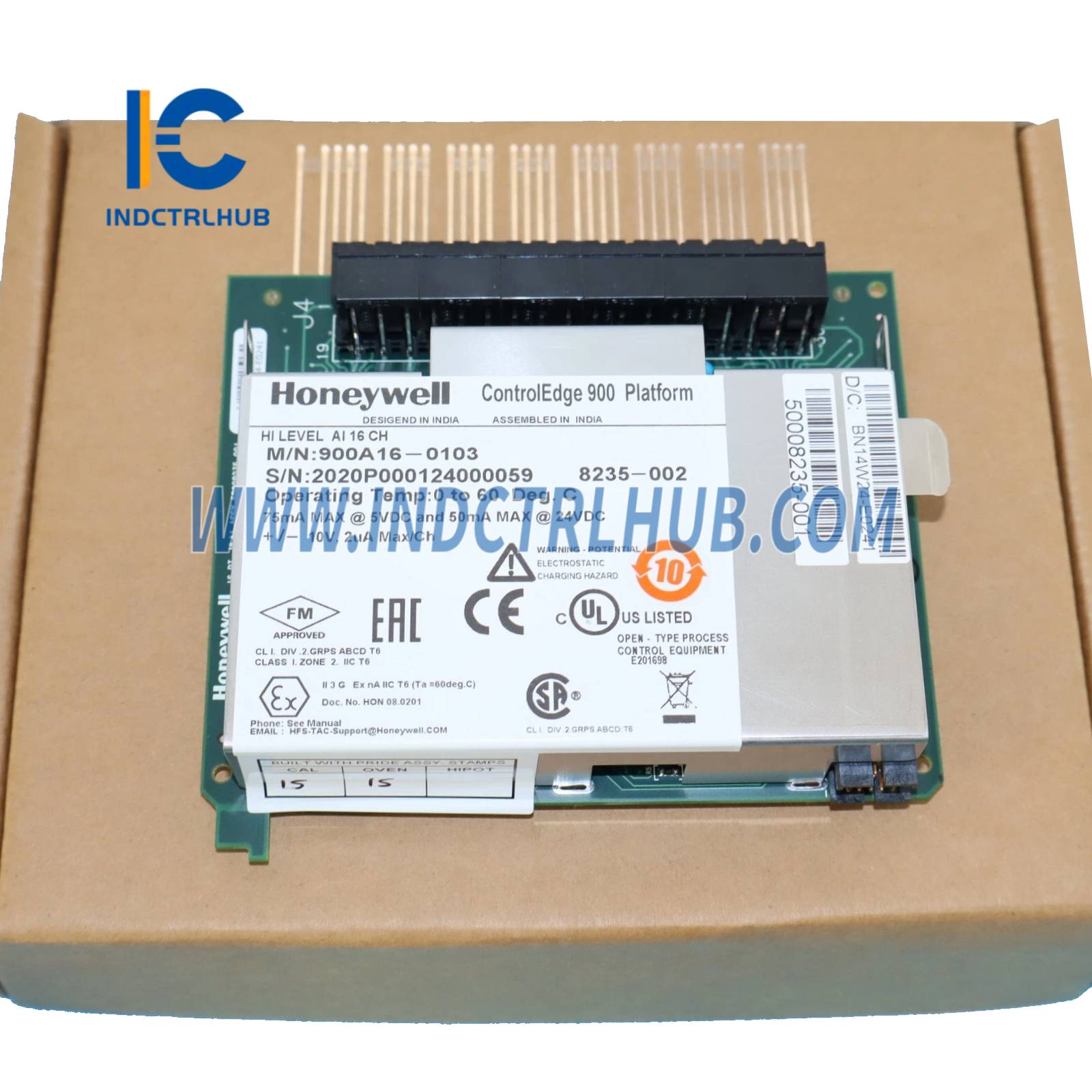

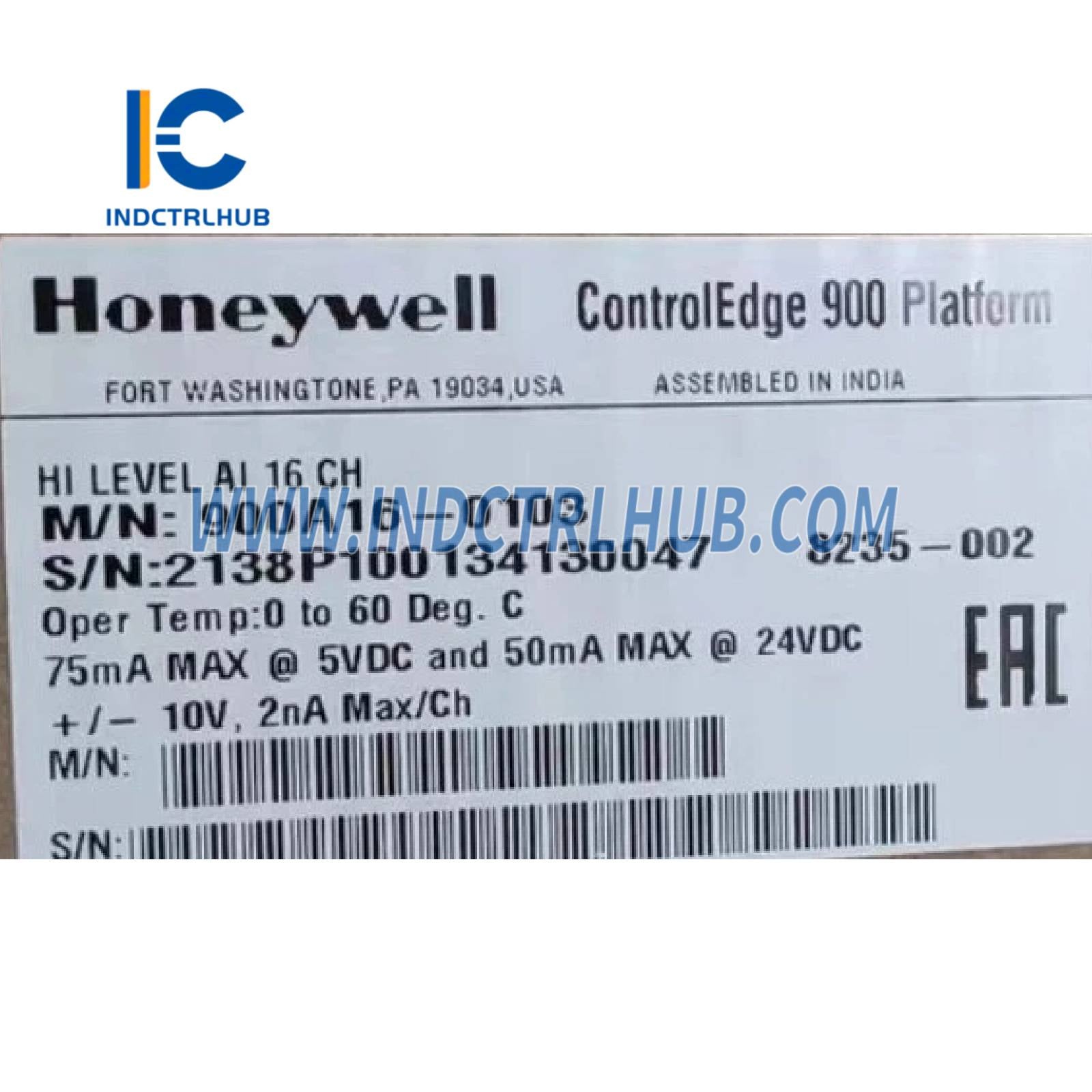

Honeywell 900A16-0103 High Level Analog Input Module, 16 Channels

Honeywell 900A16-0103 High Level Analog Input Module, 16 Channels

  • Manufacturer: Honeywell

  • Product No.: 900A16-0103

  • Condition:1000 in stock

  • Product Type: High Level Analog Input Module, 16 Channels

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

900A16-0103 Parameters

Product Overview

Parameter Details
Part Number 900A16-0103
Product Name High Level Analog Input Module, 16 Channels
Application Monitors high-level analog signals for Honeywell ControlEdge HC900 Controller
Compatibility Interfaces with ControlEdge HC900 via IOTA
Function Supports 16 user-configurable inputs for voltage or current measurements

Functional Specifications

Parameter Details
Channels 16, user-configurable per point
Input Types Voltage (0 to 10V, ±10V, 0 to 5V, ±5V), Current (0 to 20mA, ±20mA)
Resolution 16 bits
Accuracy ±0.1% of range at 25°C ± 3°C, 45% to 55% RH, nominal line voltage ±1%, 0 ohm source resistance
Sampling Rate 100 msec (10 Hz) per channel
Isolation Point-to-point and back-plane isolation
Internal Resistors 250-ohm resistors included for current inputs
Diagnostics Extensive self-diagnostics, status LEDs (green blinking for scanning, amber for forced inputs, red for module diagnostics)
Redundancy Optional, supported via redundant IOTA
Field Connections Modular connectors, accepts up to 12 AWG / 2.5 mm² wire
Power Consumption Derived from ControlEdge HC900 power system (24V DC)
Ambient Temperature Range 0 to 60°C
Standards Compliance IEC 61850-3, IEC 61131-2



View full details

Product Description

900A16-0103 Parameters

Product Overview

Parameter Details
Part Number 900A16-0103
Product Name High Level Analog Input Module, 16 Channels
Application Monitors high-level analog signals for Honeywell ControlEdge HC900 Controller
Compatibility Interfaces with ControlEdge HC900 via IOTA
Function Supports 16 user-configurable inputs for voltage or current measurements

Functional Specifications

Parameter Details
Channels 16, user-configurable per point
Input Types Voltage (0 to 10V, ±10V, 0 to 5V, ±5V), Current (0 to 20mA, ±20mA)
Resolution 16 bits
Accuracy ±0.1% of range at 25°C ± 3°C, 45% to 55% RH, nominal line voltage ±1%, 0 ohm source resistance
Sampling Rate 100 msec (10 Hz) per channel
Isolation Point-to-point and back-plane isolation
Internal Resistors 250-ohm resistors included for current inputs
Diagnostics Extensive self-diagnostics, status LEDs (green blinking for scanning, amber for forced inputs, red for module diagnostics)
Redundancy Optional, supported via redundant IOTA
Field Connections Modular connectors, accepts up to 12 AWG / 2.5 mm² wire
Power Consumption Derived from ControlEdge HC900 power system (24V DC)
Ambient Temperature Range 0 to 60°C
Standards Compliance IEC 61850-3, IEC 61131-2
