Product Description

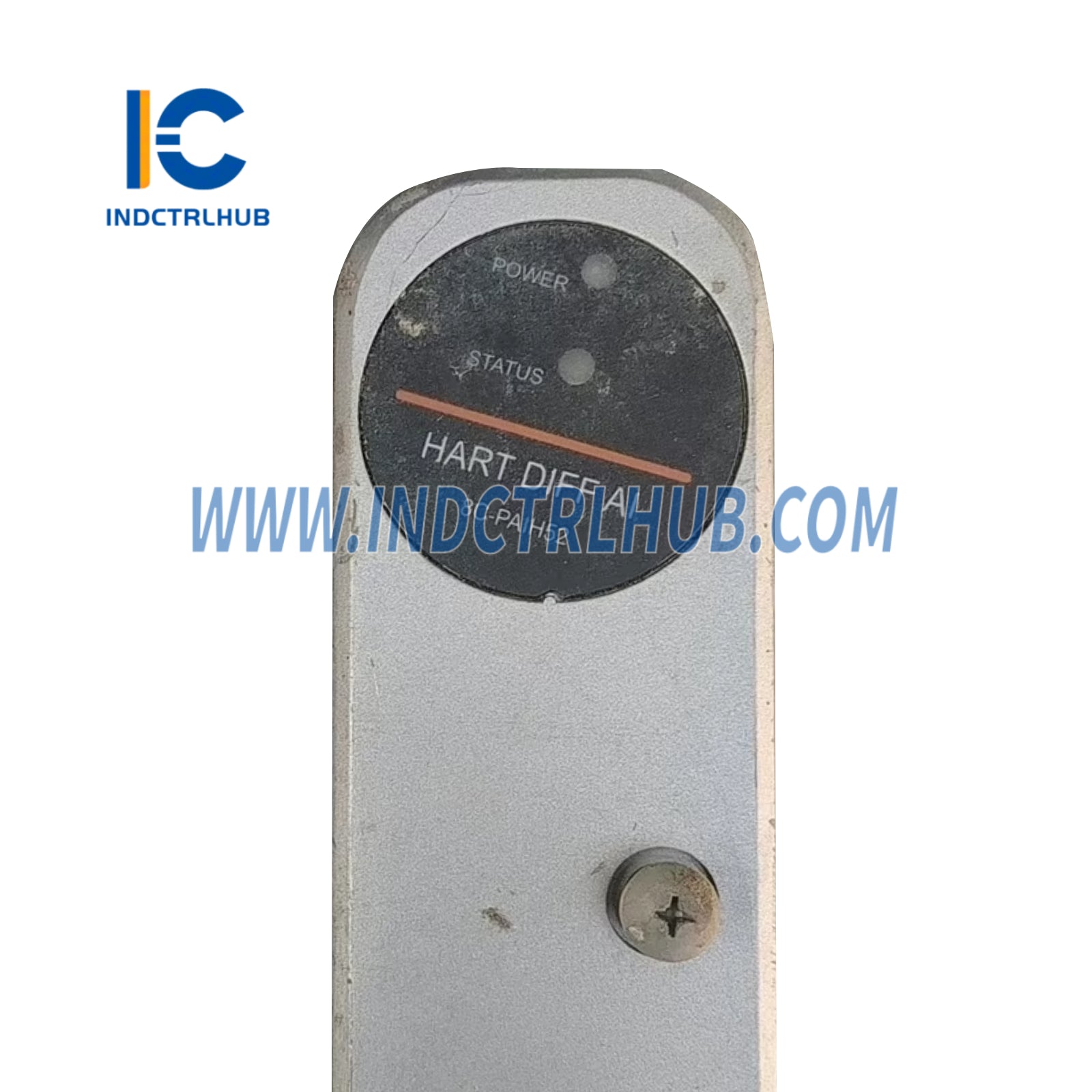

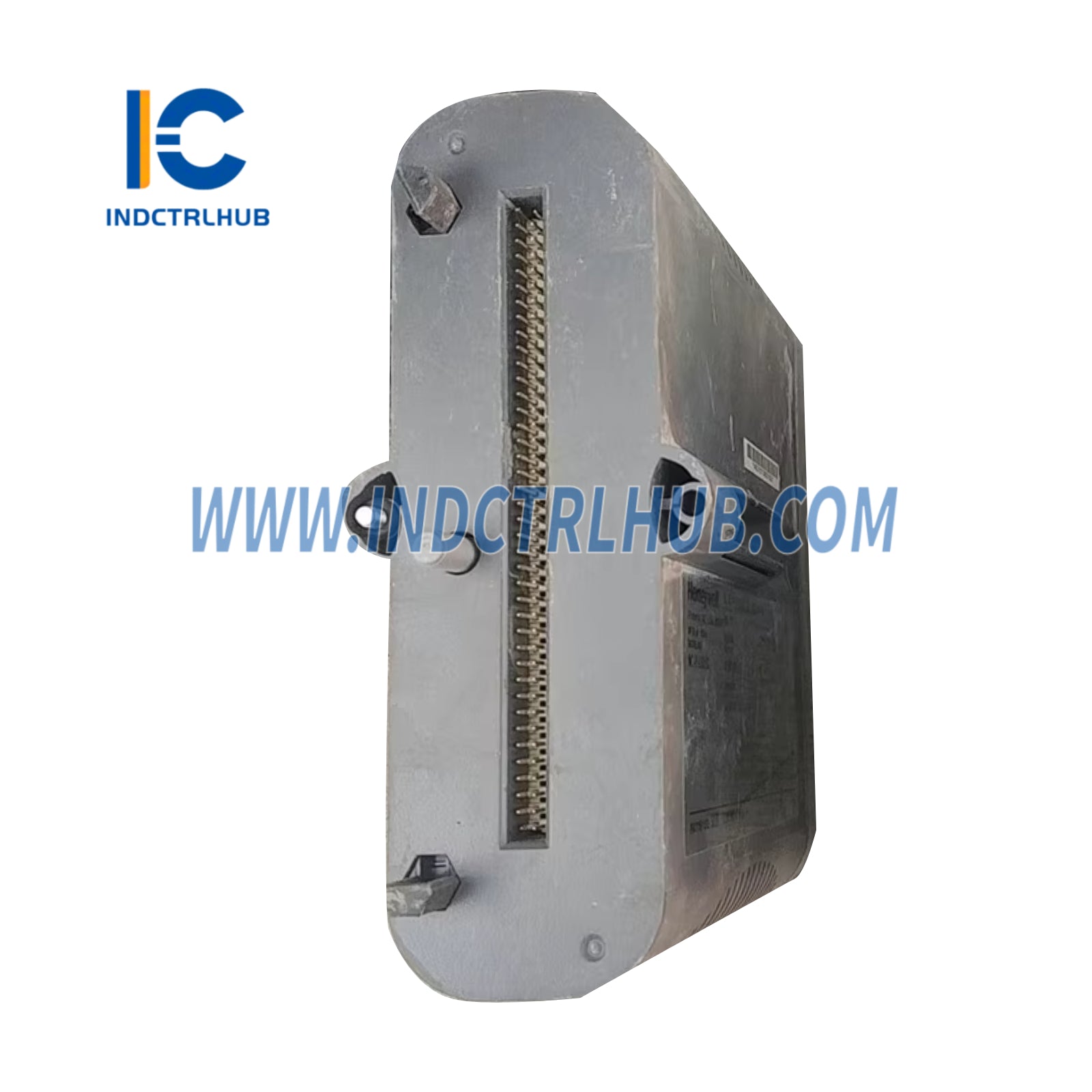

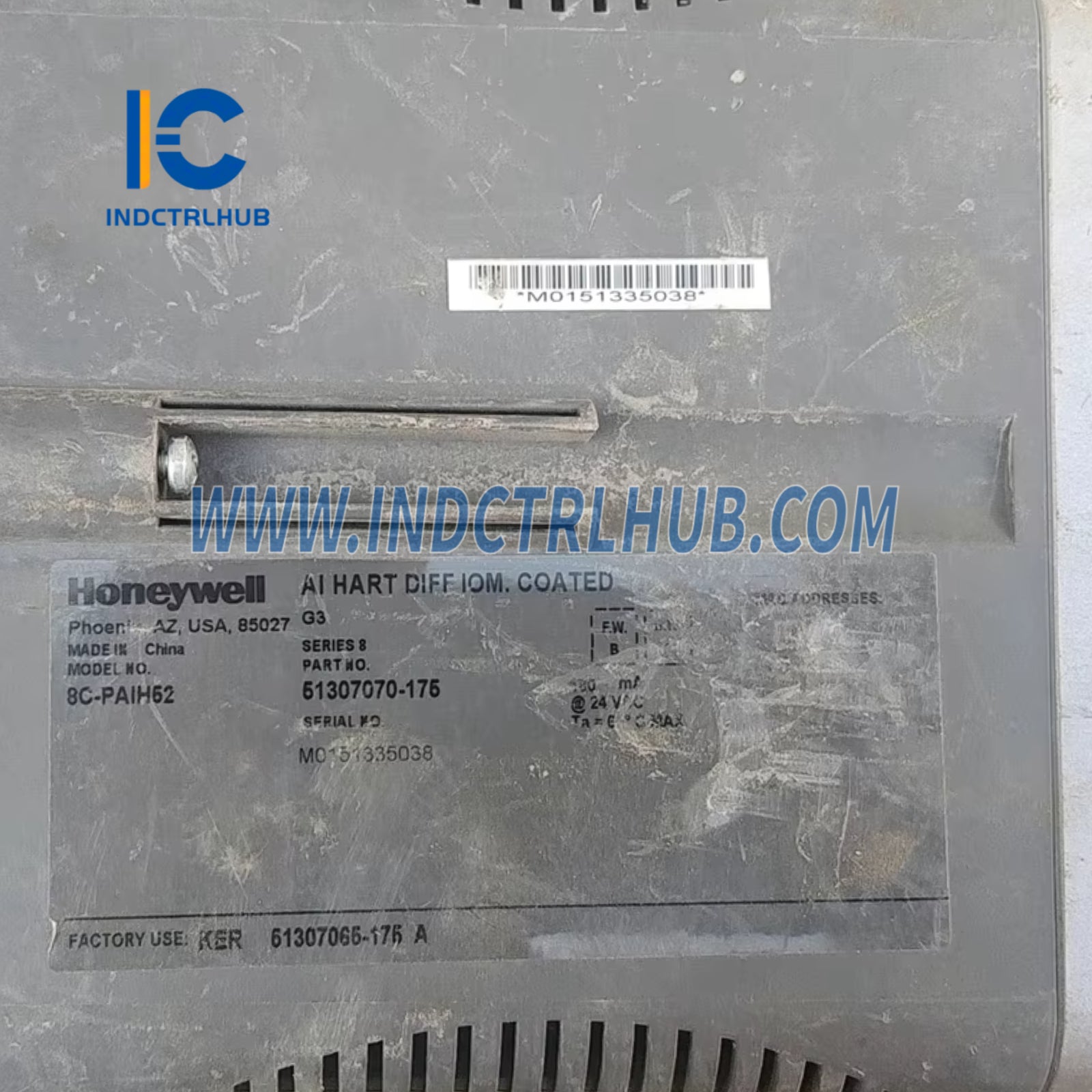

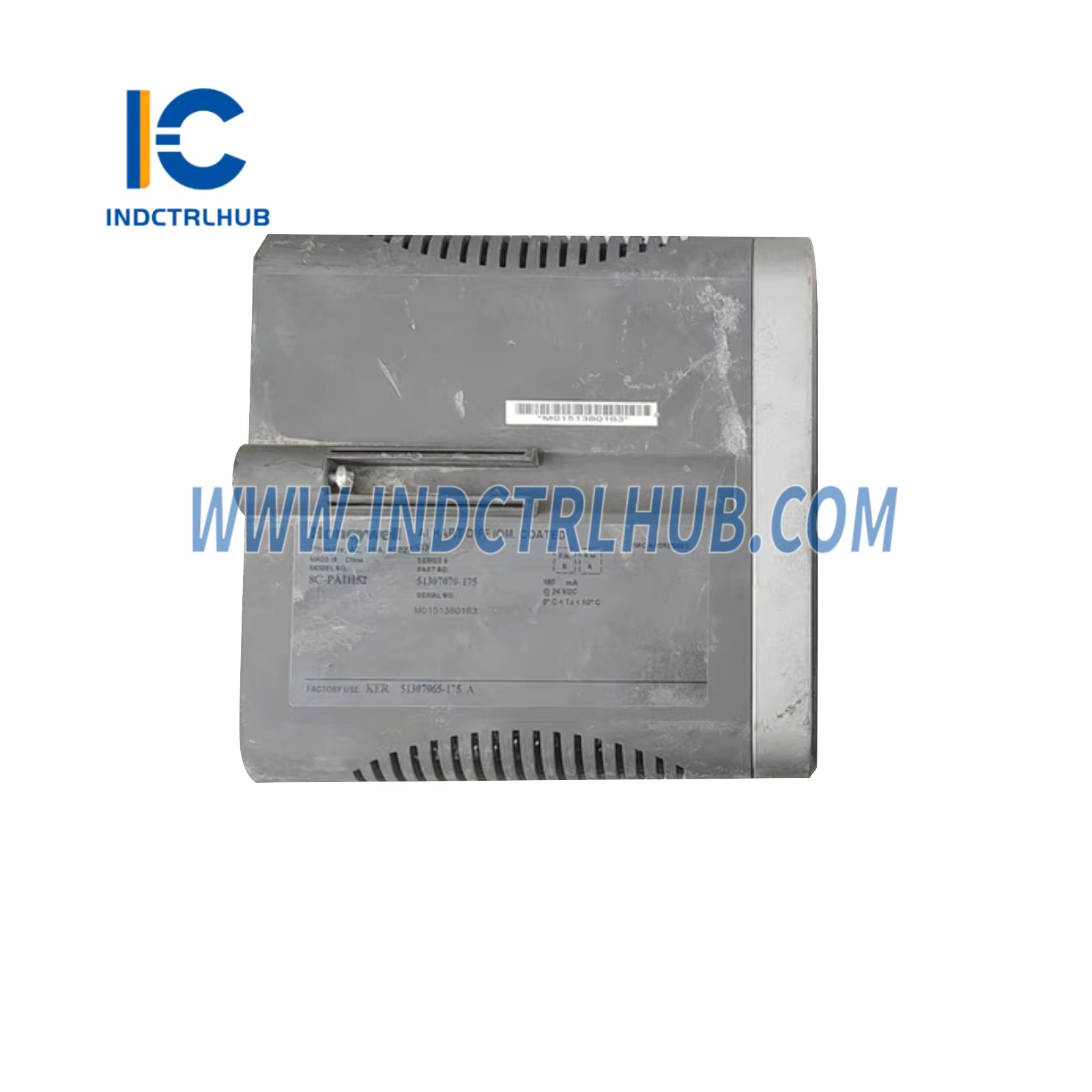

Honeywell 8C-PAIH52 51307070-175 Analog Input Module
Product Overview
- The Honeywell 8C-PAIH52 51307070-175 is an Analog Input Module designed for use in Honeywell’s Experion Process Knowledge System (PKS) Series C platform. This module provides high-performance analog input capabilities with HART communication, supporting up to 16 single-ended channels for precise data acquisition from field devices. It is ideal for industrial automation applications requiring accurate monitoring of process variables in industries such as oil and gas, chemical, and manufacturing.
- [](https://www.amikonltd.com/honeywell-8c-paih52-51307070-175-analog-i-o-module_p587.html)[](https://www.dcssupplier.com/honeywell/honeywell-experion-pks-c300/8c-paih52-51307070-175.html)
Technical Specifications
- The 8C-PAIH52 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | 8C-PAIH52 51307070-175 |
| Manufacturer | Honeywell |
| Description | Analog Input Module with HART |
| Series | Experion PKS Series C |
| Input Channels | 16 single-ended channels |
| Input Types | 4 to 20 mA (with HART), universal input types |
| Resolution | 16-bit analog-to-digital conversion |
| Isolation | Optically isolated, 1000 VDC |
| Power Supply | 24 VDC nominal (via I/O rack) |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Dimensions | 5.1 cm x 26.7 cm x 17.8 cm |
| Weight | Approx. 0.5 kg |
Additional Details
- The 8C-PAIH52 includes the following additional information based on its standard use and documentation:
- Function: Processes analog input signals with HART communication for real-time monitoring and control, ensuring accurate and reliable data acquisition.
- [](https://www.6gcontrols.com/et/products/new-supply-honeywell-8c-paih52-analog-input-module-good-quality/)
- Mounting: Installs vertically in Experion PKS Series C I/O rack, optimizing wire entry and heat dissipation without increasing footprint.
- [](https://www.dcssupplier.com/honeywell/honeywell-experion-pks-c300/8c-paih52-51307070-175.html)
- Compatibility: Compatible with Honeywell’s Experion PKS C300 Controller and Series C I/O modules, such as CC-PAIH51; integrates with HART-enabled field devices.
- Configuration: Configurable via Honeywell’s control system software; supports a wide range of input signals for versatile applications.
- [](https://www.6gcontrols.com/et/products/new-supply-honeywell-8c-paih52-analog-input-module-good-quality/)
- Certifications: Meets CE, UL, RoHS, and ATEX standards for industrial and hazardous environments.
- [](https://www.6gcontrols.com/et/products/new-supply-honeywell-8c-paih52-analog-input-module-good-quality/)
