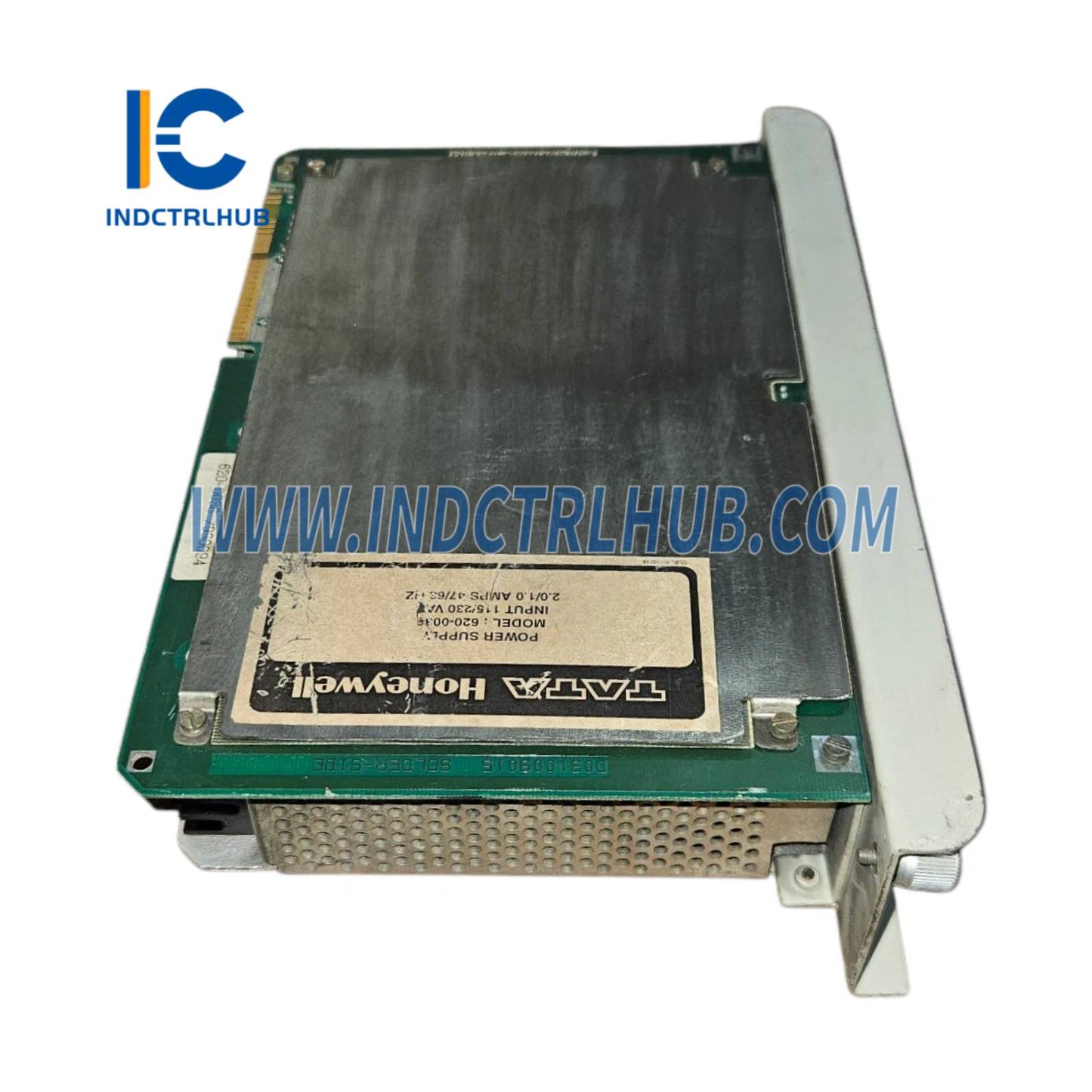

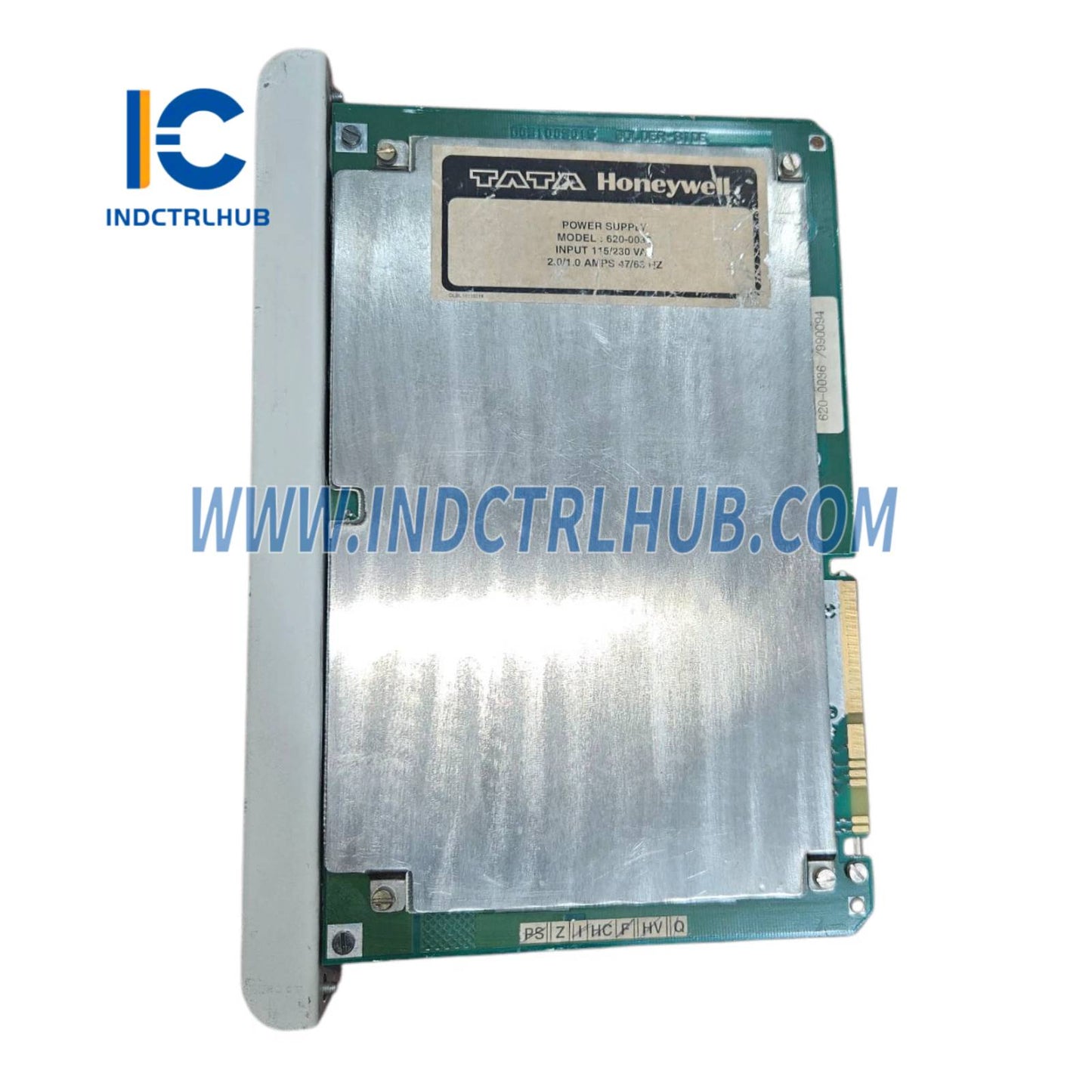

Product Description
Product Overview
| Field | Details |
|---|---|
| Manufacturer | Honeywell |
| Part Number | 620-0036 |
| Product Type | AC Power Supply Module |
| Function | Provides power to Honeywell 620, S9000, and Logic Manager systems |
| System Compatibility | 620 Modular Control System, S9000, Logic Manager |
| Associated Document | 76-LC-16U-05, Issue 30 (Modular Control Solutions Parts List) |
Functional Specifications
| Feature | Specification |
|---|---|
| Input Voltage | 120/240 VAC (auto-ranging, typical for Honeywell 620 series power modules) |
| Output Voltage | 5 VDC, 12 VDC, and/or 24 VDC (depending on system configuration) |
| Power Capacity | Supports multiple I/O modules and processors in 620 system rack |
| Hot Swap Capability | Not specified (no 'R' suffix, indicating no hot-swap support) |
| CE Compliance | Not specified (no 'C' suffix, indicating no explicit CE Mark compliance) |
Physical Specifications
| Feature | Specification |
|---|---|
| Form Factor | Modular, fits standard 620 system rack |
| Mounting | Rack-mounted, compatible with Honeywell 620 series chassis |
| Connectors | Standard power input/output connectors for 620 system integration |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C (+32°F to +140°F) (typical for 620 series modules) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) (typical for 620 series modules) |
| Environmental Protection | Designed for indoor industrial environments; no specific IP rating |
Regulatory Compliance
| Certification Type | Details |
|---|---|
| Agency Approvals | Not specified (option 00, no specific approvals listed) |
| EMC Compliance | Not explicitly CE Mark compliant (no 'C' suffix in part number) |
Ordering Information
| Field | Details |
|---|---|
| Part Number Breakdown | 620-0036 - No suffixes (no hot-swap or CE Mark compliance indicated) |
| Accessories | Not specified; consult factory for compatible cables or mounting hardware |
| Related Documents | - 76-LC-16U-05: Modular Control Solutions Parts List |
