Product Description

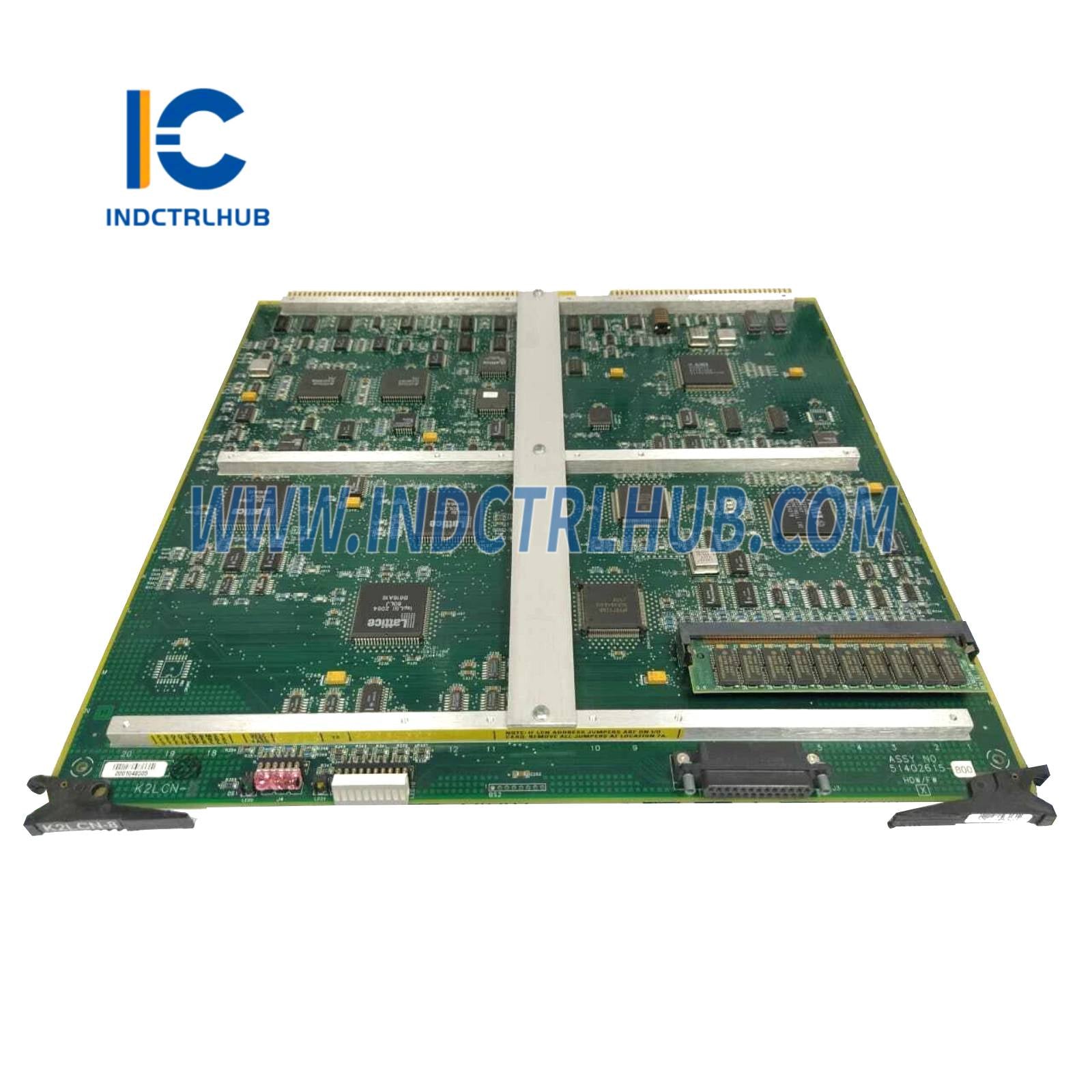

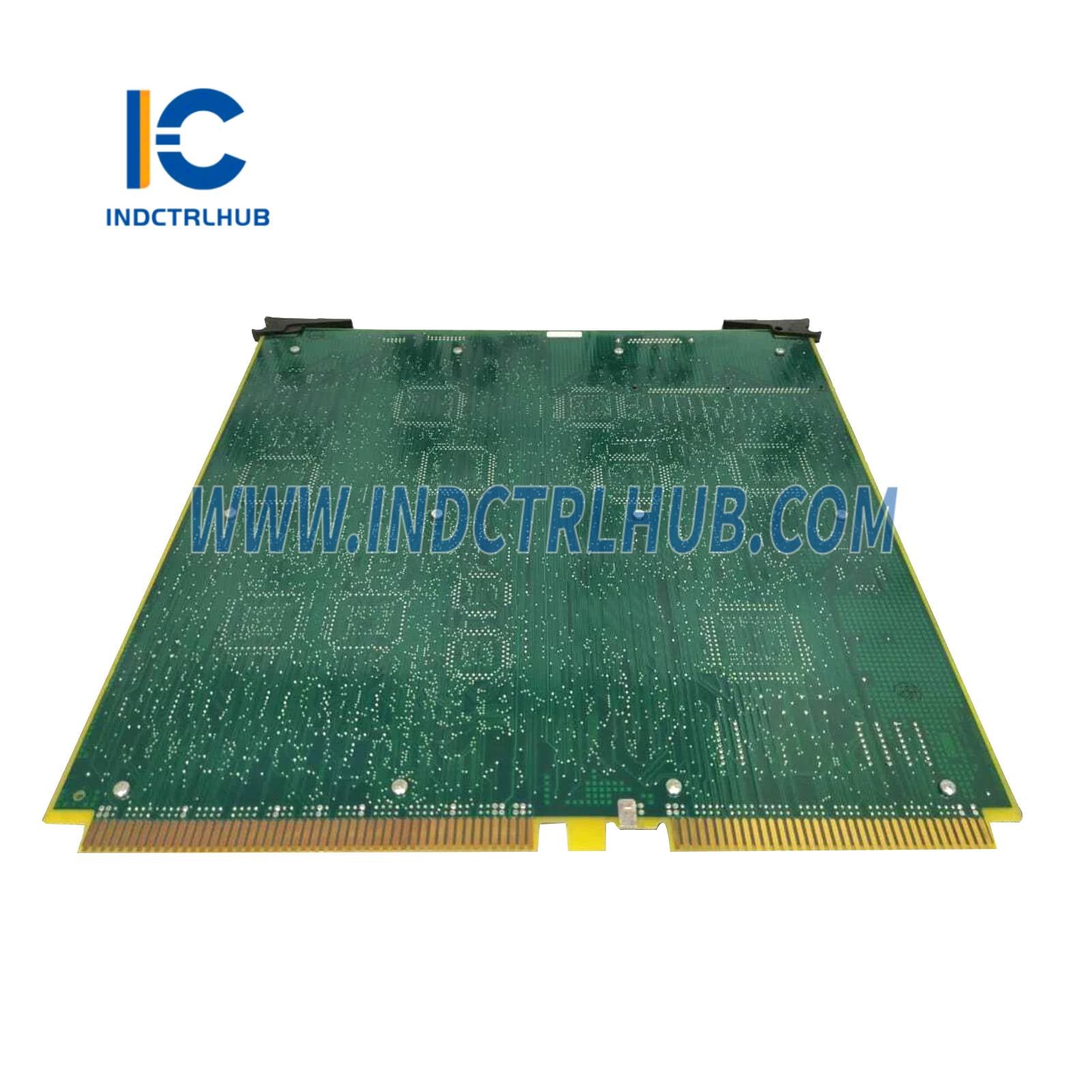

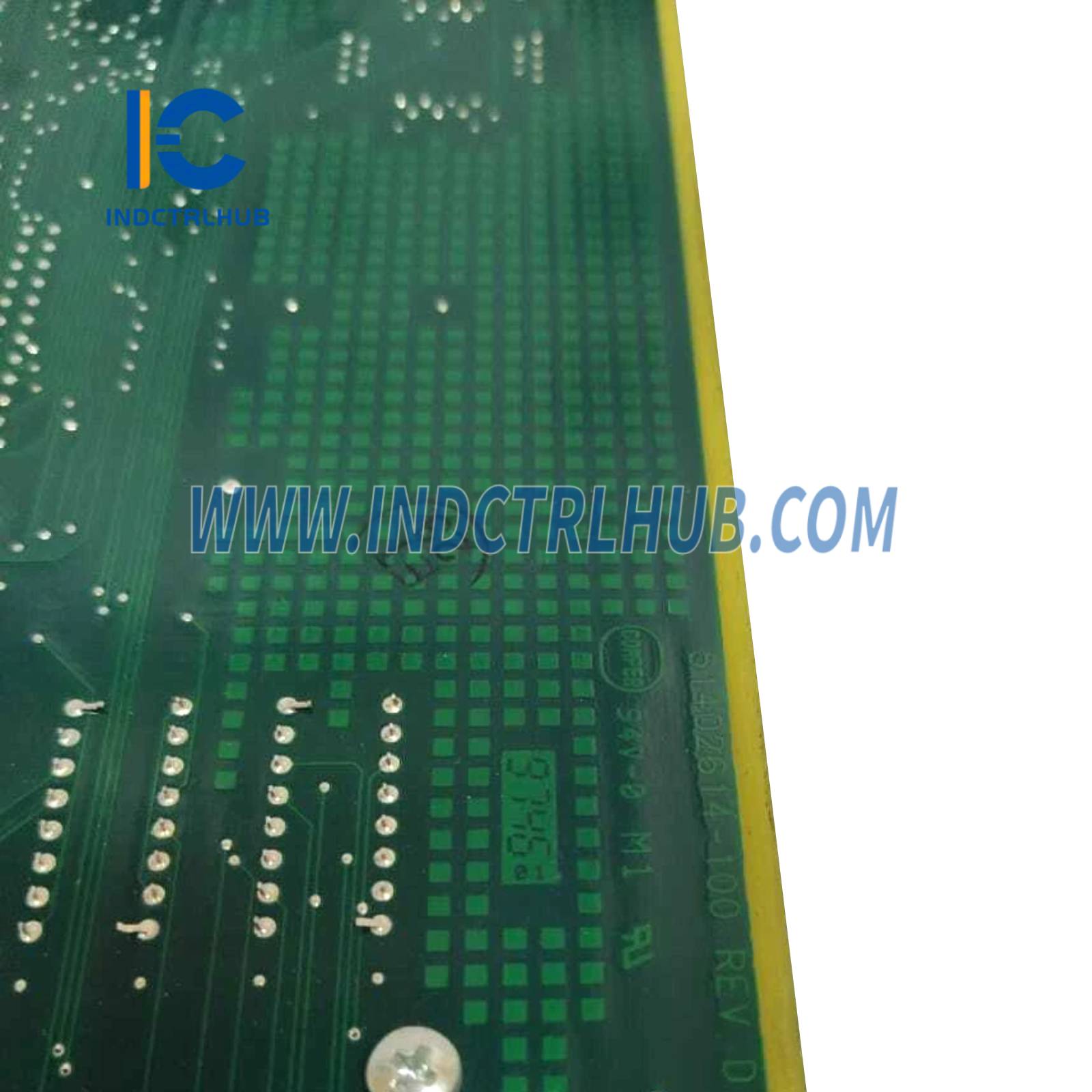

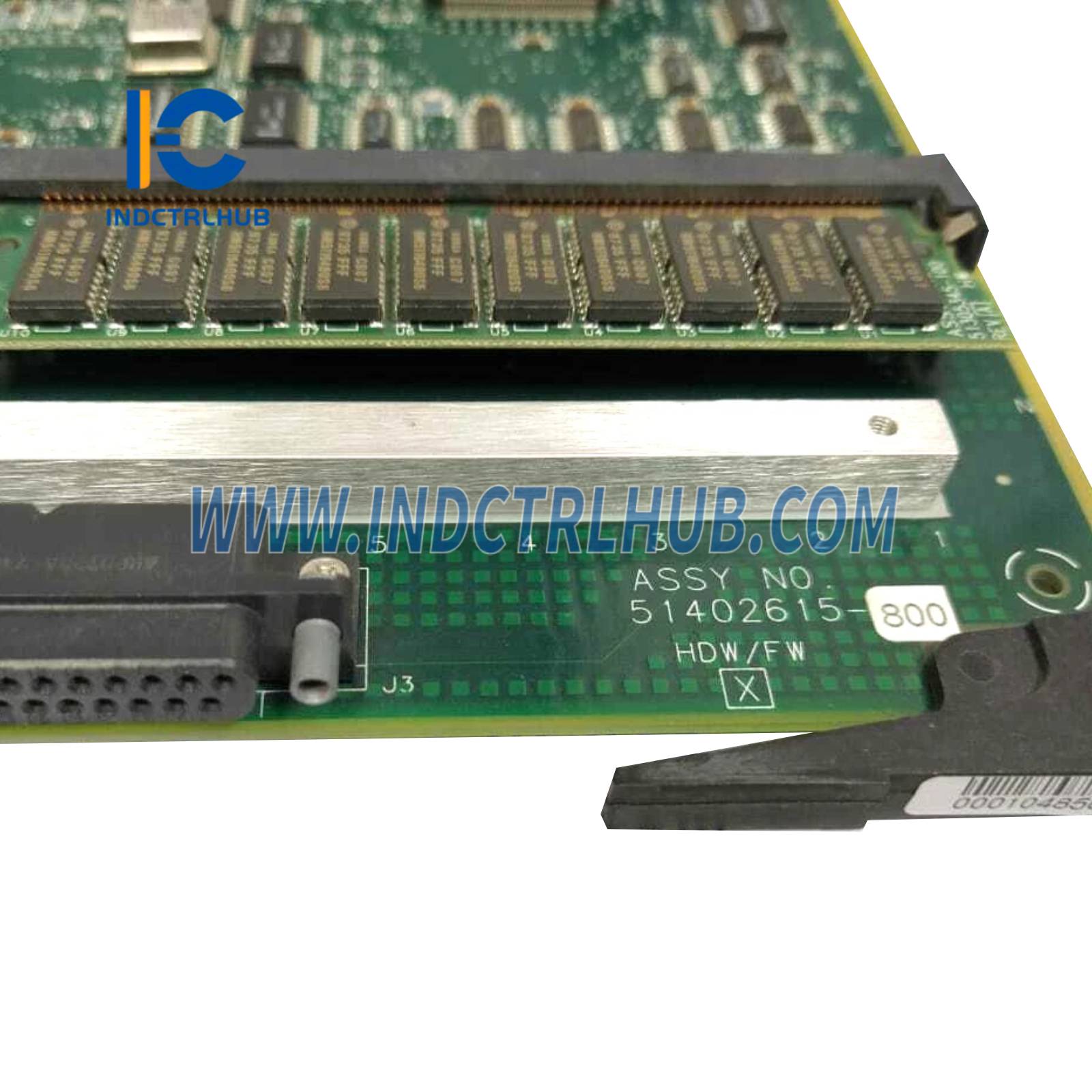

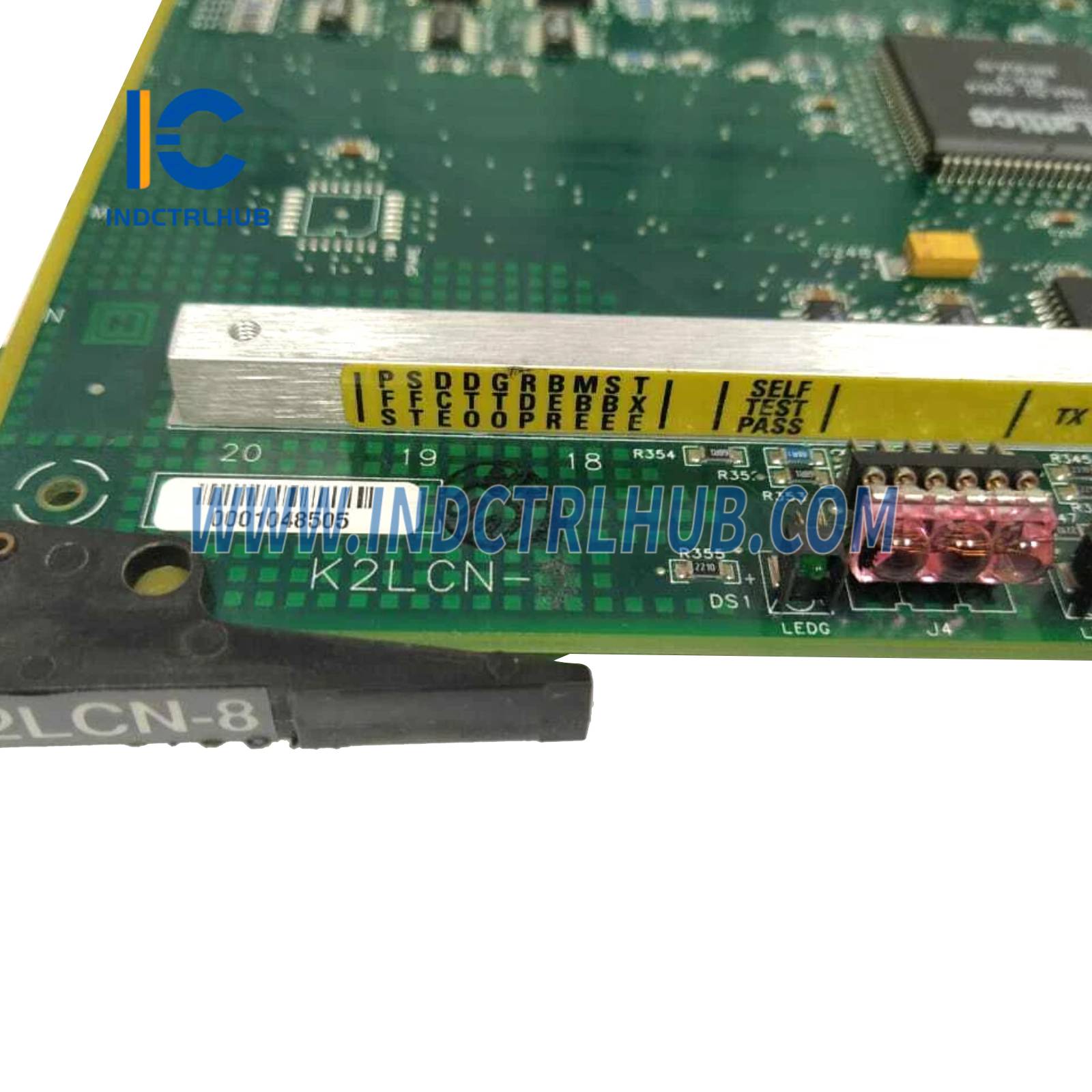

Honeywell 51402614-100 Ethernet Board
- Manufacturer: Honeywell
- Series: TDC 3000
- Model/Part Number: 51402614-100
- Description: Ethernet Board for TDC 3000 Universal Control Network (UCN) systems
Overview
The Honeywell 51402614-100 is an Ethernet Board designed for use in Honeywell’s TDC 3000 Distributed Control System (DCS), specifically within the Universal Control Network (UCN). It enables Ethernet-based communication between TDC 3000 components, such as Universal Stations, controllers
Technical Specifications
| Specification | Details |
|---|---|
| Model | 51402614-100 |
| Series | TDC 3000 / Universal Control Network (UCN) |
| Type | Ethernet Board |
| Function | Facilitates Ethernet communication for TDC 3000 UCN systems |
| Communication Protocol | Ethernet, supports TCP/IP, ARP |
| Ports | 1 Ethernet port (RJ45) |
| Data Rate | 10 Mbps |
| Connectors | RJ45 for Ethernet connection |
| Compatibility | TDC 3000 UCN systems, including Universal Station, History Module (HM), Application Module (AM), and Highway Gateway (HG) |
| Mounting | Plugs into TDC 3000 operator station or module chassis |
| Power Supply | 5 VDC (supplied by system backplane) |
| Power Consumption | Approx. 3–5 W |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Environmental Protection | Designed for indoor industrial environments; EMI/RFI shielding |
| Dimensions | Approx. 124 mm x 126 mm x 22 mm (4.9 x 5.0 x 0.9 in) |
| Weight | Approx. 0.1 kg (0.22 lbs) |
| Certifications | CE, UL, CSA (application-dependent) |
| Manual | TDC 3000 System Manual |
