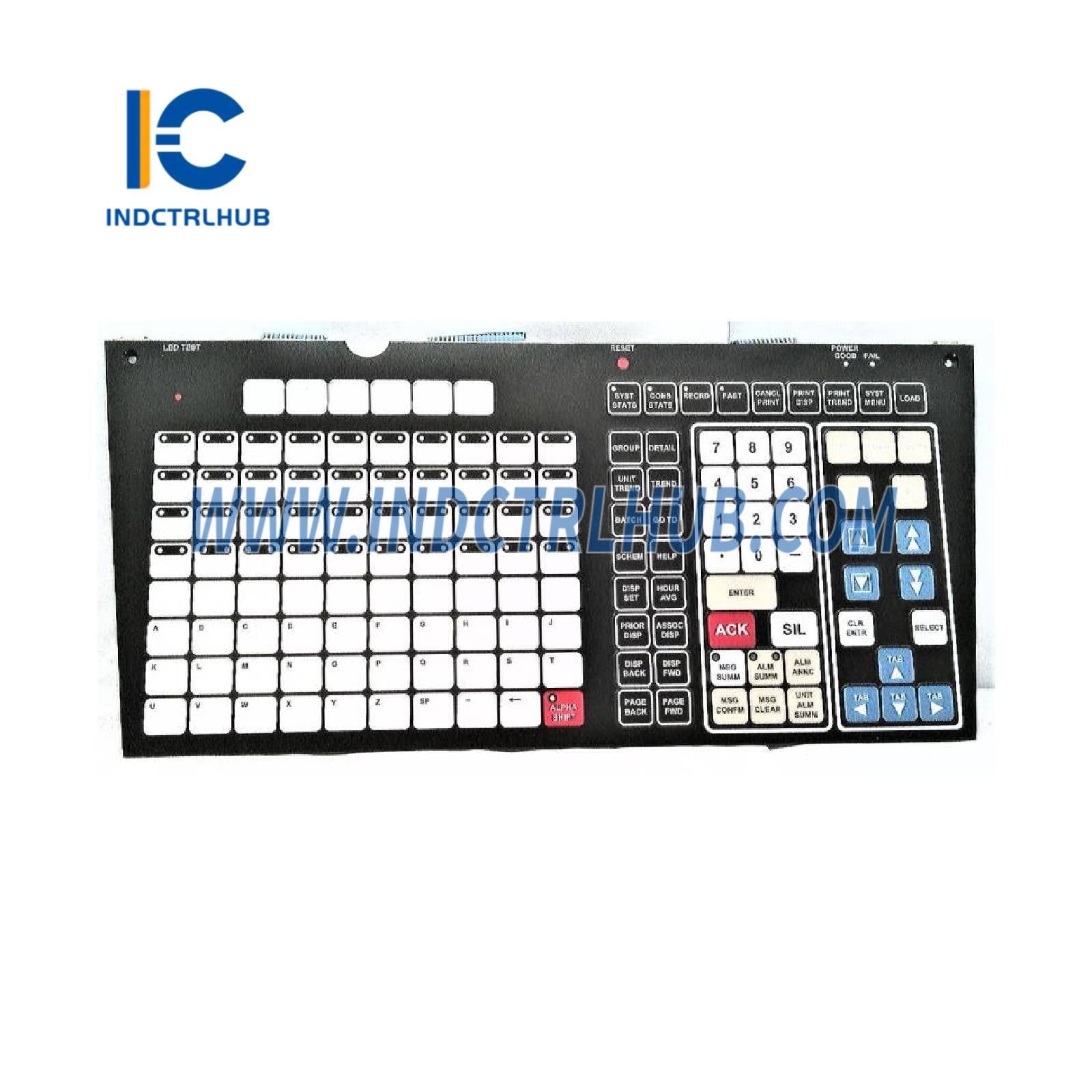

Honeywell 51400756-100 TDC 3000 ABCDE Membrane Keyboard
Product Overview
- Description: The Honeywell 51400756-100 is an ABCDE Membrane Keyboard designed for use in Honeywell’s TDC 3000 Distributed Control System (DCS). It serves as an operator interface for the TDC 3000 Universal Station or Micro TDC 3000, allowing operators to input commands and interact with the system for process control in industrial applications such as oil and gas
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Series | TDC 3000 |
| Model/Part Number | 51400756-100 |
| Model Type | ABCDE Membrane Keyboard |
| Function | Operator interface for inputting commands and interacting with TDC 3000 system |
| Display | Not applicable (no integrated display) |
| Inputs | Operator key presses (alphanumeric and function keys) |
| Outputs | Digital signals to TDC 3000 Universal Station or Micro TDC 3000 |
| Communication Interfaces | Connects to TDC 3000 system via proprietary interface cable |
| Signal Conditioning | Not applicable (direct key input processing) |
| Accuracy | Not applicable |
| Redundancy | Not applicable (supports system-level redundancy) |
| Diagnostics | Monitored via TDC 3000 system diagnostics |
| Compatibility | Honeywell TDC 3000 Universal Station, Micro TDC 3000 |
| Power Supply | 5 VDC or 24 VDC (via TDC 3000 system, typical) |
| Power Consumption | 1–3 W (estimated) |
| Environmental Specifications | Operating Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (when installed in TDC 3000 console) |
| Dimensions | Approx. 450 mm (W) x 150 mm (D) x 30 mm (H) (estimated) |
| Weight | 0.5–1.0 kg (approx.) |
| Mounting | Integrated into TDC 3000 Universal Station console or desktop-mounted |
| Certifications | CE, UL, CSA (system-dependent) |
