Product Description

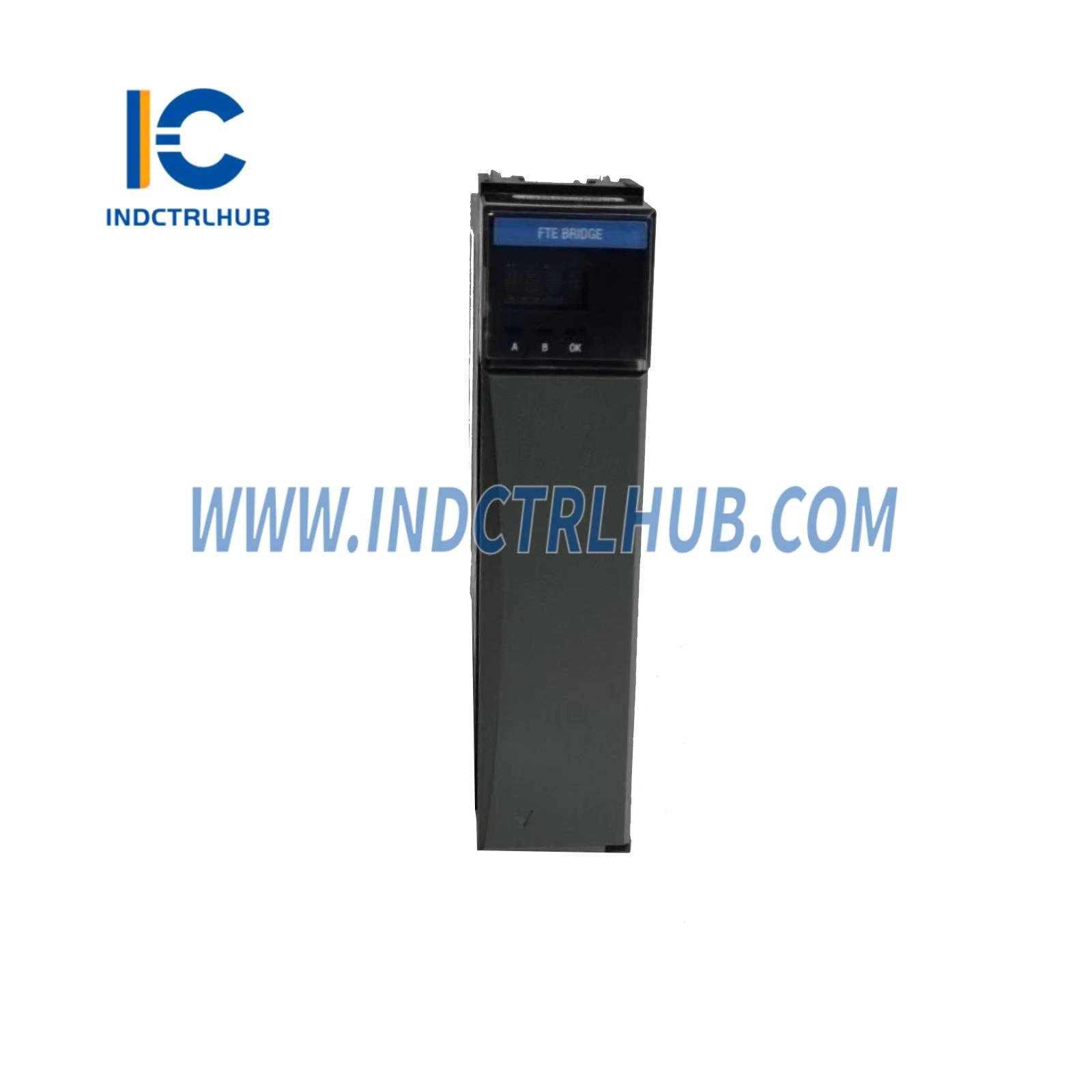

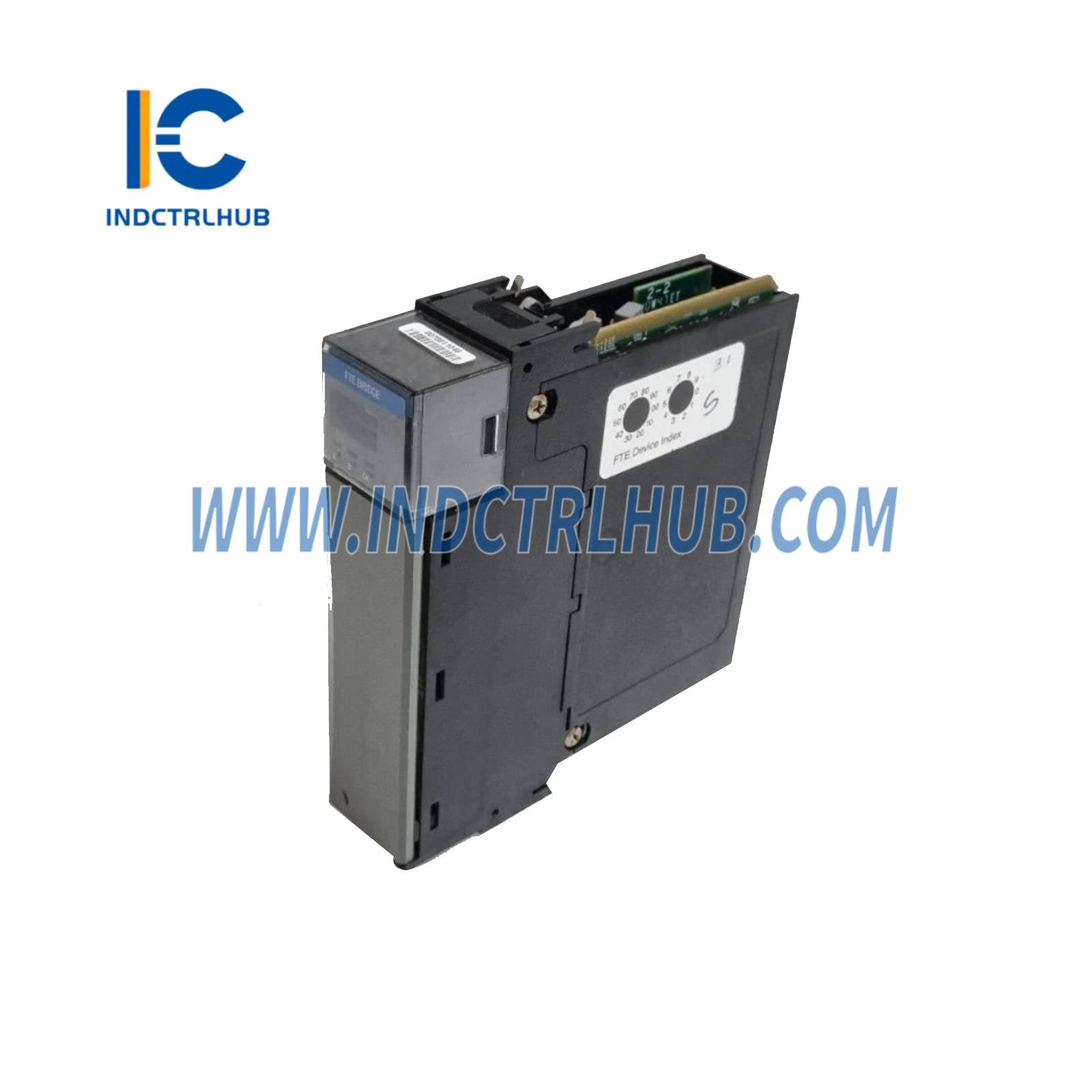

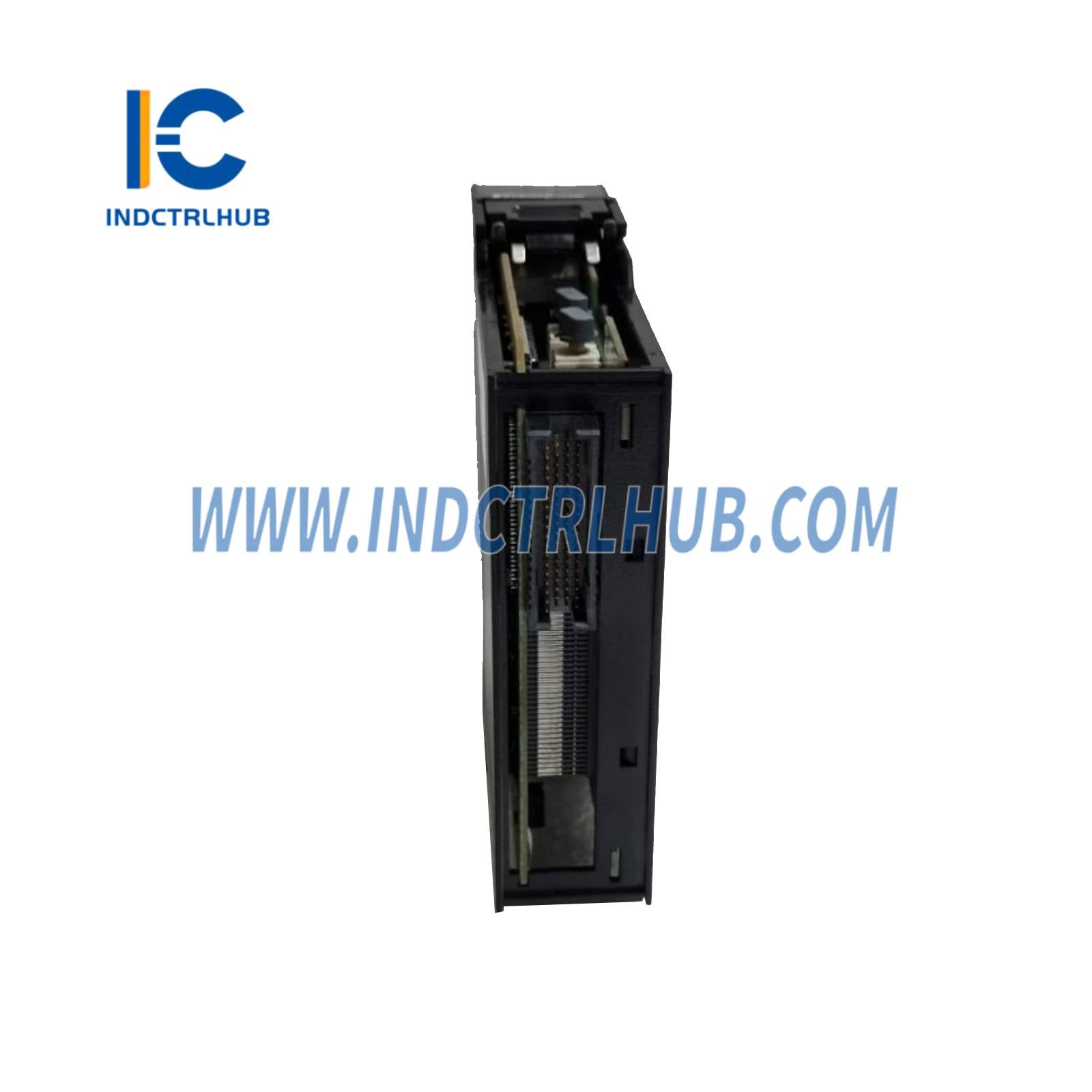

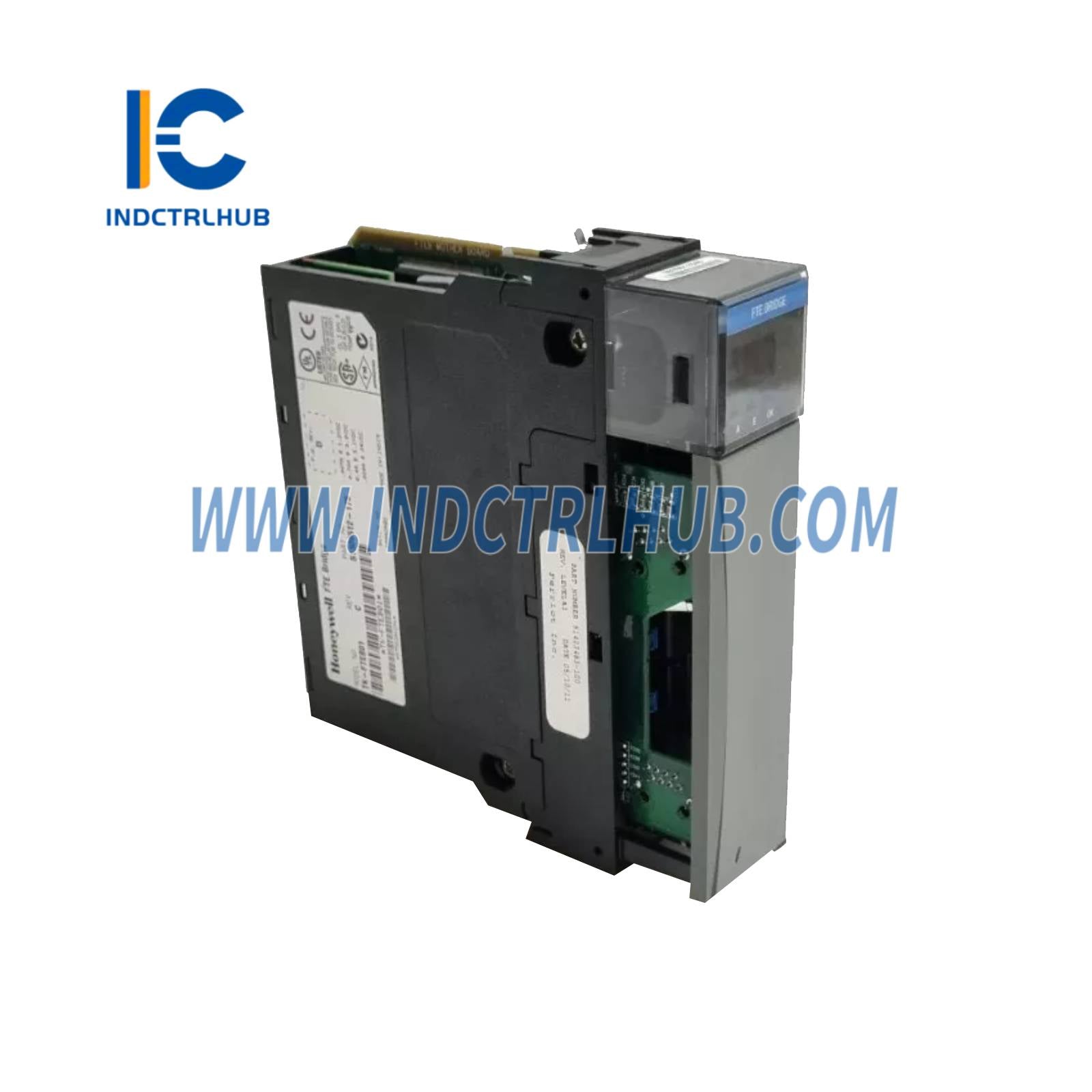

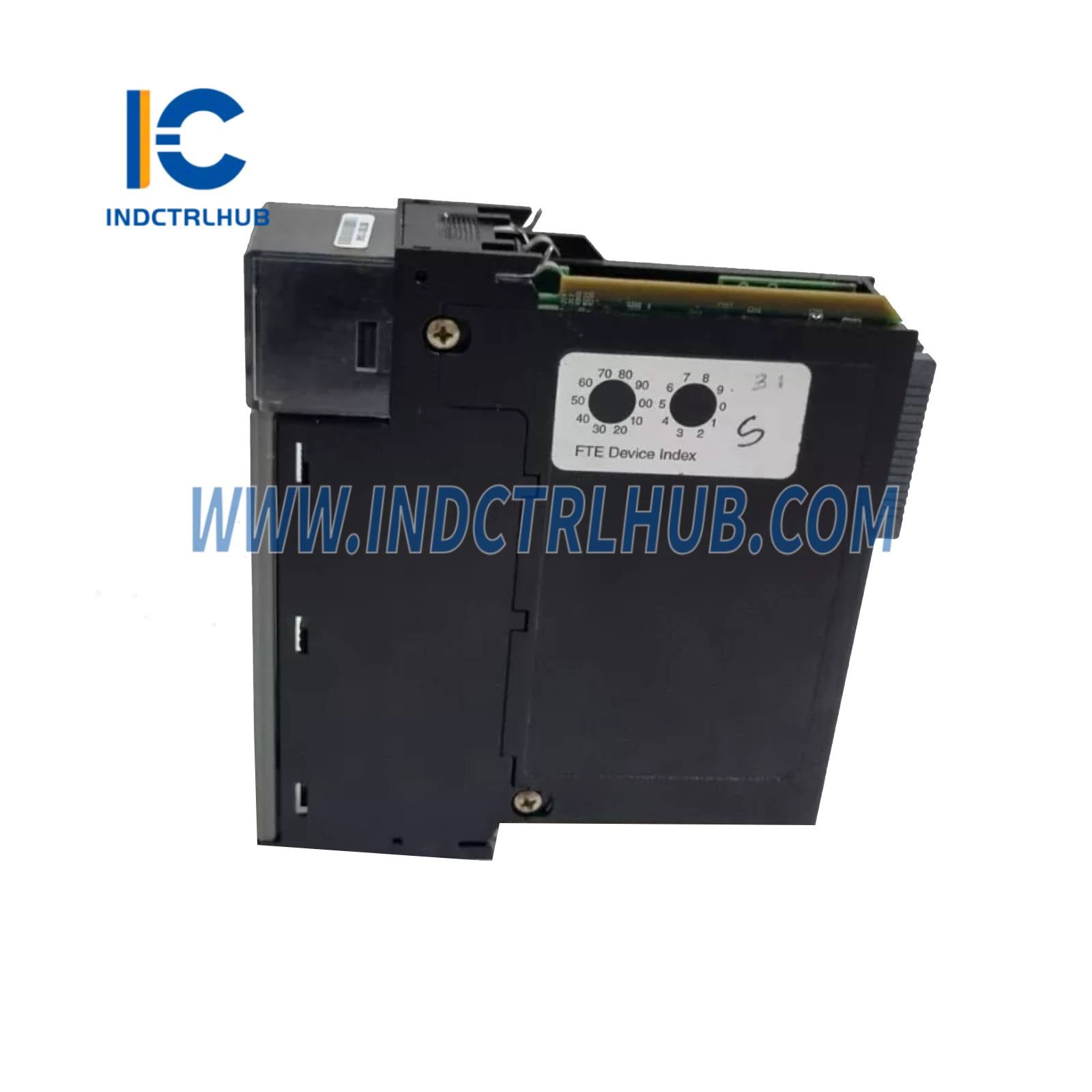

Honeywell 51309512-275 TK-FTEB01 Ethernet Module
- Manufacturer: Honeywell
- Series: Experion PKS / Series C
- Model/Part Number: 51309512-275 (TK-FTEB01)
- Description: Fault Tolerant Ethernet Bridge Module for Experion PKS systems
Overview
The Honeywell 51309512-275, also known as the TK-FTEB01, is a Fault Tolerant Ethernet Bridge Module designed for use in Honeywell’s Experion Process Knowledge System (PKS) with Series C architecture. It facilitates high-speed, fault-tolerant communication over Ethernet between the C300 Controller and other network components, ensuring reliable data exchange in industrial automation environments such as oil and gas, petrochemical, and power generation facilities.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 51309512-275 (TK-FTEB01) |
| Series | Experion PKS / Series C |
| Type | Fault Tolerant Ethernet Bridge Module |
| Function | Provides fault-tolerant Ethernet communication for Experion PKS systems |
| Communication Protocol | Fault Tolerant Ethernet (FTE), supports Modbus TCP, OPC |
| Ports | 2 Ethernet ports (redundant, RJ45) |
| Data Rate | 10/100 Mbps |
| Connectors | RJ45 for Ethernet connections |
| Compatibility | Experion PKS C300 Controller (e.g., CC-PCNT02), Series C I/O modules, FTE network |
| Mounting | Plugs into Series C I/O rack or chassis |
| Power Supply | 24 VDC (supplied by system backplane) |
| Power Consumption | Approx. 5–8 W |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Environmental Protection | Conformal coating, EMI/RFI shielding, suitable for harsh industrial environments |
| Dimensions | Approx. 140 mm x 100 mm x 30 mm (5.5 x 3.9 x 1.2 in) |
| Weight | Approx. 0.4 kg (0.88 lbs) |
| Certifications | CE, UL, CSA, ATEX (application-dependent) |
| Manual | Experion PKS Series C I/O User’s Guide |
