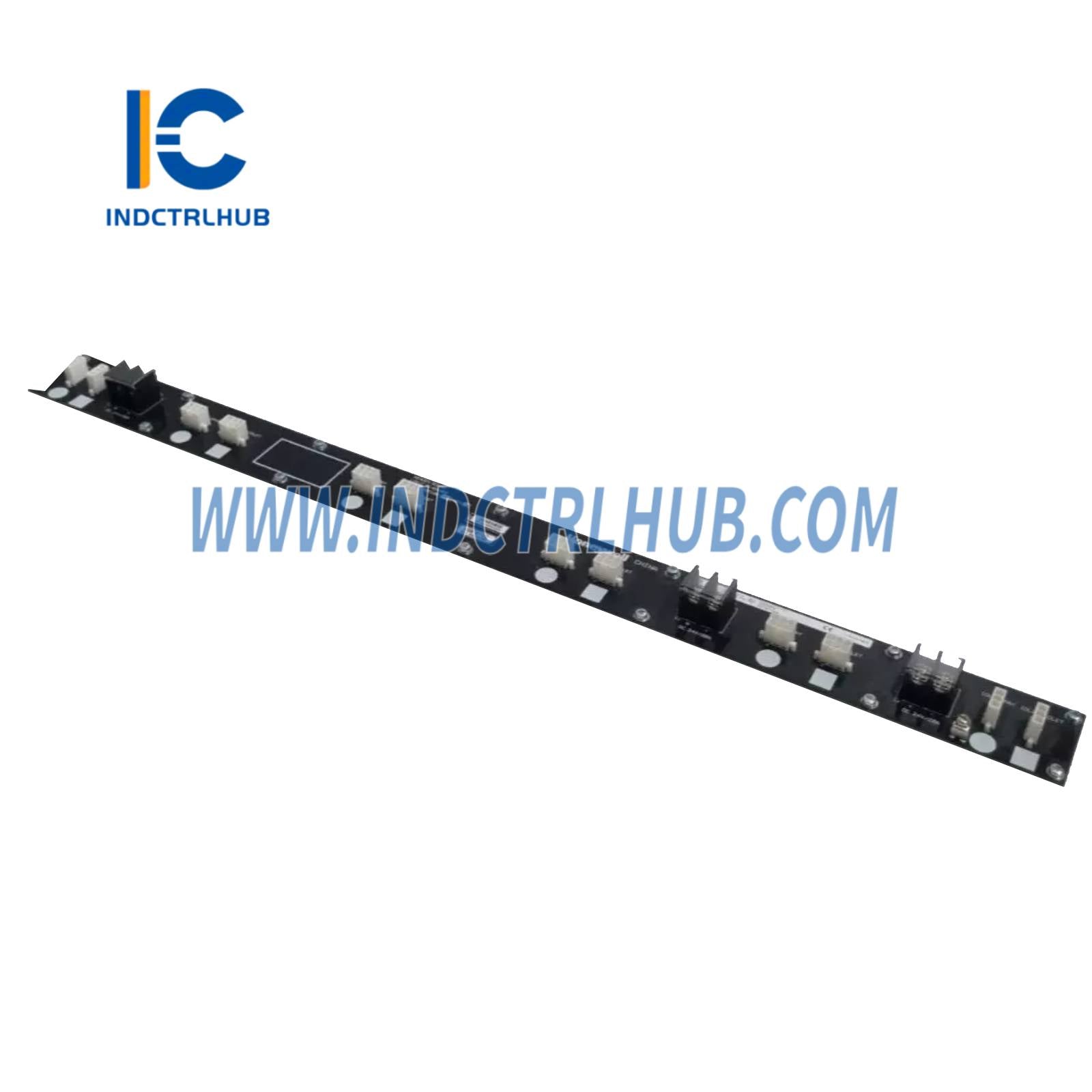

Honeywell 51307186-275 REVE Digital Output Module
Honeywell 51307186-275 REVE Digital Output Module
Manufacturer: Honeywell
Product No.: 51307186-275 REVE
Condition:1000 in stock
Product Type: Digital Output Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Honeywell 51307186-275 Rev.E Digital Output Module
- Manufacturer: Honeywell
- Series: Experion PKS / Series C
- Model/Part Number: 51307186-275 Rev.E (CC-TDOB01)
- Description: Digital Output Module for Series C I/O in Experion PKS systems
Overview
The Honeywell 51307186-275 Rev.E, also known as the CC-TDOB01, is a Digital Output Module designed for use in Honeywell__ Experion Process Knowledge System (PKS) with Series C Input/Output architecture._
Technical Specifications
| Specification | Details |
|---|---|
| Model | 51307186-275 Rev.E (CC-TDOB01) |
| Series | Experion PKS / Series C |
| Type | Digital Output Module |
| Function | Provides 32 digital output channels for control applications |
| Output Channels | 32 channels, open collector (sinking type) |
| Output Voltage | 24 VDC nominal (10_30 VDC range) |
| Output Current | 0.5 A per channel, 16 A maximum per module |
| Isolation | Galvanic isolation, 1500 VDC channel-to-system |
| Connectors | Requires Series C IOTA (e.g., CC-TAOX11) for field wiring |
| Compatibility | Experion PKS C300 Controller, Series C I/O systems |
| Mounting | Plugs into Series C I/O Termination Assembly (IOTA) |
| Power Supply | 24 VDC (supplied by system backplane) |
| Power Consumption | Approx. 5_7 W |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Environmental Protection | Conformal coating for harsh environments, EMI/RFI shielding |
| Dimensions | Approx. 140 mm x 100 mm x 30 mm (5.5 x 3.9 x 1.2 in) |
| Weight | Approx. 0.4 kg (0.88 lbs) |
| Certifications | CE, UL, CSA, ATEX (application-dependent) |
| Manual | Experion PKS Series C I/O User__ Guide |
