Product Description

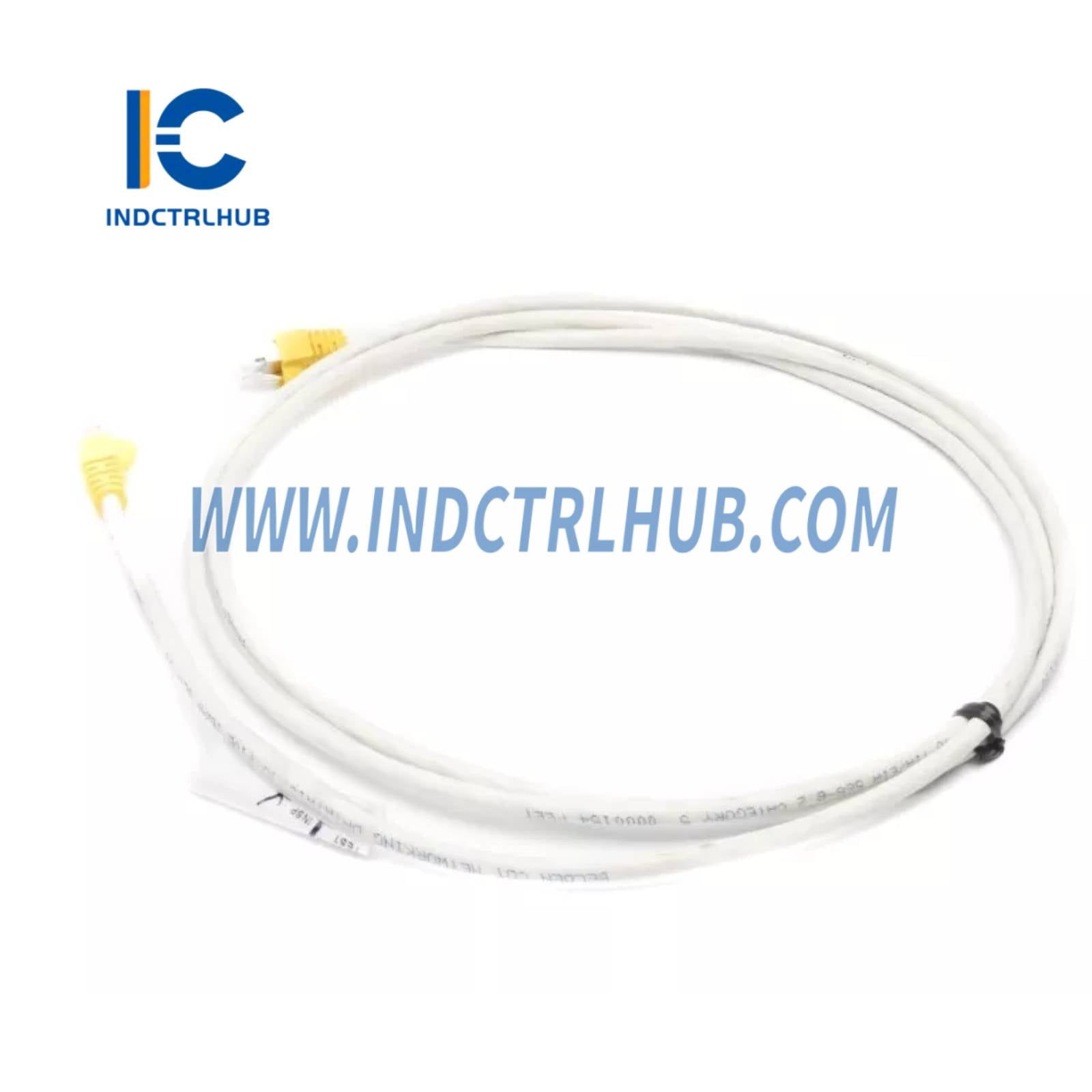

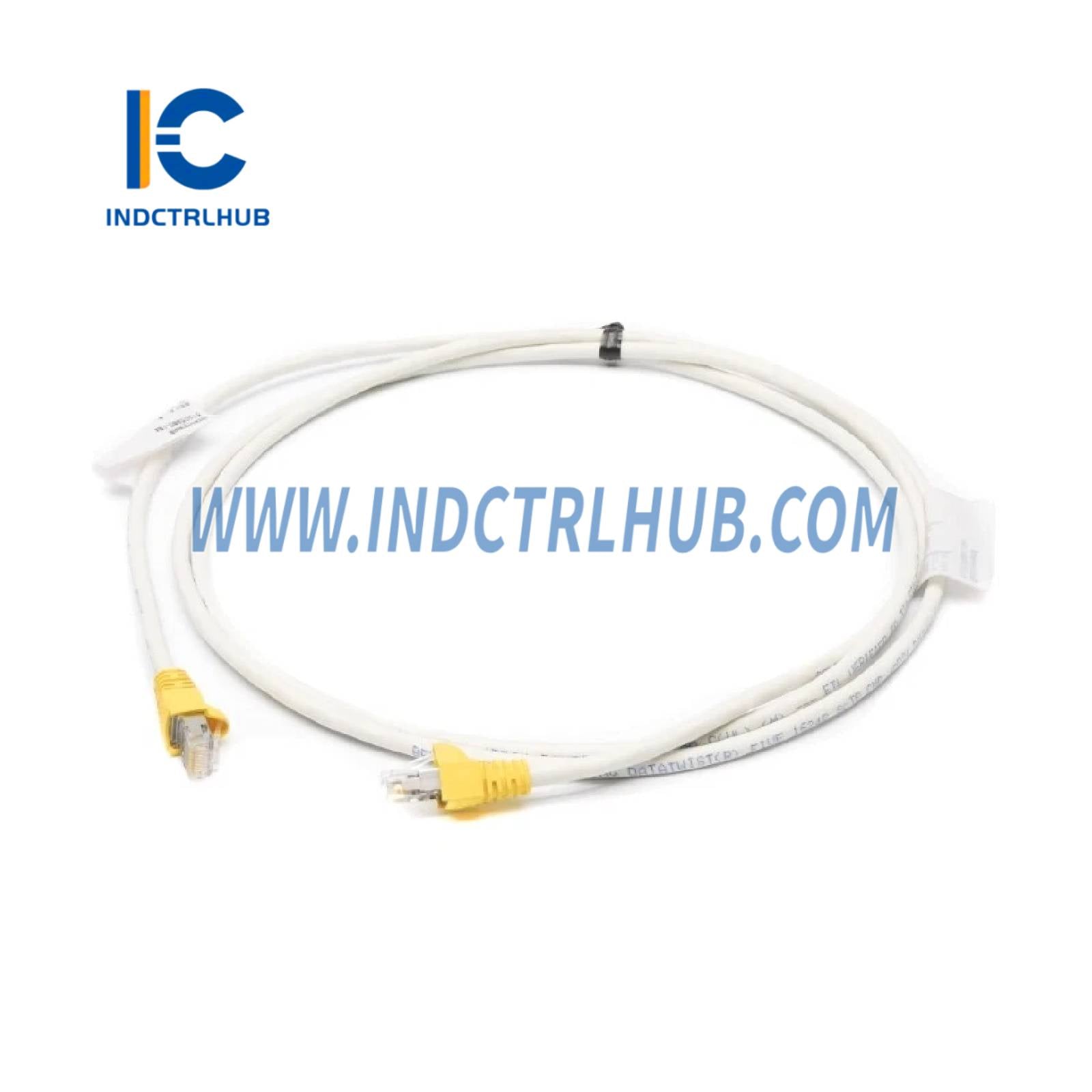

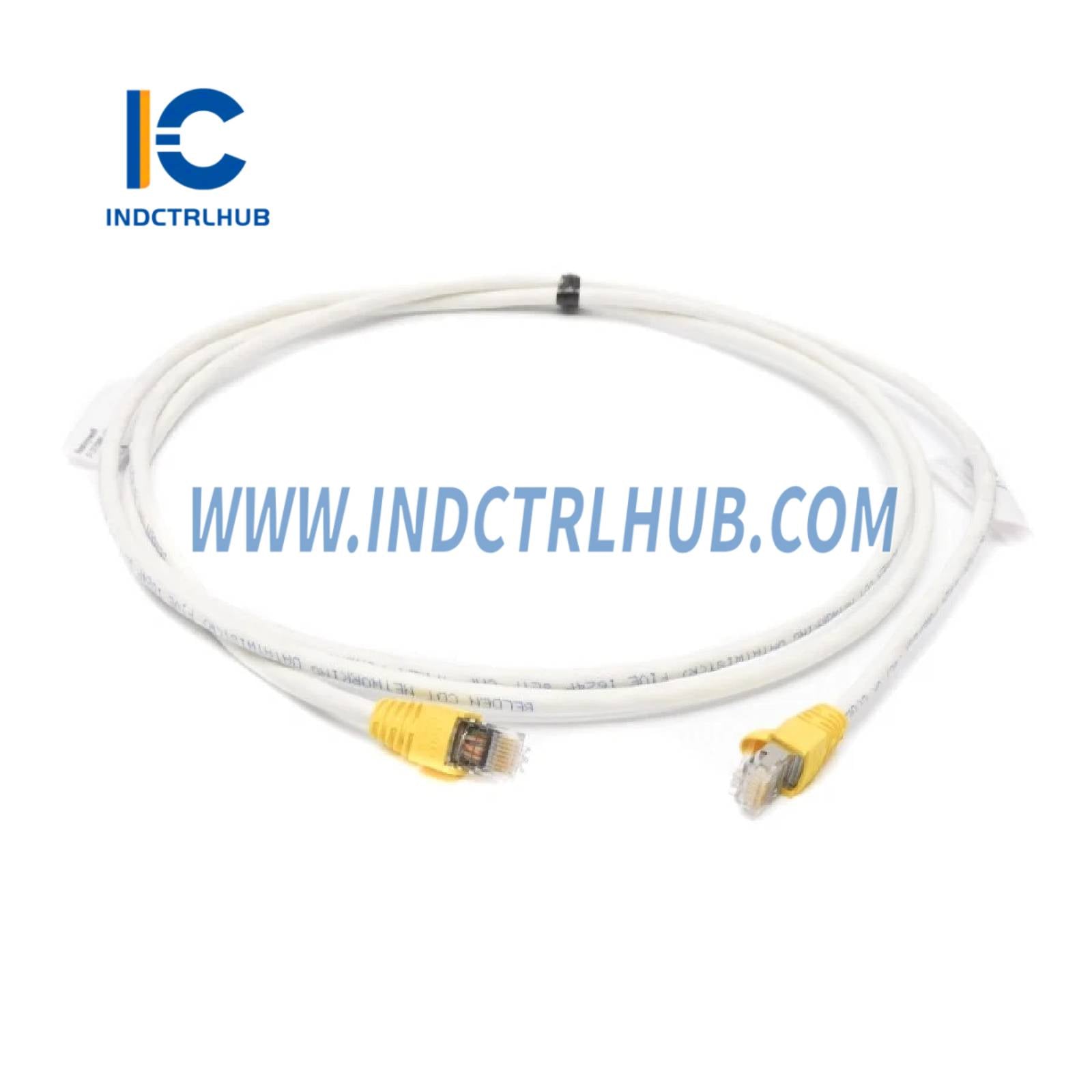

Honeywell 51305980-184 REV B TDC 3000 Cable Assembly
Product Overview
- Description: The Honeywell 51305980-184 REV B is a cable assembly designed for use in Honeywell’s TDC 3000 Distributed Control System (DCS).
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Series | TDC 3000 |
| Model/Part Number | 51305980-184 REV B |
| Model Type | Cable Assembly |
| Function | Provides electrical connectivity between TDC 3000 system components |
| Display | Not applicable (no display) |
| Connectors | Multi-pin connectors (specific to TDC 3000 system, typically D-sub or proprietary) |
| Signal Type | Power and/or data signals (dependent on application) |
| Communication Interfaces | Not applicable (passive component) |
| Signal Conditioning | Not applicable (passive cable) |
| Accuracy | Not applicable |
| Redundancy | Not applicable (supports redundant system configurations) |
| Diagnostics | Not applicable (diagnosed via connected TDC 3000 components) |
| Compatibility | Honeywell TDC 3000 Distributed Control System |
| Power Rating | Supports typical TDC 3000 voltages (e.g., 5 VDC, 24 VDC, application-dependent) |
| Cable Length | Varies (typically 1–5 meters, application-specific) |
| Environmental Specifications | Operating Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Material | Insulated copper conductors, shielded (if applicable), durable jacket |
| Dimensions | Varies based on length and connector type |
| Weight | 0.2–0.5 kg (approx., depending on length) |
| Mounting | Not applicable (connects between TDC 3000 components) |
| Certifications | CE, UL, CSA (system-dependent) |
