Product Description

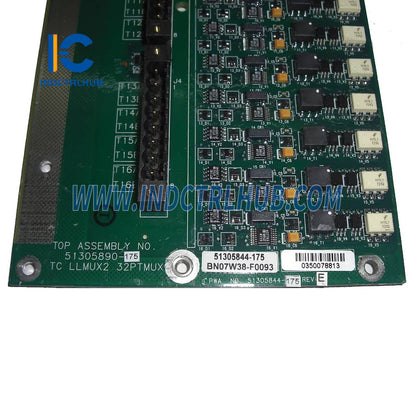

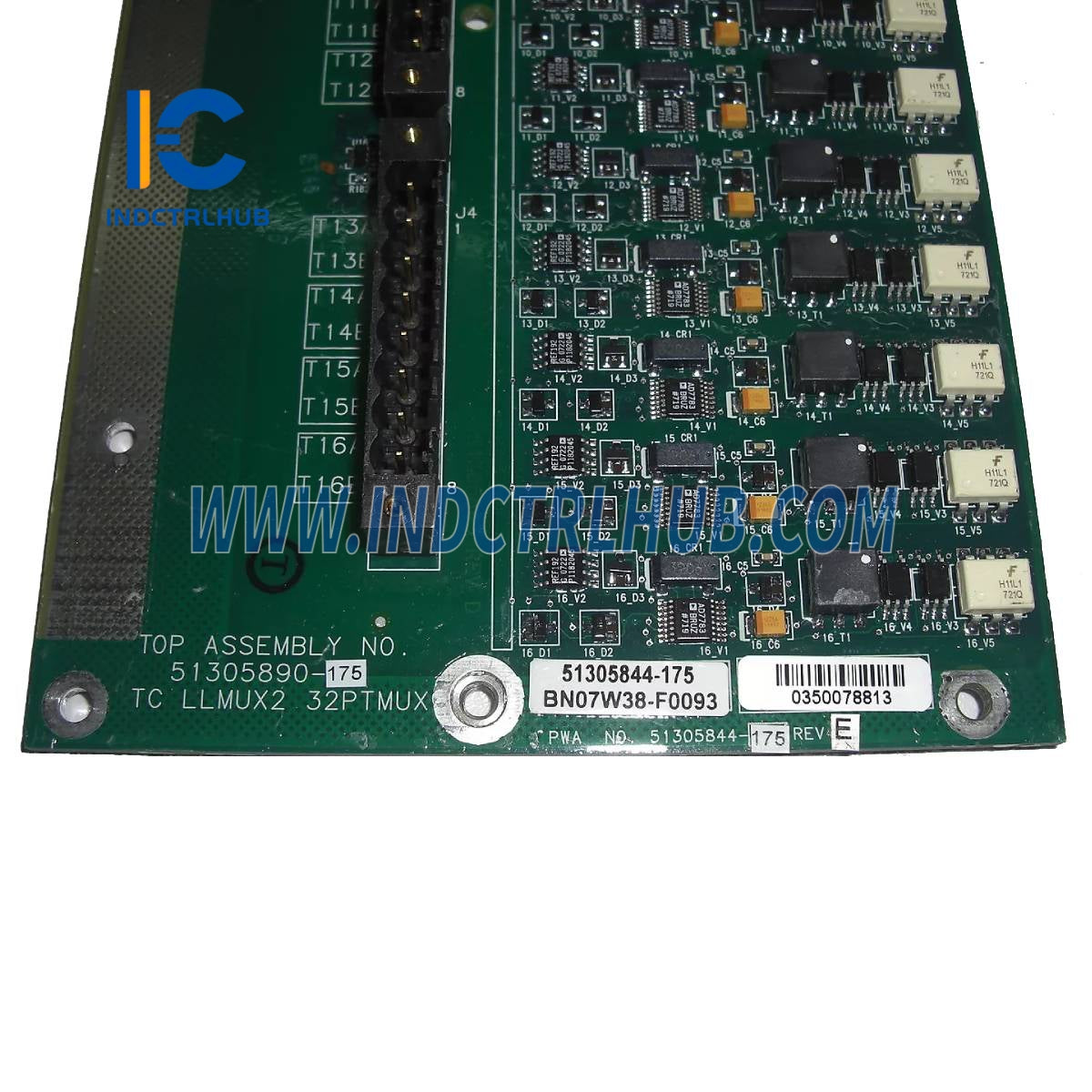

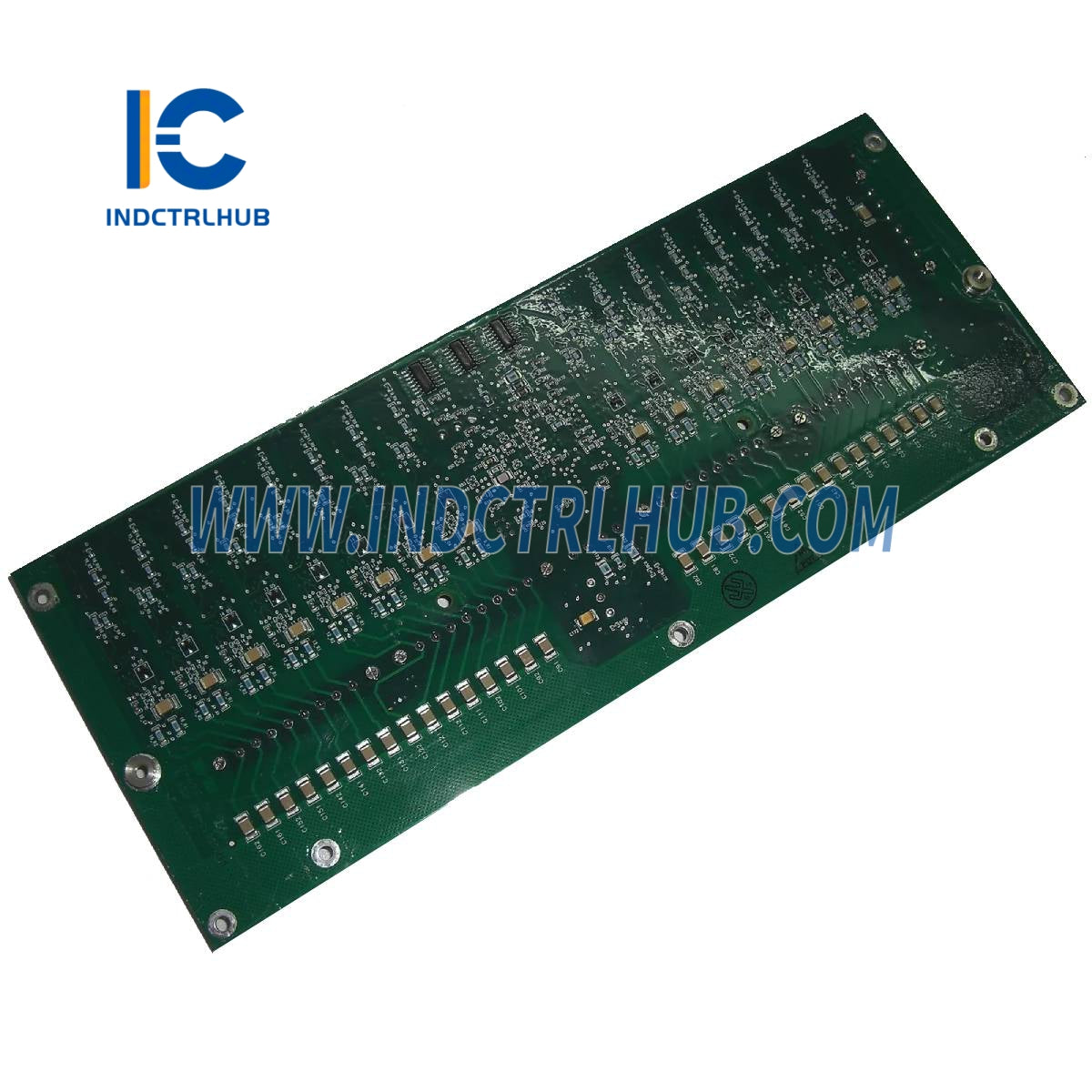

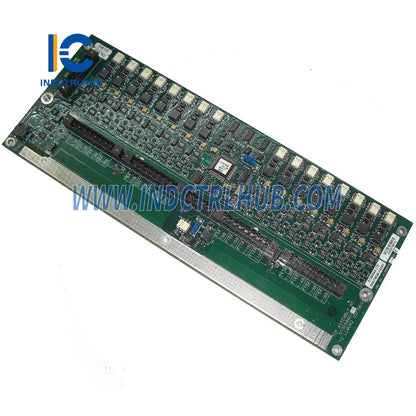

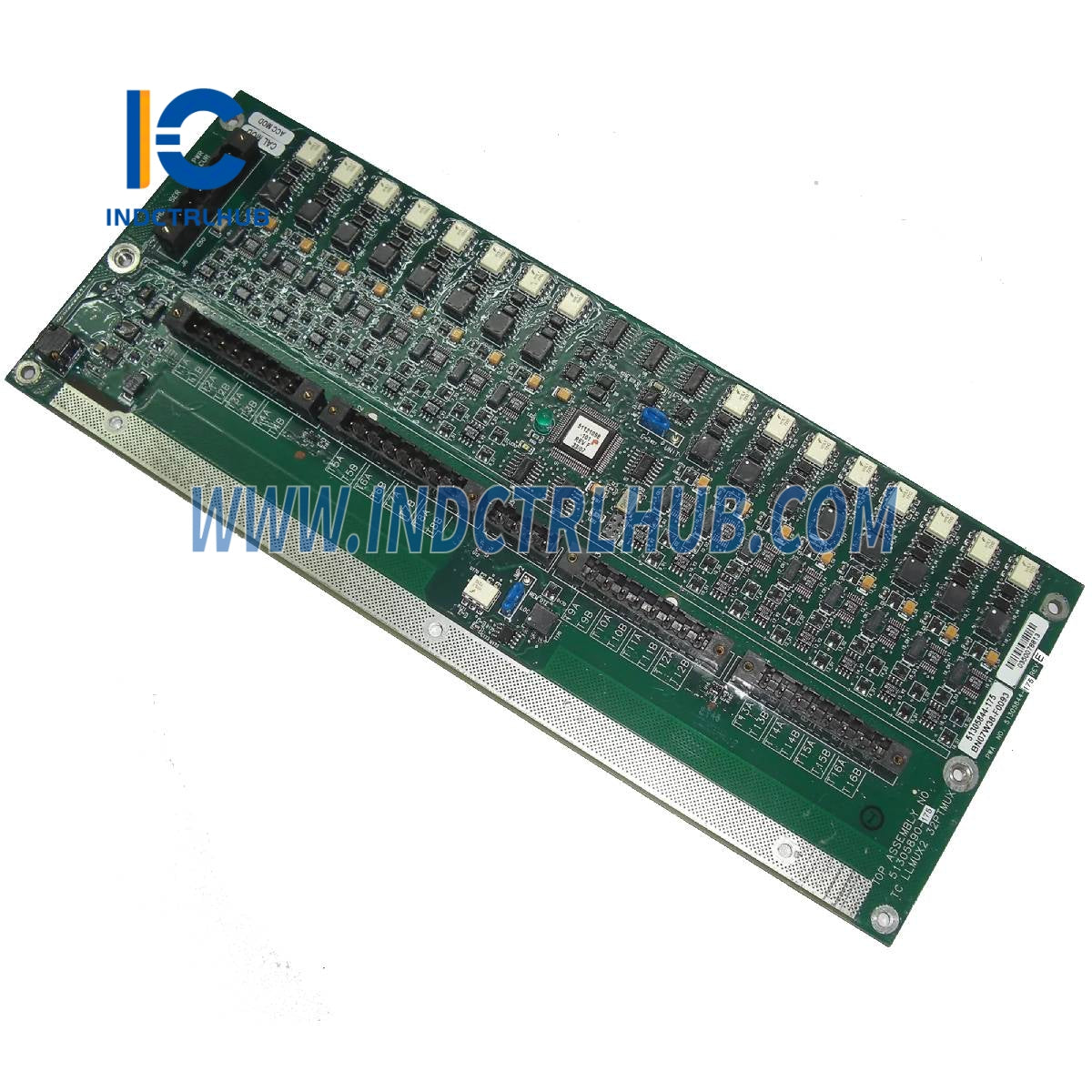

Honeywell MC-TAMT04 51305890-175 Low Level Analog Input Multiplexer
Product Overview
- The Honeywell MC-TAMT04 51305890-175 is a Low Level Analog Input Multiplexer (LLMUX) designed for use in Honeywell’s Universal Control Network (UCN) within the TDC 3000 and Experion Process Knowledge System (PKS) platforms. This module is engineered to handle low-level analog signals from thermocouples, supporting up to 16 input channels per Field Termination Assembly (FTA). It is ideal for industrial automation applications requiring precise temperature monitoring and data acquisition.
Technical Specifications
- The MC-TAMT04 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | MC-TAMT04 51305890-175 |
| Manufacturer | Honeywell |
| Description | Low Level Analog Input Multiplexer (Thermocouple FTA) |
| Series | TDC 3000 / Experion PKS |
| Input Channels | 16 channels per FTA (32 channels with two FTAs) |
| Input Types | Thermocouple, mV |
| Terminals | Compression terminals |
| Power Supply | 24 VDC nominal (via I/O rack or power adapter) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approx. 0.5 kg |
Additional Details
- The MC-TAMT04 includes the following additional information based on its standard use and documentation:
- Function: Processes low-level analog inputs from thermocouples and millivolt sources, providing accurate temperature measurements with configurable open thermocouple detection (OTD) performed every 30 seconds.
- Mounting: Installs in TDC 3000 or Experion PKS I/O rack, connected to two 16-point FTAs; power adapter (e.g., MU-TLPA02) mounts in the FTA tray for remote FTAs.
- Compatibility: Compatible with Honeywell’s TDC 3000 Process Manager, Experion PKS C300 Controller, and UCN-based systems; supports local or remote cold junction reference options.
- Configuration: Each processor handles 32 points (two 16-point FTAs), scanned once per second with a one-second processing delay; supports CE-compliant applications with appropriate power adapters.
- Certifications: CE compliant, conformally coated, meets UL and ATEX standards for industrial environments.
