Product Description

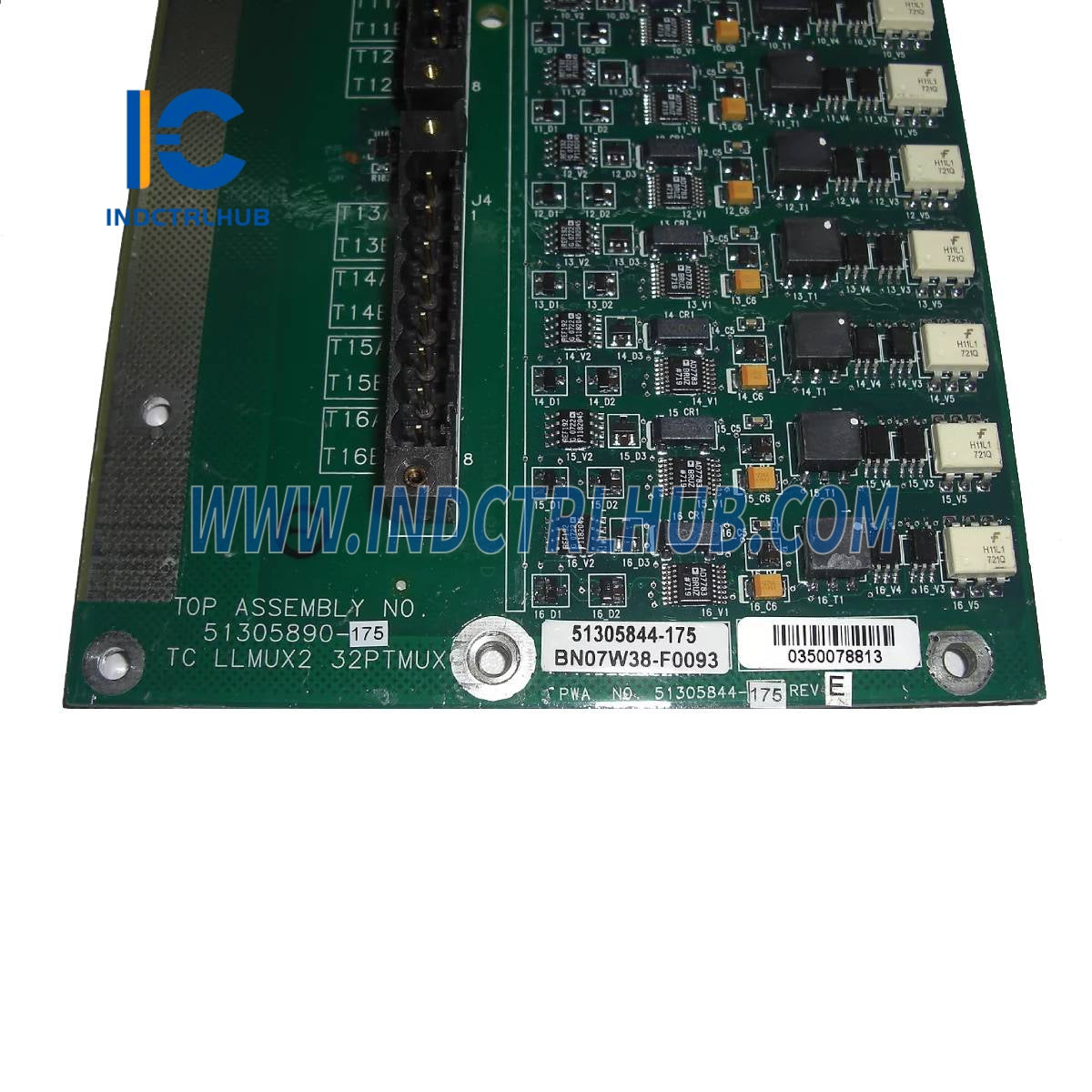

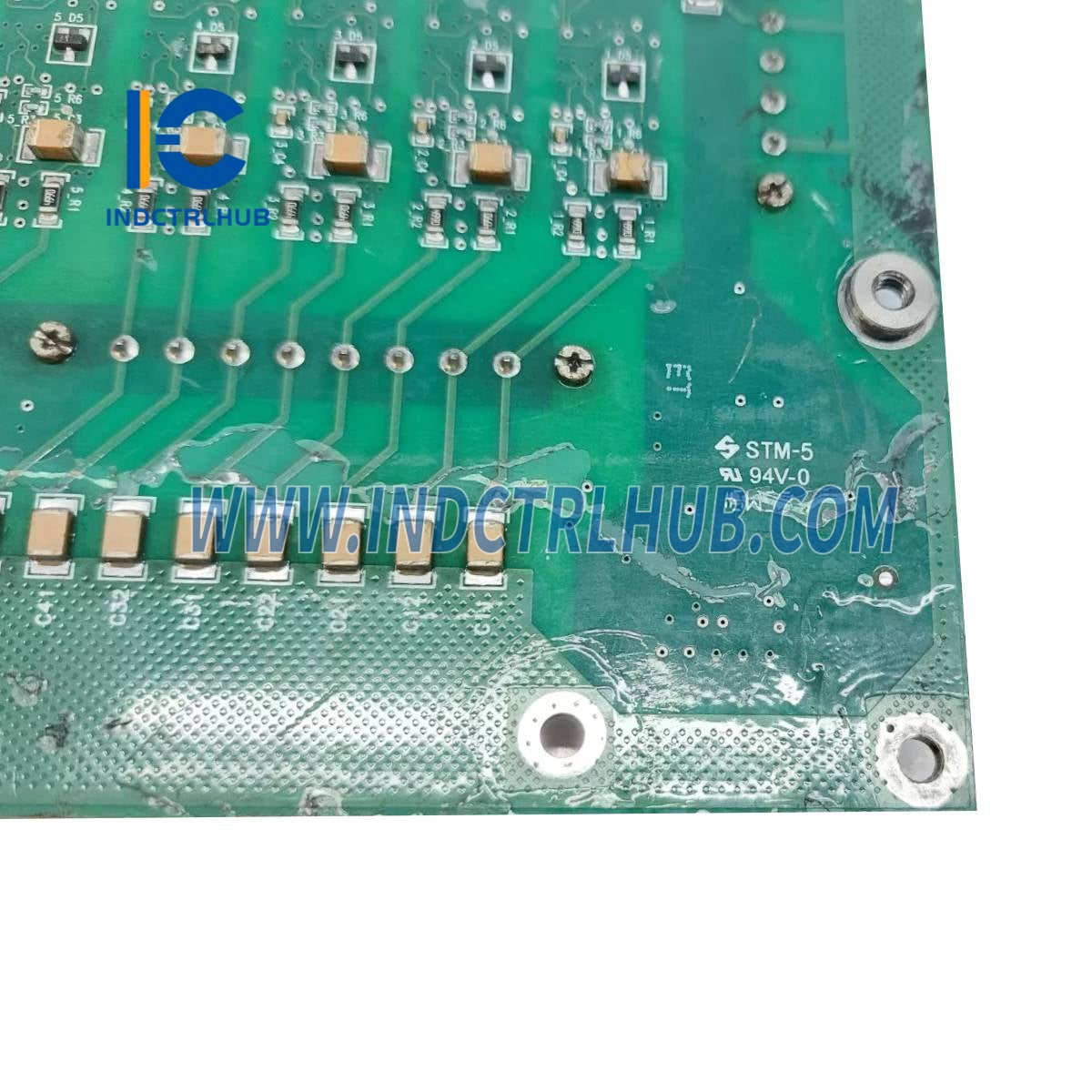

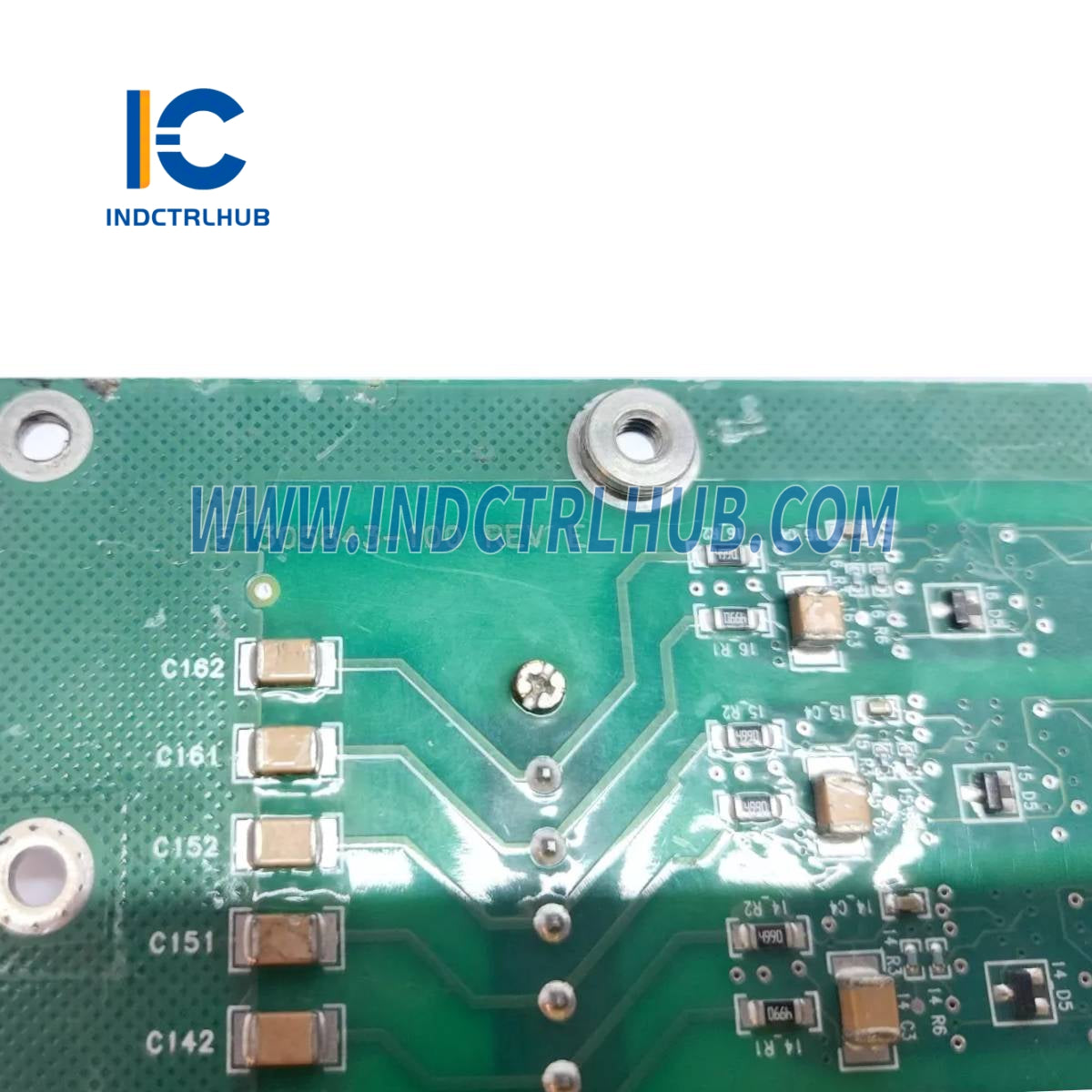

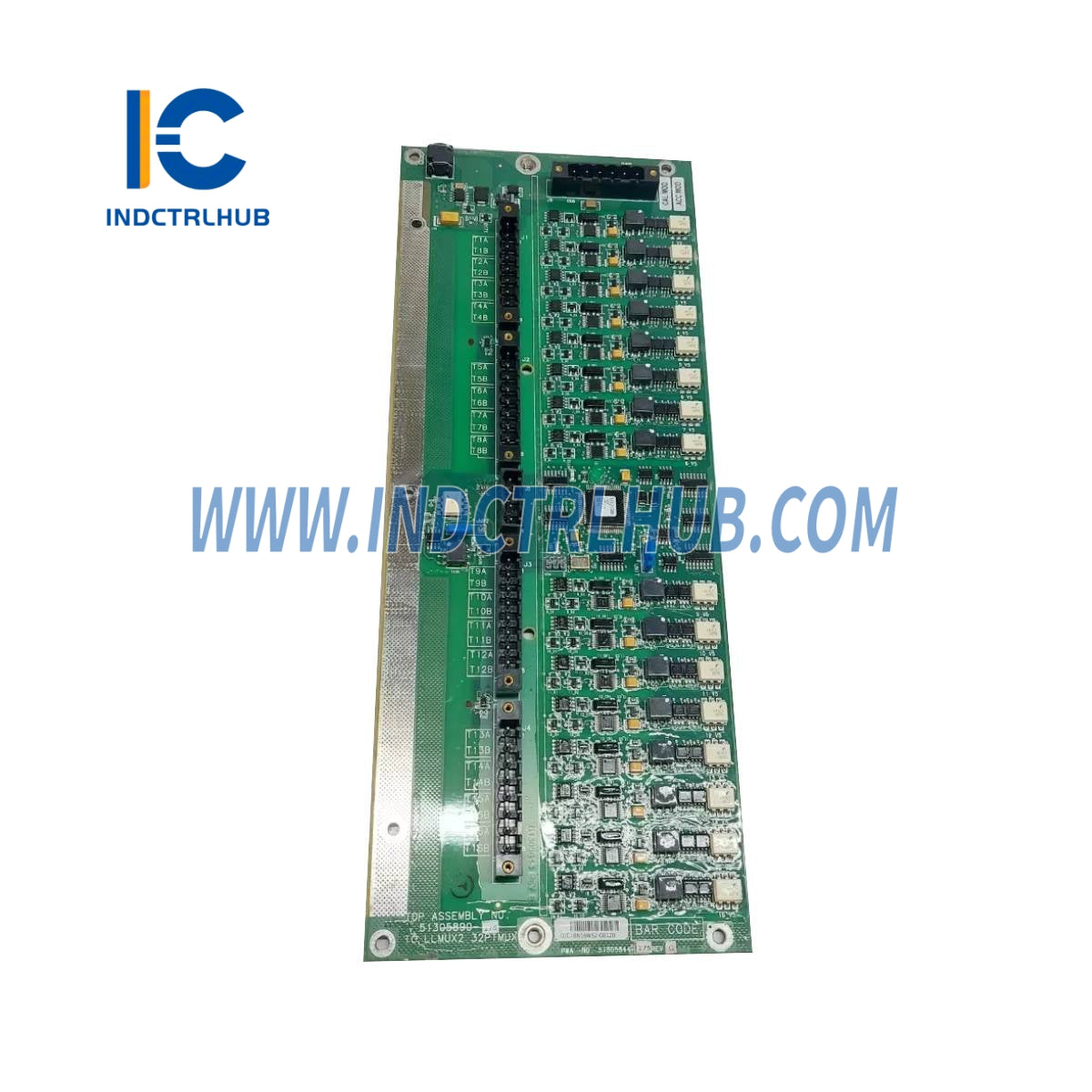

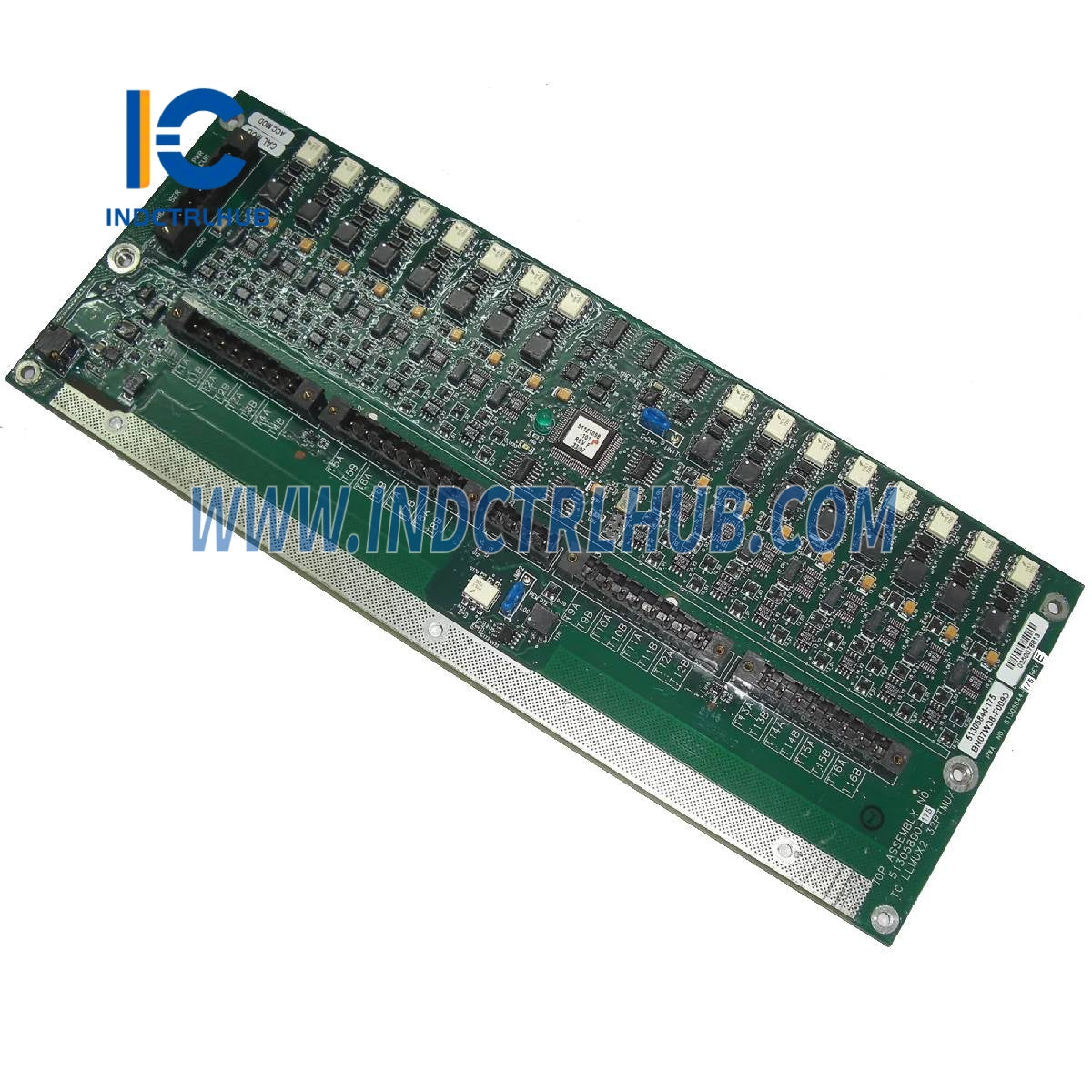

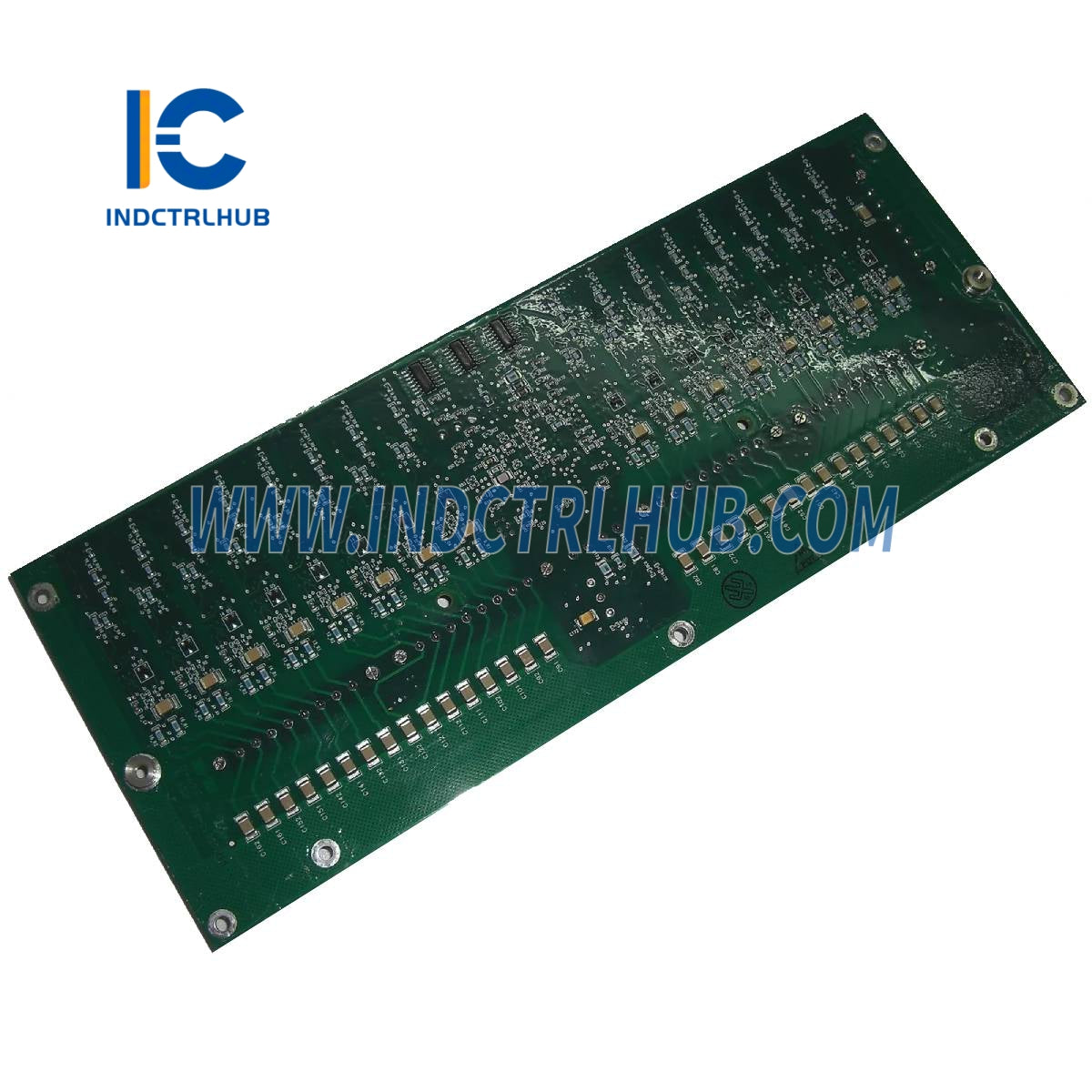

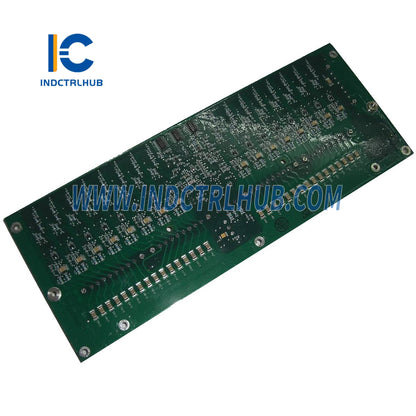

Honeywell 51305844-175 MC-TAMT03 Low Level Analog Input Multiplexer
Product Overview
- The Honeywell 51305844-175, also known as MC-TAMT03, is a Low Level Analog Input Multiplexer Field Termination Assembly (FTA) designed for use in Honeywell’s Universal Control Network (UCN) within the TDC 3000 and Experion Process Knowledge System (PKS) platforms. This module supports 16 thermocouple (TC) input channels for precise temperature measurement, making it ideal for industrial automation applications in industries such as oil and gas, chemical, and manufacturing.
Technical Specifications
- The MC-TAMT03 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | 51305844-175 (MC-TAMT03) |
| Manufacturer | Honeywell |
| Description | Low Level Analog Input Multiplexer FTA, 16 Thermocouple Inputs |
| Series | TDC 3000 / Experion PKS |
| Input Channels | 16 thermocouple inputs |
| Input Types | Thermocouple (supports multiple TC types, e.g., J, K, T, E) |
| Terminals | Compression terminals |
| Power Supply | 24 VDC nominal (via I/O rack) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approx. 0.5 kg |
Additional Details
- The MC-TAMT03 includes the following additional information based on its standard use and documentation:
- Function: Processes low-level thermocouple signals for accurate temperature monitoring, interfacing with field devices to the control system.
- Mounting: Installs in TDC 3000 or Experion PKS I/O rack, connected to Input/Output Processors (IOPs) via standard FTA cables.
- Compatibility: Compatible with Honeywell’s TDC 3000 Process Manager and Experion PKS C300 Controller; supports integration with low-level analog input IOPs.
- Configuration: CE-compliant and conformal coated for durability in harsh environments; supports cold junction compensation for thermocouple accuracy.
- Certifications: Meets CE, UL, and ATEX standards for industrial environments.
- Part Type: Available as new, surplus, or refurbished (depending on supplier).
- Features: High channel density for efficient signal processing; robust design for reliable operation; supports precise temperature measurement in demanding applications.
Note: Specifications for the 51305844-175 (MC-TAMT03) are compiled from industry sources and supplier documentation, including insights from trusted vendors. For precise details, refer to Honeywell’s official technical documentation or contact a certified supplier.
