Product Description

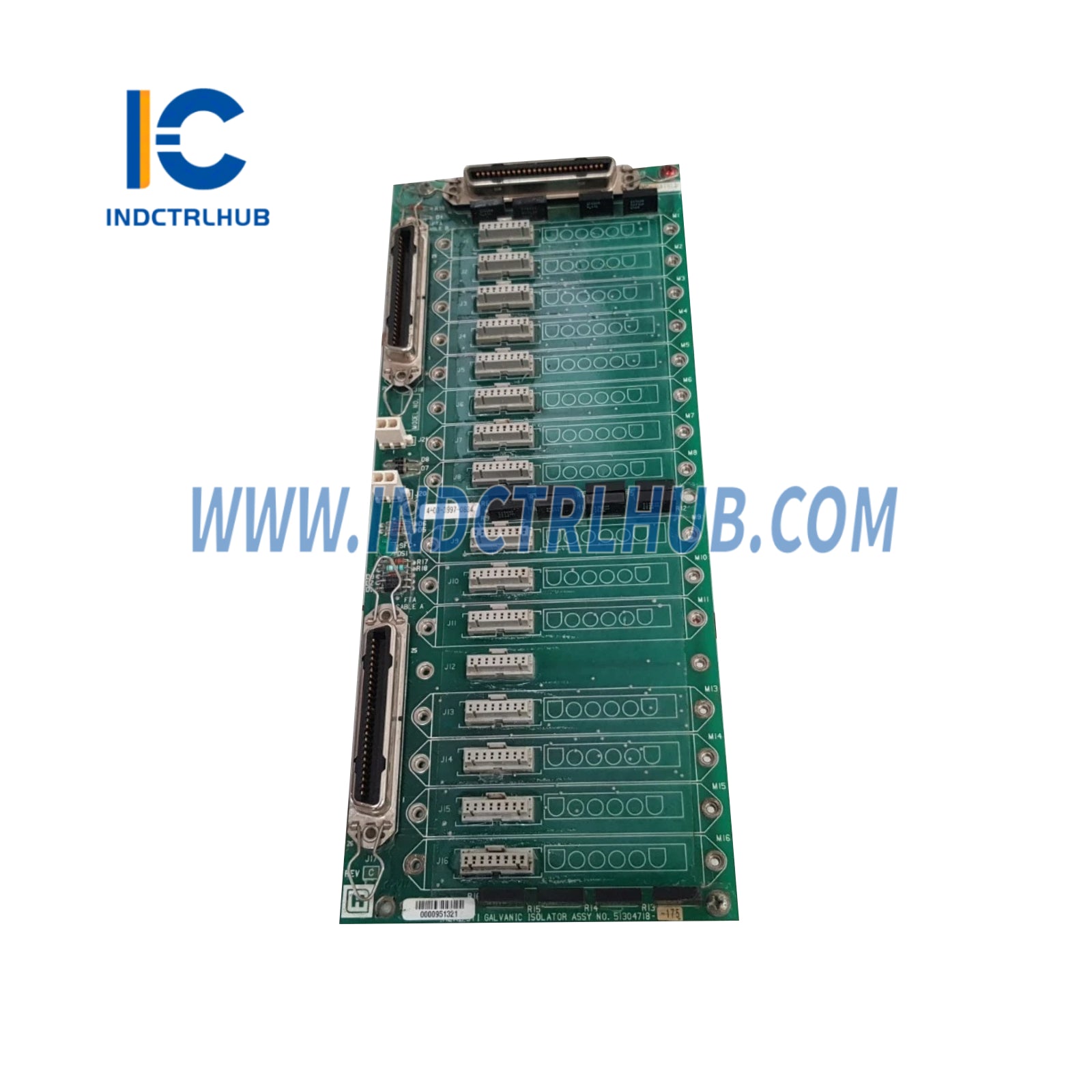

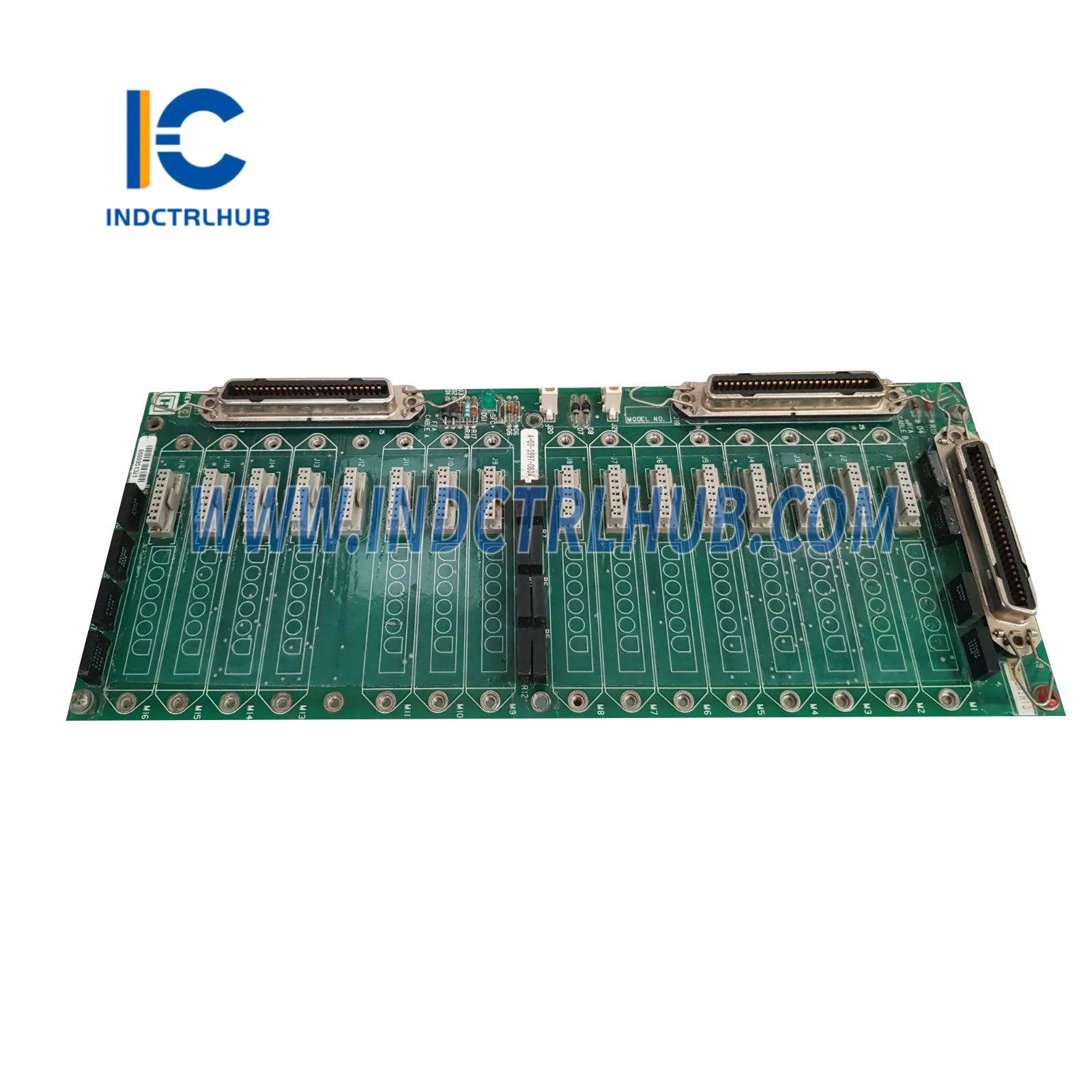

Honeywell 51304718-150 MU-GAIH14 HLAI FTA GI/IS
Product Overview
- The Honeywell 51304718-150 MU-GAIH14 is a High-Level Analog Input Field Termination Assembly (FTA) with Galvanic Isolation/Intrinsic Safety (GI/IS), designed for use in Honeywell’s Universal Control Network (UCN) within the TDC 3000 and Experion Process Knowledge System (PKS) platforms. This module supports 16 high-level analog input channels, processing signals such as 4-20 mA or voltage inputs from field devices, with galvanic isolation for enhanced safety in hazardous environments. It is ideal for industrial automation applications in industries like oil and gas, chemical, and manufacturing.
Technical Specifications
- The MU-GAIH14 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | 51304718-150 (MU-GAIH14) |
| Manufacturer | Honeywell |
| Description | High-Level Analog Input FTA, GI/IS, 16 Channels |
| Series | TDC 3000 / Experion PKS |
| Input Channels | 16 high-level analog inputs |
| Input Types | 4-20 mA, voltage (e.g., 0-10 V, specific range depends on IOP) |
| Isolation | Galvanic Isolation/Intrinsic Safety (GI/IS) |
| Terminals | Compression terminals |
| Power Supply | 24 VDC nominal (via I/O rack) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approx. 0.5 kg |
Additional Details
- The MU-GAIH14 includes the following additional information based on its standard use and documentation:
- Function: Interfaces high-level analog input signals from field devices to the control system, with galvanic isolation to prevent electrical interference and ensure safety in hazardous areas.
- Mounting: Installs in TDC 3000 or Experion PKS I/O rack, connected to Input/Output Processors (IOPs) like MU-PAIH03 or MC-PAIH03 via standard FTA cables.
- Compatibility: Compatible with Honeywell’s TDC 3000 Process Manager, Experion PKS C300 Controller, and specific IOPs (MU-PAIH03, MC-PAIH03); supports redundant configurations for enhanced reliability.
- Configuration: CE-compliant; designed for use in intrinsically safe environments, with compression terminals for secure field wiring.
- Certifications: Meets CE, UL, and ATEX standards for industrial and hazardous environments.
