Product Description

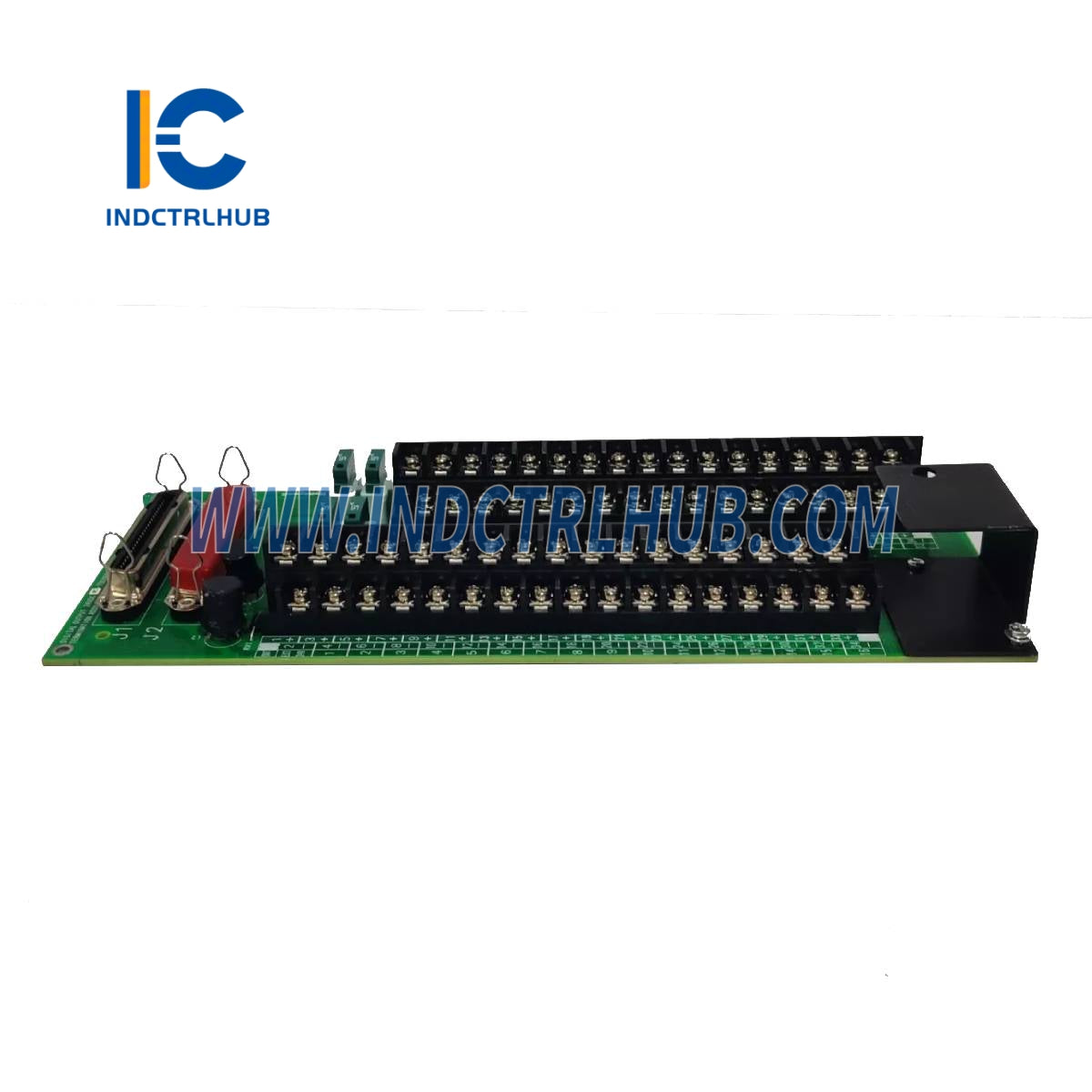

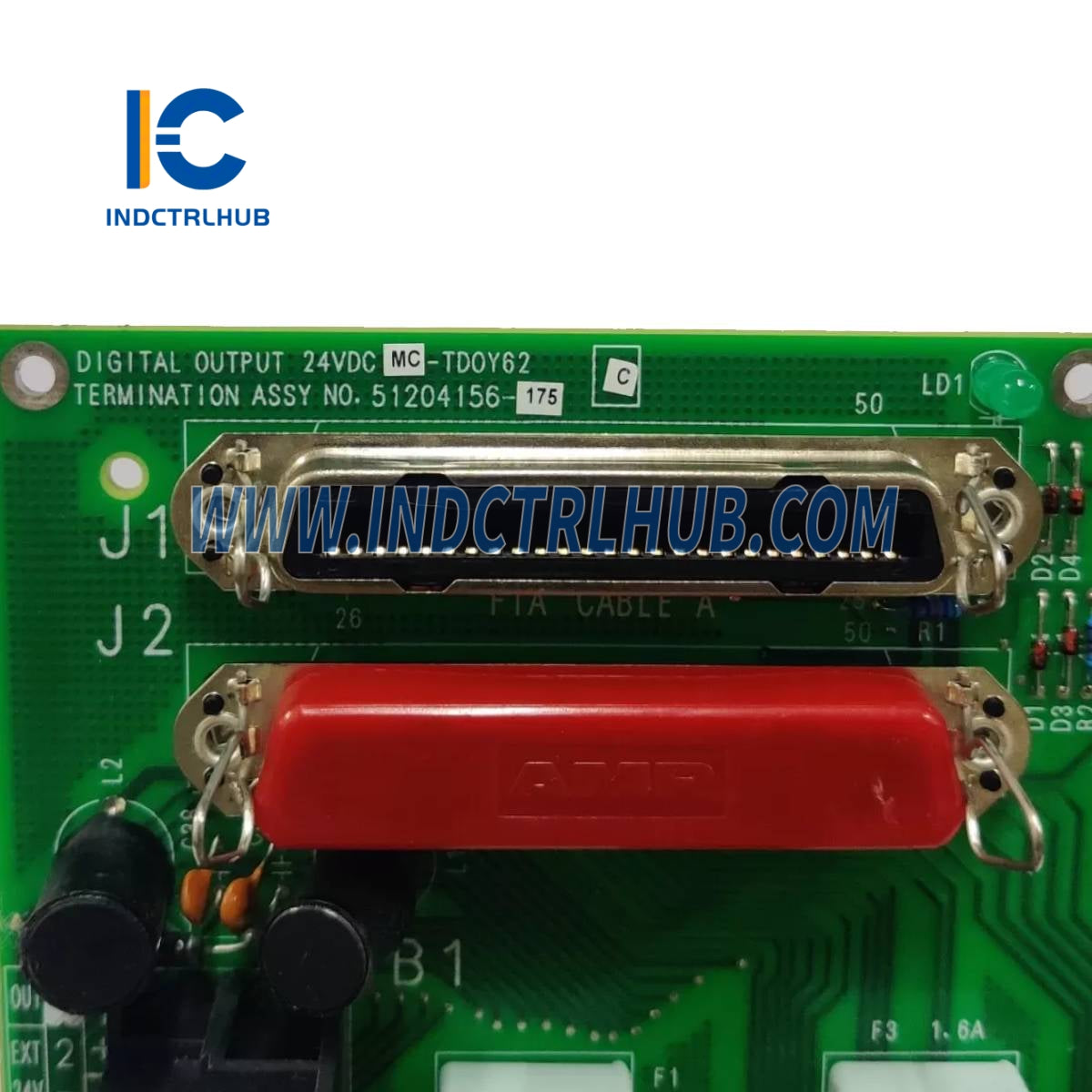

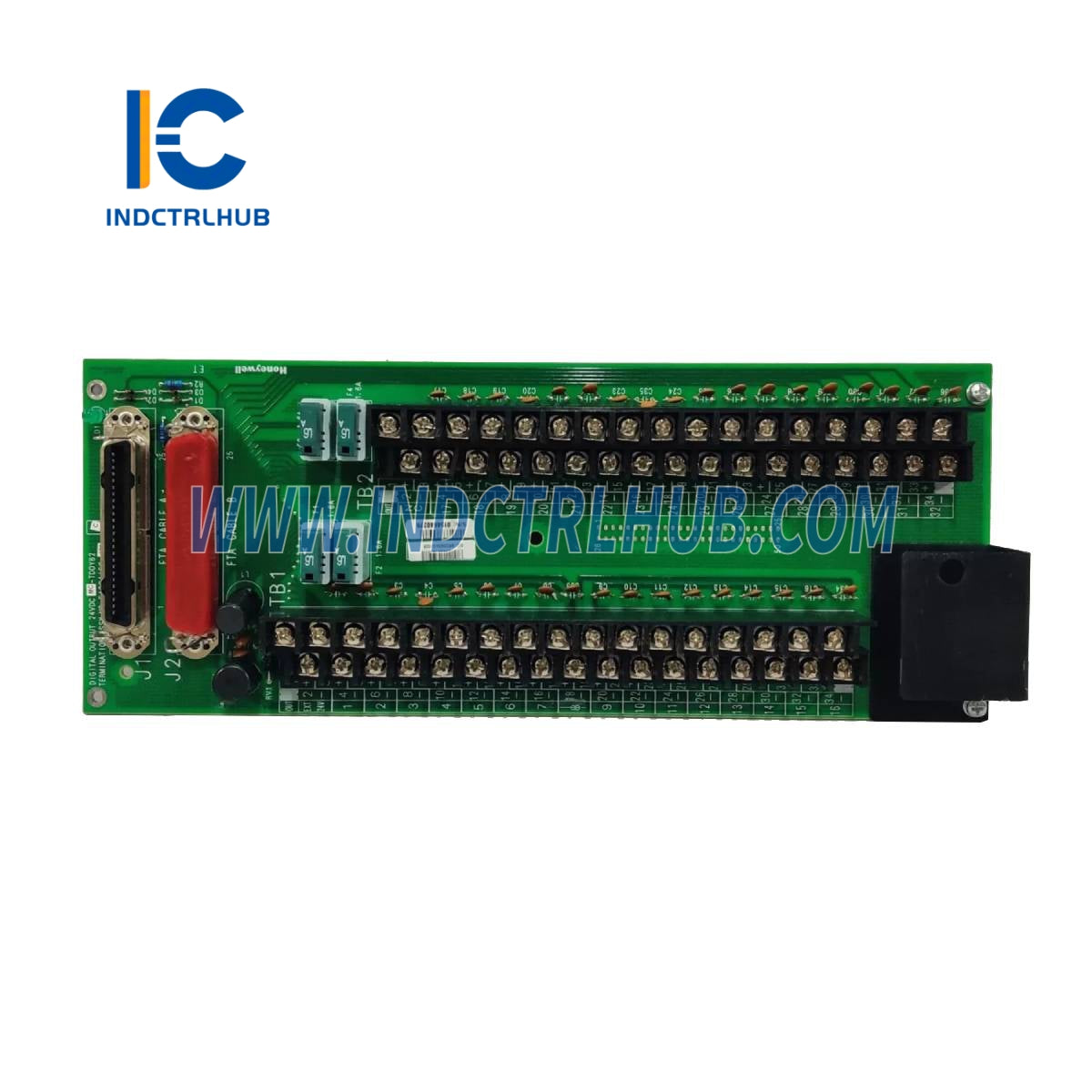

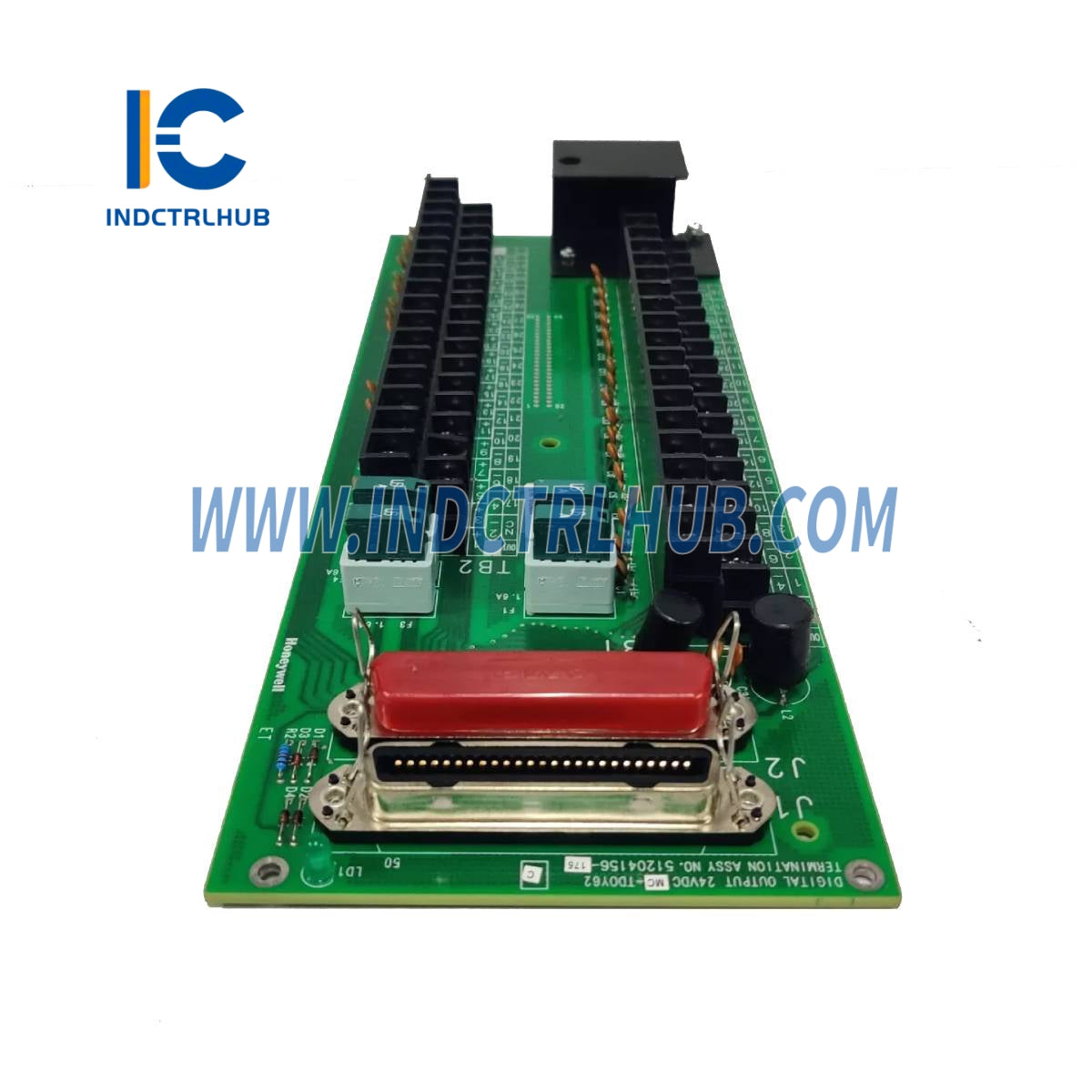

Honeywell MC-TDOY62 51204156-175 Digital Output Module
Product Overview
- The Honeywell MC-TDOY62 51204156-175 is a Digital Output Field Termination Assembly (FTA) designed for use in Honeywell’s Universal Control Network (UCN) within the TDC 3000 and Experion Process Knowledge System (PKS) platforms. This module provides reliable digital output signals to control field devices, supporting up to 32 channels at 24 VDC. It is ideal for industrial automation applications requiring precise and robust control in distributed control systems.
Technical Specifications
- The MC-TDOY62 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | MC-TDOY62 51204156-175 |
| Manufacturer | Honeywell |
| Description | Digital Output FTA, 24 VDC, 32 Channels |
| Series | TDC 3000 / Experion PKS |
| Output Channels | 32 channels |
| Output Voltage | 24 VDC |
| Power Supply | 24 VDC nominal (via I/O rack) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approx. 0.5 kg |
Additional Details
- The MC-TDOY62 includes the following additional information based on its standard use and documentation:
- Function: Delivers digital output signals to control field devices such as actuators, relays, and solenoids in industrial control systems.
- [](https://www.mooreplc.com/51204156-175-mc-tdoy62-honeywell-digital-output-fta-24v-32-channels_p8721.html)
- Mounting: Installs in TDC 3000 or Experion PKS I/O rack, connected to I/O processors via standard FTA cables up to 50 meters in length.
- Compatibility: Compatible with Honeywell’s TDC 3000 Process Manager, Experion PKS C300 Controller, and related digital output I/O processors.
- Configuration: Configured via Honeywell’s control system software; supports non-redundant configurations.
- Certifications: Meets UL, CE, and ATEX standards for industrial environments.
