Product Description

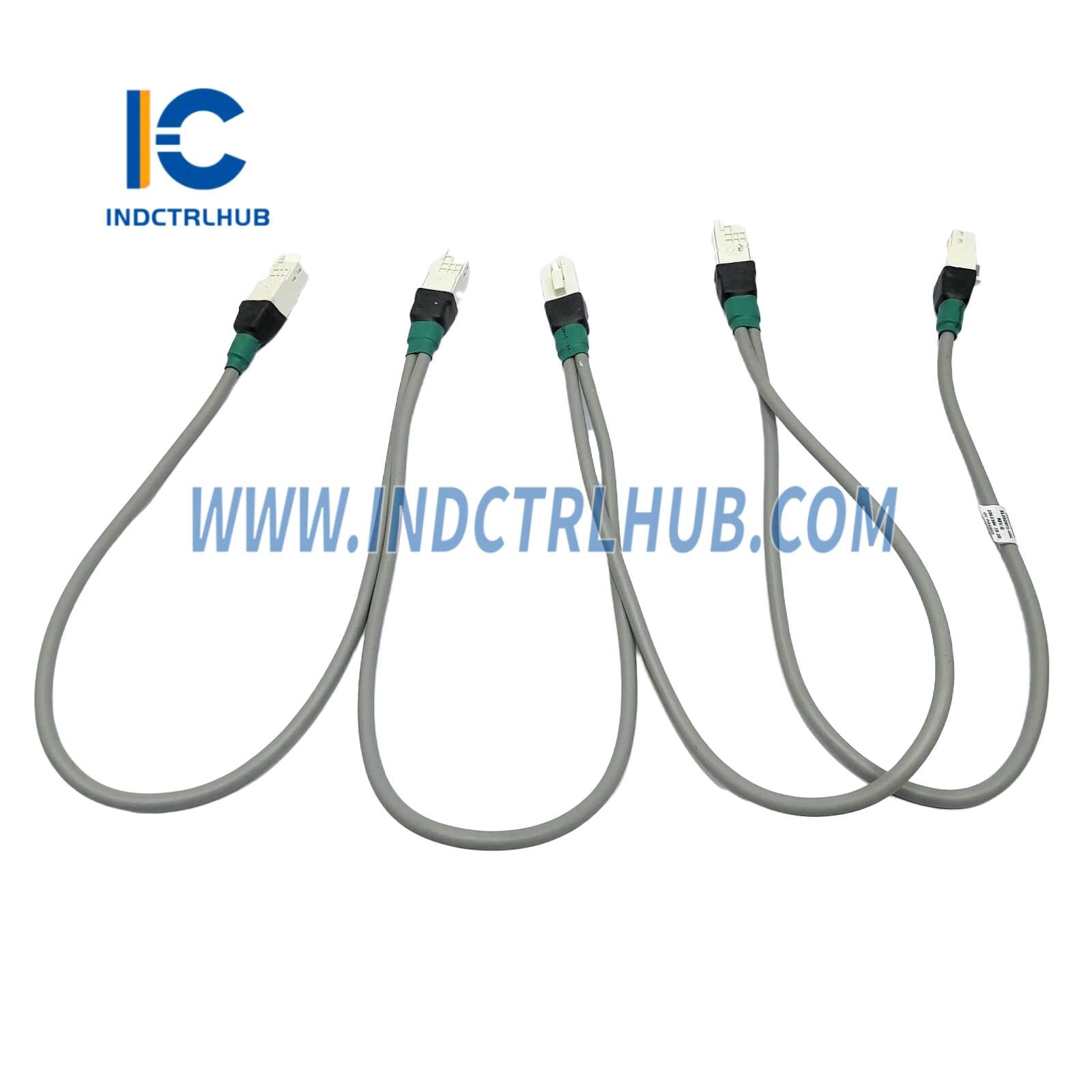

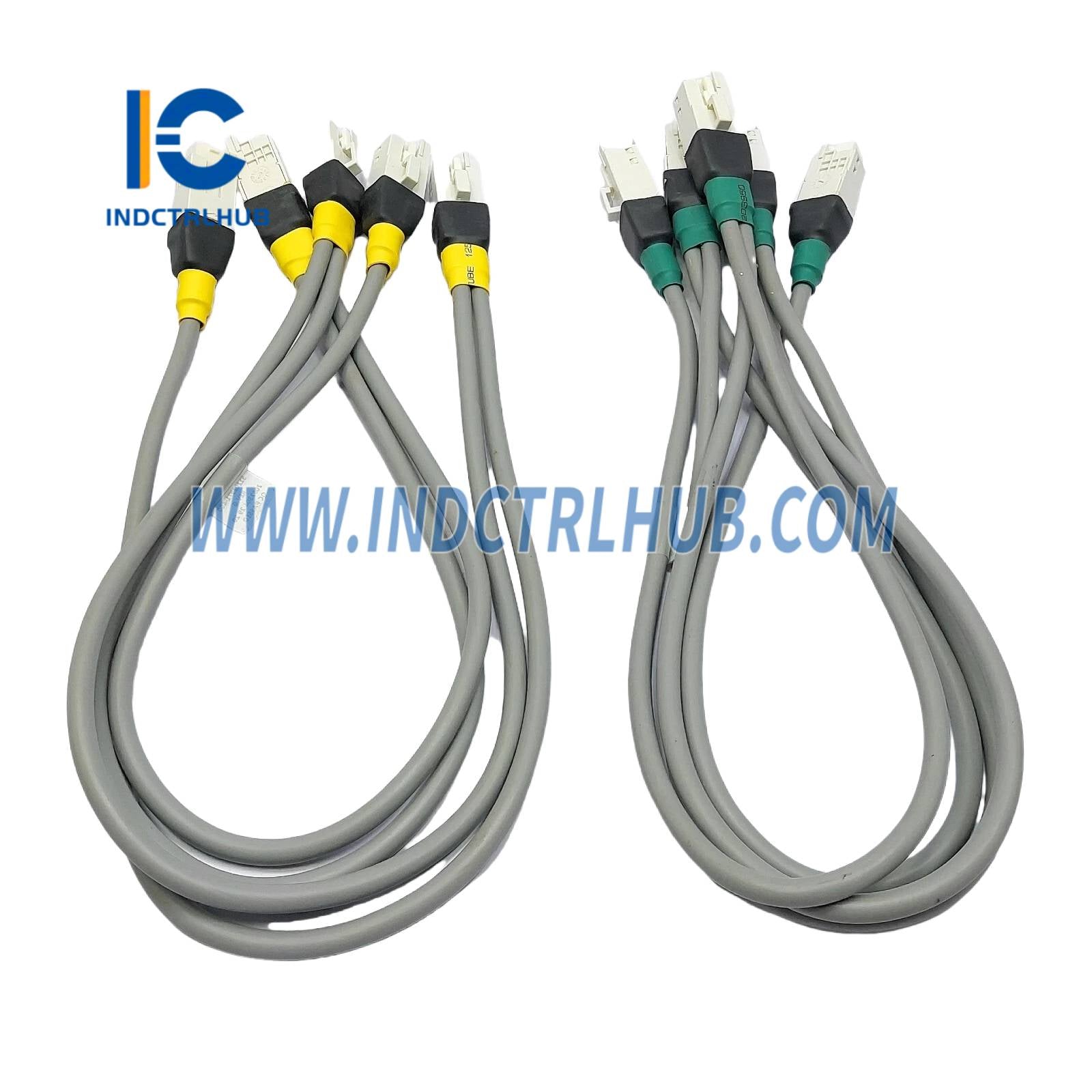

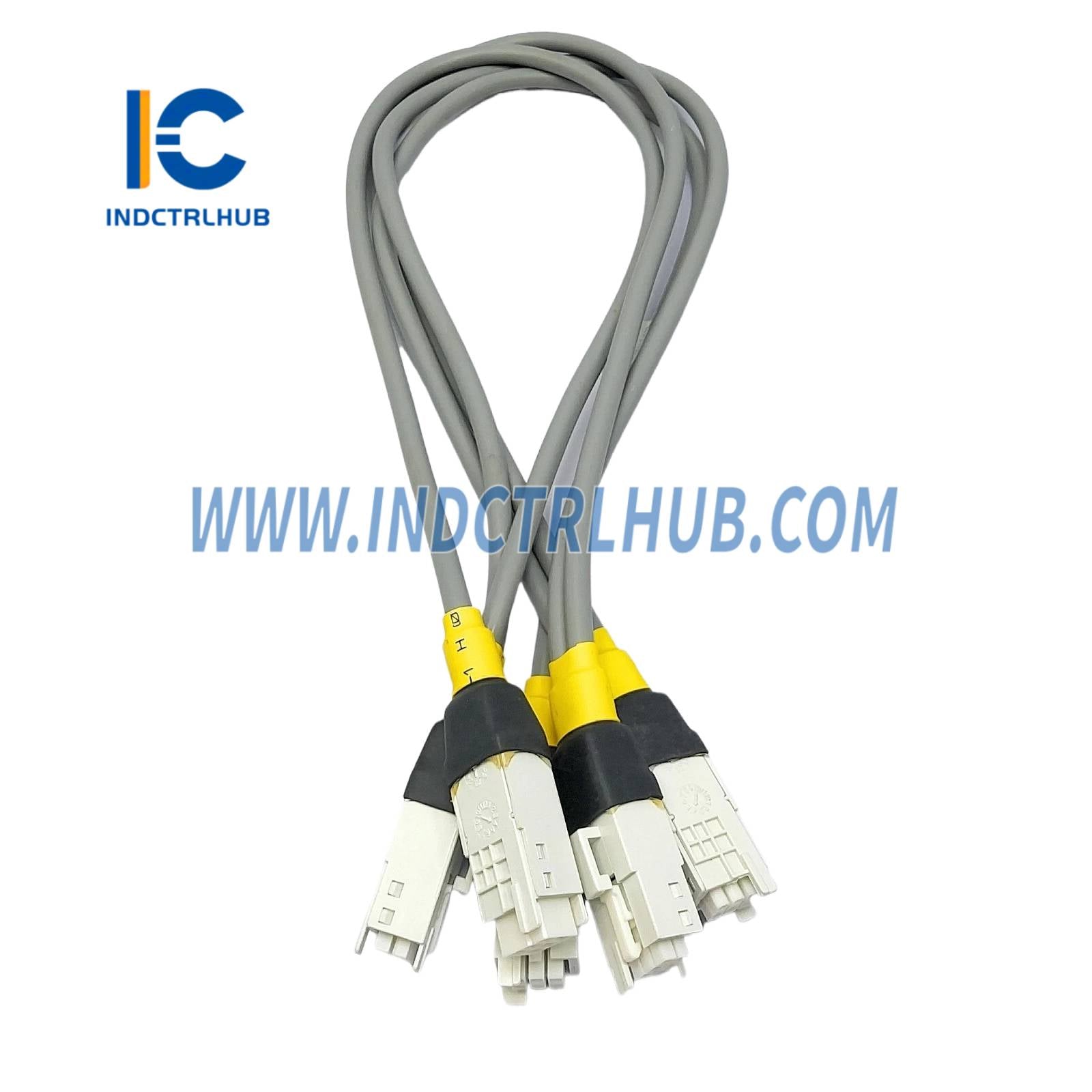

Honeywell 51202971-302 Combo IO Link 4-Drop Cable
- Manufacturer: Honeywell
- Series: Experion PKS / Series C
- Model/Part Number: 51202971-302
- Description: Combo IO Link 4-Drop Cable for Series C I/O modules in Experion PKS systems
Overview
The Honeywell 51202971-302 is a Combo IO Link 4-Drop Cable designed for use in Honeywell’s Experion Process Knowledge System (PKS) with Series C Input/Output (I/O) modules.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 51202971-302 |
| Series | Experion PKS / Series C |
| Type | Combo IO Link 4-Drop Cable |
| Function | Connects C300 Controller to up to four Series C I/O modules for data and power |
| Cable Type | Shielded, multi-conductor cable (gray) |
| Drop Configuration | 4 drops, 9-inch (229 mm) pitch |
| Length | Variable, typically 1–2 meters (3.28–6.56 feet, configuration-dependent) |
| Connectors | Proprietary Honeywell connectors (specific to Series C I/O Link) |
| Data Rate | Supports high-speed I/O Link communication (up to 2x PM I/O rate) |
| Compatibility | Experion PKS C300 Controller (e.g., CC-PCNT02), Series C I/O modules (e.g., CC-PAIH01, CC-PAOH01, CC-TDOB01) |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Environmental Protection | Shielded for EMI/RFI protection, suitable for indoor industrial environments |
| Weight | Approx. 0.3–0.5 kg (0.66–1.1 lbs, configuration-dependent) |
| Certifications | CE, UL, CSA (application-dependent) |
| Manual | Experion PKS Series C I/O User’s Guide |
