Product Description

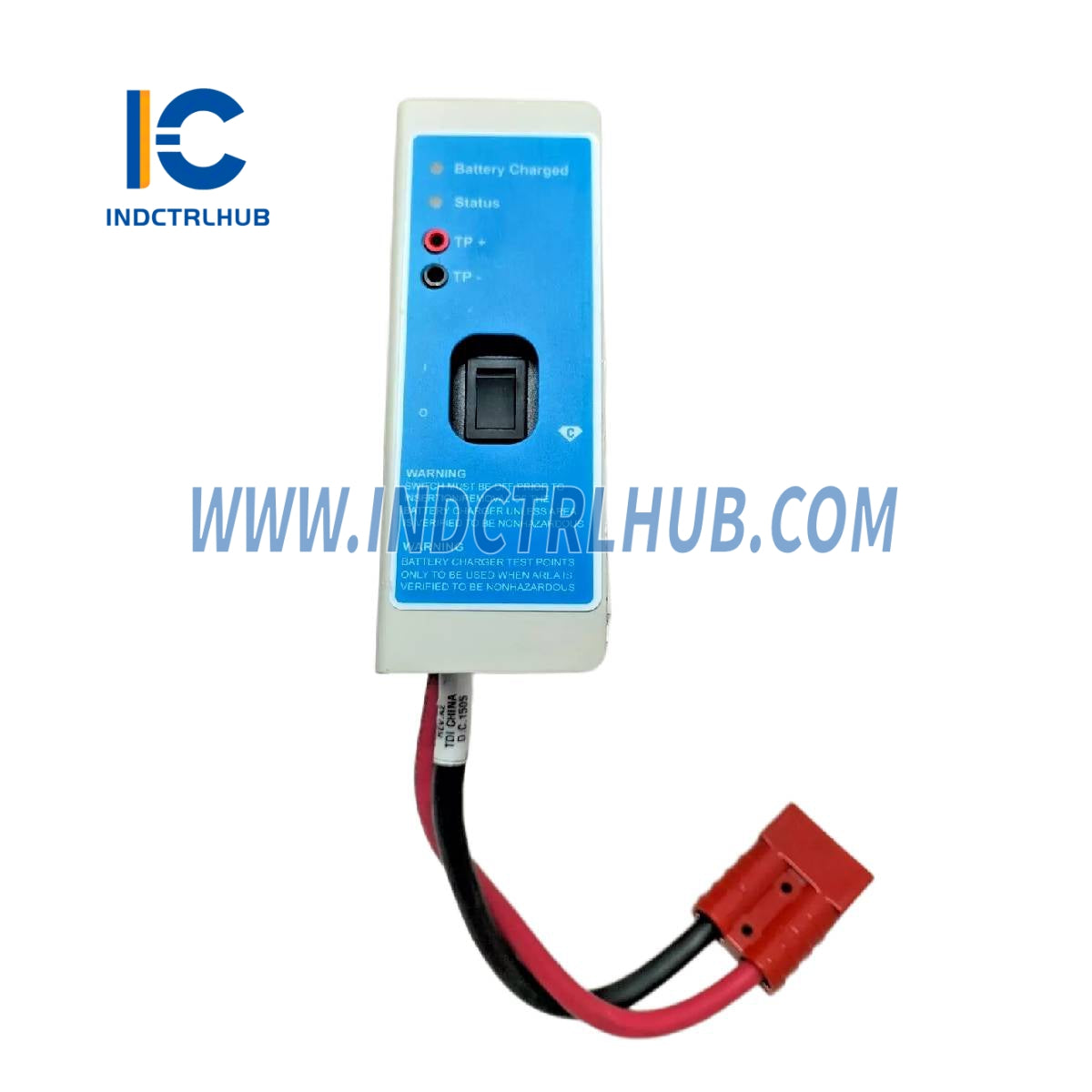

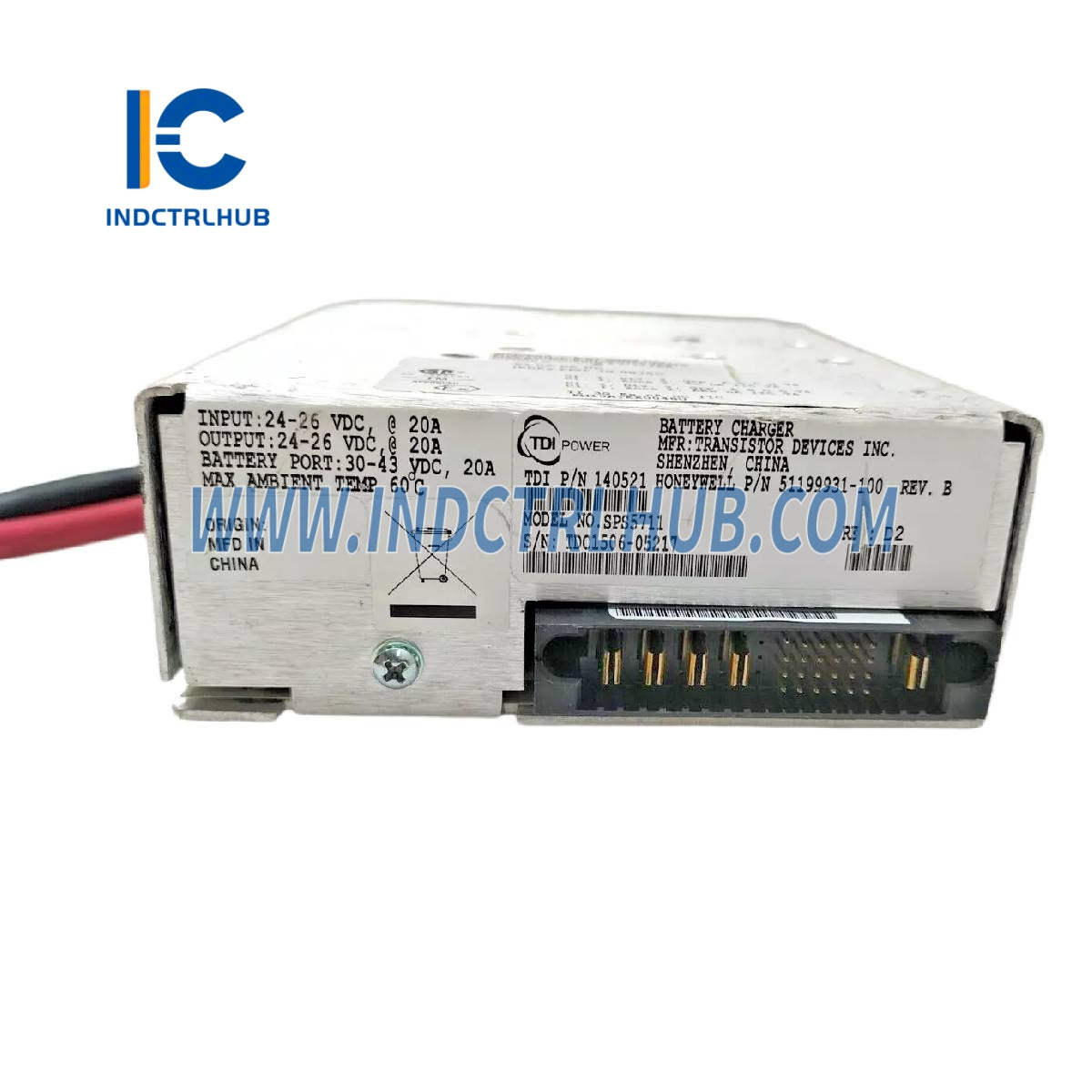

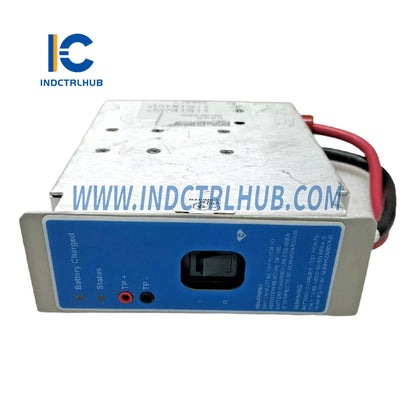

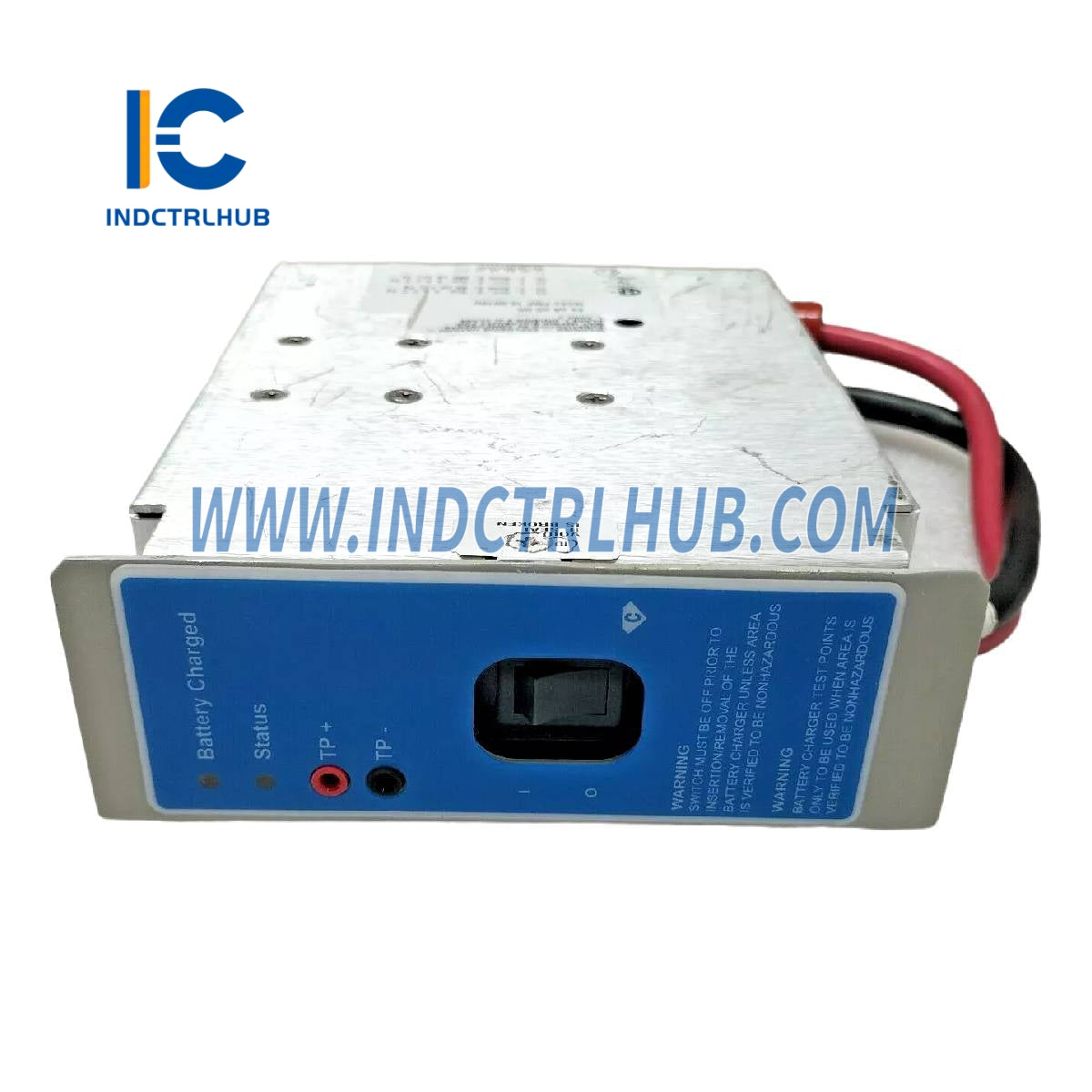

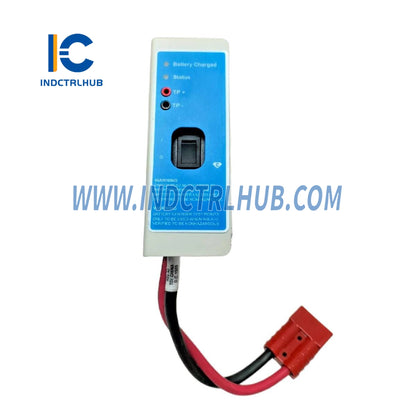

Honeywell 51199931-100 Battery Charger
Product Overview
- The Honeywell 51199931-100 is a Battery Charger module designed for use in Honeywell’s Universal Control Network (UCN) equipment cabinets, supporting Process Manager (PM), Advanced Process Manager (APM), and High-Performance Process Manager (HPM) systems within the TDC 3000 and Experion Process Knowledge System (PKS) platforms. This module ensures continuous power availability by charging 48 VDC backup batteries, maintaining system operation during AC power failures. It is critical for industrial automation applications requiring high reliability in industries such as oil and gas, chemical, and manufacturing.
Technical Specifications
- The 51199931-100 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | 51199931-100 |
| Manufacturer | Honeywell |
| Description | Battery Charger for UCN Systems |
| Series | TDC 3000 / Experion PKS (PM, APM, HPM) |
| Input Voltage | 85 to 264 VAC |
| Battery Type | 48 VDC (lead-acid or compatible) |
| Charging Output | 48 VDC, adjustable current (typically up to 10 A) |
| Operating Temperature | -20°C to +55°C (-4°F to +131°F) |
| Weight | Approx. 1 kg |
Additional Details
- The 51199931-100 includes the following additional information based on its standard use and documentation:
- Function: Charges 48 VDC backup batteries to ensure uninterrupted power supply to UCN systems during AC power outages, supporting critical process control operations.
- Mounting: Installs in UCN equipment cabinets alongside HPM power supplies (e.g., 51198947-100 series), designed for seamless integration.
- Compatibility: Compatible with Honeywell’s TDC 3000 and Experion PKS systems; works with power supplies like 51198947-100 and 51109684-100 for comprehensive power management.
- Configuration: CE-compliant; supports integration with redundant power systems for enhanced reliability.

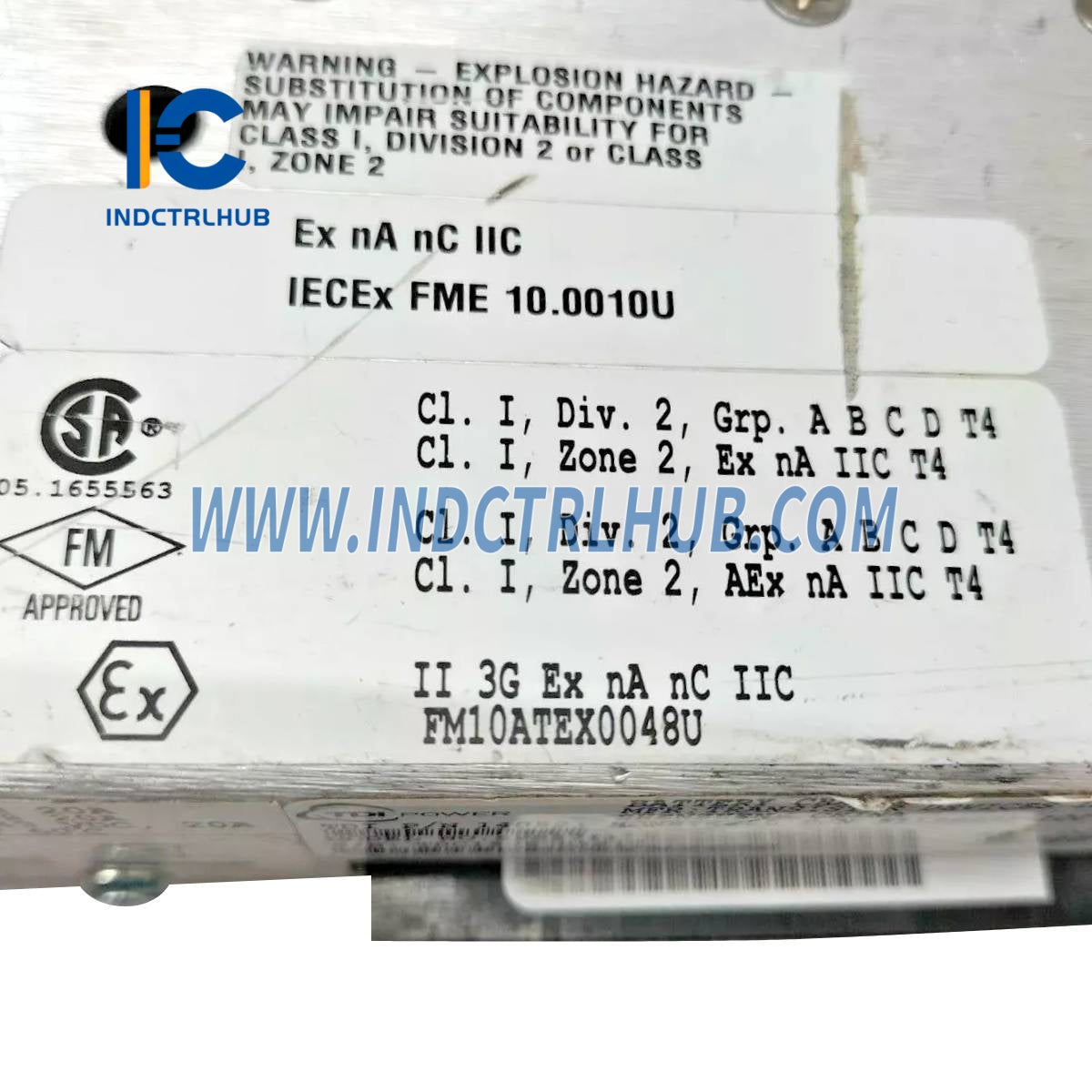

- Certifications: Meets CE, UL, and CSA standards for industrial environments.
